MERKUR 2 wire mesh cable tray - G type

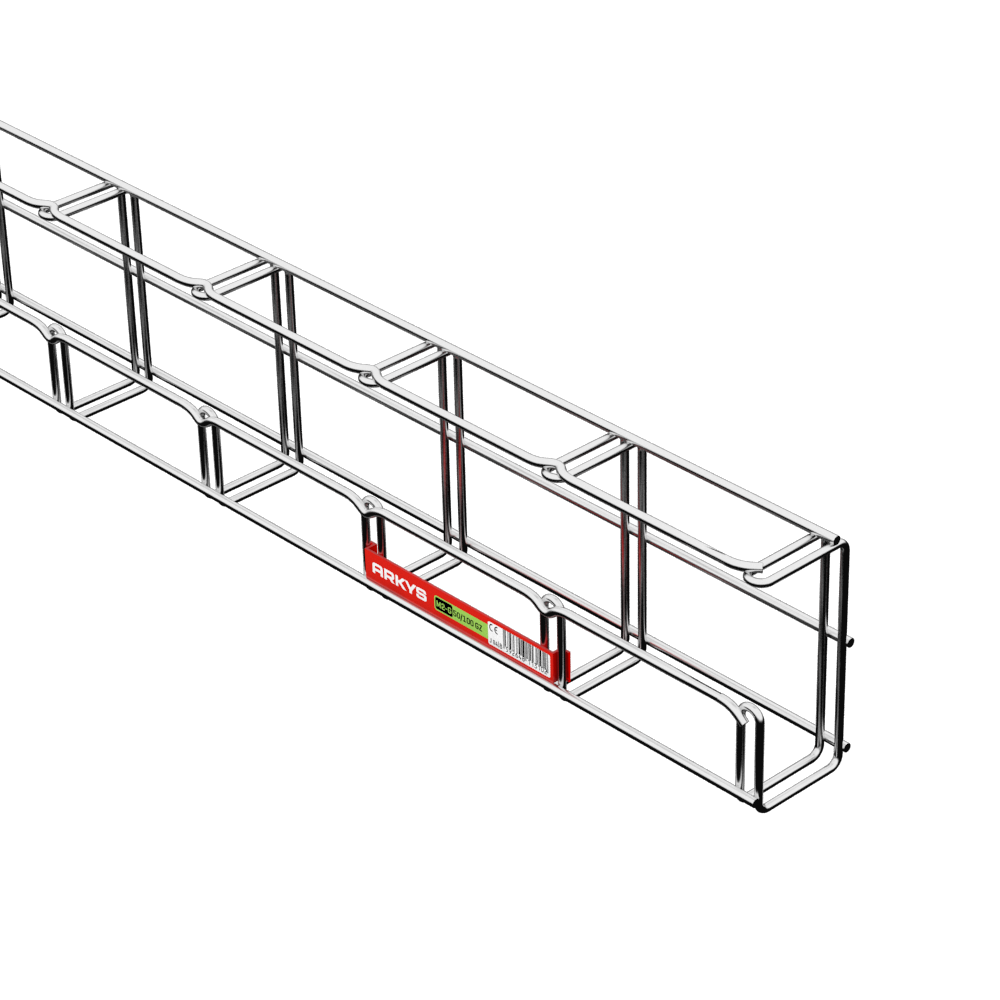

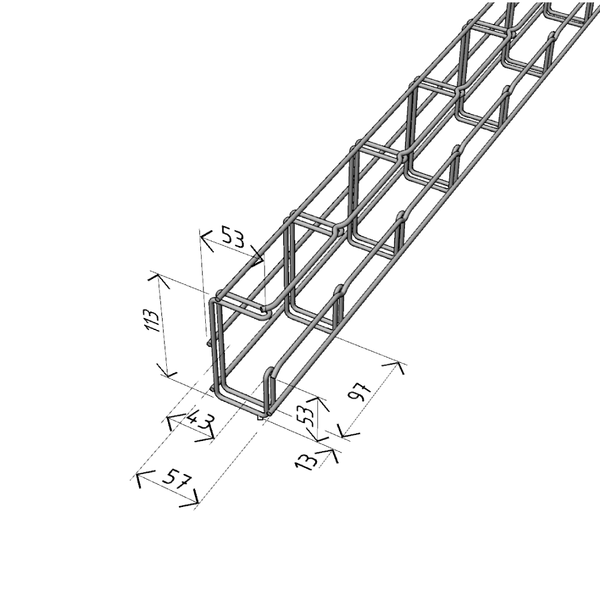

M2-G 50/100 wire cable tray

  • 50 mm
  • 100 mm
  • 2000 mm
  • Functional integrity
M2-G 50/100 wire cable tray
  • Number of SZM 1 couplings for connecting the ducts 2×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 1 320 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211310
  • ZZ ARK -221310
  • A2 ARK -231314
  • A4 ARK -241314 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 4 pcs 3 pcs 2 pcs 2 pcs 1 pc 1 pc 1 pc 1 pc x x x x
II 8 pcs 6 pcs 4 pcs 4 pcs 2 pcs
III 12 pcs 9 pcs
IV 16 pcs

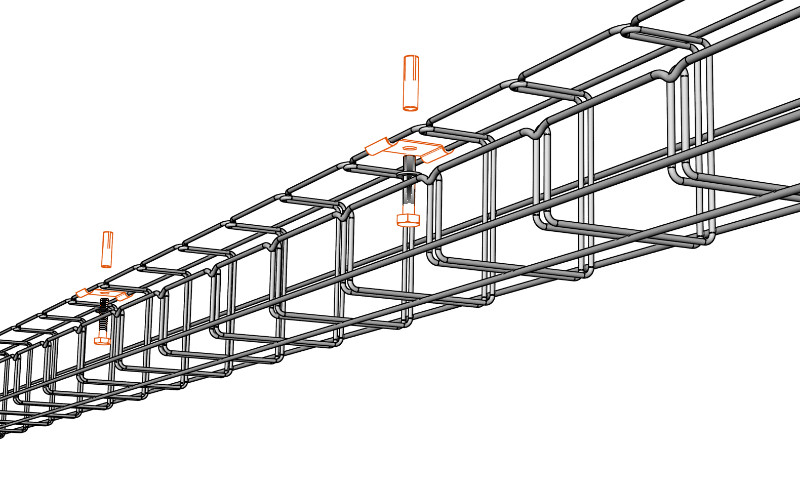

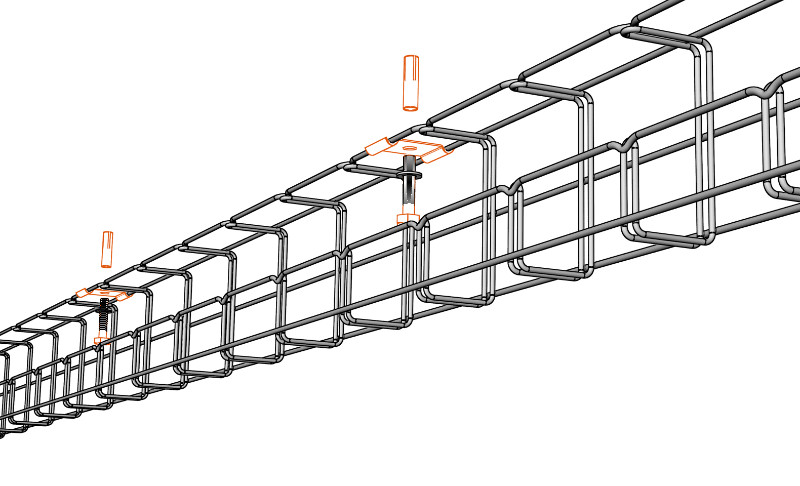

Cable mesh trays of the G range are intended for simplified assembly in the soffit with DZM holders.

M2-G 50/100 wire cable tray
M2-G 50/100 wire cable tray

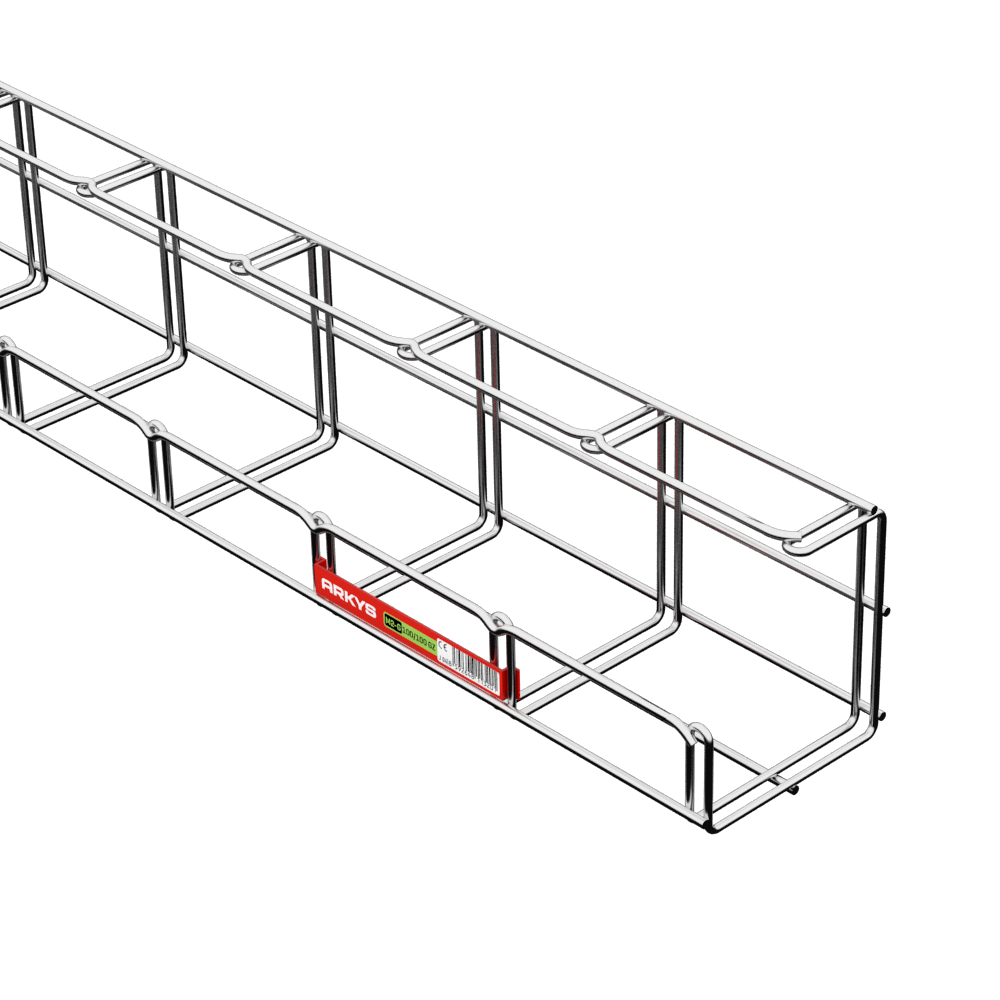

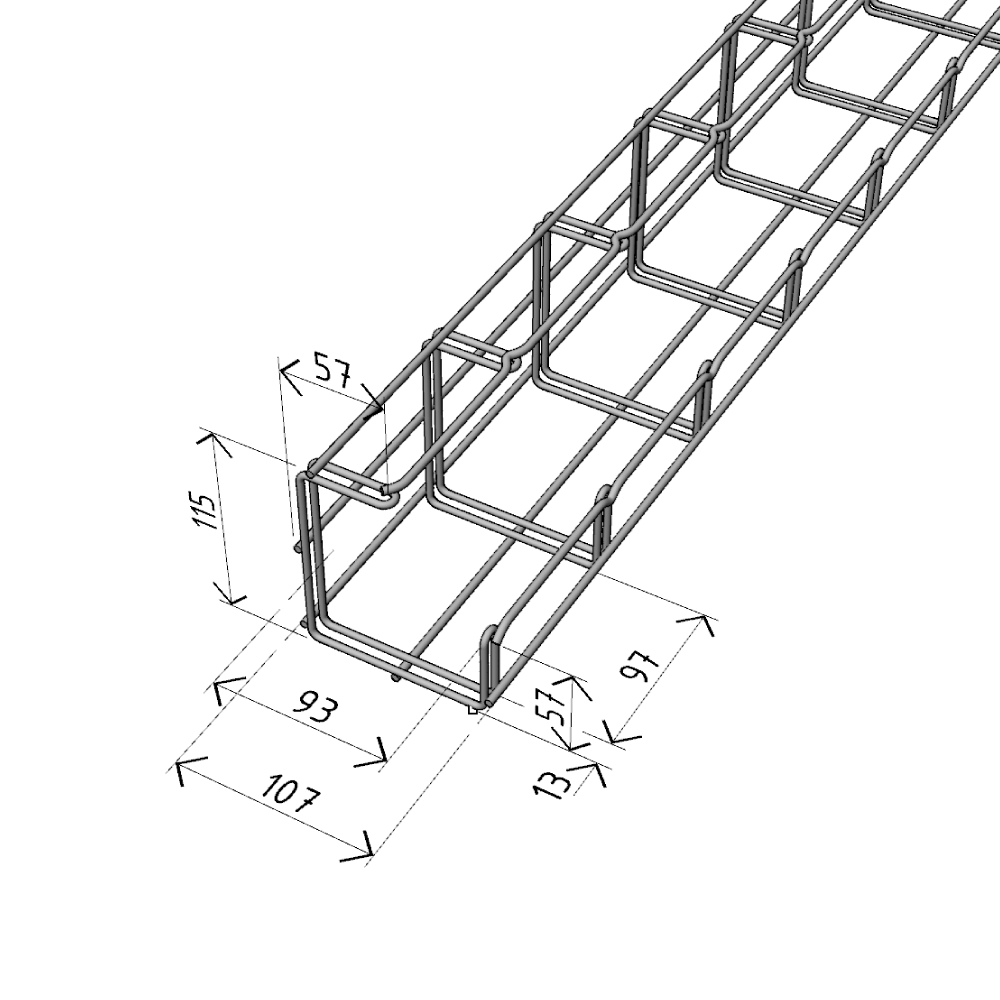

M2-G 100/100 cable tray

  • 100 mm
  • 100 mm
  • 2000 mm
  • 2,3 kg
  • Functional integrity
M2-G 100/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 2×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 6 120 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211320
  • ZZ ARK -221320
  • A2 ARK -231324
  • A4 ARK -241324 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 9 pcs 7 pcs 5 pcs 4 pcs 3 pcs 3 pcs 2 pcs 2 pcs 2 pcs 1 pc 1 pc 1 pc
II 18 pcs 14 pcs 10 pcs 8 pcs 6 pcs 6 pcs 4 pcs 4 pcs 4 pcs
III 27 pcs 21 pcs 15 pcs 12 pcs 9 pcs 9 pcs
IV 36 pcs 28 pcs 20 pcs 16 pcs
V 45 pcs 35 pcs 25 pcs
VI 54 pcs 42 pcs
VII 63 pcs 49 pcs
VIII 72 pcs
IX 81 pcs

Cable mesh trays of the G range are intended for simplified assembly in the soffit with DZM holders.



M2-G 100/100 cable tray
M2-G 100/100 cable tray
