NZMU universal bracket

NZMU

NZMU universal brackets are used as wall bearing elements for wall mounting of cable routes. Their universality allows:

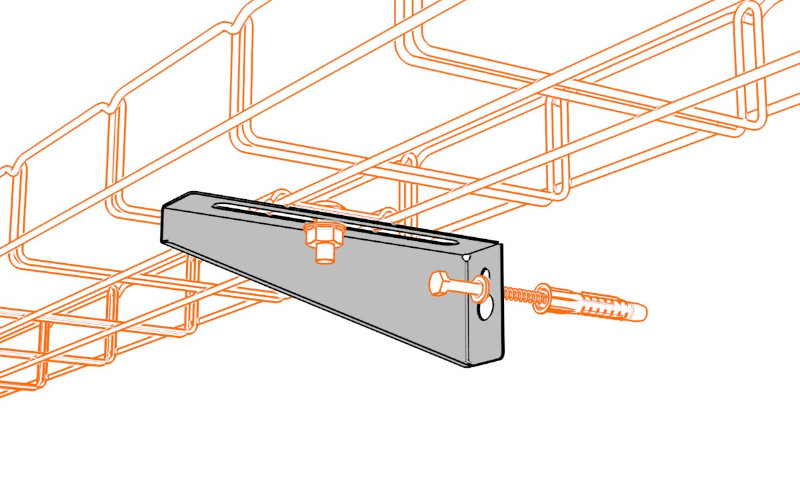

  • assembly of MERKUR 2 mesh trays with the DZM 11 holder

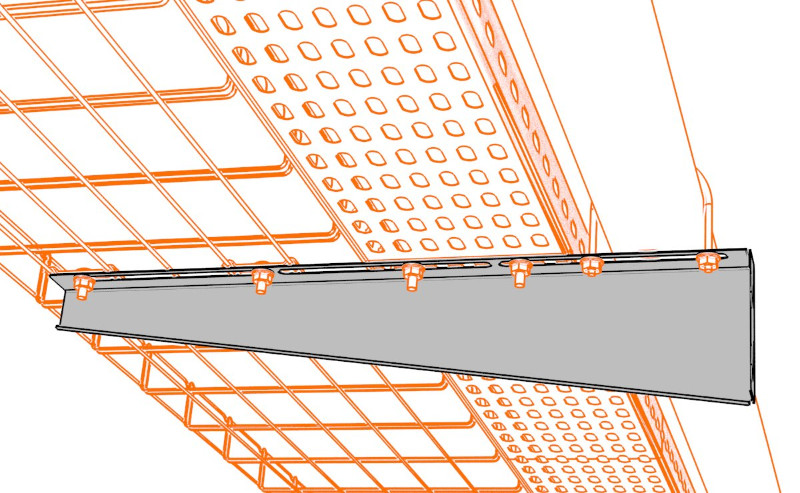

  • sheet steel trays with carriage bolt and nut
  • other media (water supply/heating) with the corresponding clamps

Different cable trays and media installed on the bracket may be combined if necessary.

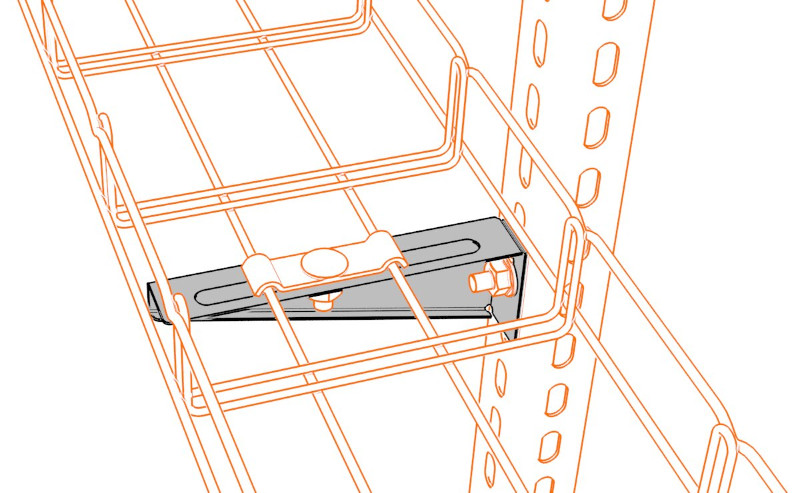

In case of several wall-mounted parallel cable routes or for spatial installation, the STNM or STPM rail struts may be used with their corresponding holders.

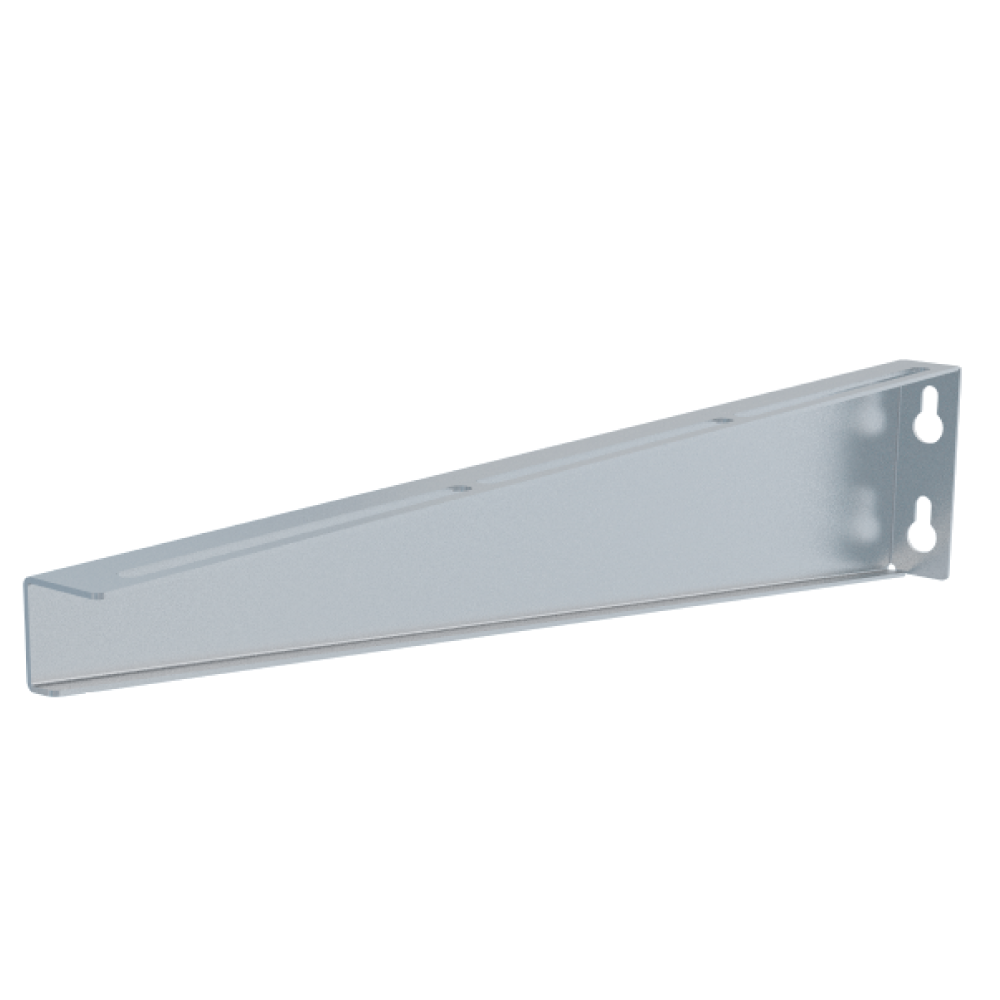

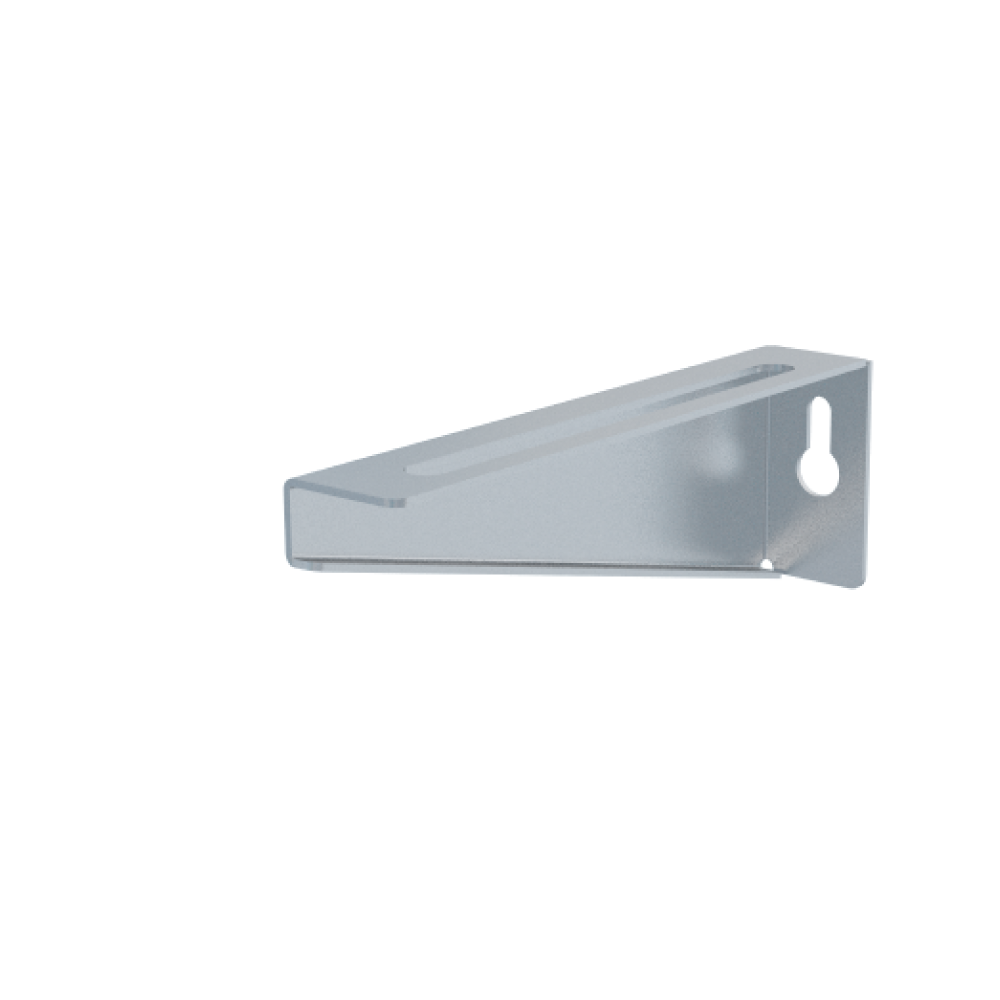

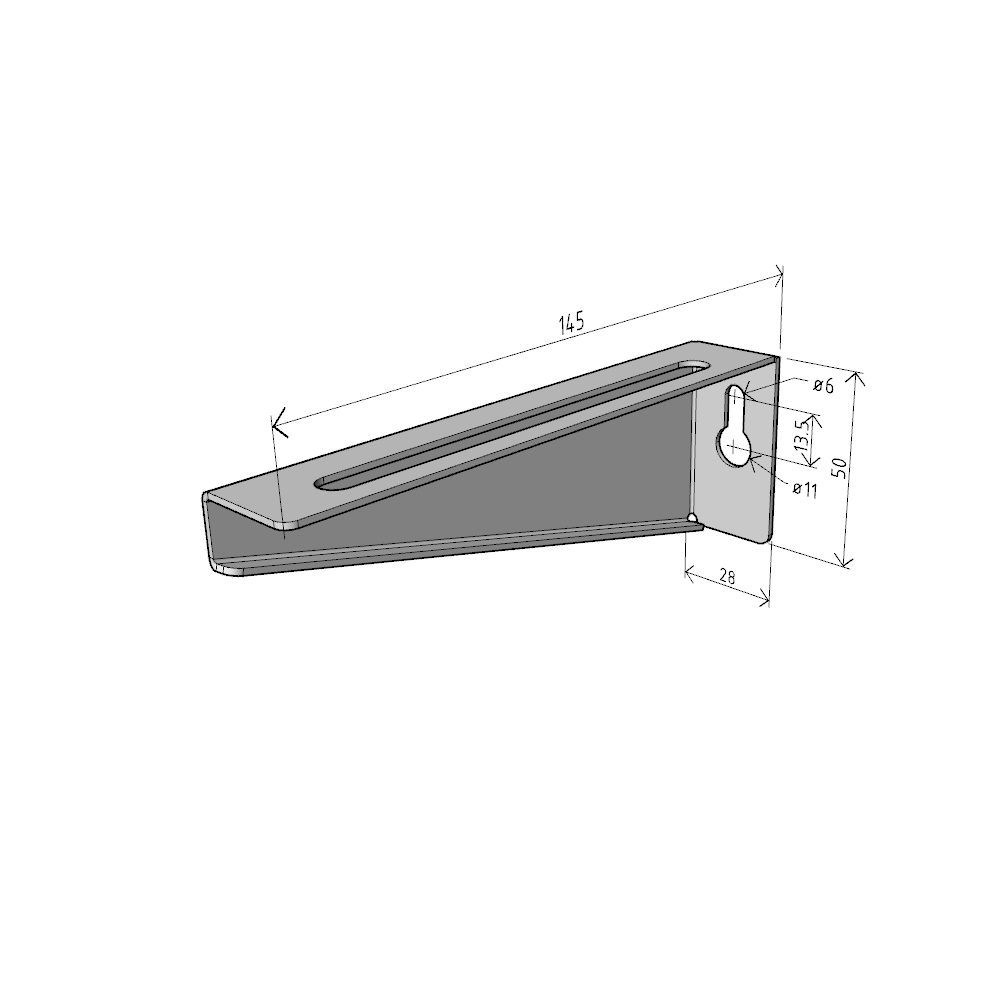

NZMU 100 universal bracket

  • Functional integrity
NZMU 100 universal bracket
Loading Capacity nosnost ico 40 kg
T (plate thickness) 1,5 mm
Product code
  • GZ ARK -215310
  • ZZ ARK -225310
  • A2 ARK -235310
NZMU 100 universal bracket
NZMU 100 universal bracket
NZMU 100 universal bracket
NZMU 100 universal bracket

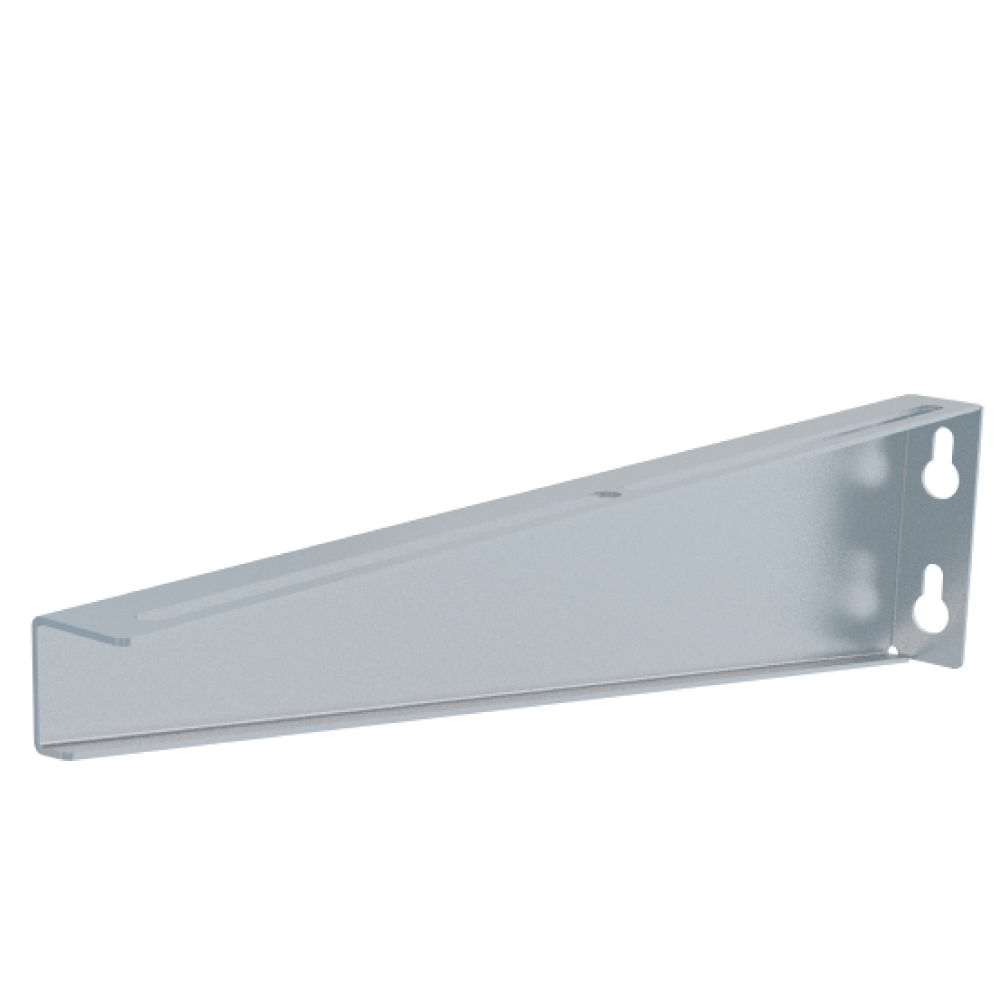

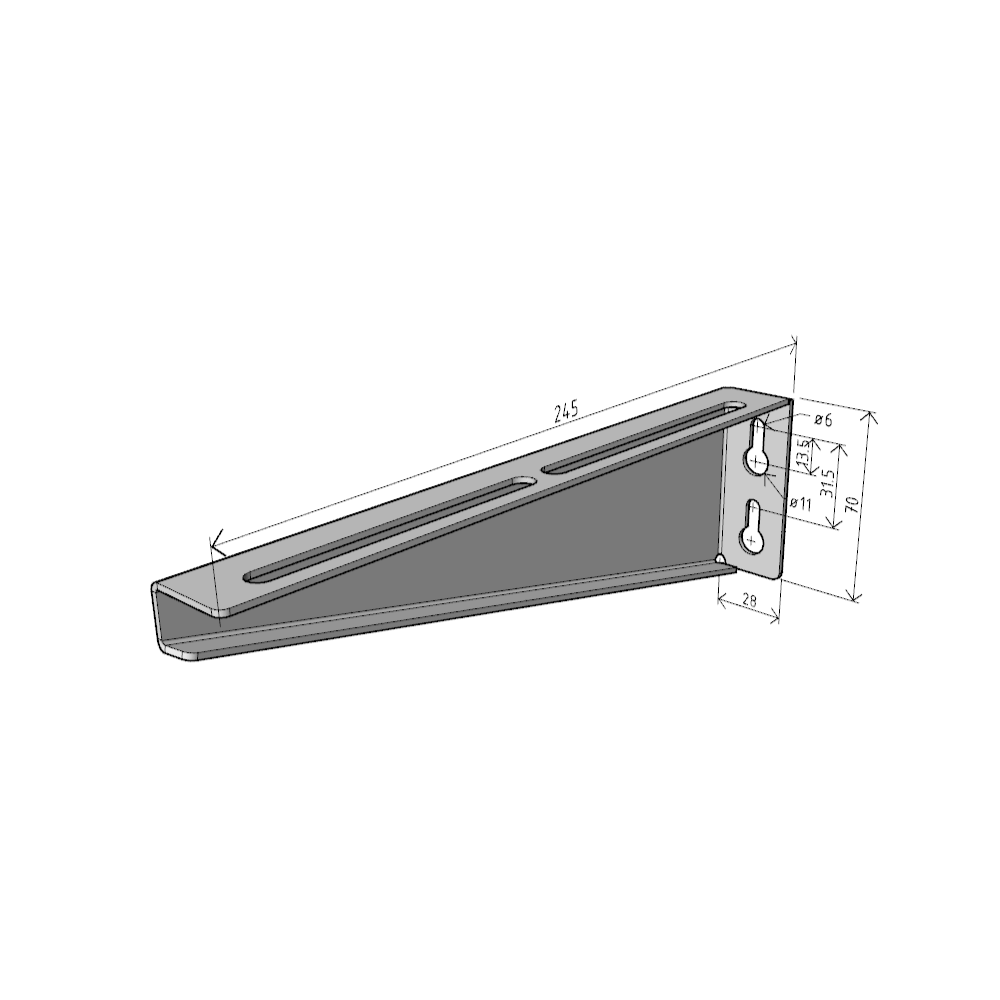

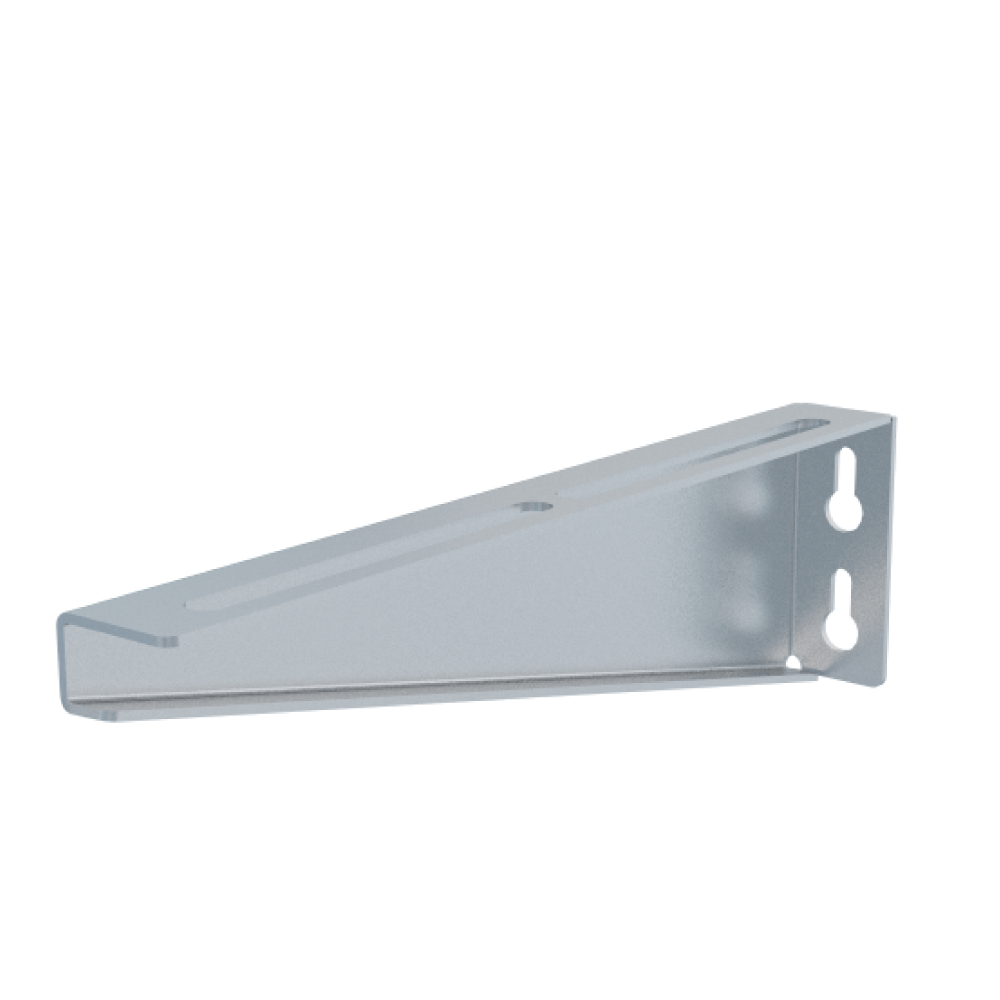

NZMU 200 universal bracket

  • Functional integrity
NZMU 200 universal bracket
Loading Capacity nosnost ico 50 kg
T (plate thickness) 2,0 mm
Product code
  • GZ ARK -215320
  • ZZ ARK -225320
  • A2 ARK -235320
NZMU 200 universal bracket
NZMU 200 universal bracket
NZMU 200 universal bracket
NZMU 200 universal bracket

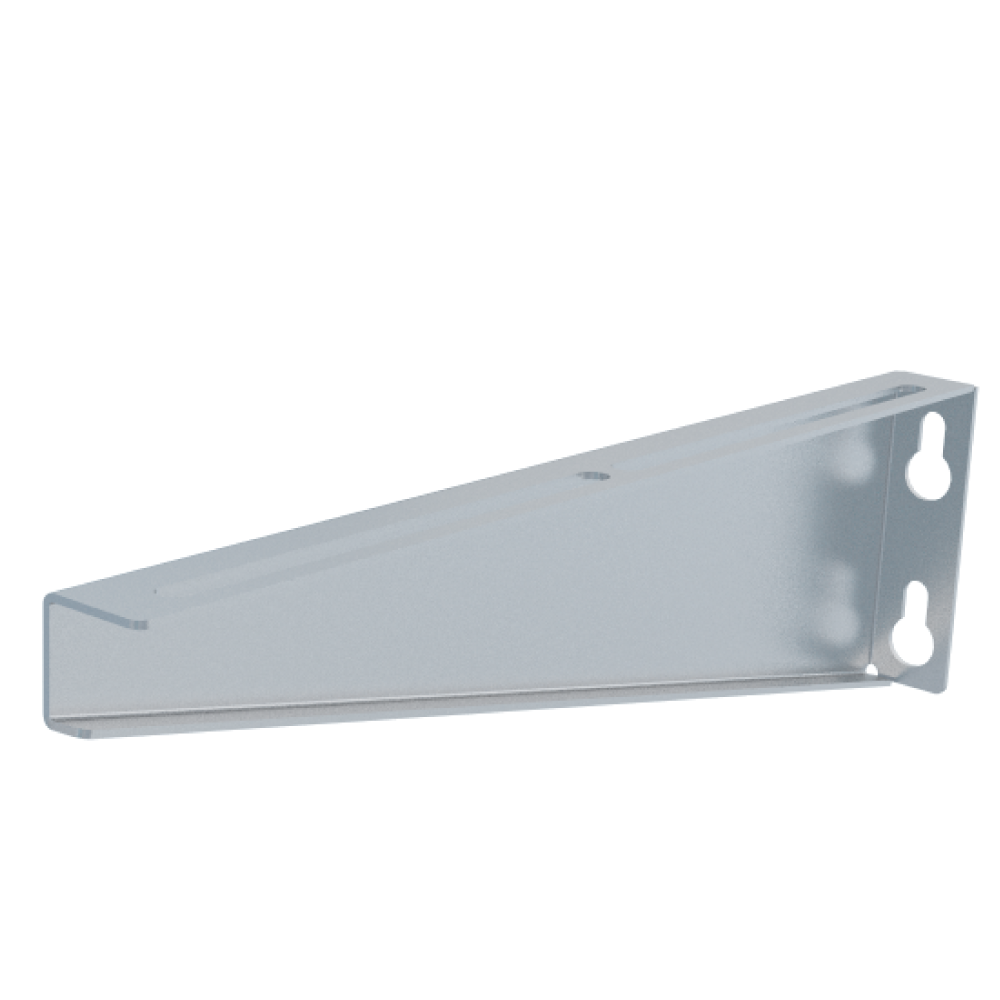

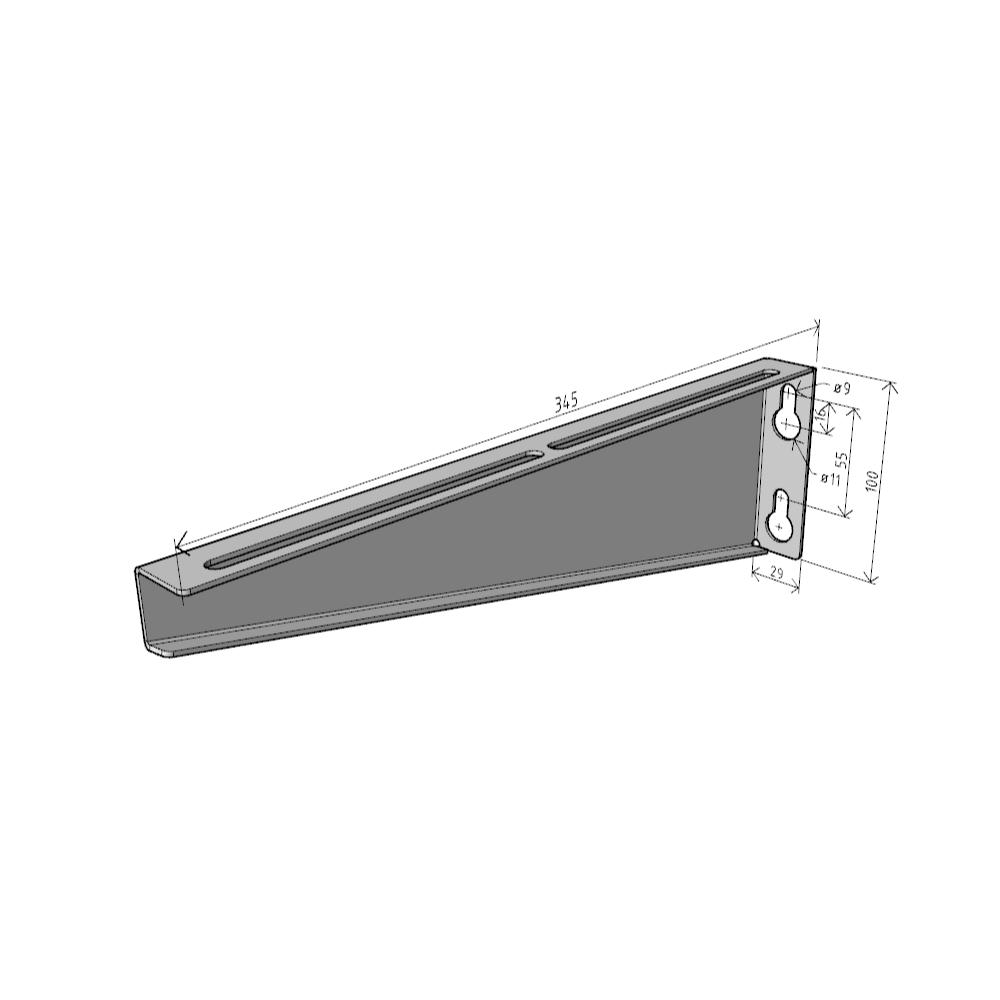

NZMU 300 universal bracket

  • Functional integrity
NZMU 300 universal bracket
Loading Capacity nosnost ico 75 kg
T (plate thickness) 2,0 mm
Product code
  • GZ ARK -215330
  • ZZ ARK -225330
  • A2 ARK -235330
NZMU 300 universal bracket
NZMU 300 universal bracket
NZMU 300 universal bracket
NZMU 300 universal bracket

NZMU 400 universal bracket

  • Functional integrity
NZMU 400 universal bracket
Loading Capacity nosnost ico 100 kg
T (plate thickness) 2,0 mm
Product code
  • GZ ARK -215340
  • ZZ ARK -225340
  • A2 ARK -235344
NZMU 400 universal bracket
NZMU 400 universal bracket
NZMU 400 universal bracket
NZMU 400 universal bracket

NZMU 500 universal bracket

  • Functional integrity
NZMU 500 universal bracket
Loading Capacity nosnost ico 120 kg
T (plate thickness) 2,0 mm
Product code
  • GZ ARK -215350
  • ZZ ARK -225350
  • A2 ARK -235354
NZMU 500 universal bracket
NZMU 500 universal bracket
NZMU 500 universal bracket
NZMU 500 universal bracket

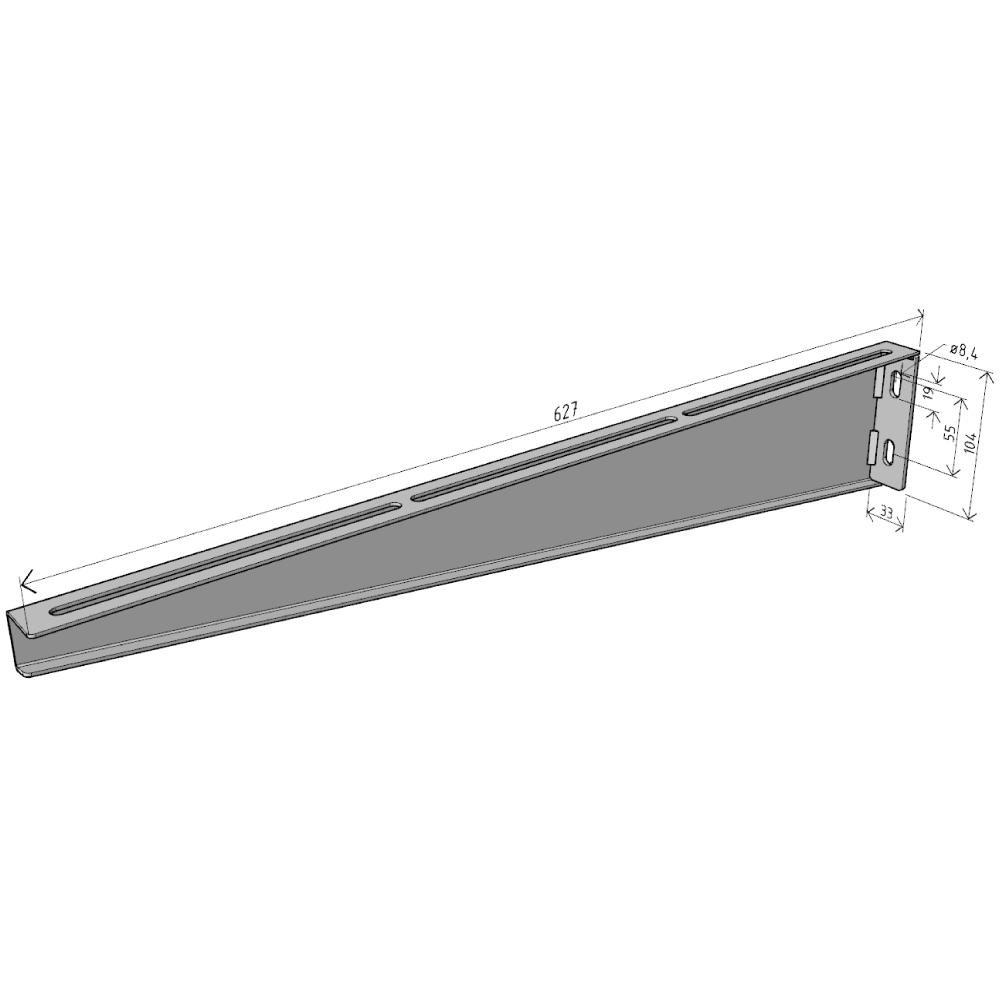

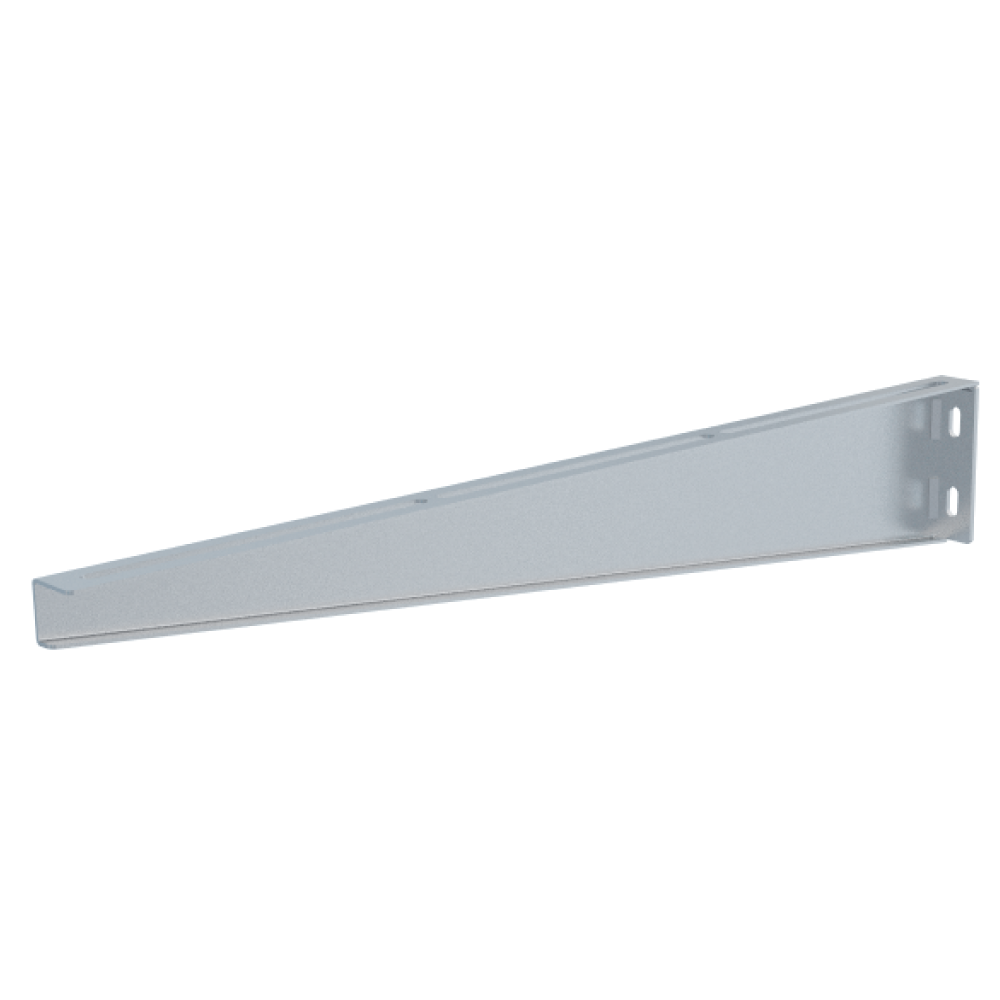

NZMU 600 universal bracket

  • Functional integrity
NZMU 600 universal bracket
Loading Capacity nosnost ico 150 kg
T (plate thickness) 2,0 mm
Product code
  • GZ ARK -215360
  • ZZ ARK -225360
  • A2 ARK -235364
NZMU 600 universal bracket
NZMU 600 universal bracket
NZMU 600 universal bracket
NZMU 600 universal bracket
