MERKUR 2 wire mesh cable tray - height of sidewall 50 mm

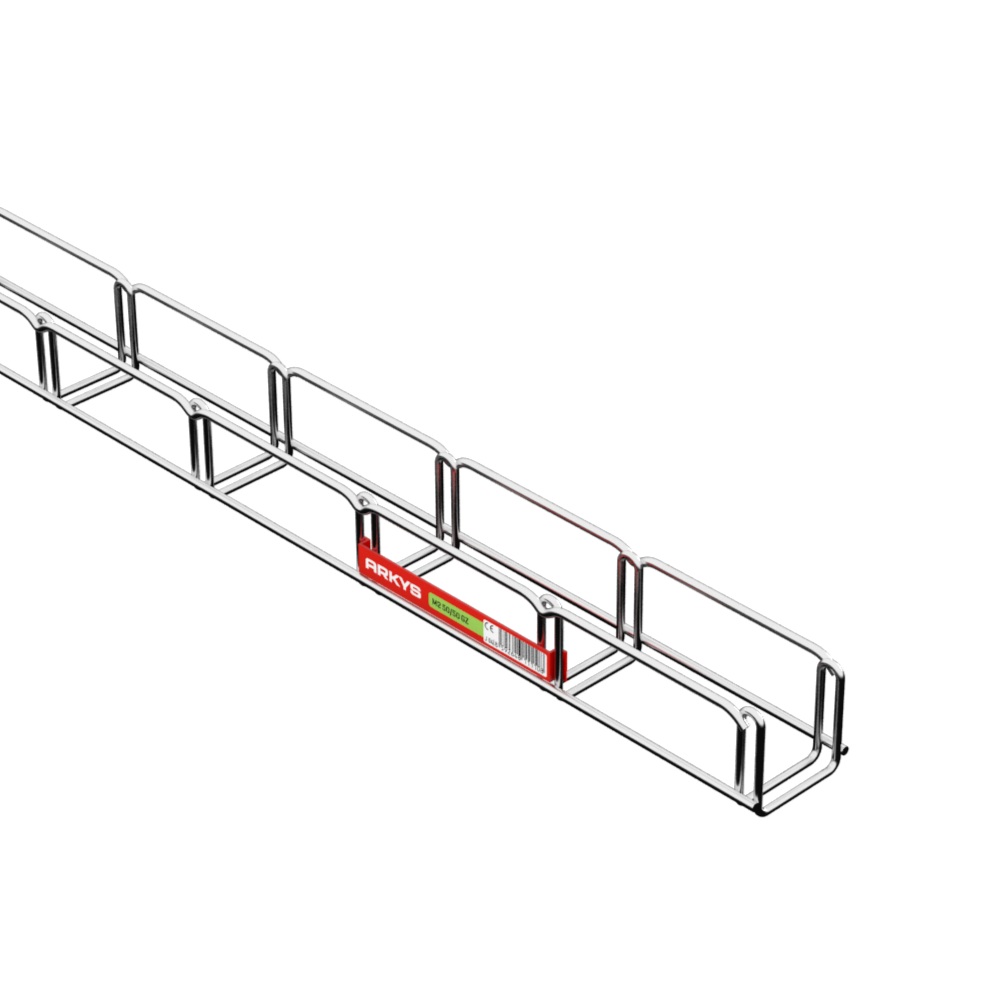

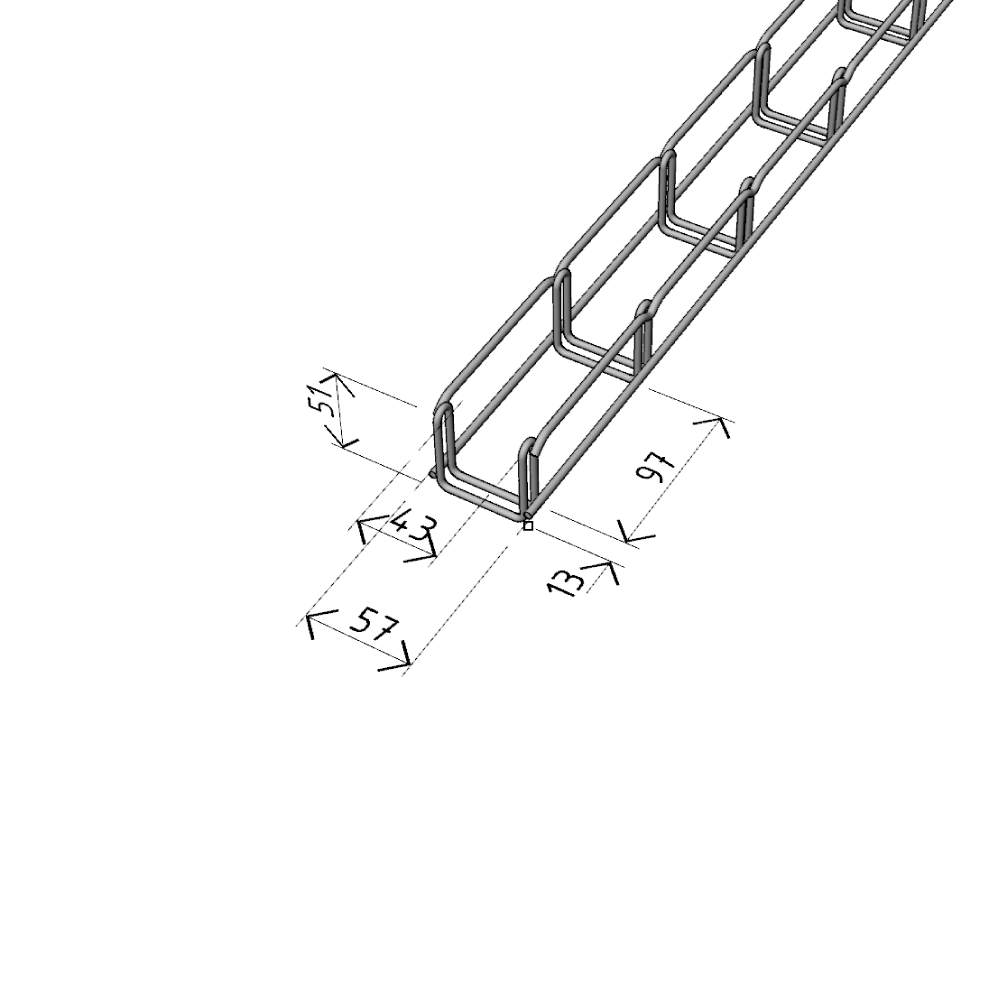

M2 50/50 cable tray

  • 50 mm
  • 50 mm
  • 2000 mm
  • 1,2 kg
  • Functional integrity
M2 50/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 2×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 1 320 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211110
  • ZZ ARK -221110
  • A2 ARK -231114
  • A4 ARK -241114
number of layers cable diameter [mm]
do 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 4 pcs 3 pcs 2 pcs 2 pcs 1 pc 1 pc 1 pc 1 pc x x x x
II 8 pcs 6 pcs 4 pcs 4 pcs 2 pcs
III 12 pcs 9 pcs
IV 16 pcs
M2 50/50 cable tray

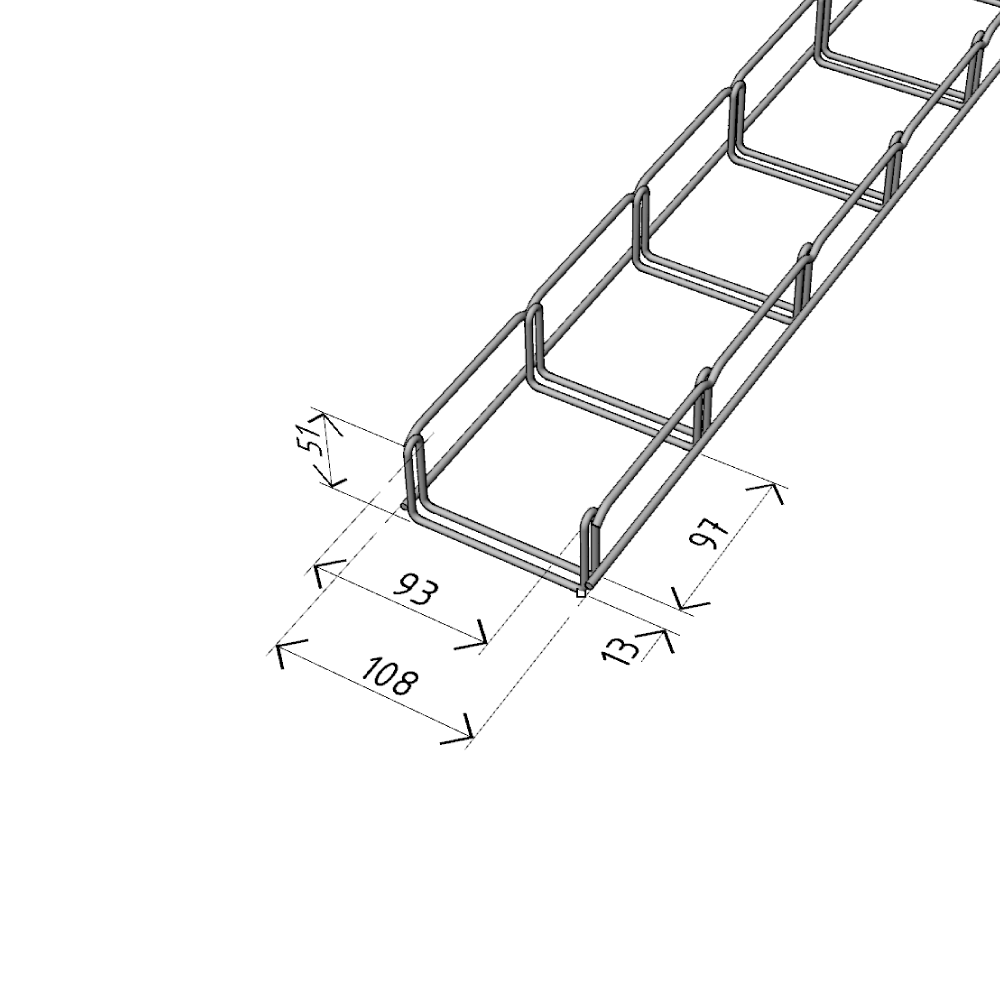

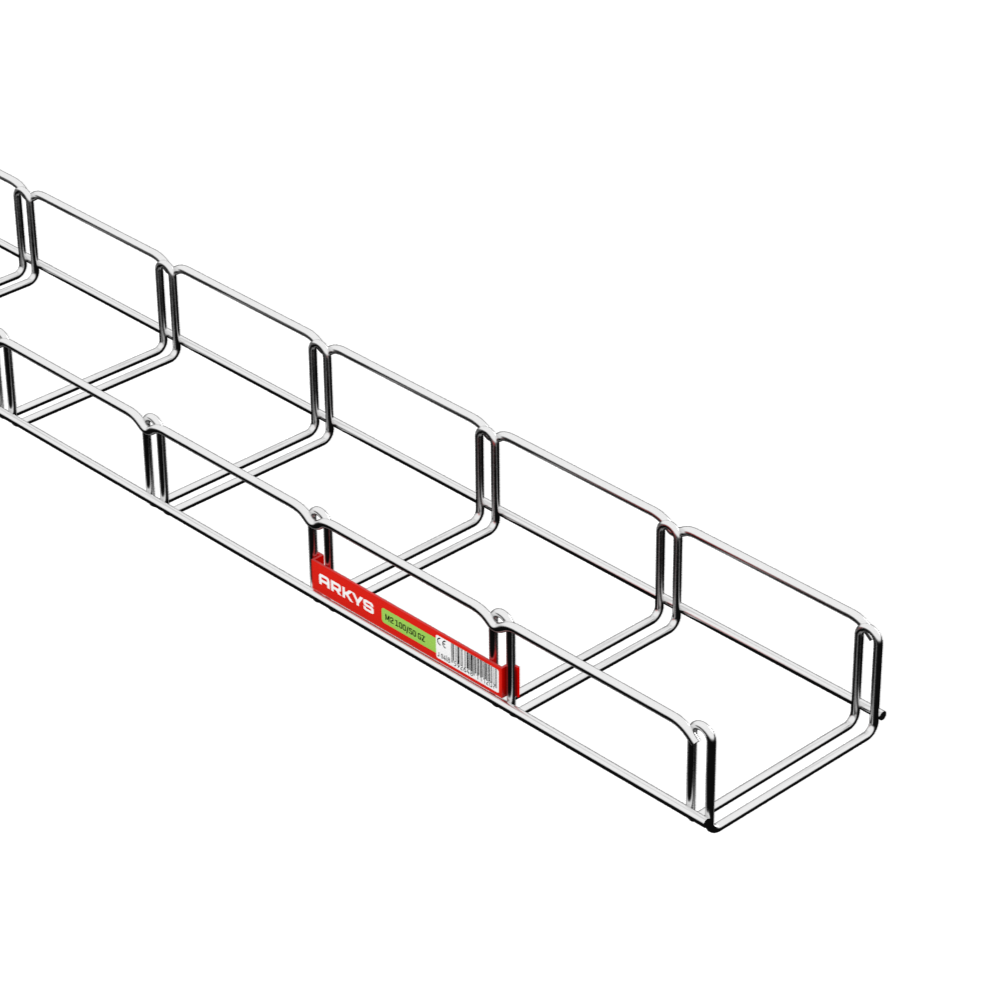

M2 100/50 cable tray

  • 100 mm
  • 50 mm
  • 2000 mm
  • 1,4 kg
  • Functional integrity
M2 100/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 2×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 2 900 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211120
  • ZZ ARK -221120
  • A2 ARK -231124
  • A4 ARK -241124
number of layers cable diameter [mm]
do 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 9 pcs 7 pcs 5 pcs 4 pcs 3 pcs 3 pcs 2 pcs 2 pcs 2 pcs 1 pc x x
II 18 pcs 14 pcs 10 pcs 8 pcs 6 pcs
III 27 pcs 21 pcs
IV 36 pcs
M2 100/50 cable tray

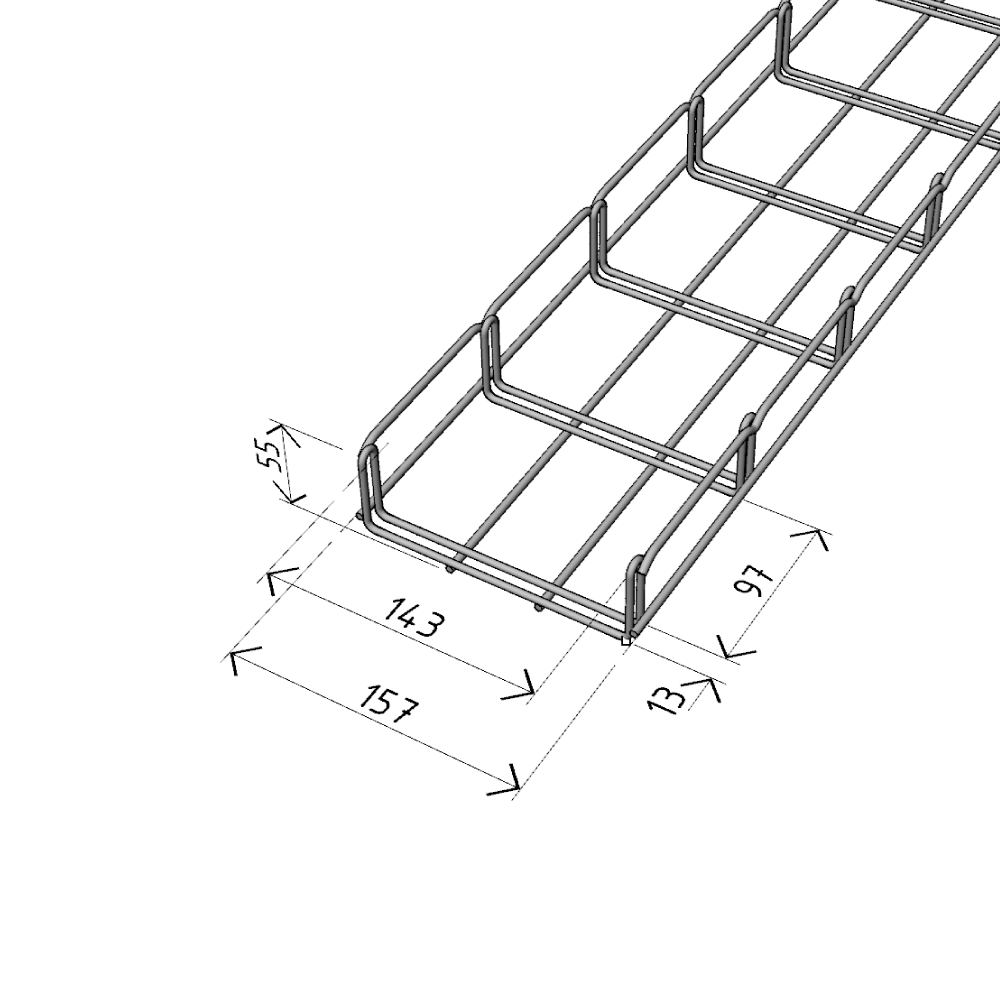

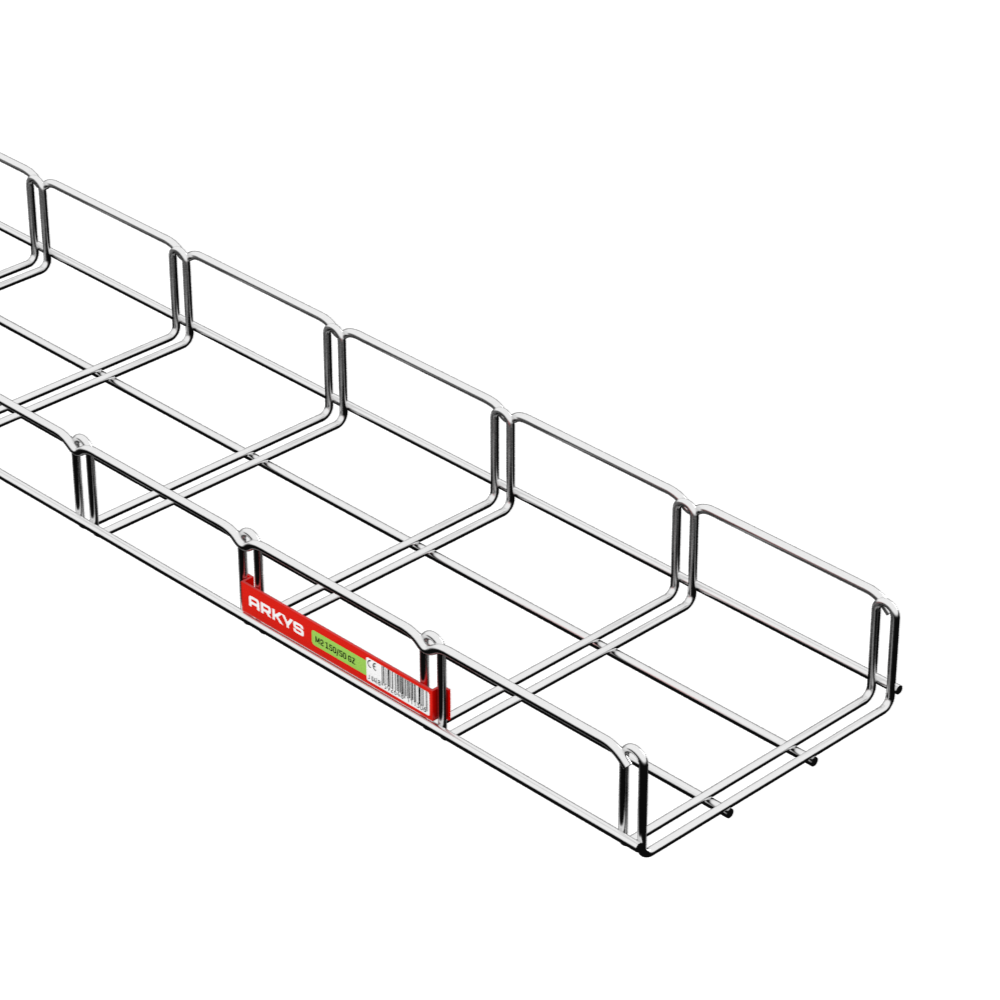

M2 150/50 cable tray

  • 150 mm
  • 50 mm
  • 2000 mm
  • 2,0 kg
  • Functional integrity
M2 150/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 2×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 4 470 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211130
  • ZZ ARK -221130
  • A2 ARK -231134
  • A4 ARK -241134
number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 14 pcs 11 pcs 8 pcs 7 pcs 5 pcs 4 pcs 4 pcs 3 pcs 3 pcs 2 pcs x x
II 28 pcs 22 pcs 16 pcs 14 pcs 10 pcs
III 42 pcs 33 pcs
IV 56 pcs
M2 150/50 cable tray

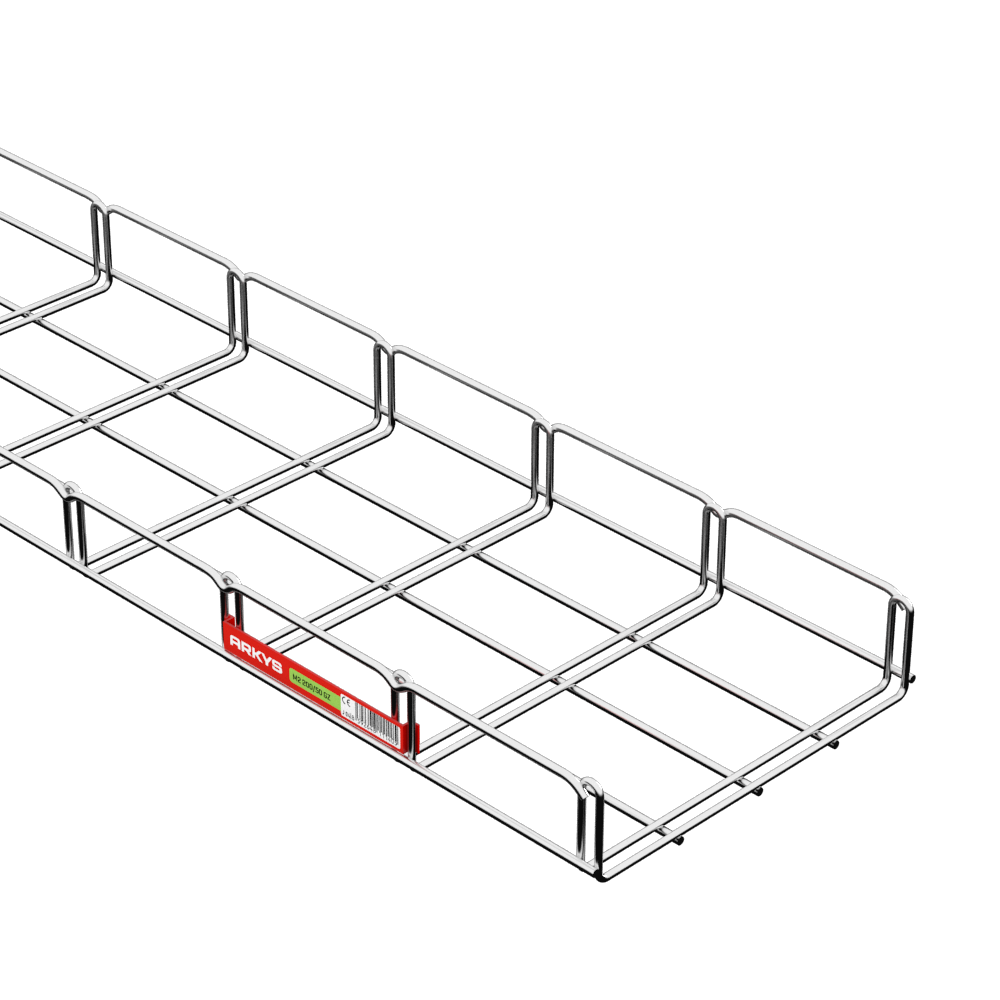

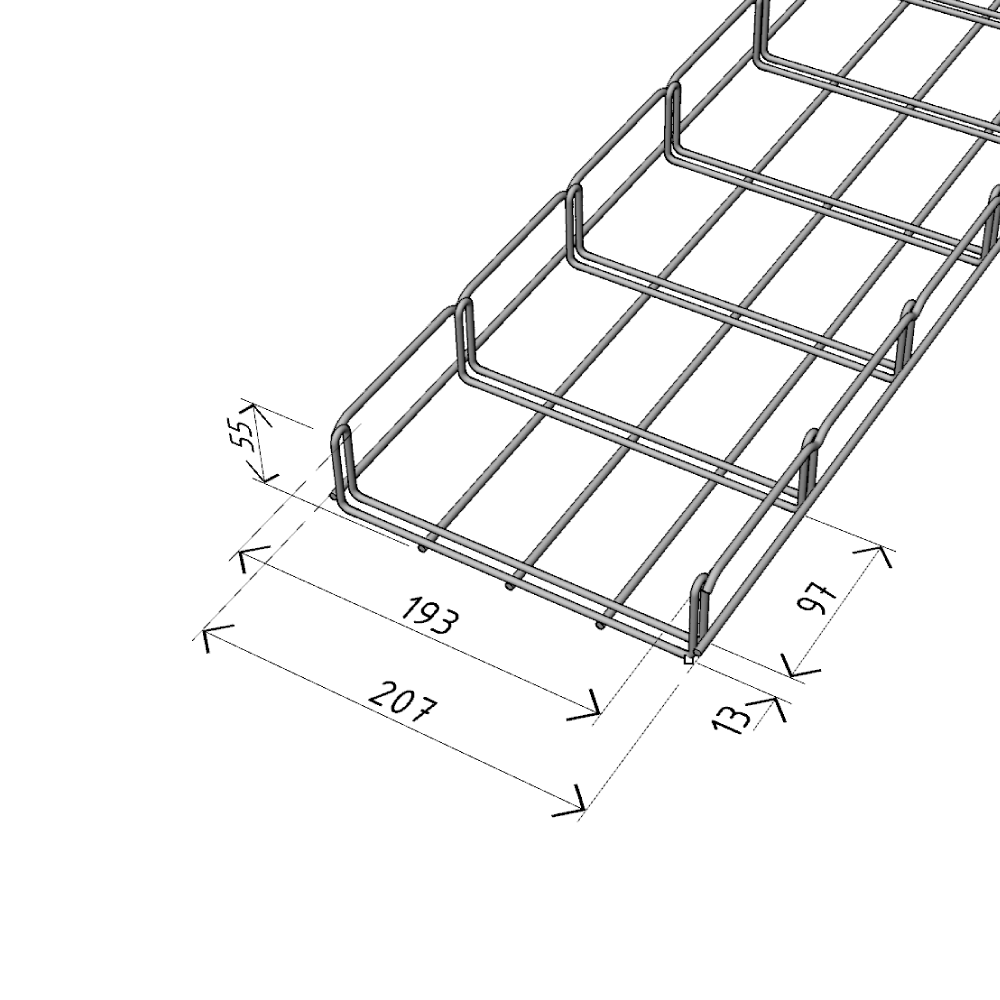

M2 200/50 cable tray

  • 200 mm
  • 50 mm
  • 2000 mm
  • 2,3 kg
  • Functional integrity
M2 200/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 2×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 6 050 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211140
  • ZZ ARK -221140
  • A2 ARK -231144
  • A4 ARK -241144
number of layers cable diamete [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 19 pcs 15 pcs 11 pcs 9 pcs 7 pcs 6 pcs 5 pcs 4 pcs 4 pcs 3 pcs x x
II 38 pcs 30 pcs 22 pcs 18 pcs 14 pcs
III 57 pcs 45 pcs
IV 76 pcs
M2 200/50 cable tray

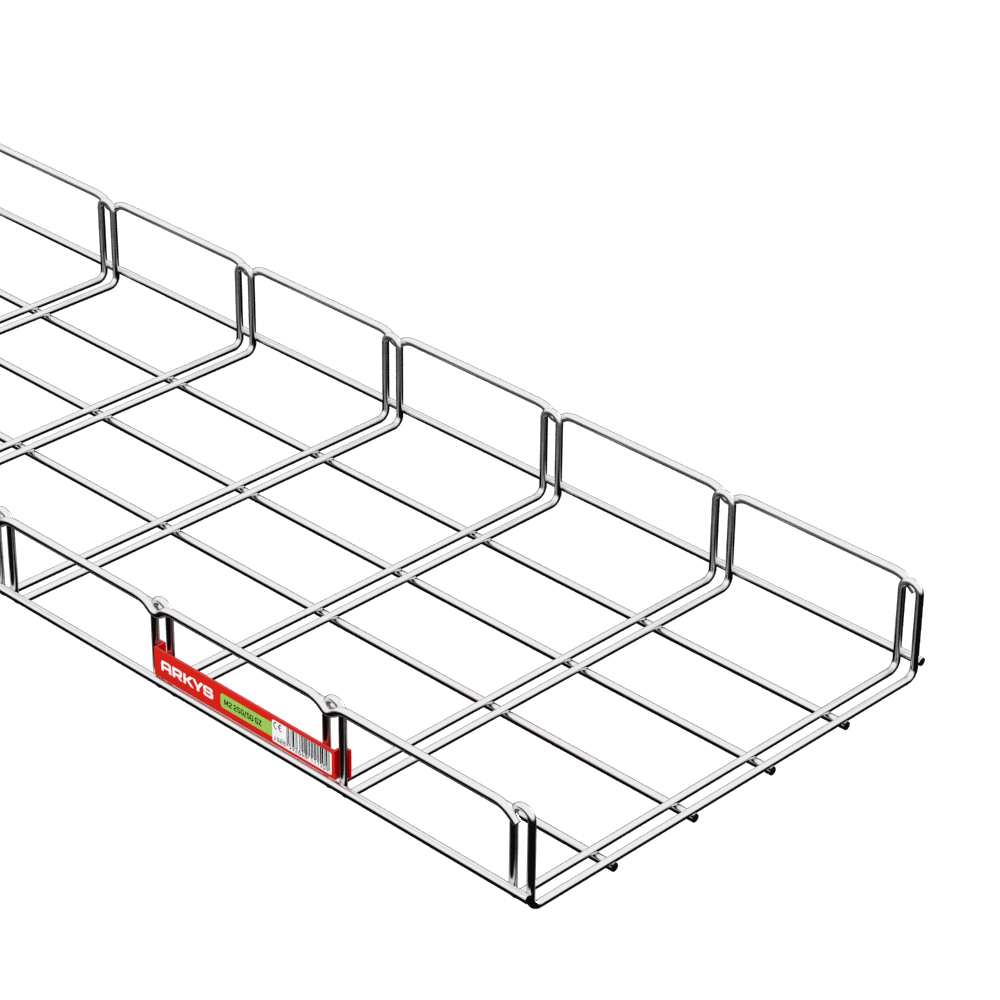

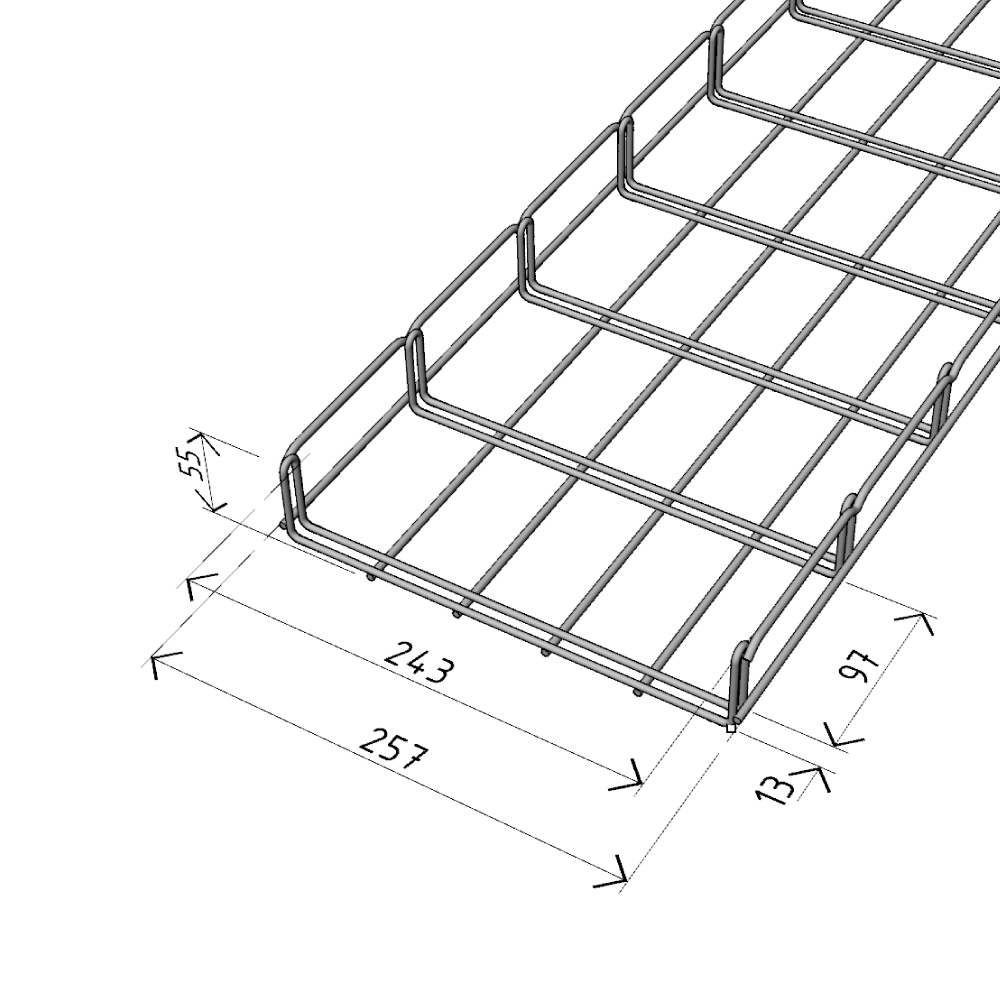

M2 250/50 cable tray

  • 250 mm
  • 50 mm
  • 2000 mm
  • 3,0 kg
  • Functional integrity
M2 250/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 3×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 7 620 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211150
  • ZZ ARK -221150
  • A2 ARK -231154
  • A4 ARK -241154 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 23 pcs 19 pcs 14 pcs 11 pcs 9 pcs 7 pcs 6 pcs 5 pcs 5 pcs 4 pcs x x
II 46 pcs 38 pcs 28 pcs 22 pcs 18 pcs
III 69 pcs 57 pcs
IV 92 pcs
M2 250/50 cable tray

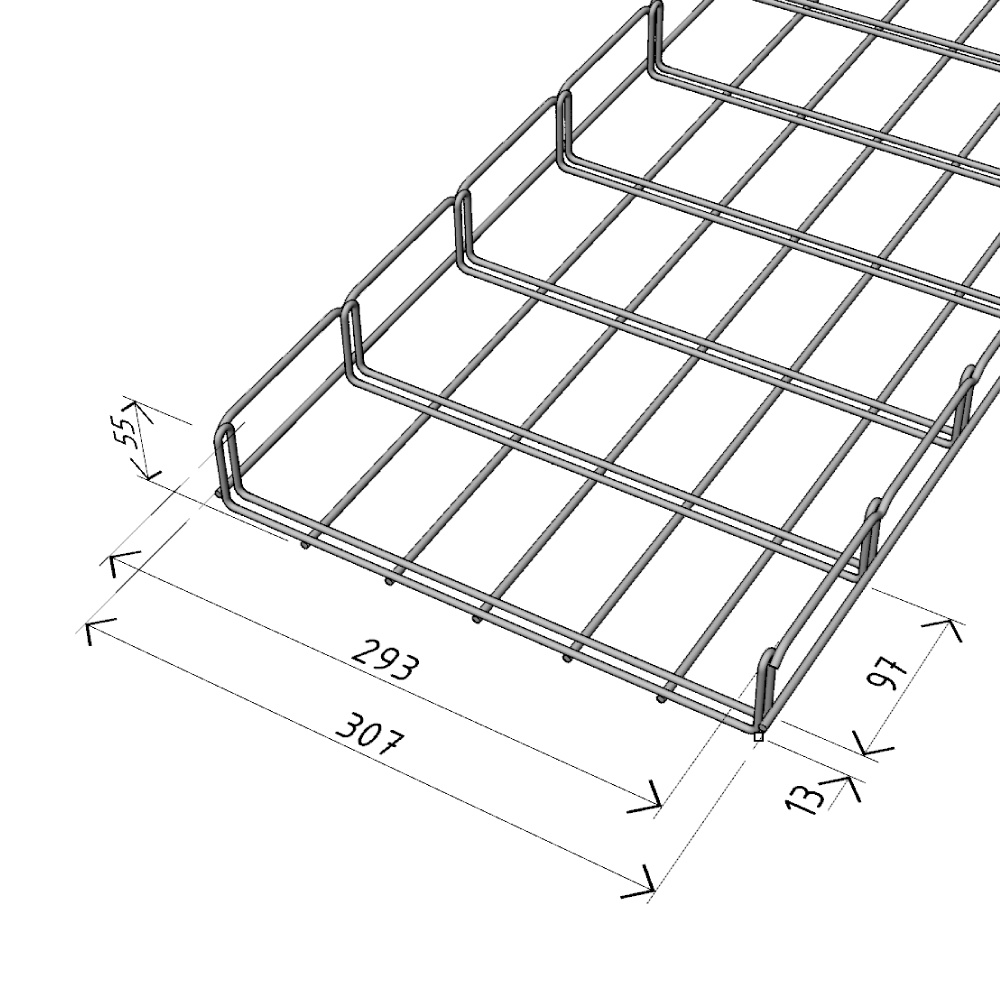

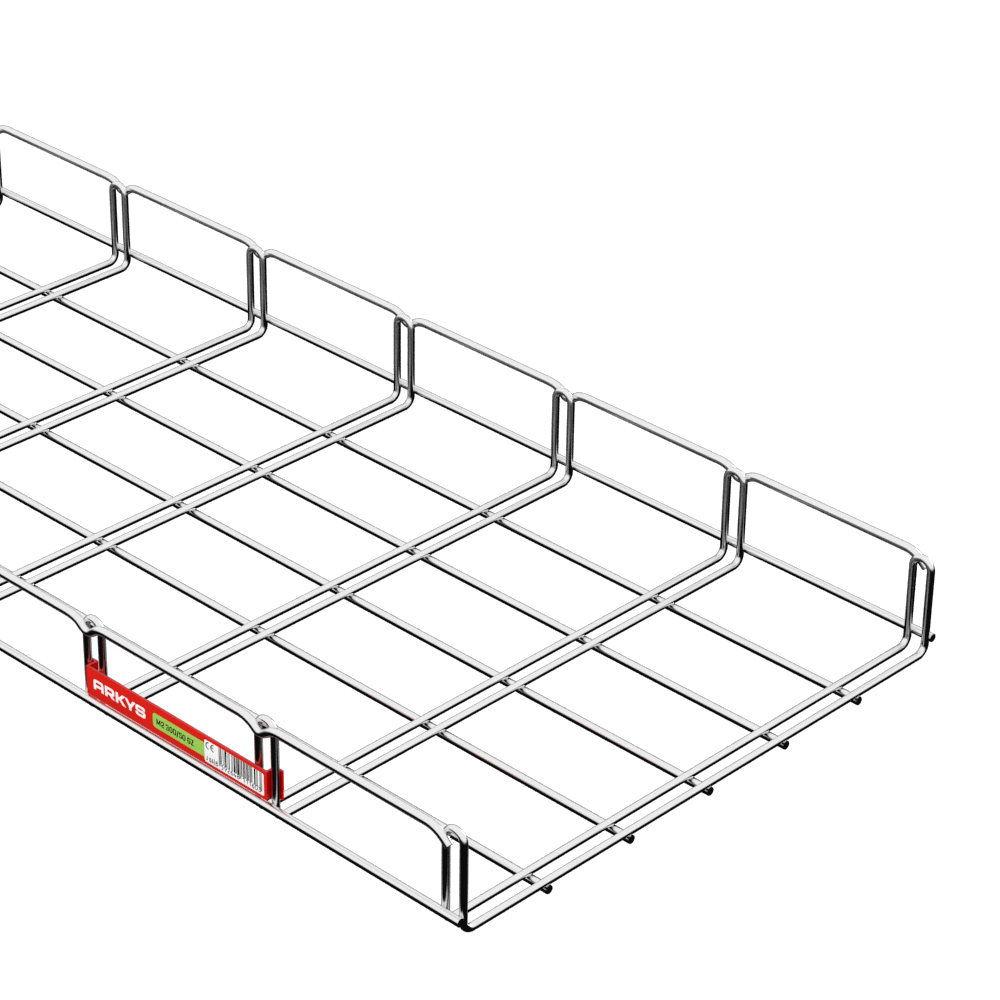

M2 300/50 cable tray

  • 300 mm
  • 50 mm
  • 2000 mm
  • 3,4 kg
  • Functional integrity
M2 300/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 3×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 9 200 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211160
  • ZZ ARK -221160
  • A2 ARK -231164
  • A4 ARK -241164 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 28 pcs 24 pcs 18 pcs 14 pcs 11 pcs 9 pcs 8 pcs 7 pcs 6 pcs 5 pcs x x
II 56 pcs 48 pcs 36 pcs 28 pcs 22 pcs
III 84 pcs 72 pcs
IV 112 pcs
M2 300/50 cable tray

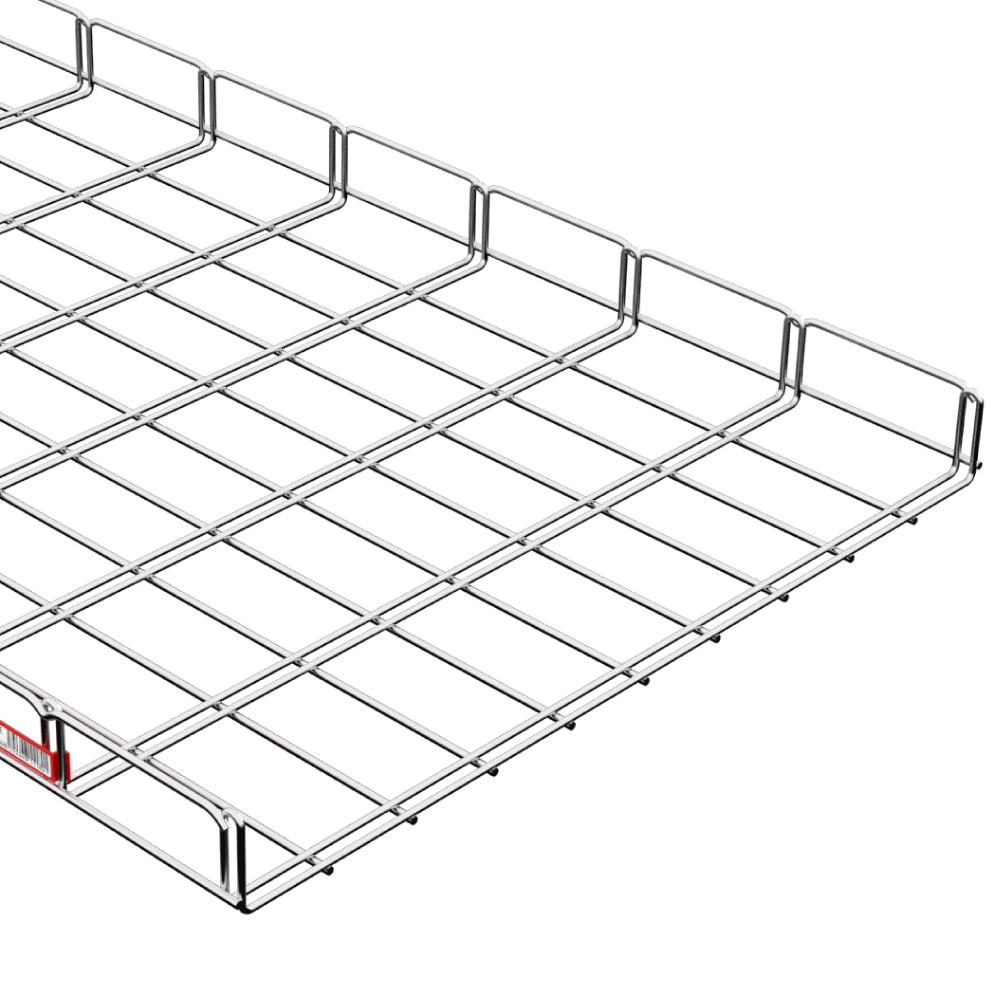

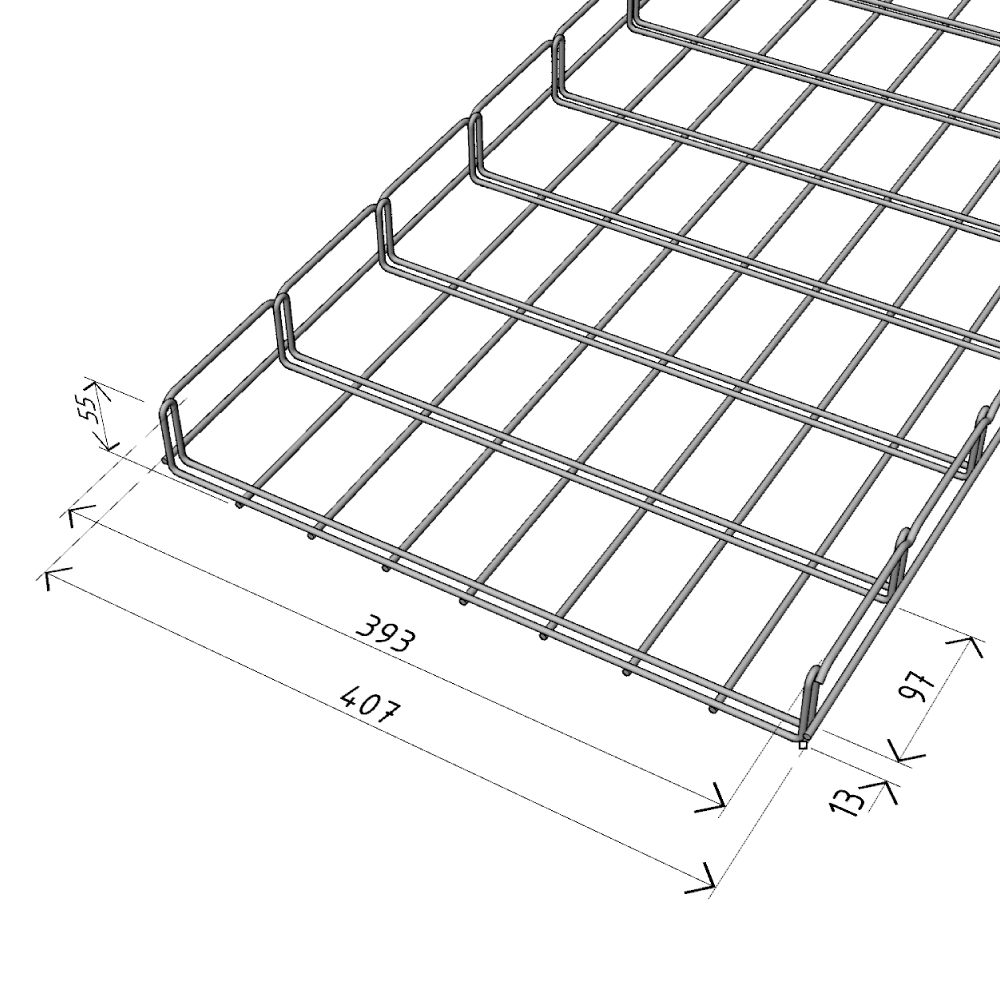

M2 400/50 cable tray

  • 400 mm
  • 50 mm
  • 2000 mm
  • 4,1 kg
  • Functional integrity
M2 400/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 4×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 12 350 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211170
  • ZZ ARK -221170
  • A2 ARK -231174
  • A4 ARK -241174 *

(*) On Request

number of layers cable diamete [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 38 pcs 32 pcs 24 pcs 19 pcs 15 pcs 13 pcs 11 pcs 9 pcs 8 pcs 7 pcs x x
II 76 pcs 64 pcs 48 pcs 38 pcs 30 pcs
III 114 pcs 96 pcs
IV 152 pcs
M2 400/50 cable tray

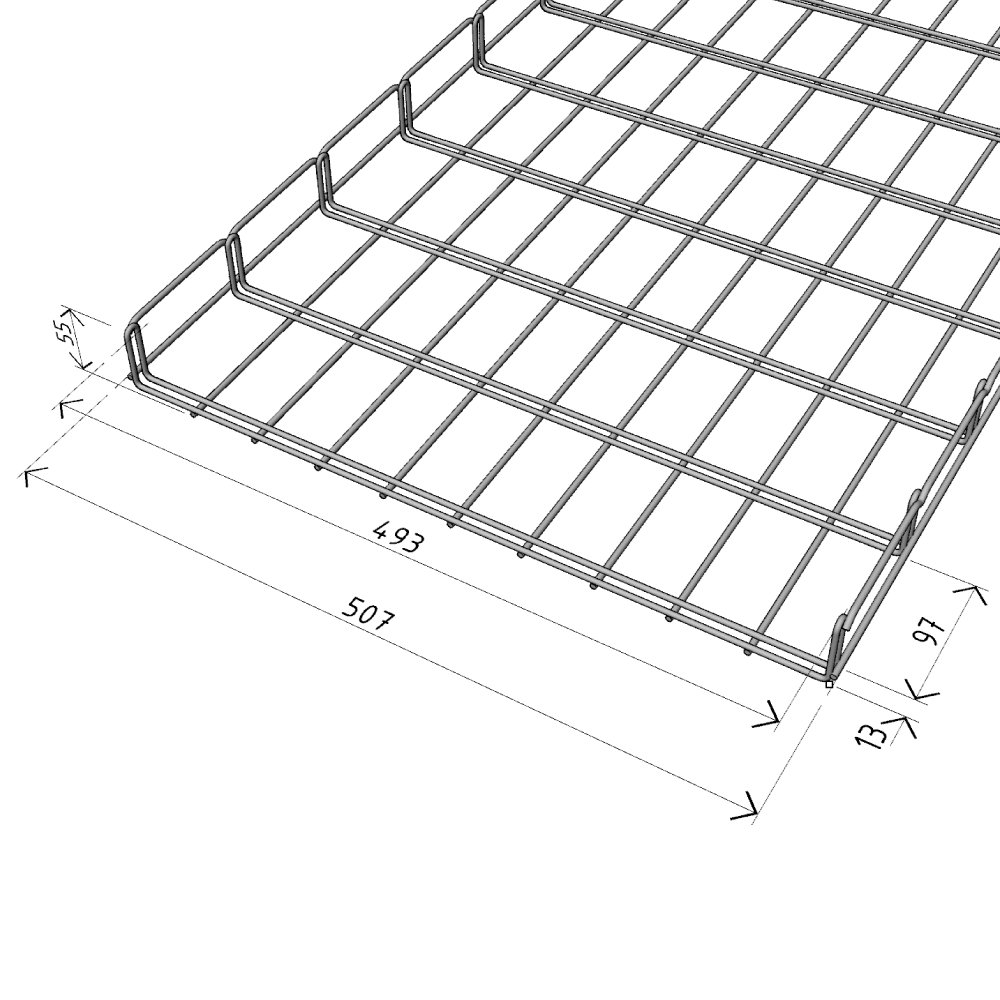

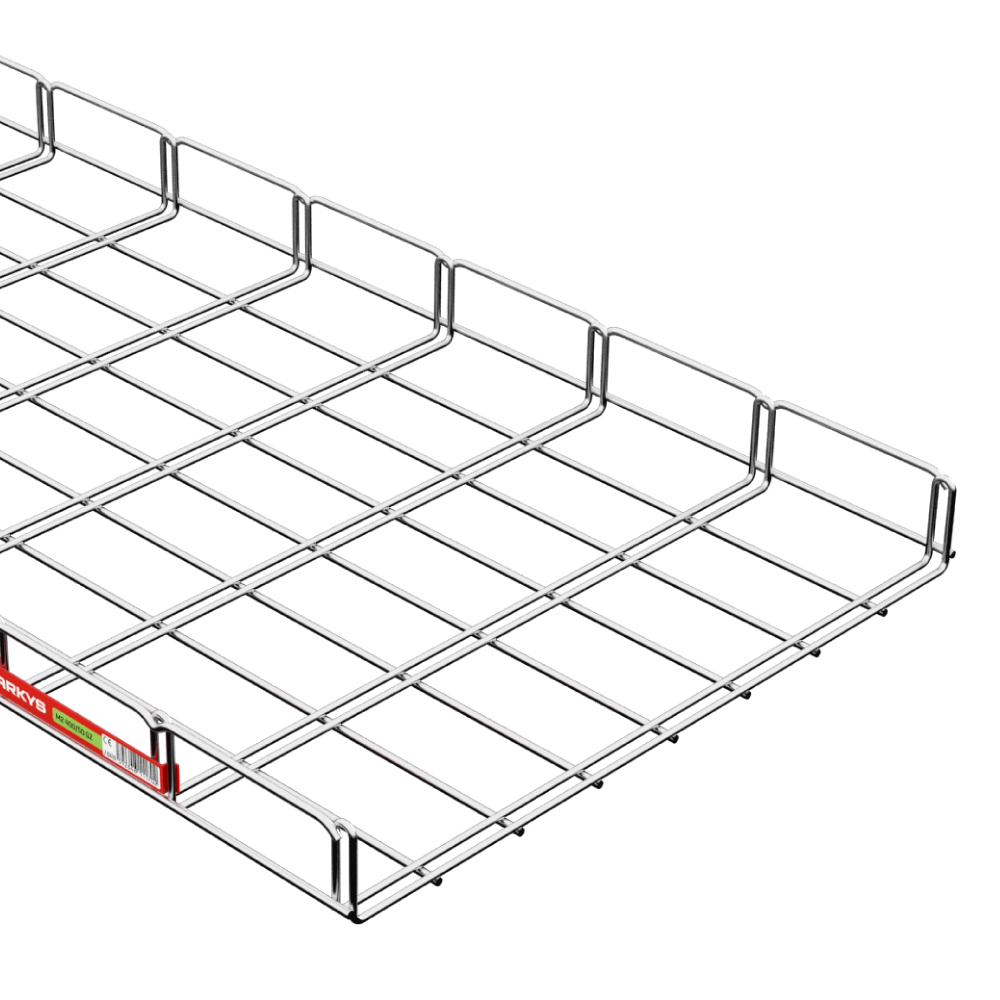

M2 500/50 cable tray

  • 500 mm
  • 50 mm
  • 2000 mm
  • 4,9 kg
  • Functional integrity
M2 500/50 cable tray
  • Number of SZM 1 couplings for connecting the ducts 4×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 15 500 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211180
  • ZZ ARK -221180
  • A2 ARK -231184
  • A4 ARK -241184 *

(*) On Request

number of layers cable diamete [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 48 pcs 40 pcs 30 pcs 24 pcs 19 pcs 16 pcs 14 pcs 12 pcs 10 pcs 9 pcs x x
II 96 pcs 80 pcs 60 pcs 48 pcs 38 pcs 32 pcs
III 144 pcs 120 pcs
IV 192 pcs
M2 500/50 cable tray
