PZMP support, fire resistant

PZMP



PZMP straight brackets are tested for fire resistance acc. to temperature curves P and PH. They can be used for:

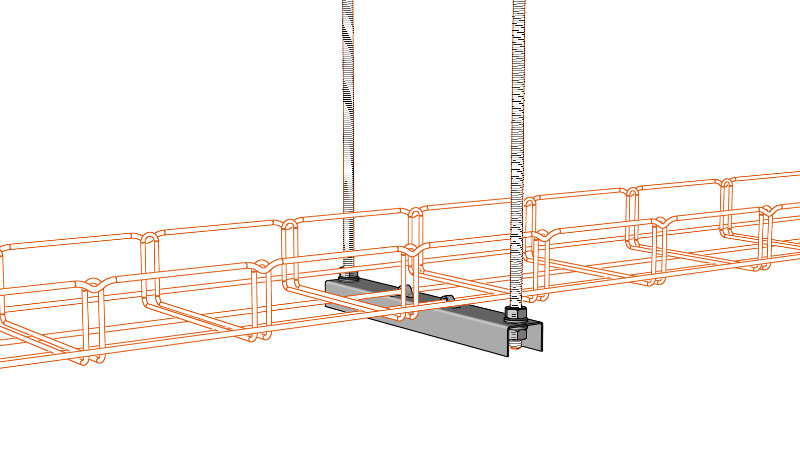

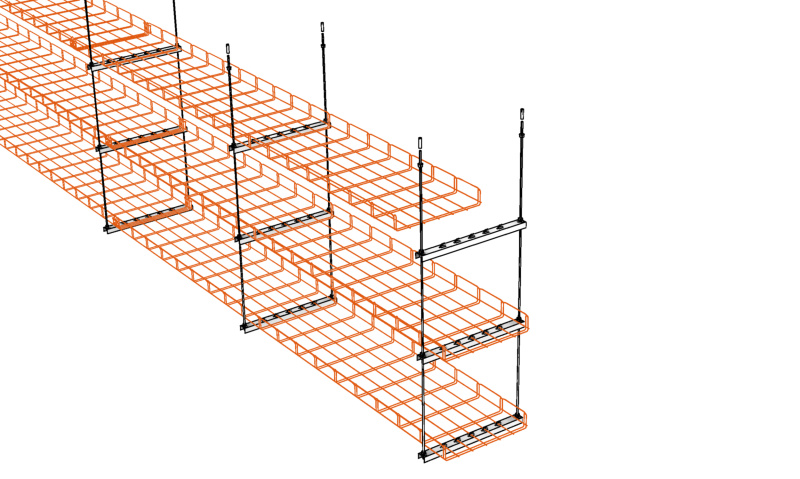

  • suspended spatial assembly, in combination with an M8 threaded rod

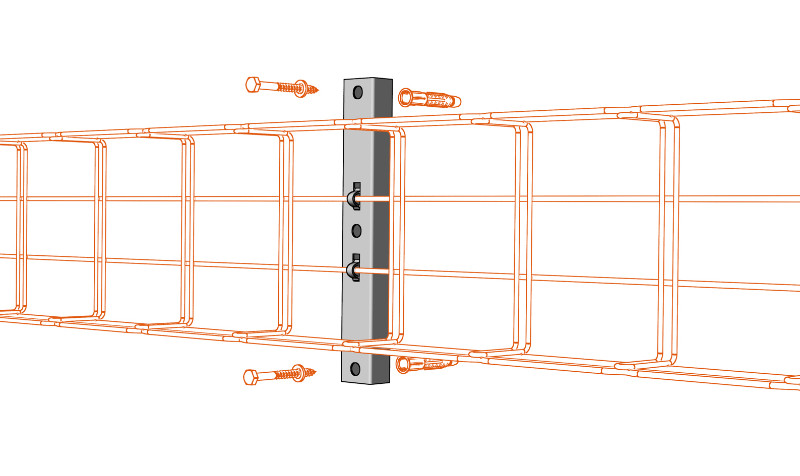

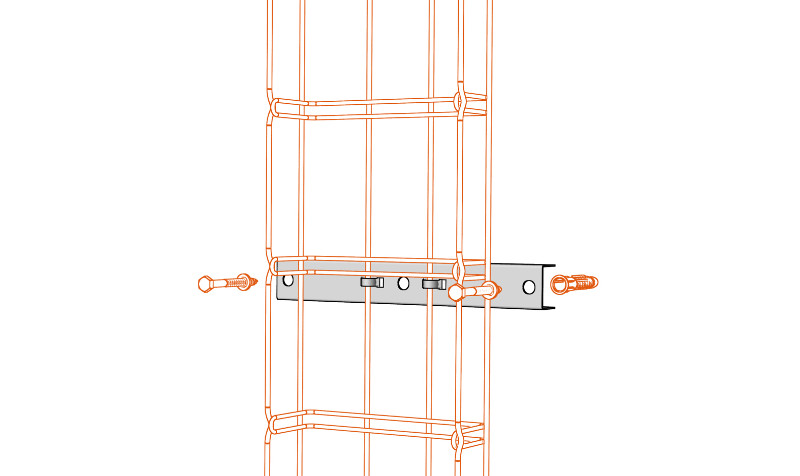

  • horizonal or vertical wall assembly
  • ceiling assembly

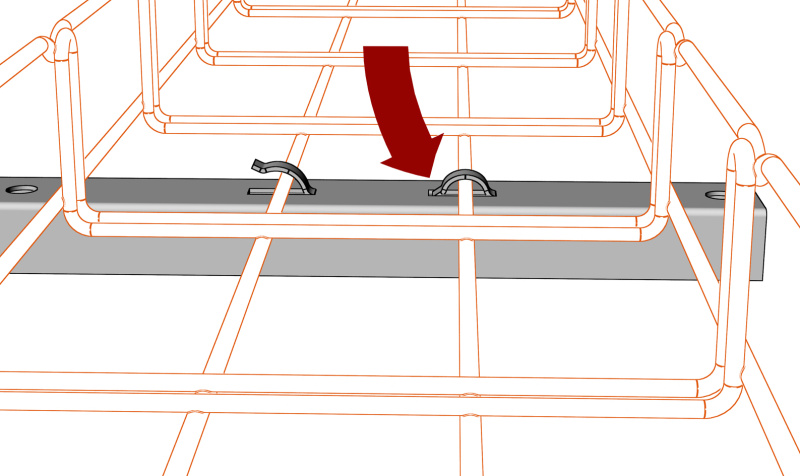

For easy installation of tracks they are equipped with boltless clamps.

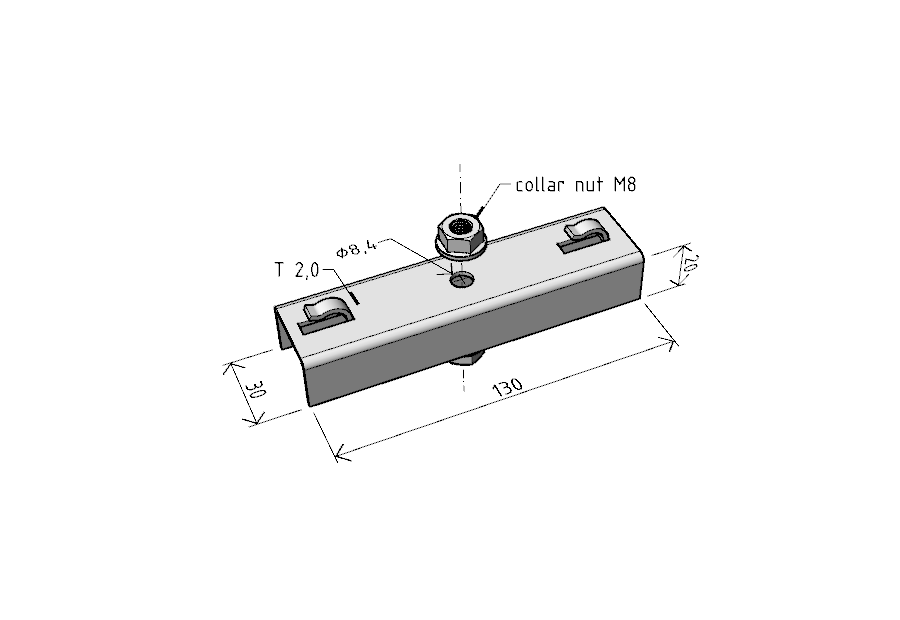

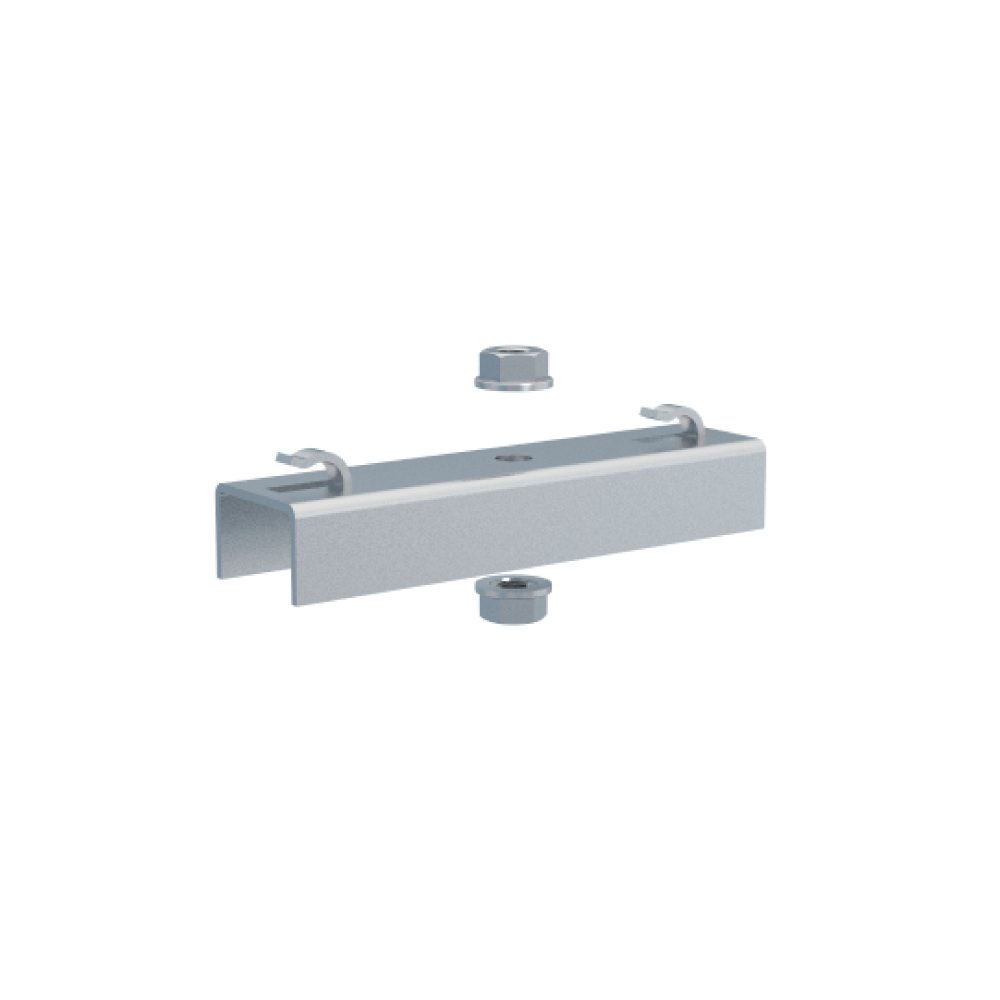

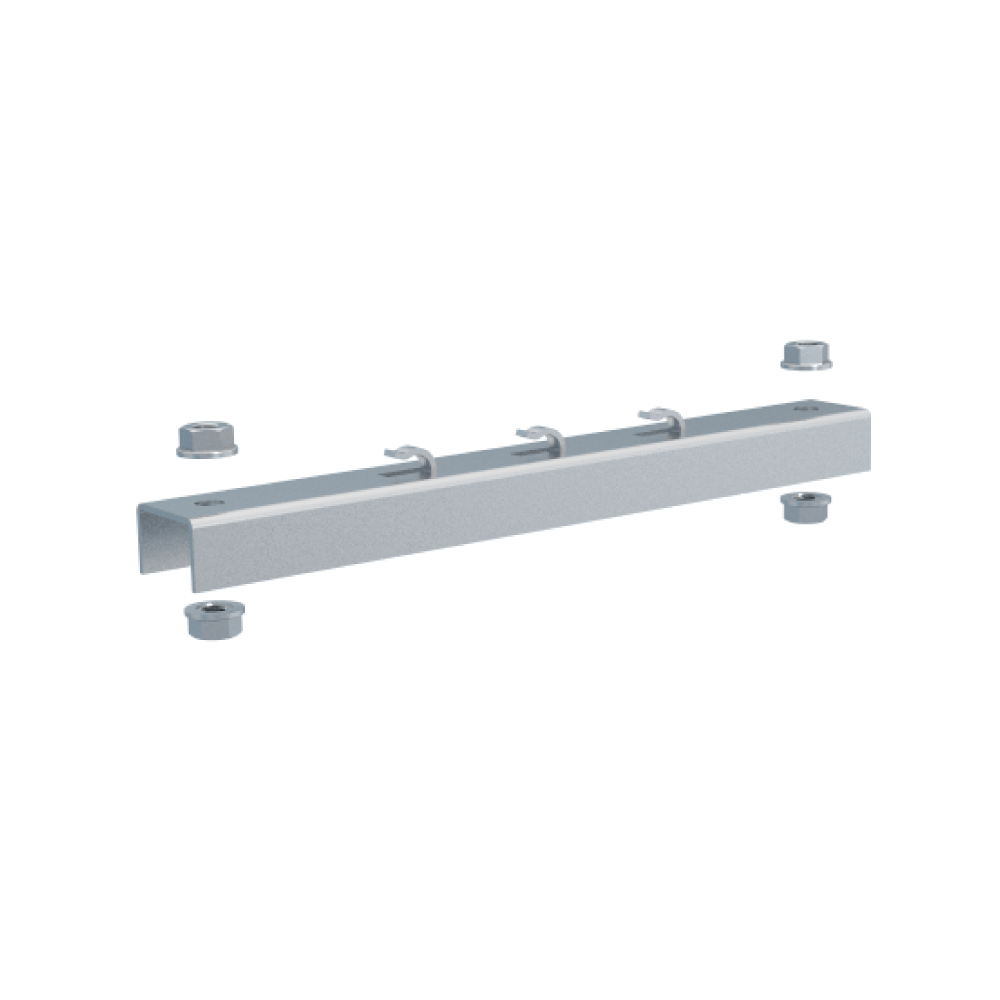

PZMP 100 support, fire resistant

  • Functional integrity
PZMP 100 support, fire resistant

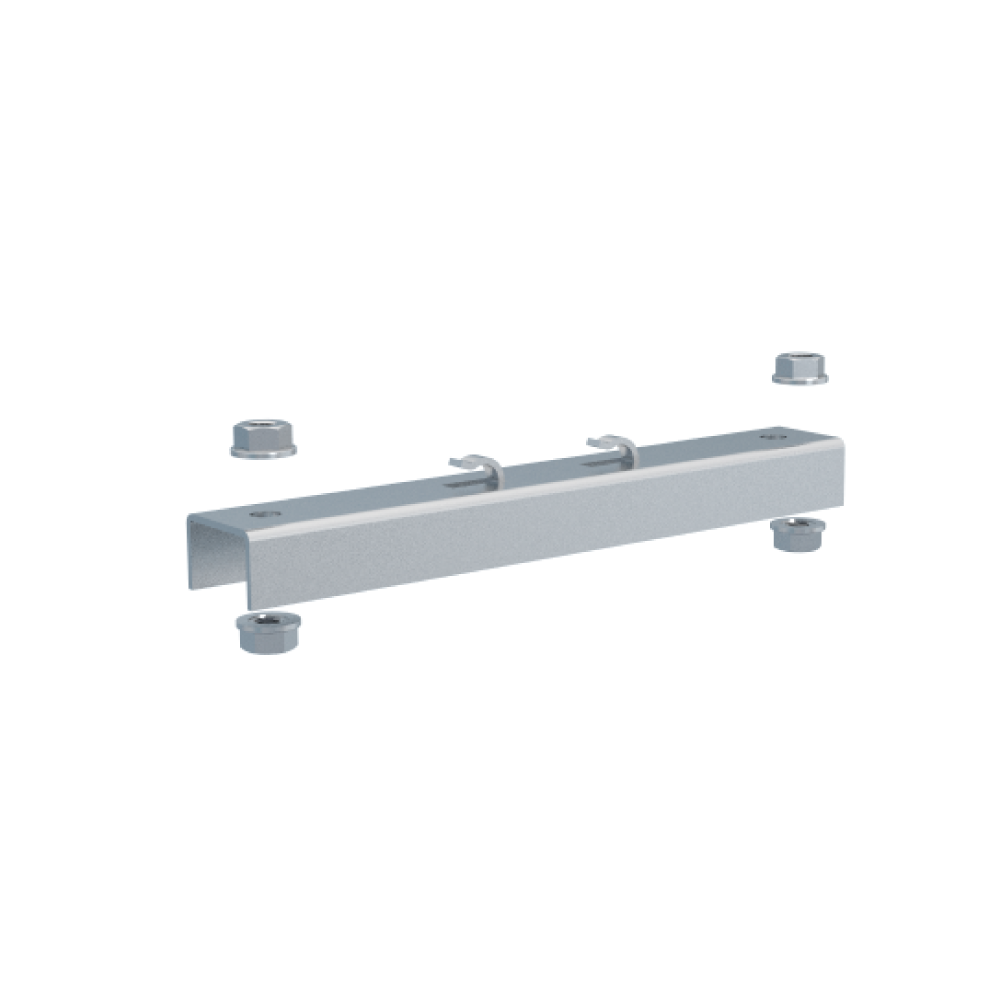

Components shown in the figure are included in the package

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -216210
  • ZZ ARK -226210
  • A2 ARK -236210





ZZ - ARK-226210 - connecting element options

0 - electro-galvanized (CG)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

PZMP 100 support, fire resistant
PZMP 100 support, fire resistant
PZMP 100 support, fire resistant
PZMP 100 support, fire resistant
PZMP 100 support, fire resistant
PZMP 100 support, fire resistant

PZMP 150 support, fire resistant

  • Functional integrity
PZMP 150 support, fire resistant

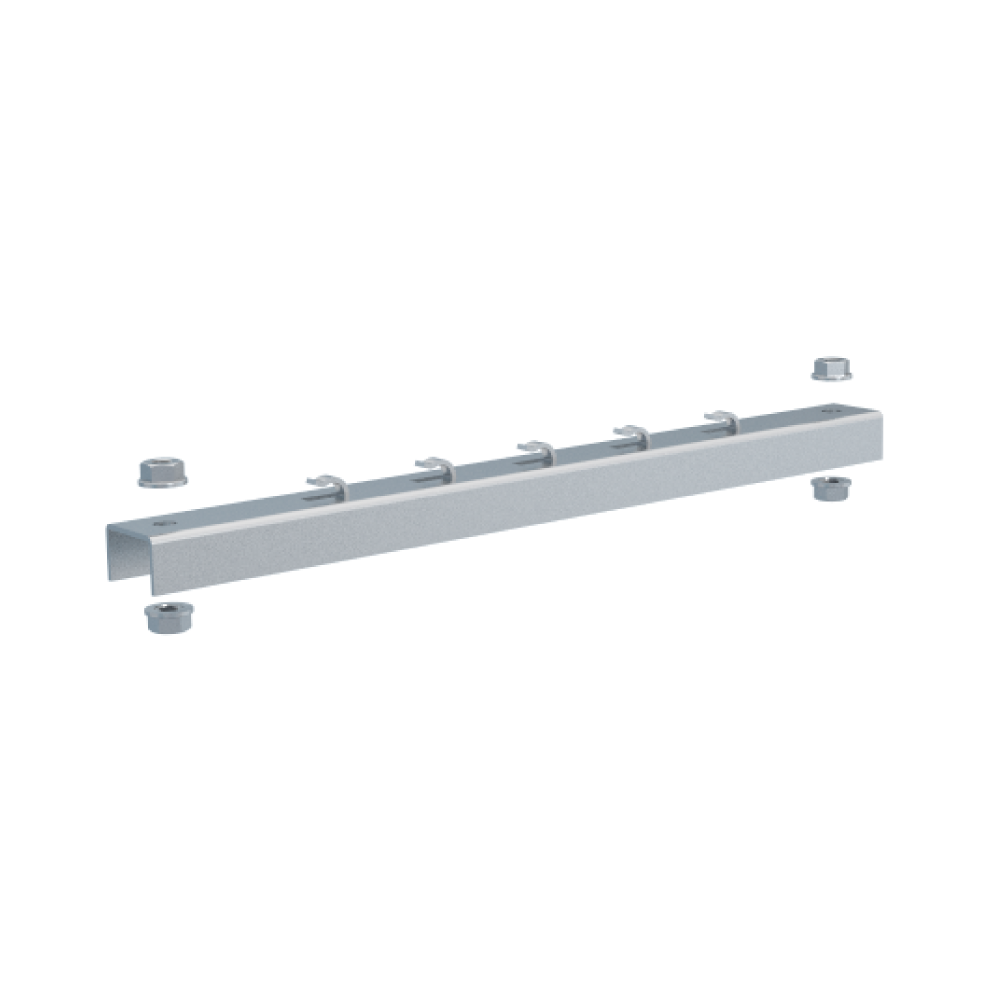

Components shown in the figure are included in the package

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -216215
  • ZZ ARK -226215
  • A2 ARK -236215





ZZ - ARK-226215 - connecting element options

0 - electro-galvanized (CG)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

PZMP 150 support, fire resistant
PZMP 150 support, fire resistant
PZMP 150 support, fire resistant
PZMP 150 support, fire resistant
PZMP 150 support, fire resistant
PZMP 150 support, fire resistant

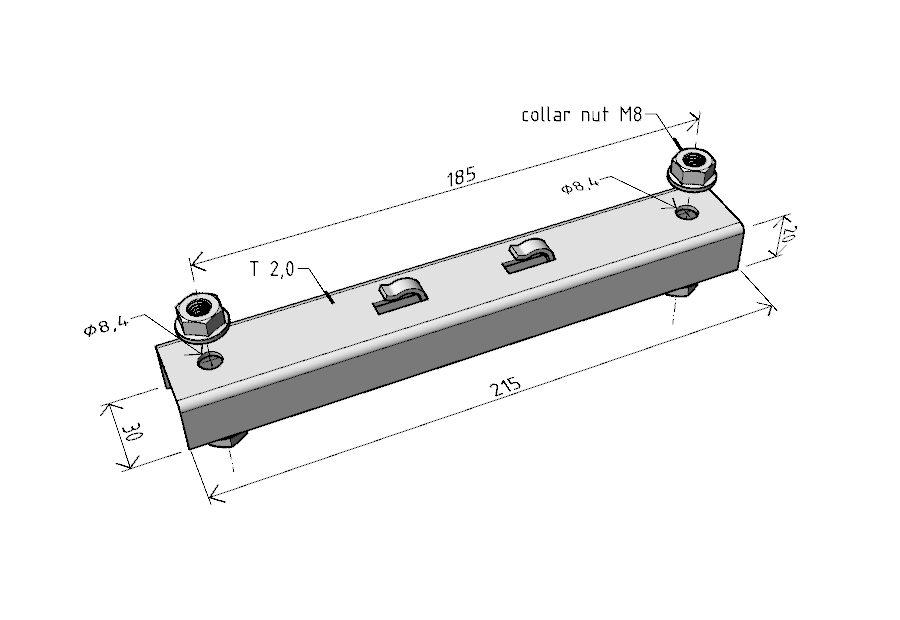

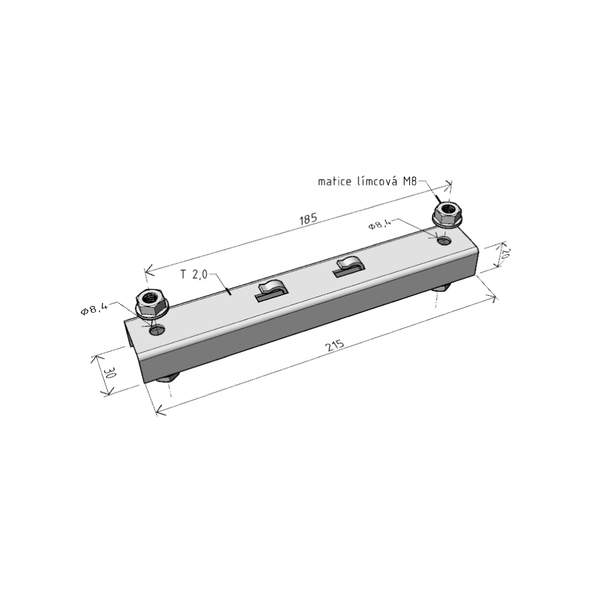

PZMP 200 support, fire resistant

  • Functional integrity
PZMP 200 support, fire resistant

Components shown in the figure are included in the package

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -216220
  • ZZ ARK -226220
  • A2 ARK -236220





ZZ - ARK-226220 - connecting element options

0 - electro-galvanized (CG)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

PZMP 200 support, fire resistant
PZMP 200 support, fire resistant
PZMP 200 support, fire resistant
PZMP 200 support, fire resistant
PZMP 200 support, fire resistant
PZMP 200 support, fire resistant

PZMP 250 support, fire resistant

  • Functional integrity
PZMP 250 support, fire resistant

Components shown in the figure are included in the package

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -216225
  • ZZ ARK -226225
  • A2 ARK -236225





ZZ - ARK-226225 - connecting element options

0 - electro-galvanized (CG)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

PZMP 250 support, fire resistant
PZMP 250 support, fire resistant
PZMP 250 support, fire resistant
PZMP 250 support, fire resistant
PZMP 250 support, fire resistant
PZMP 250 support, fire resistant

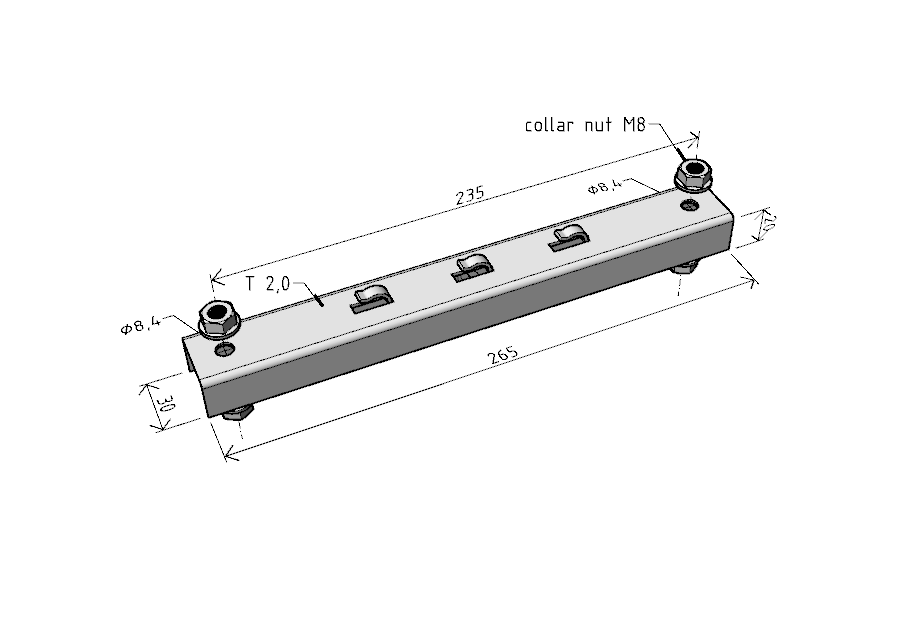

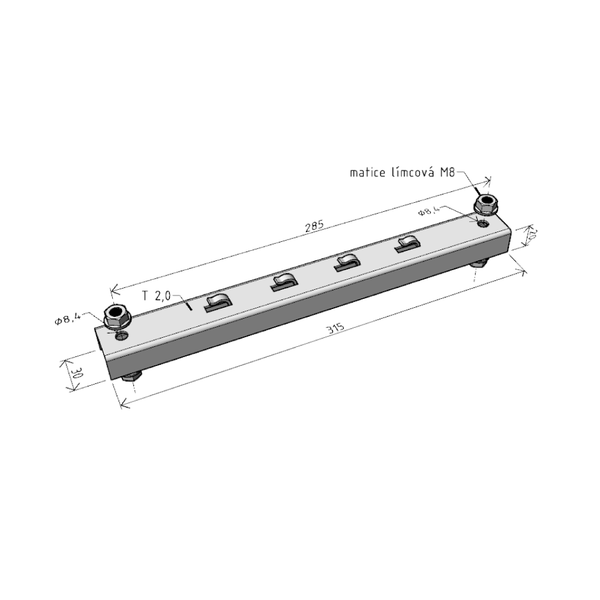

PZMP 300 support, fire resistant

  • Functional integrity
PZMP 300 support, fire resistant

Components shown in the figure are included in the package

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -216230
  • ZZ ARK -226230
  • A2 ARK -236230





ZZ - ARK-226230 - connecting element options

0 - electro-galvanized (CG)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

PZMP 300 support, fire resistant
PZMP 300 support, fire resistant
PZMP 300 support, fire resistant
PZMP 300 support, fire resistant
PZMP 300 support, fire resistant
PZMP 300 support, fire resistant

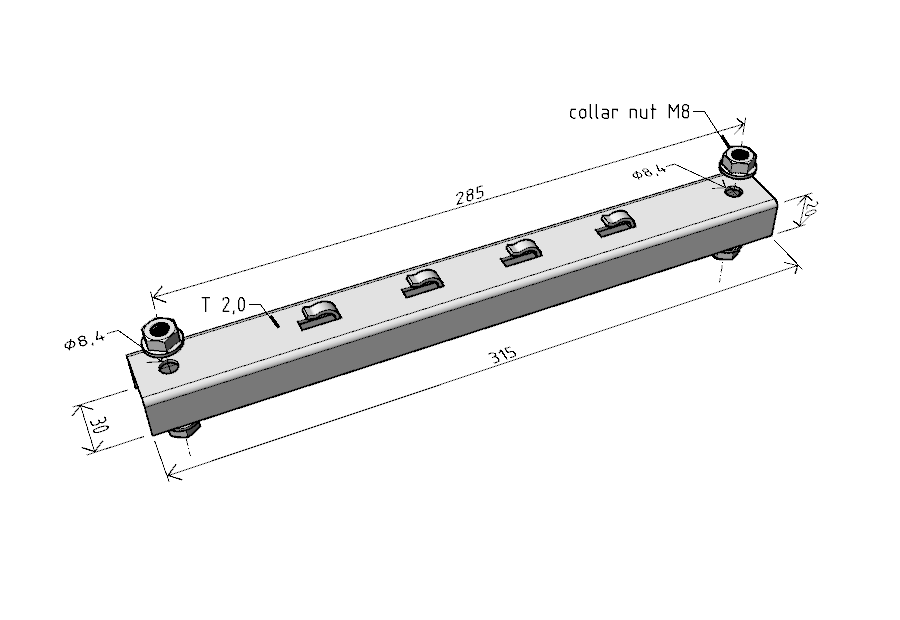

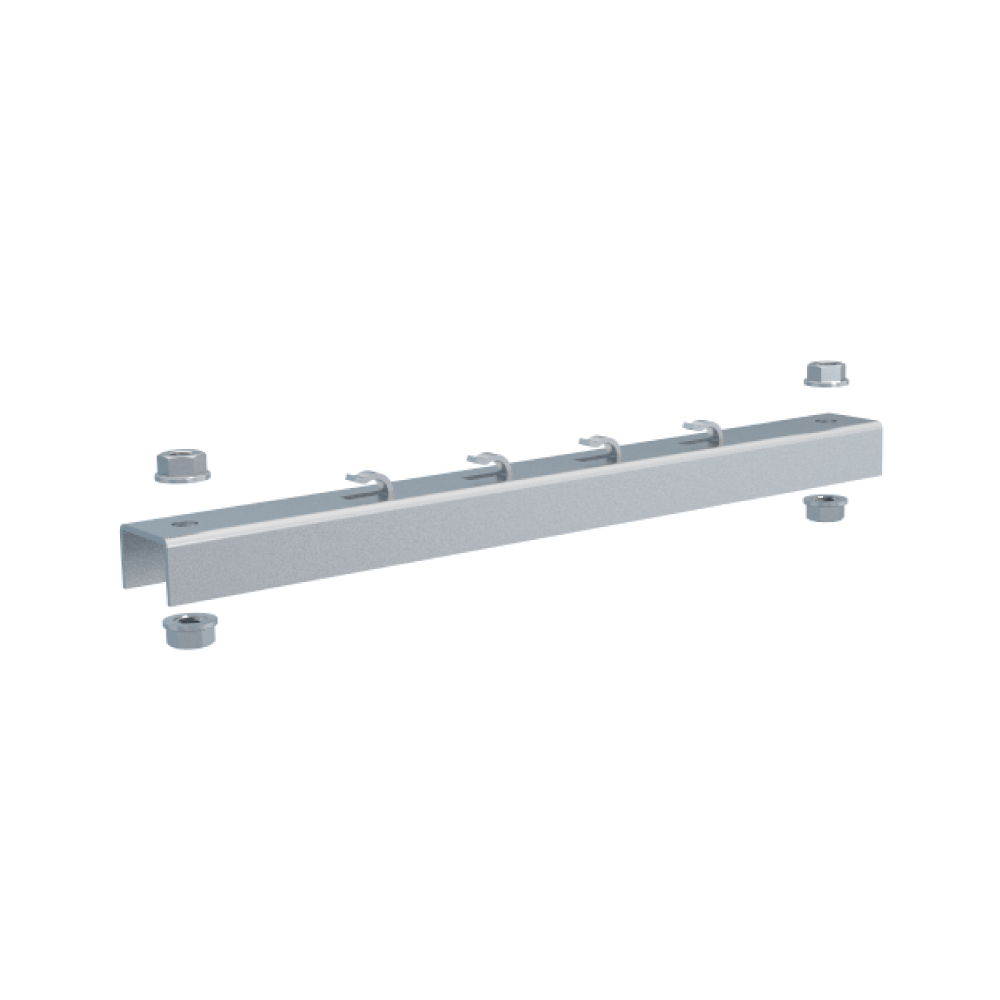

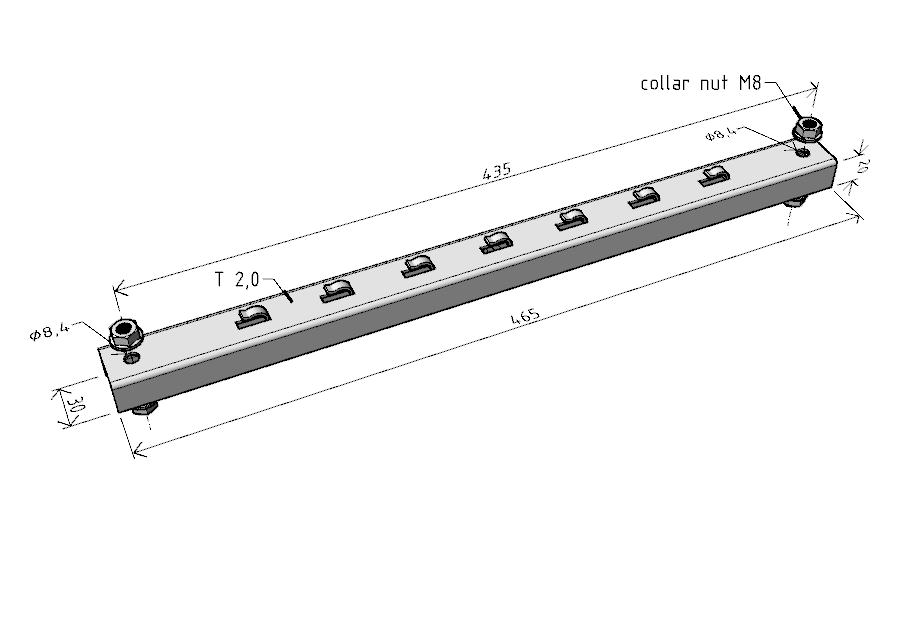

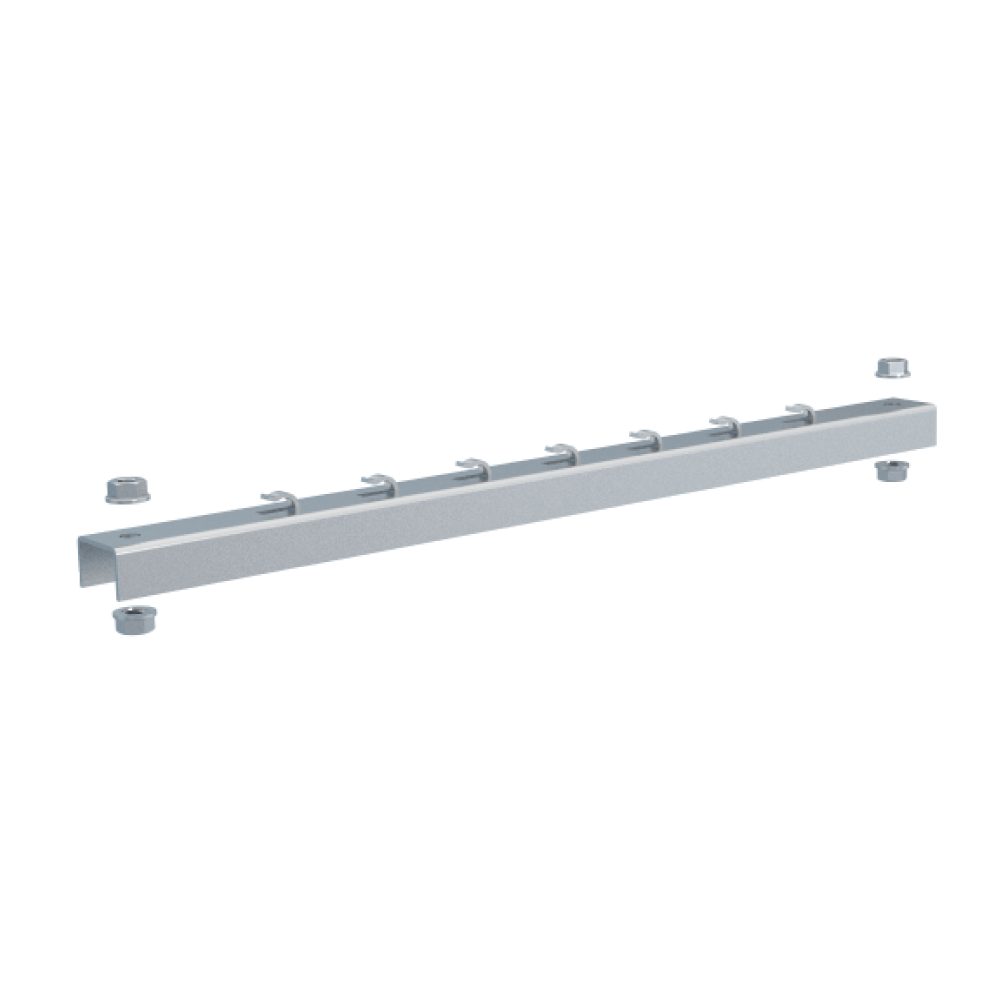

PZMP 400 support, fire resistant

  • Functional integrity
PZMP 400 support, fire resistant

Components shown in the figure are included in the package

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -216240
  • ZZ ARK -226240
  • A2 ARK -236240





ZZ - ARK-226240 - connecting element options

0 - electro-galvanized (CG)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

PZMP 400 support, fire resistant
PZMP 400 support, fire resistant
PZMP 400 support, fire resistant
PZMP 400 support, fire resistant
PZMP 400 support, fire resistant
PZMP 400 support, fire resistant

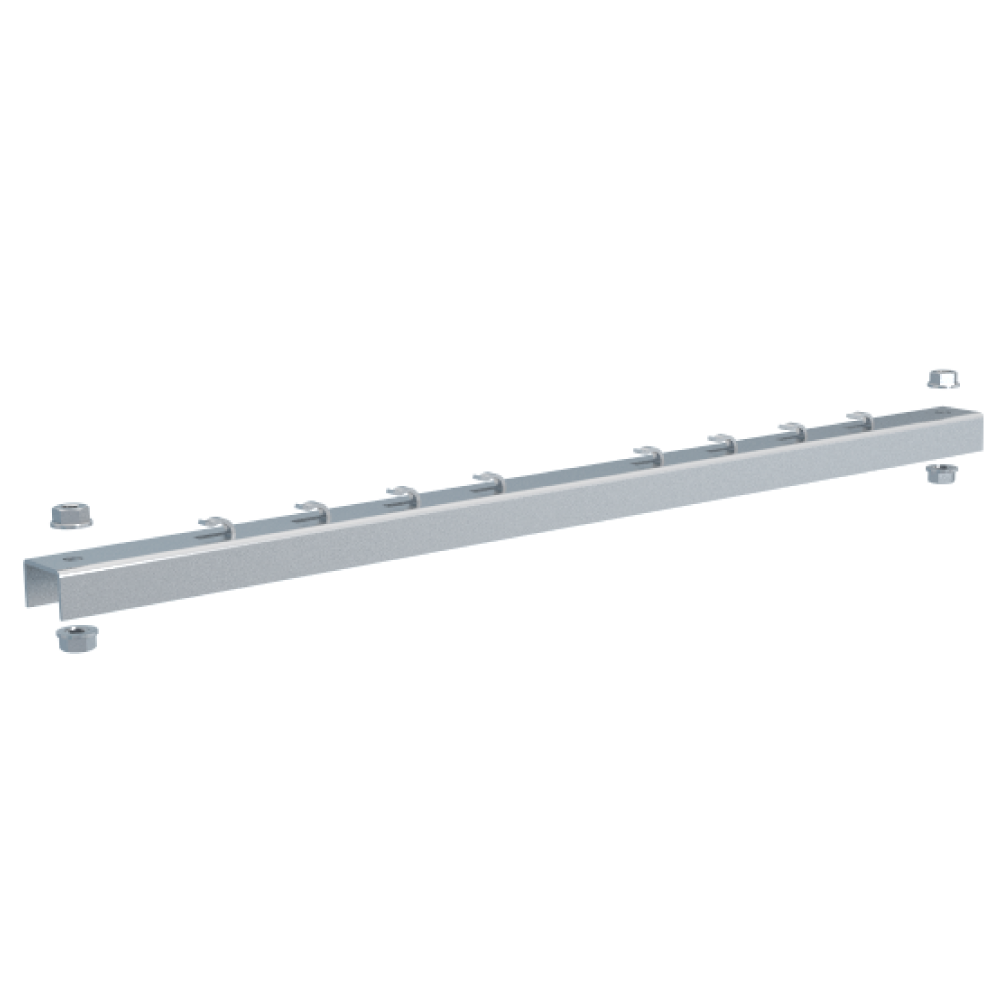

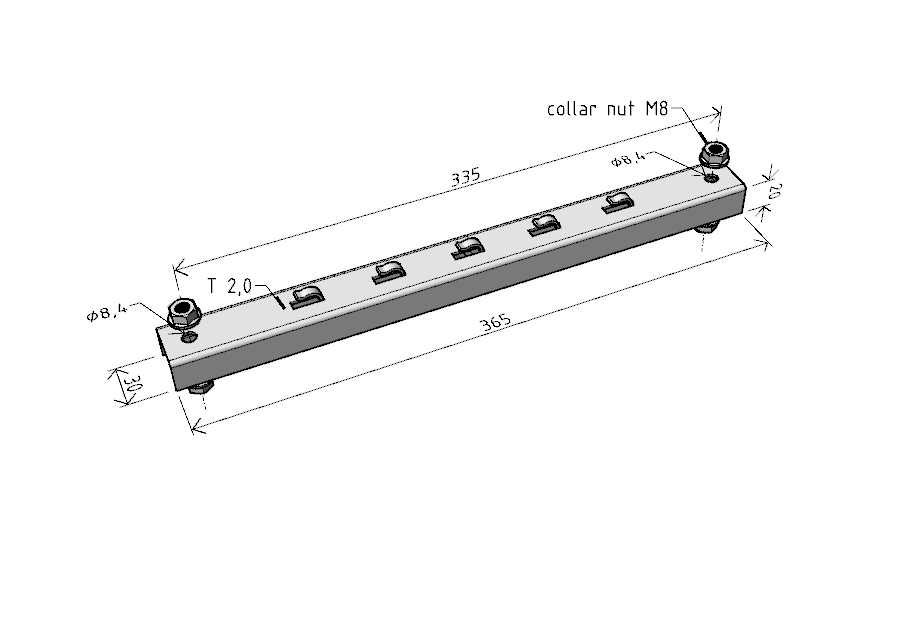

PZMP 500 support, fire resistant

  • Functional integrity
PZMP 500 support, fire resistant

Components shown in the figure are included in the package

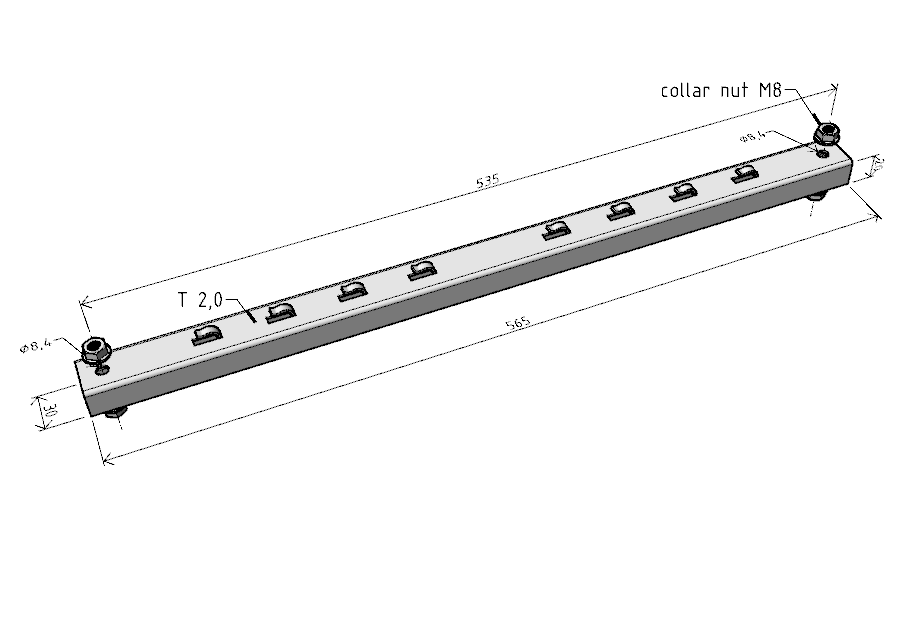

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -216250
  • ZZ ARK -226250
  • A2 ARK -236250





ZZ - ARK-216250 - connecting element options

0 - electro-galvanized (CG)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

PZMP 500 support, fire resistant
PZMP 500 support, fire resistant
PZMP 500 support, fire resistant
PZMP 500 support, fire resistant
PZMP 500 support, fire resistant
PZMP 500 support, fire resistant
