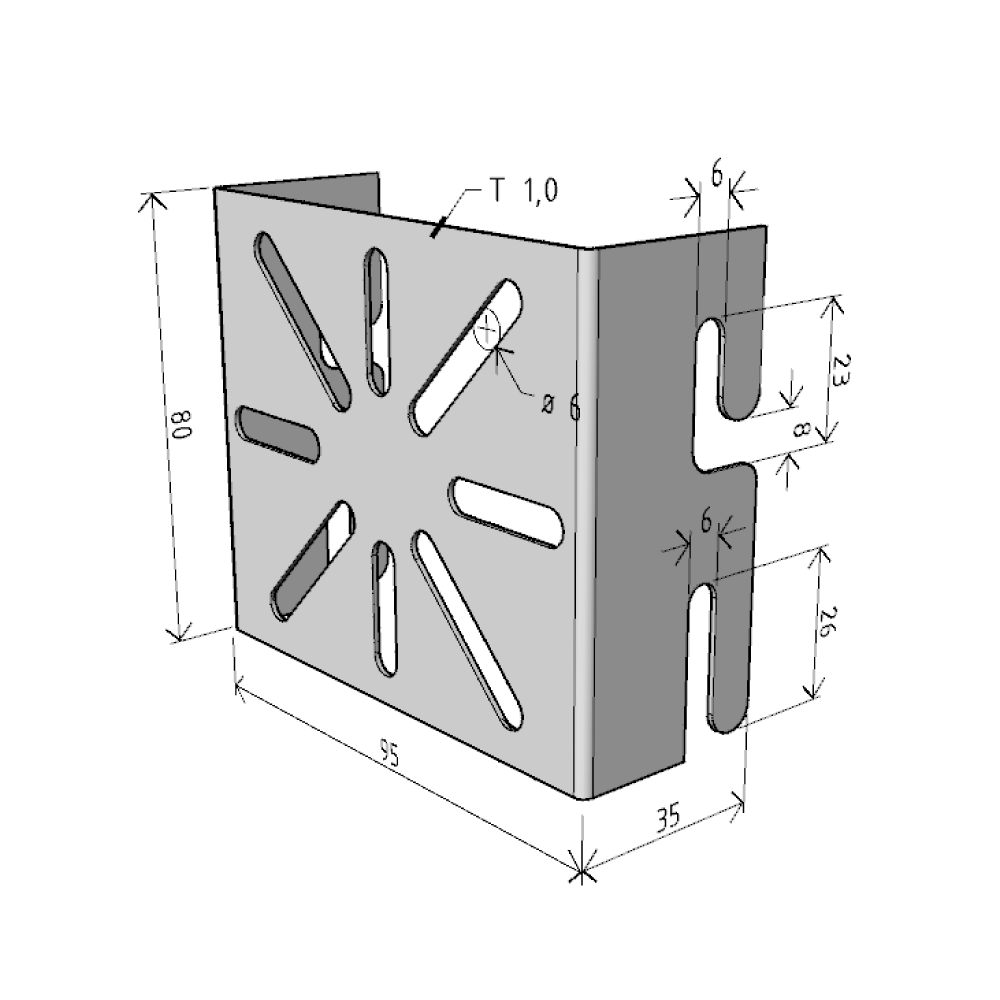

Holders

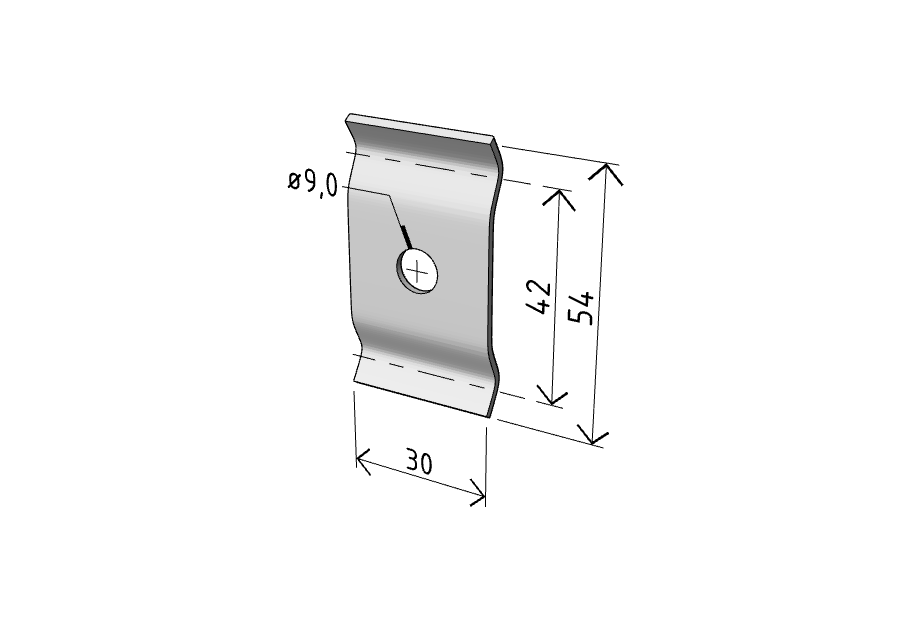

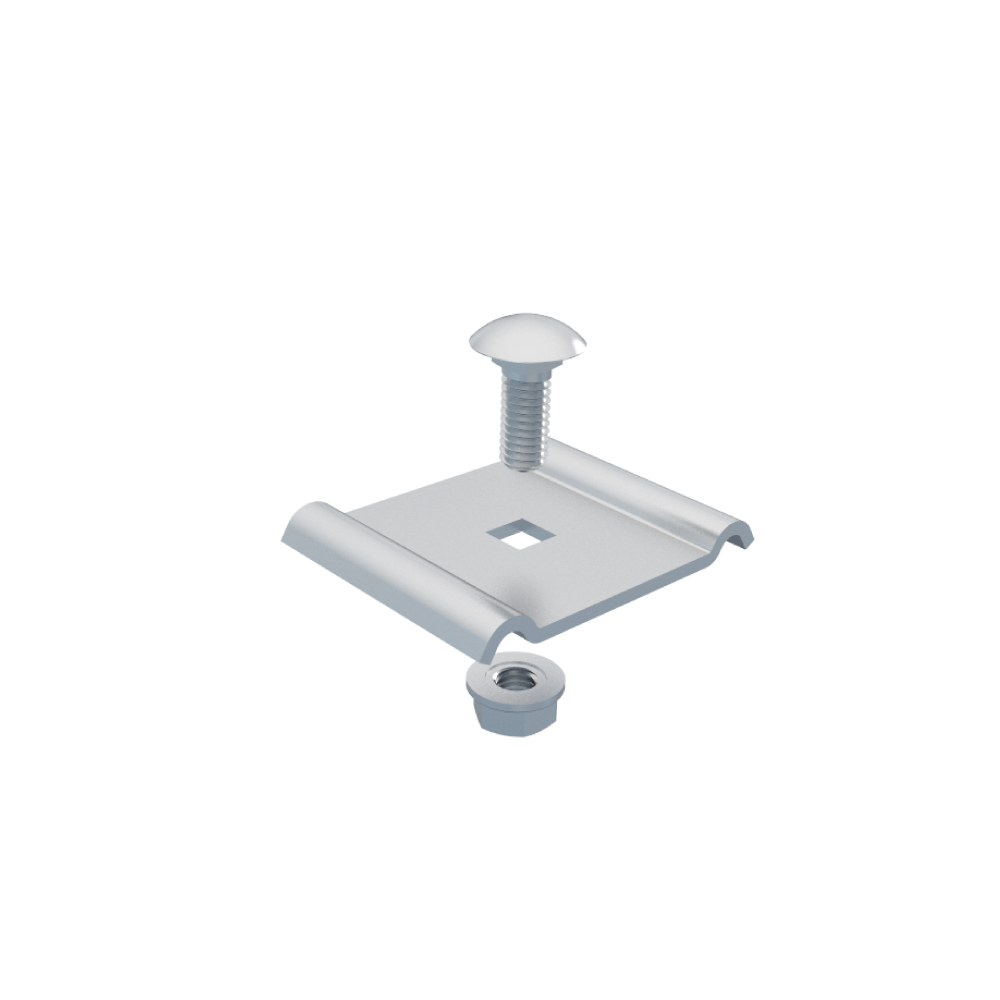

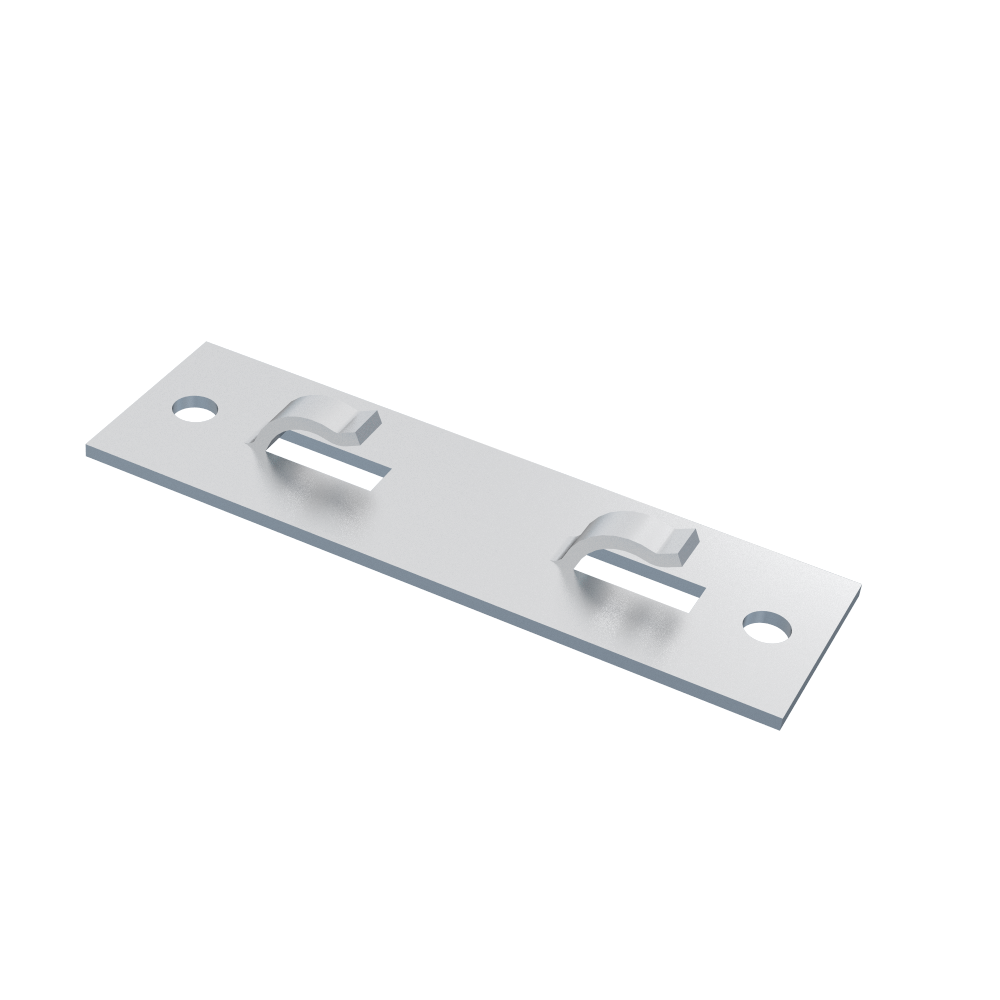

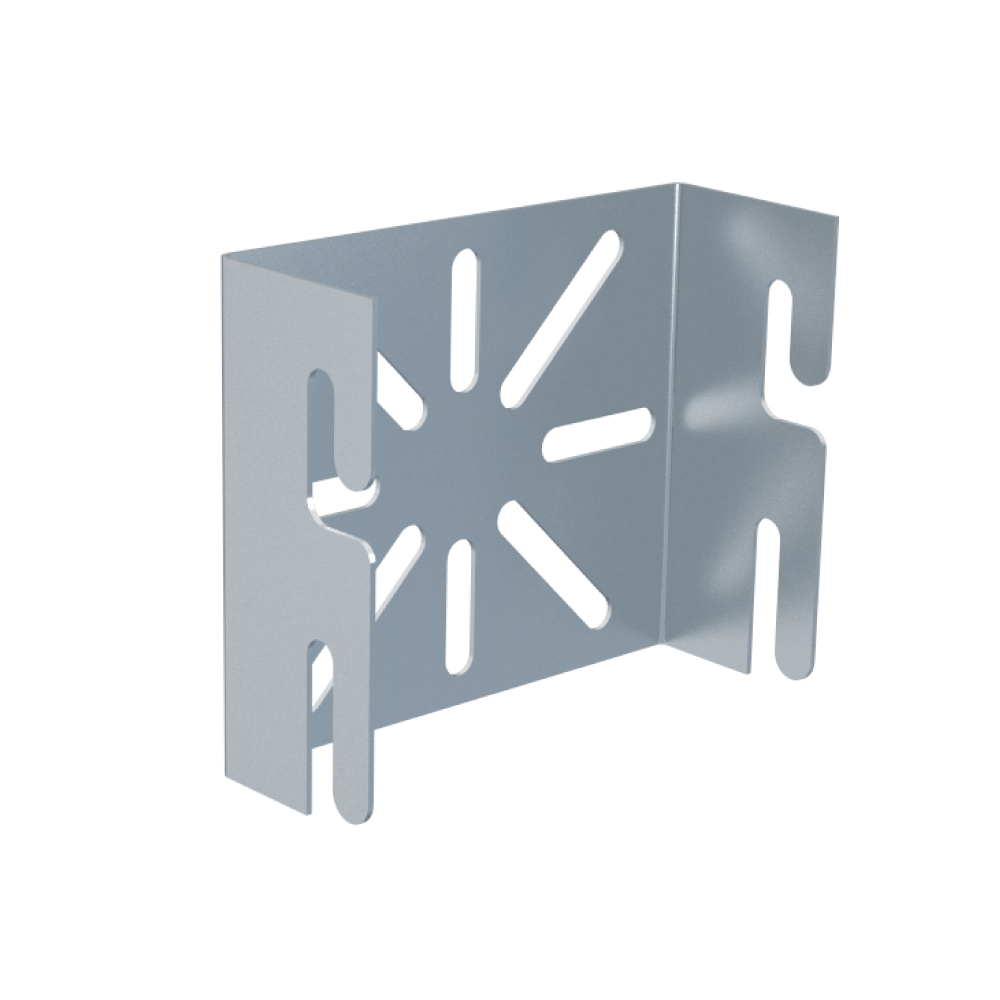

DZM 1 mounting plate

  • Functional integrity

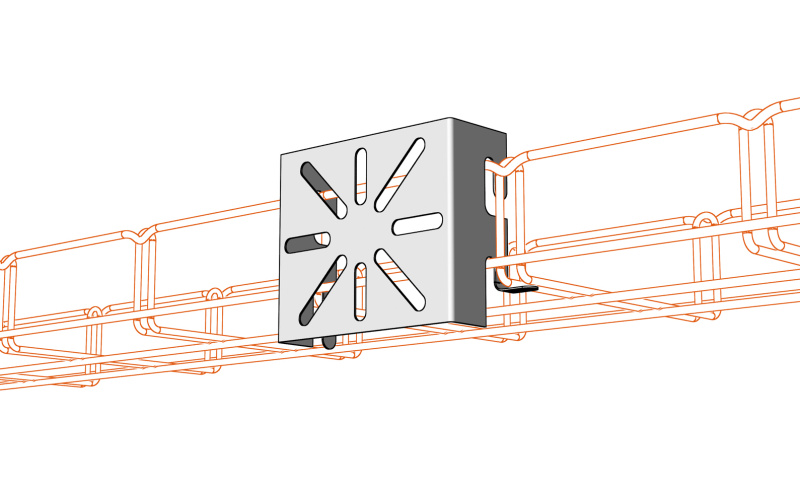

DZM 1 mounting plate

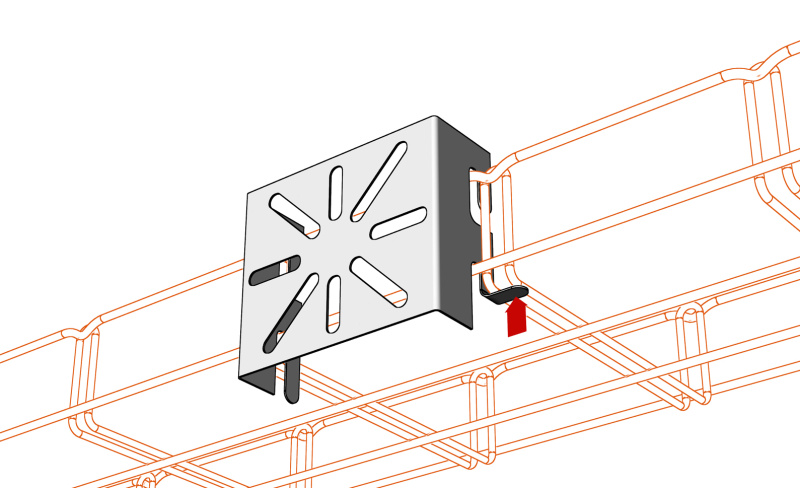

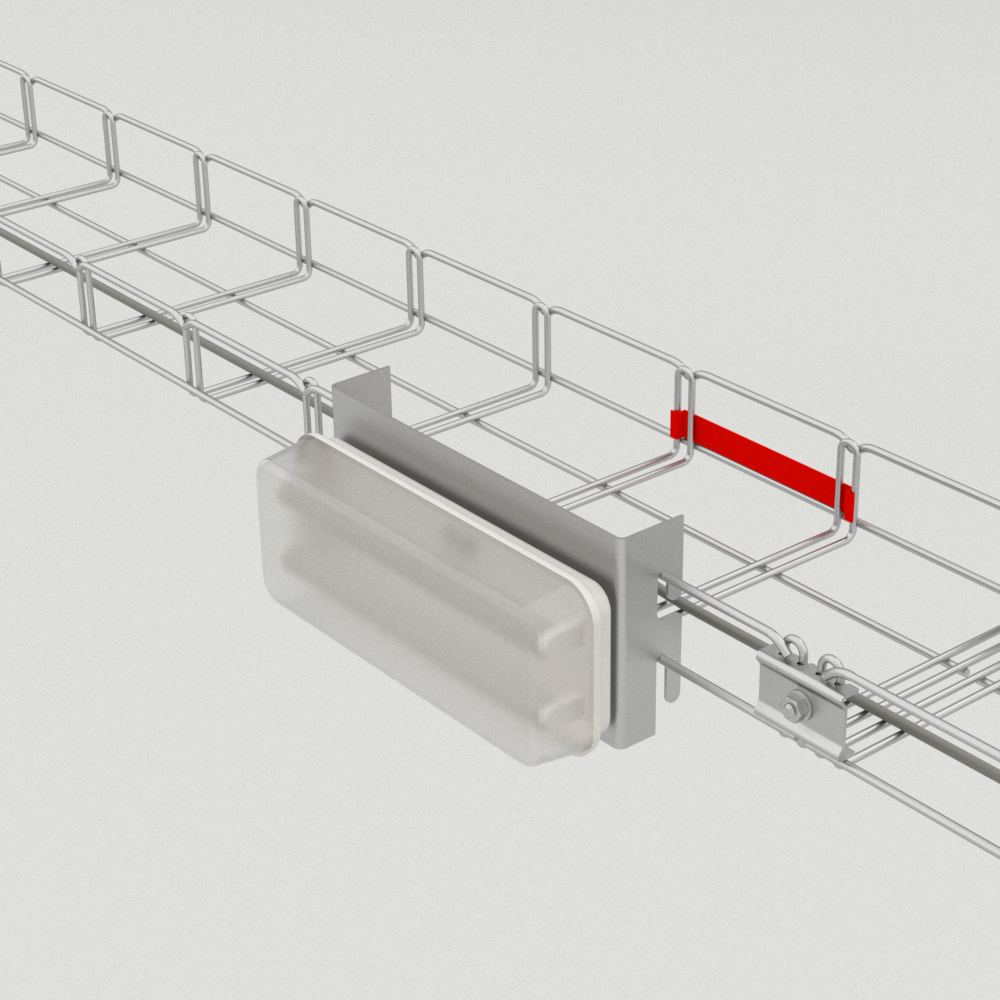

The DZM 1 box holder serves to attach distribution boxes and other elements (sockets, switches, etc.) directly to the cable track. The holder is secured to the mesh tray by means of at least one lip.The maximum load capacity of the holder is 5 kg.

T (plate thickness) 1,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214010
  • ZZ ARK -224010
  • A2 ARK -234010
  • A4 ARK -244010 *

(*) On Request

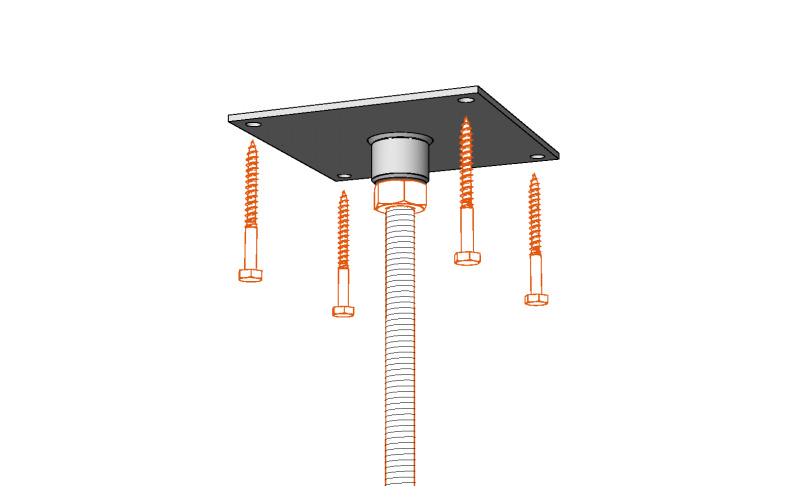

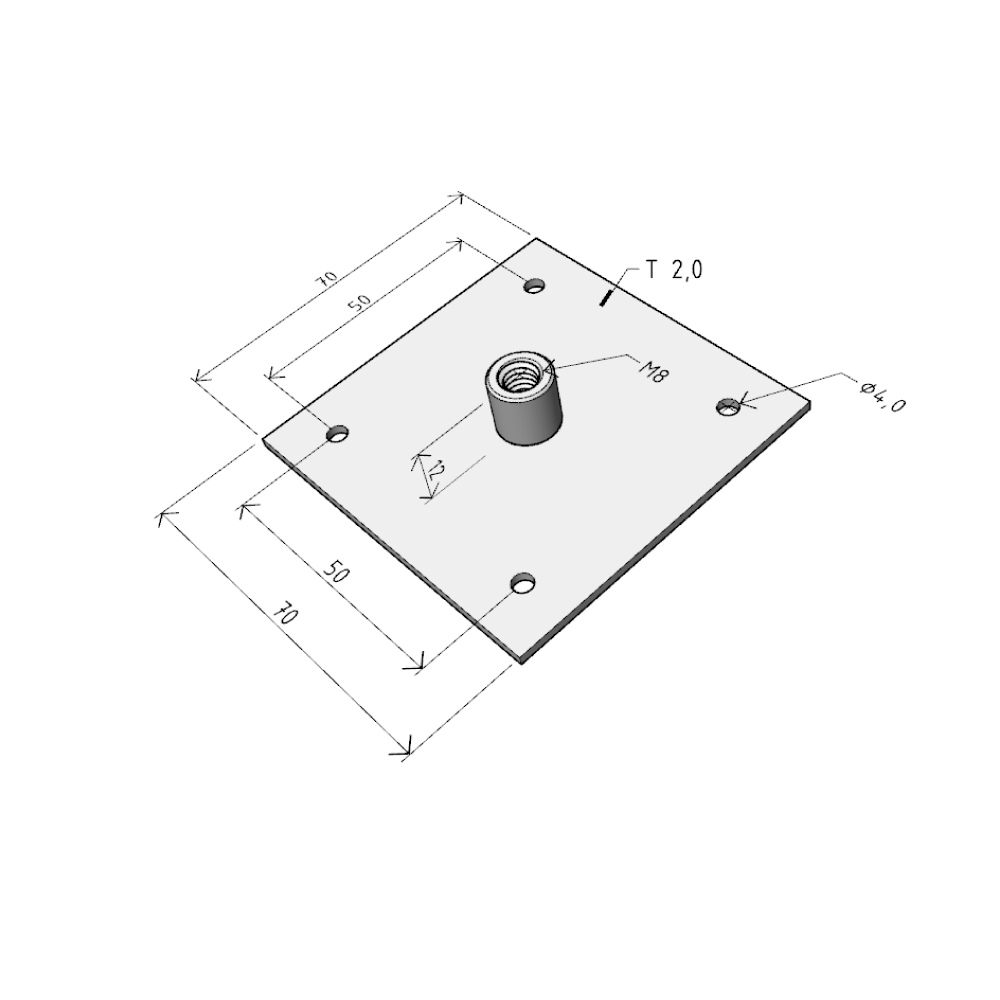

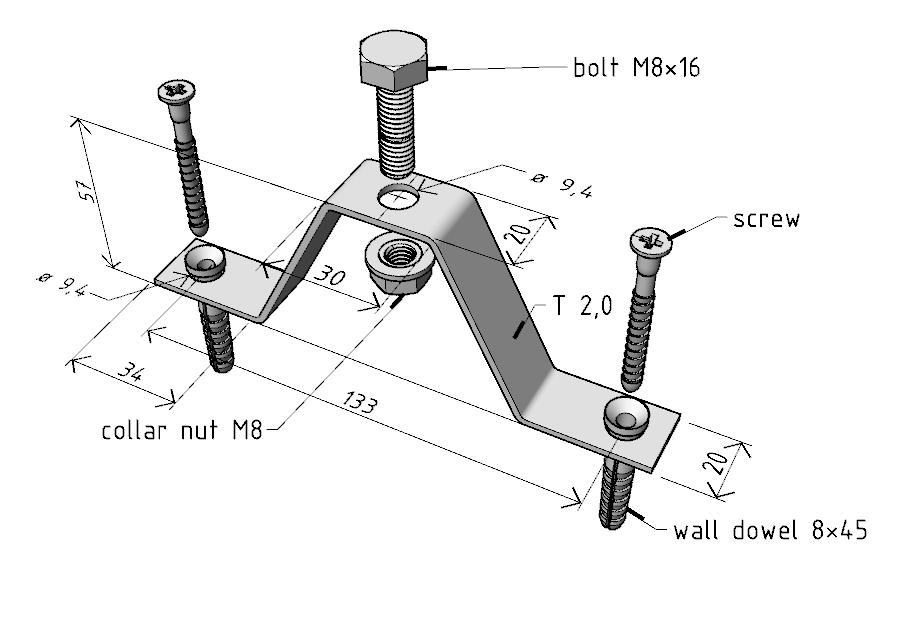

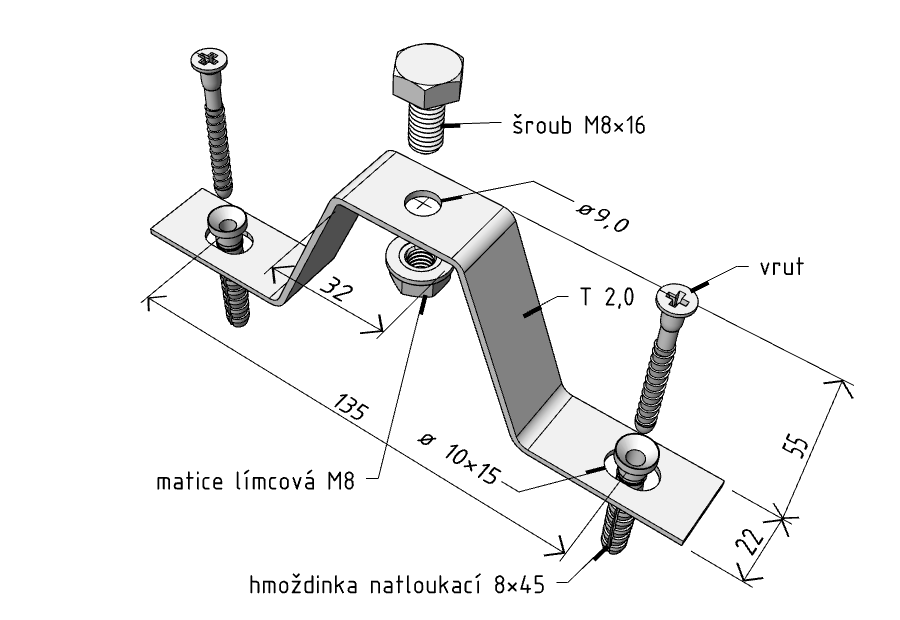

DZM 2 holder of threaded rod

DZM 2 holder of threaded rod

The DZM 2 hanger serves for spatial assemblies, anchoring threaded rods M8 to the ceiling (wooden, hourdis, etc.), or under any horizontal part of a building where metal dowels set in concrete cannot be used. The maximum load capacity of the holder is 150 kg.

T (plate thickness) 2,0 mm
  icon-gz  icon-zA2
Product code
  • GZ ARK -214020
  • A2 ARK -234020

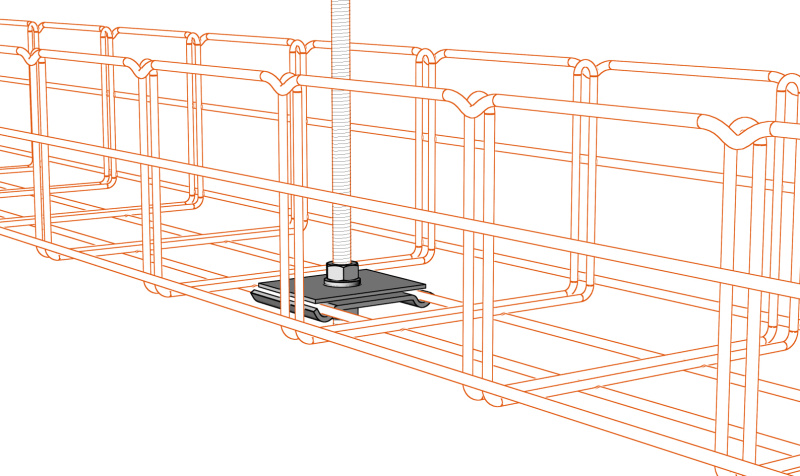

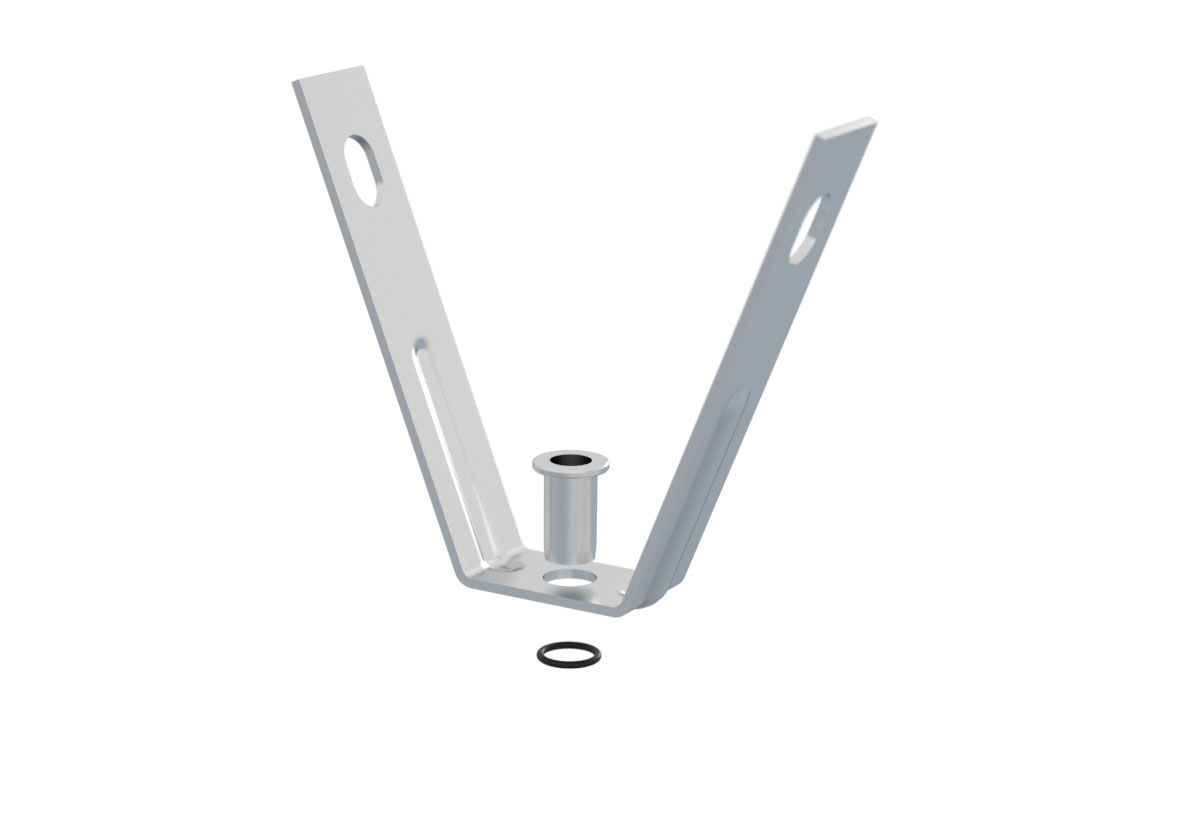

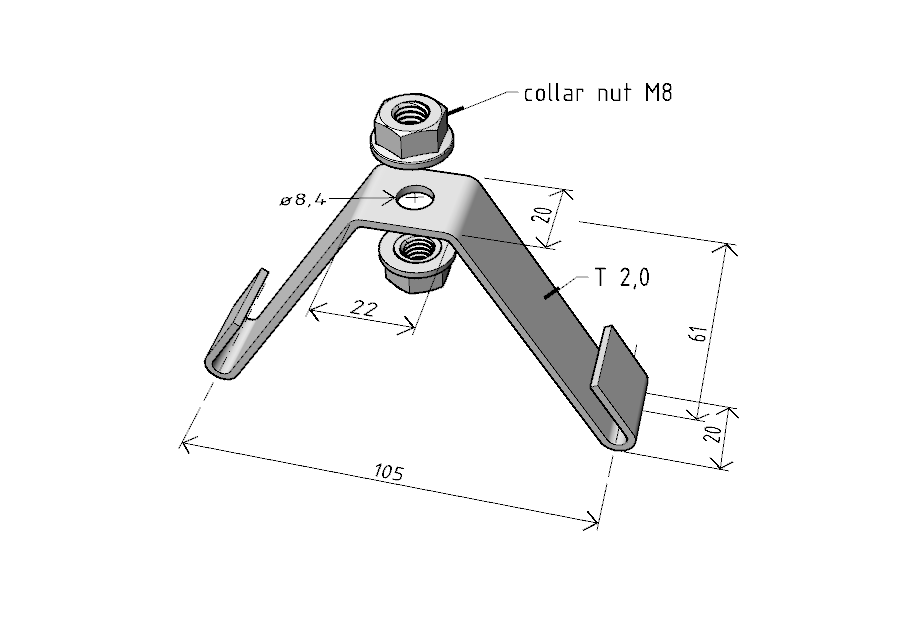

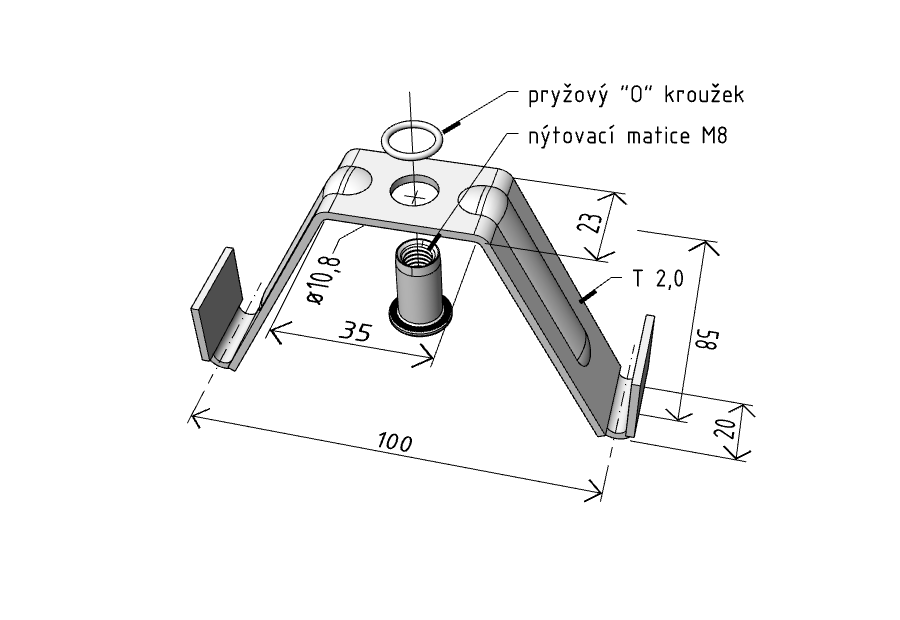

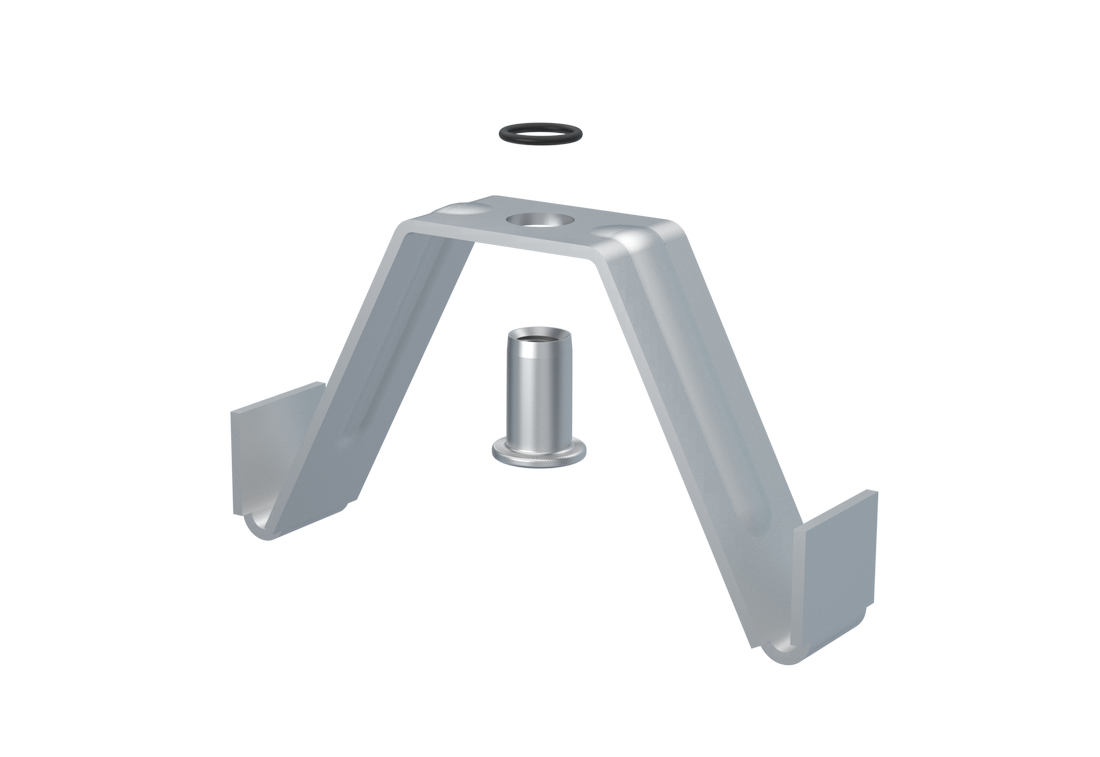

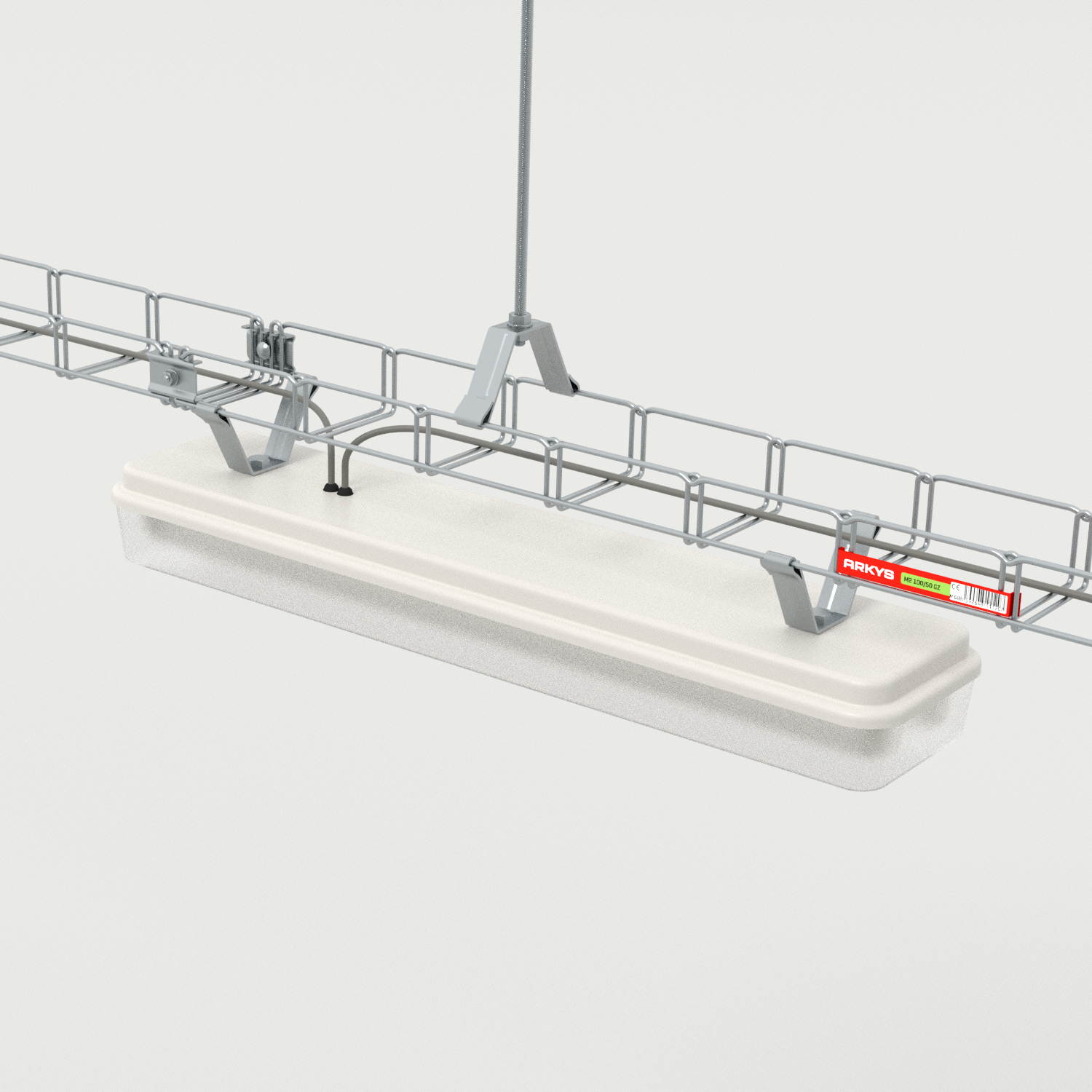

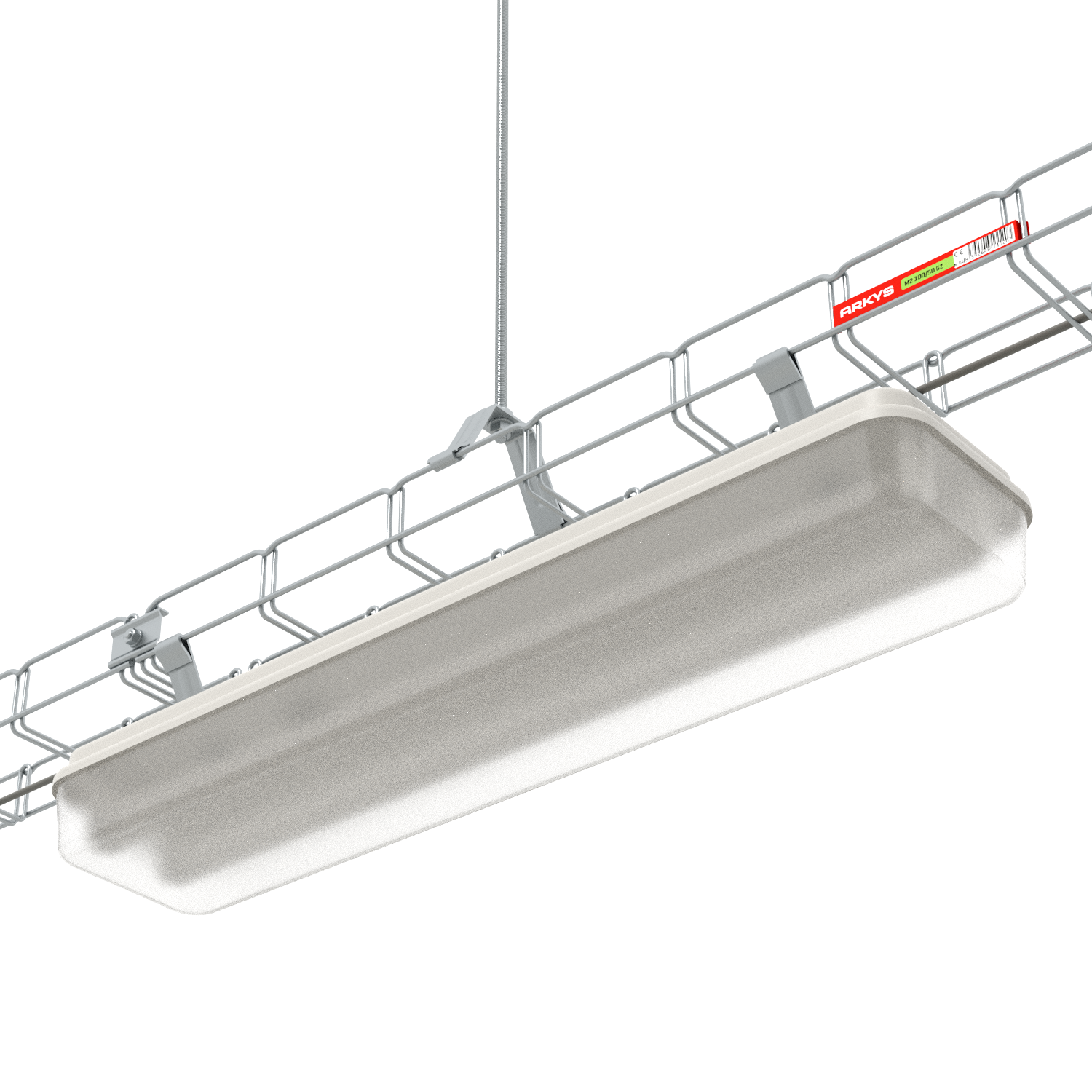

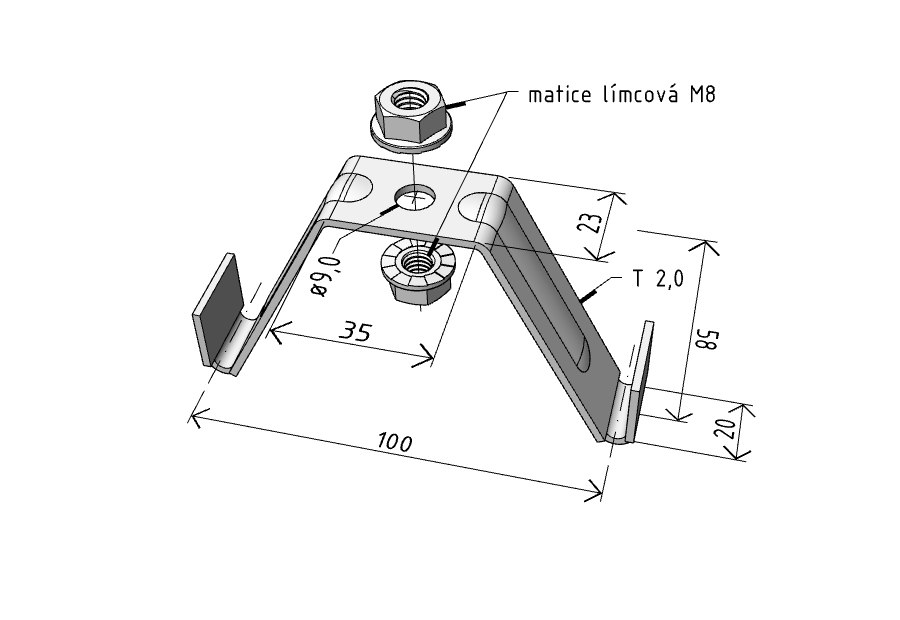

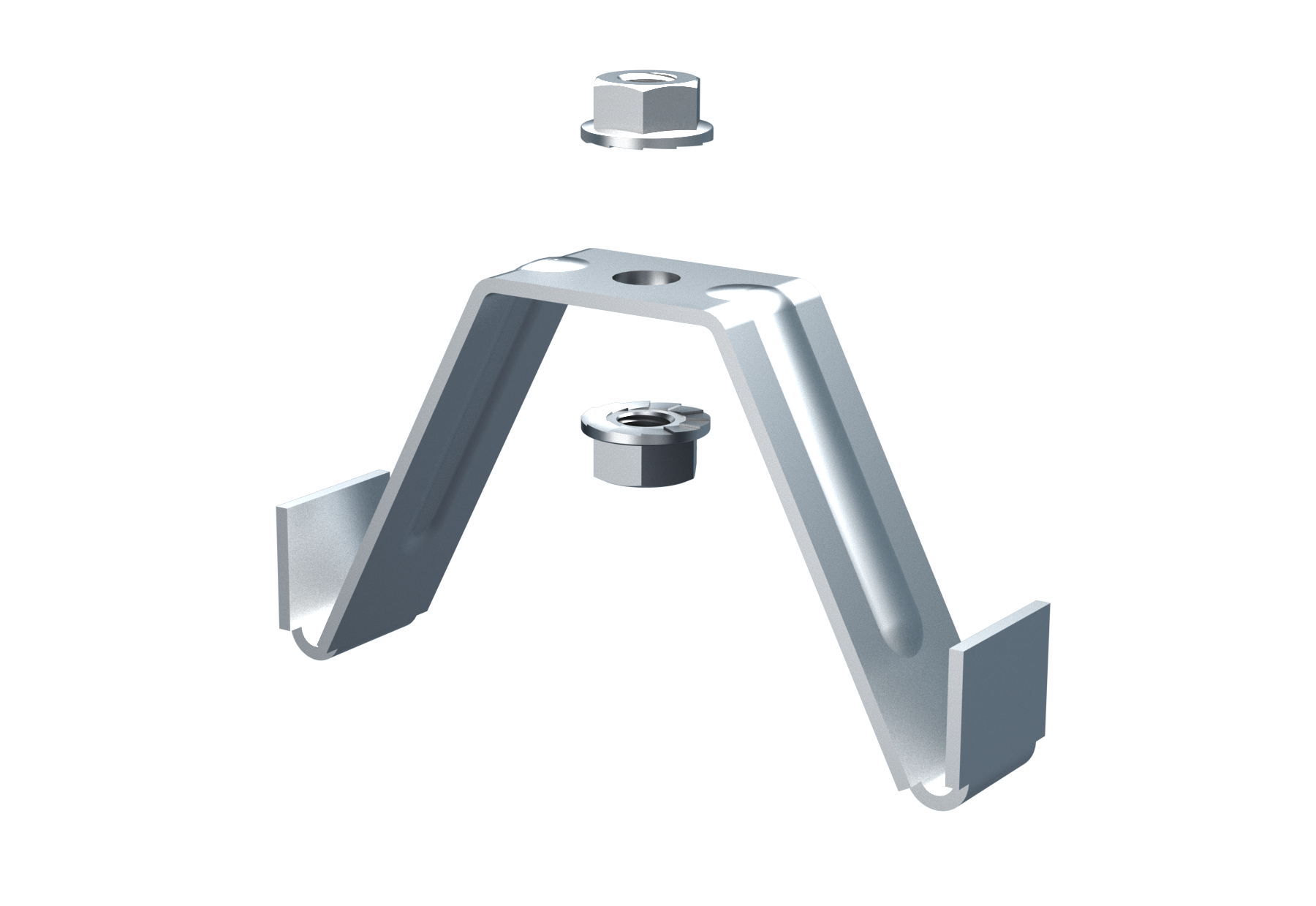

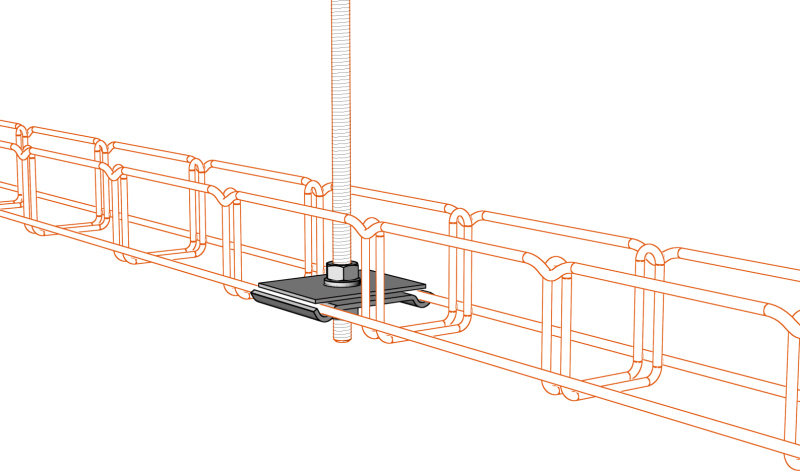

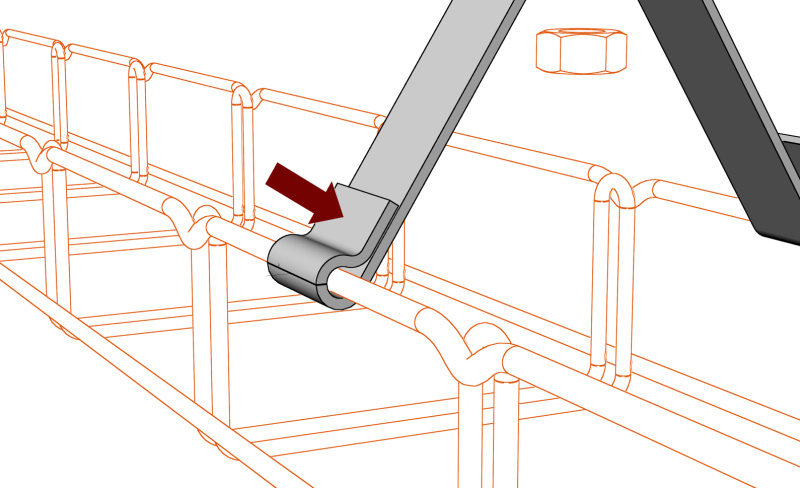

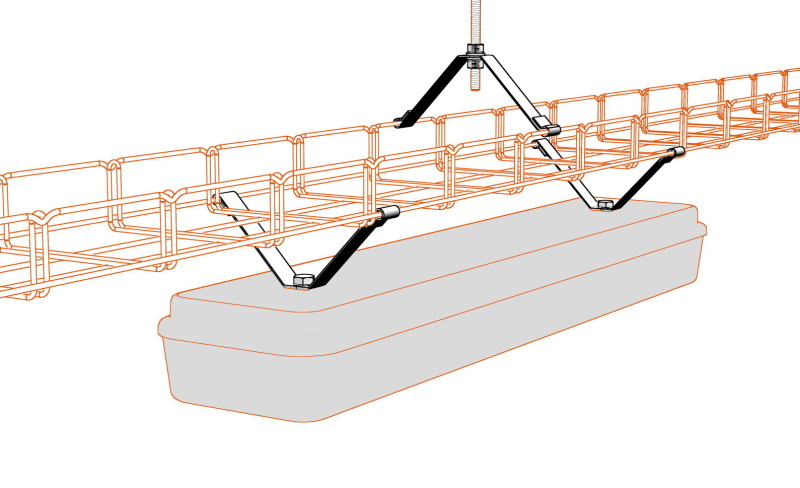

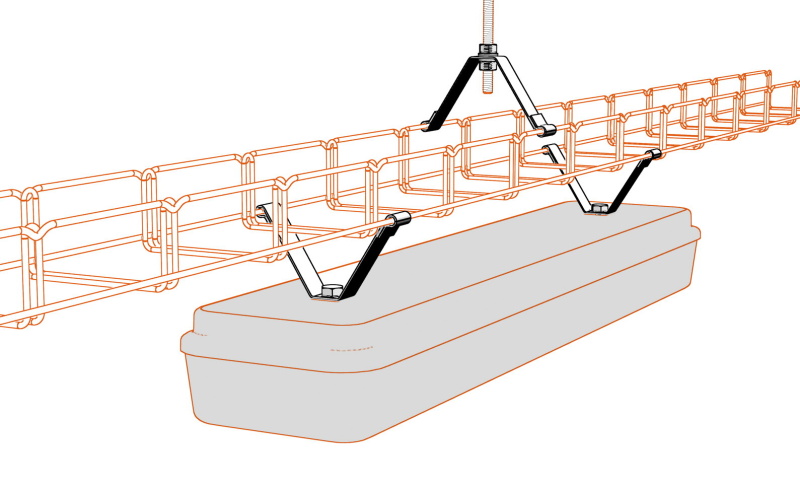

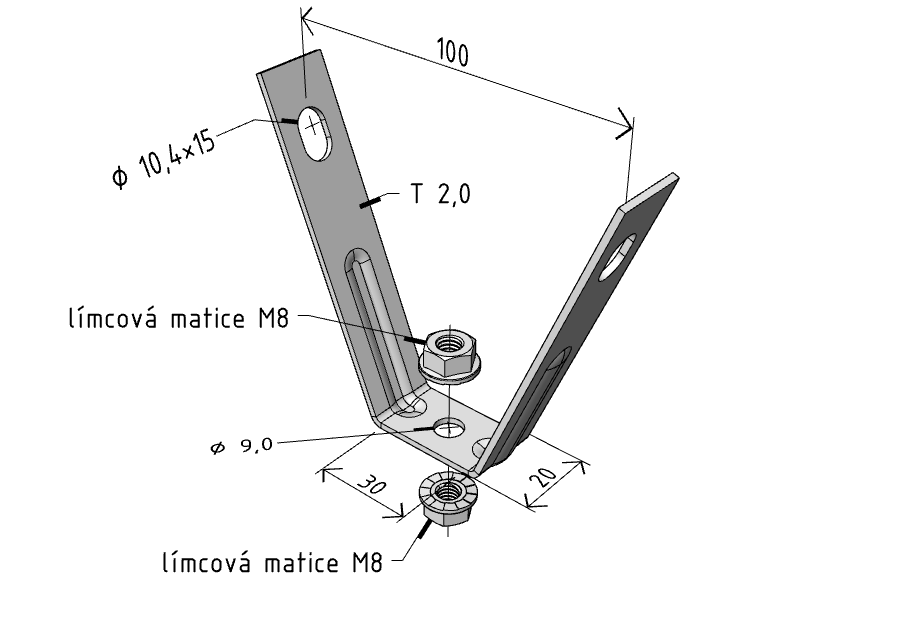

DZM 3/100 central hanger

  • Functional integrity
DZM 3/100 central hanger

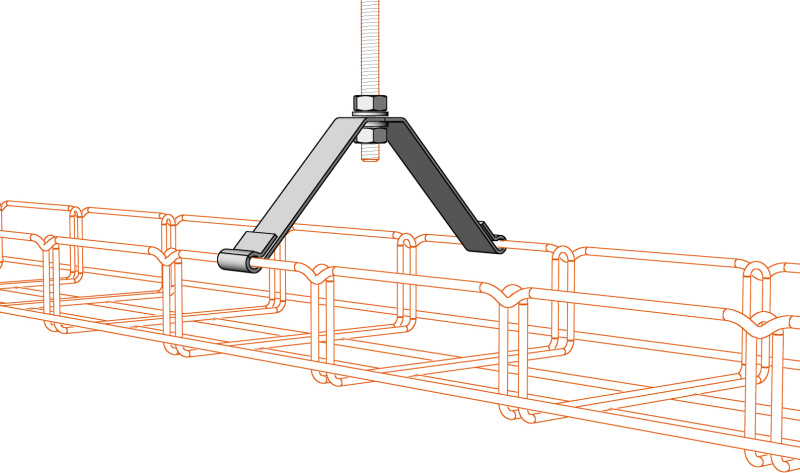

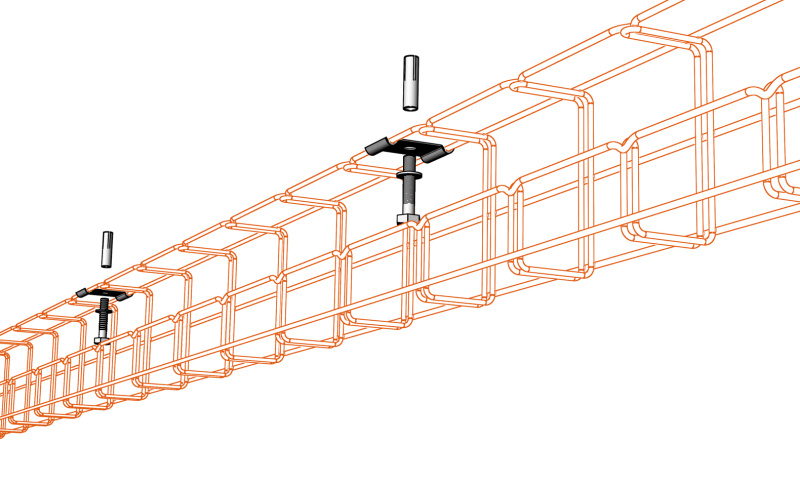

The DZM 3/100 central hanger serves for suspending 100 mm mesh trays from M8 threaded rods. It can also serve as a bearing element for the installation of various types of light fittings. Maximum recommended loading capacity is 50 kg. This type of holder cannot be combined with mesh tray covers. If installation with a cover is required, it is necessary to use the PZM straight bracket or DZM 6 holders.

Components shown in the figure are included in the package.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214030
  • ZZ ARK -224030
  • A2 ARK -234030
  • A4 ARK -244030





ZZ (ARK-224030)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

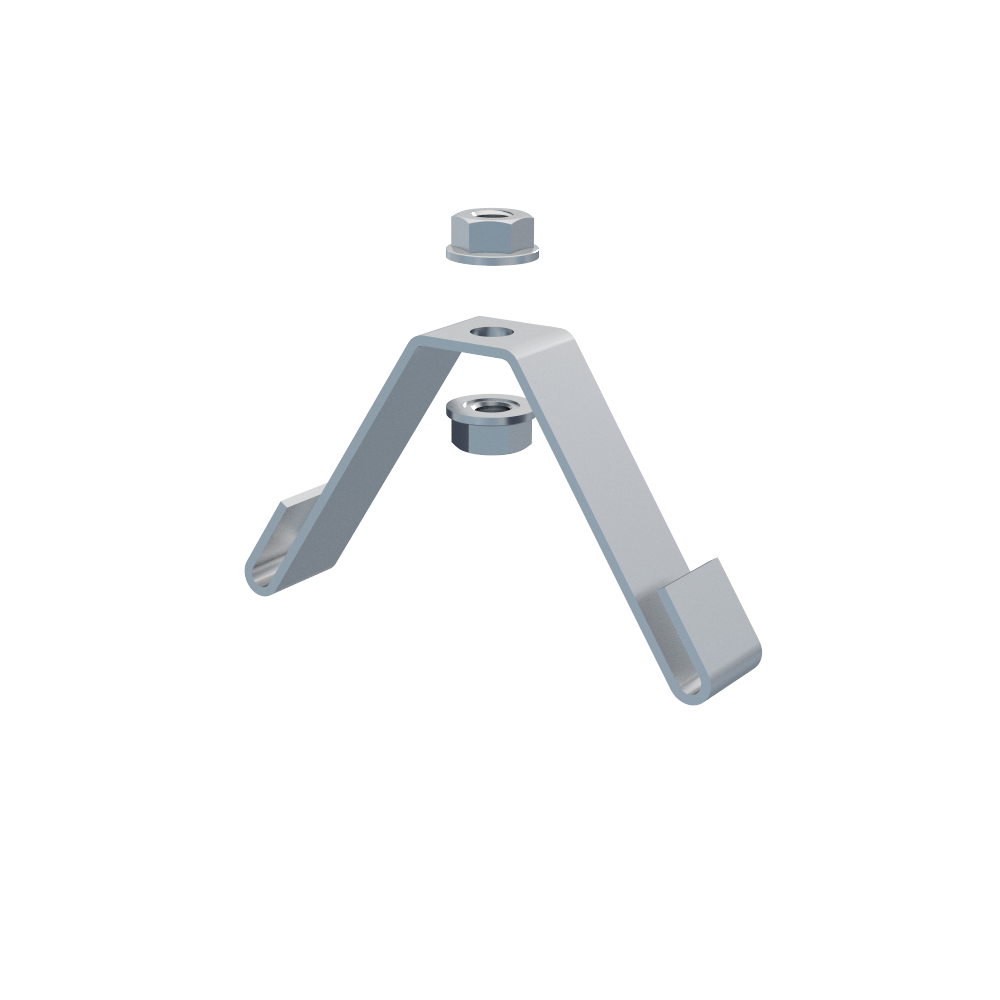

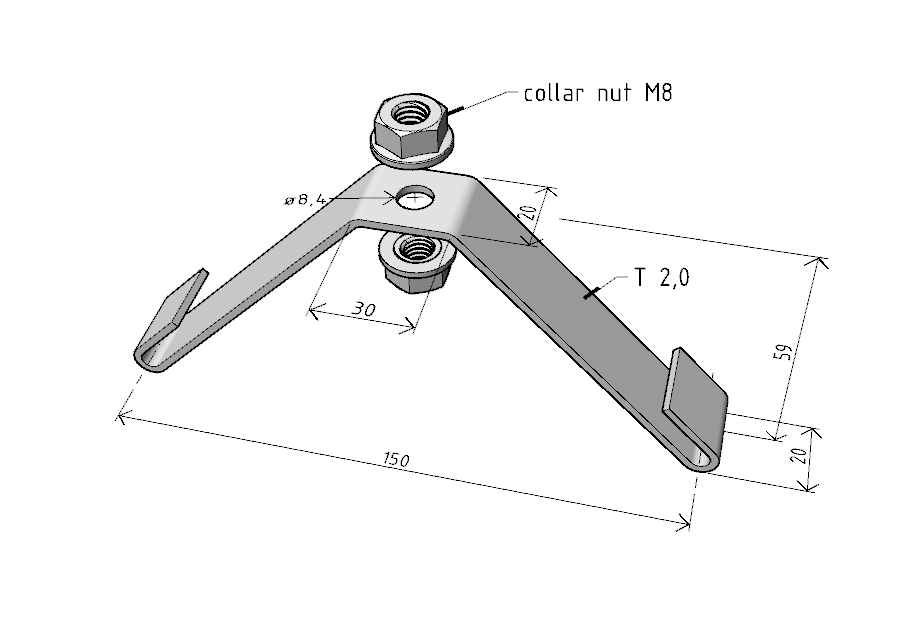

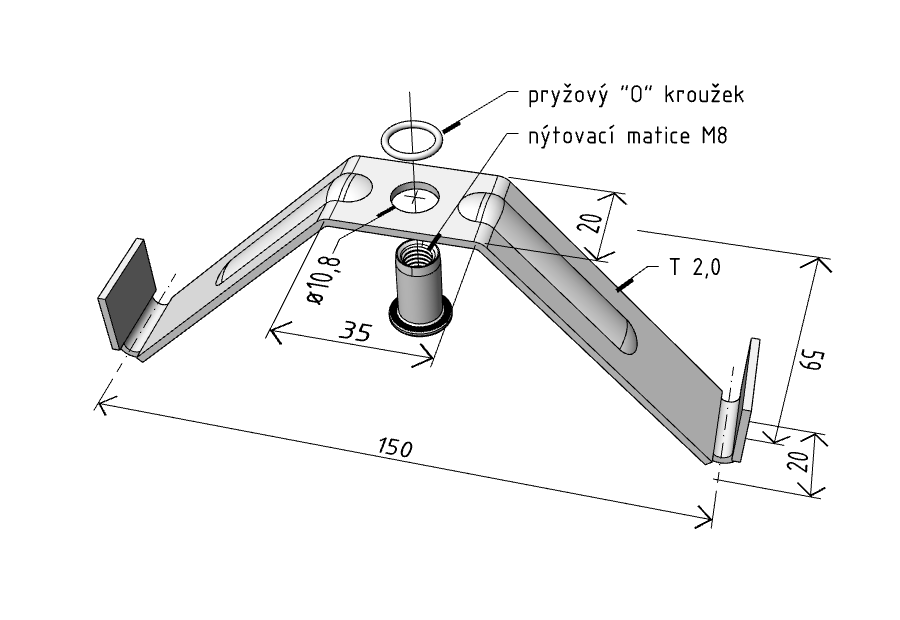

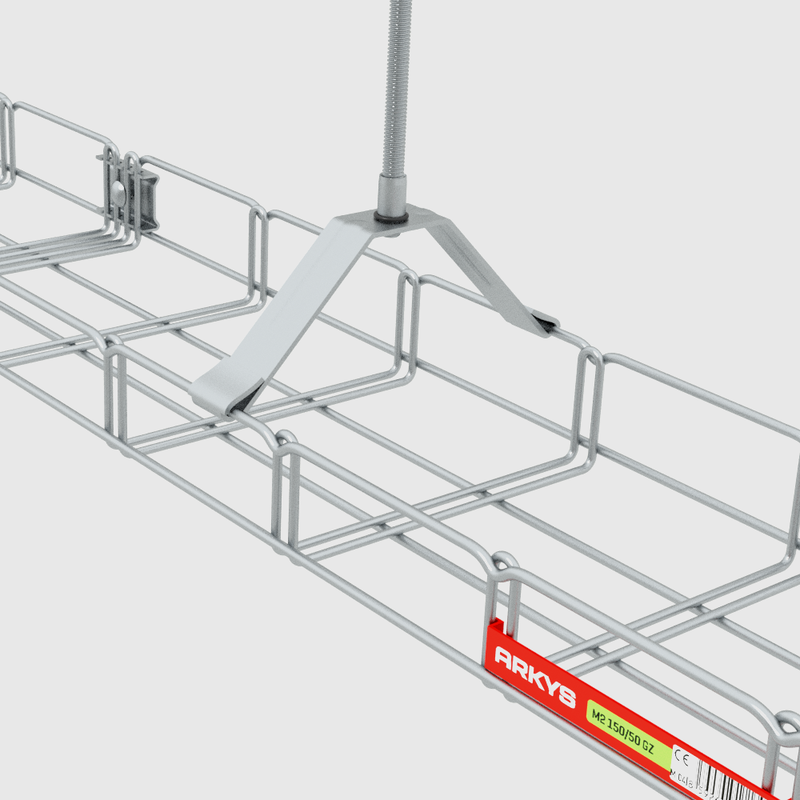

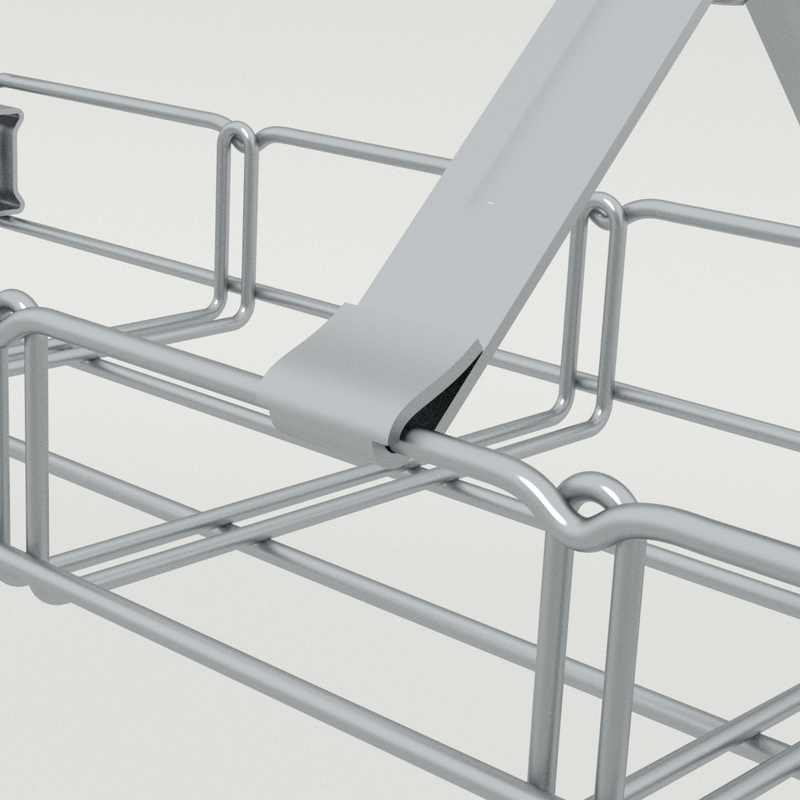

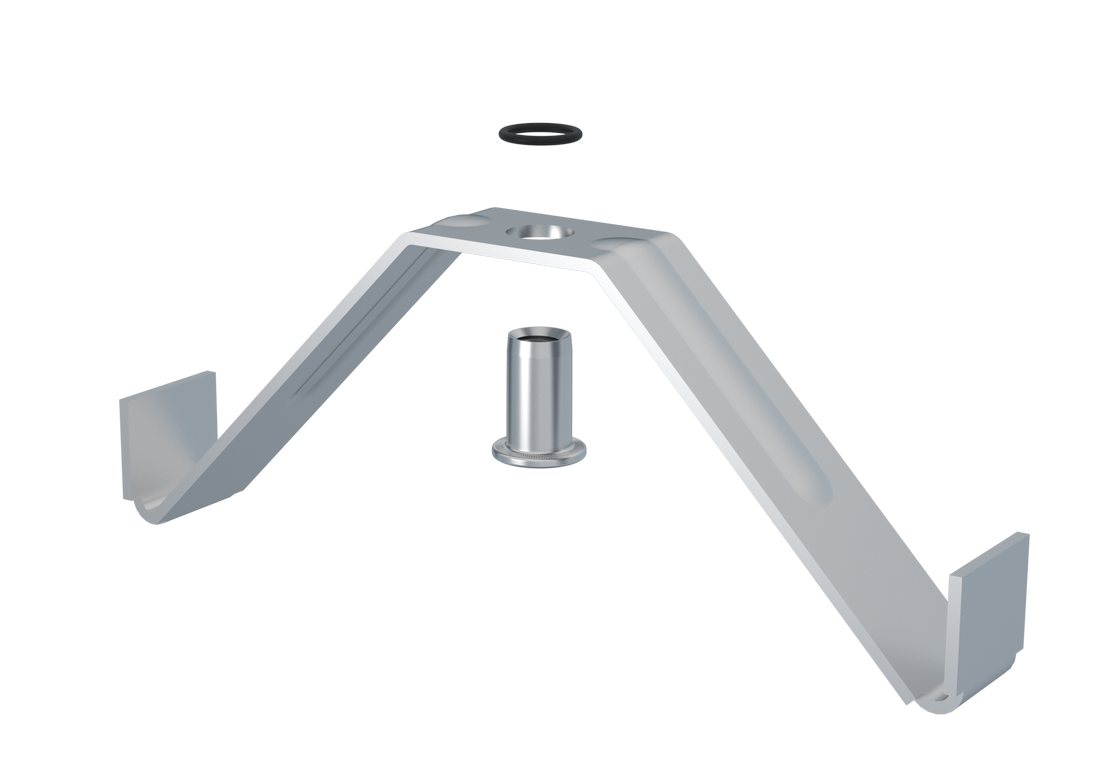

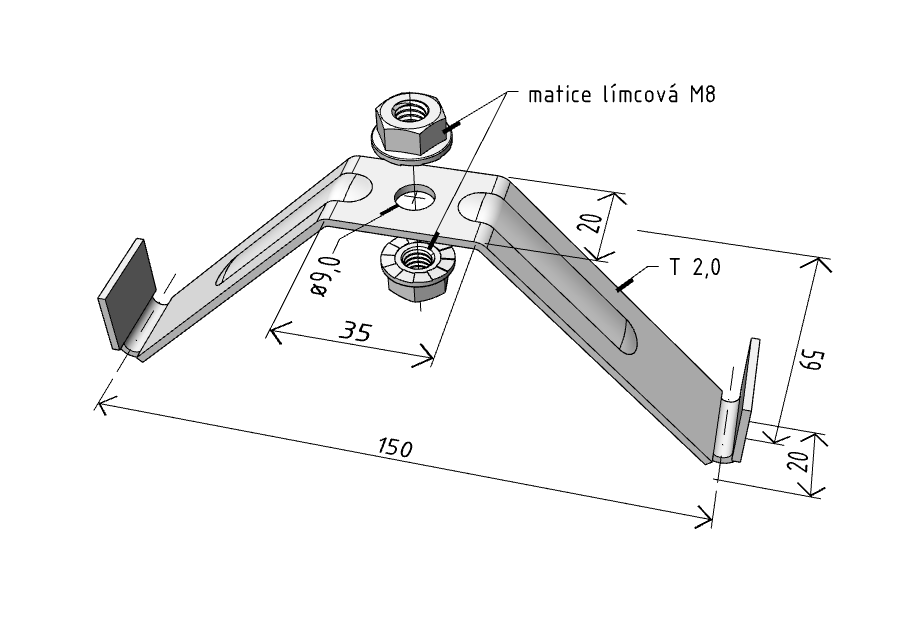

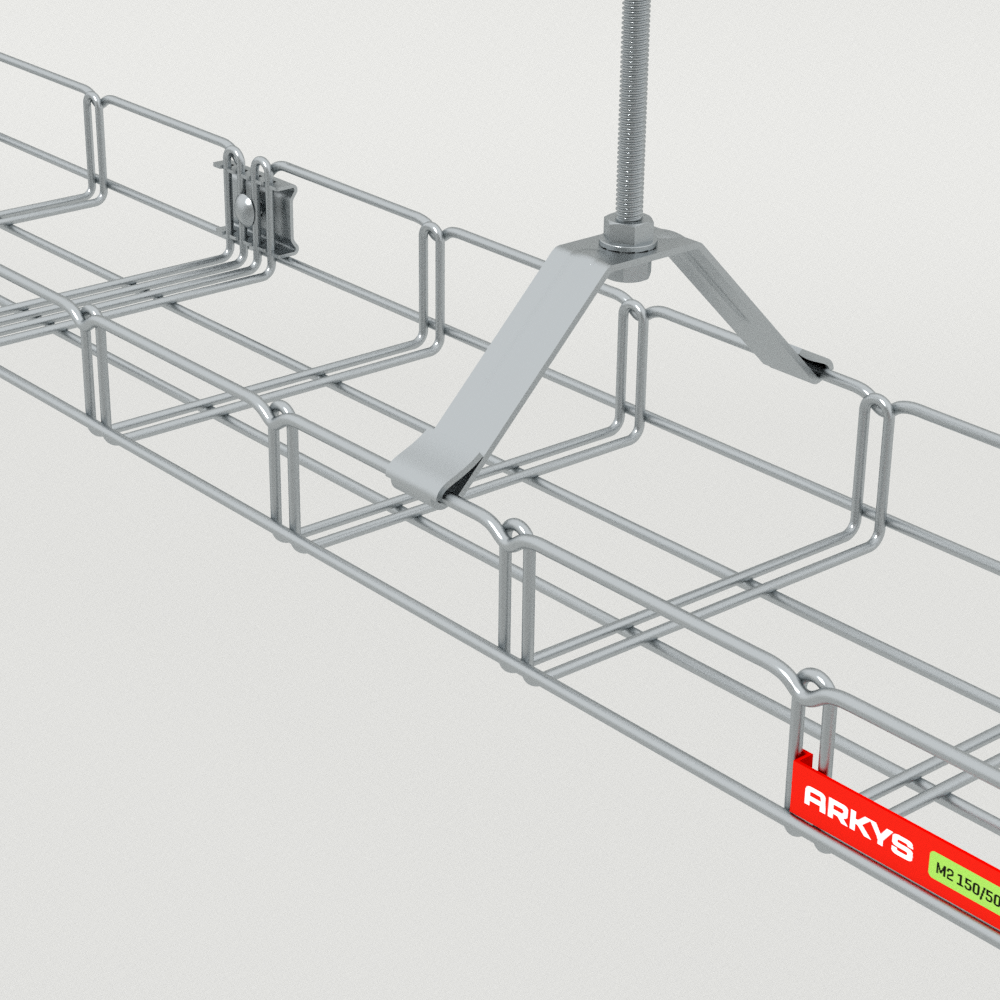

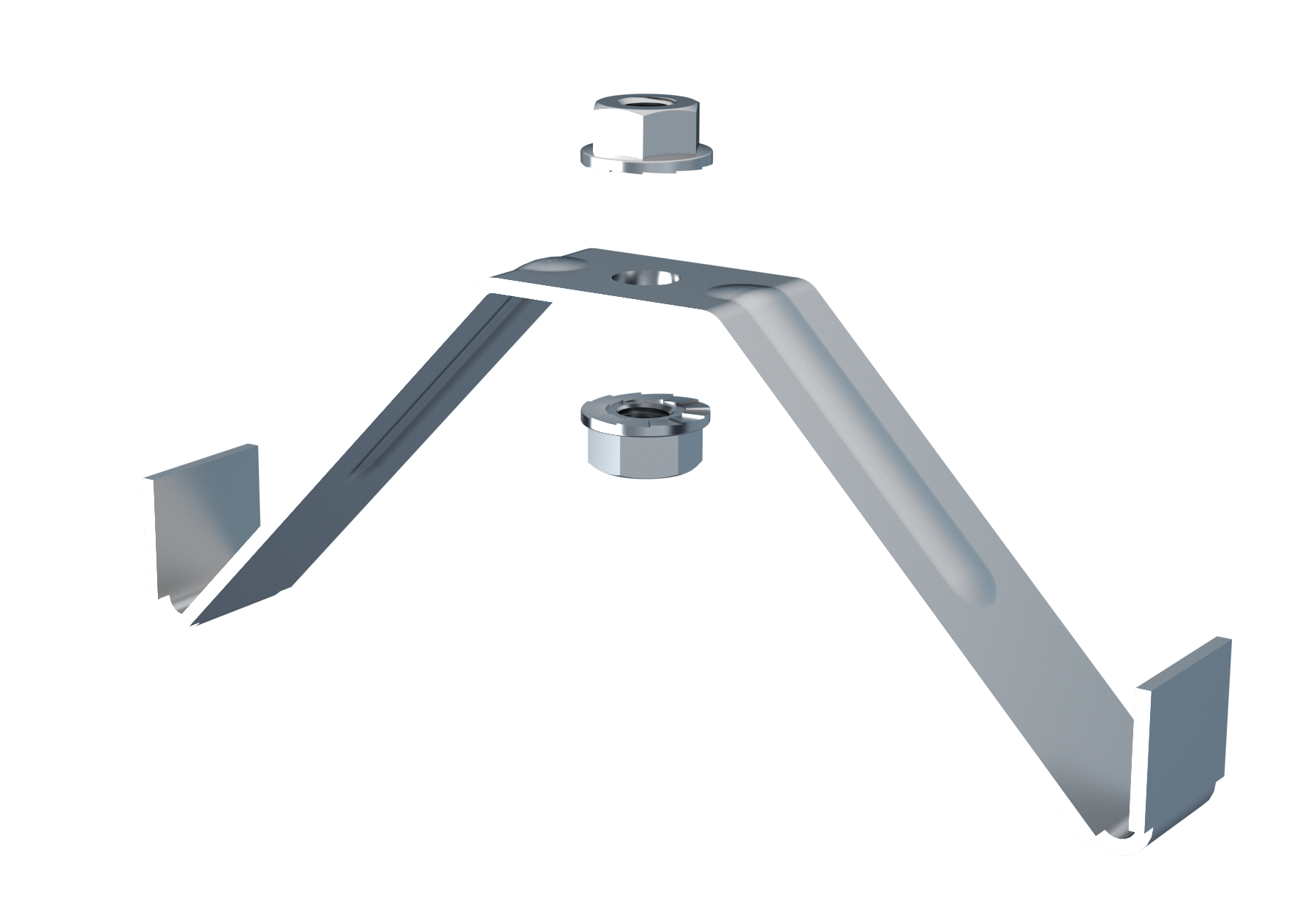

DZM 3/150 central hanger

  • Functional integrity
DZM 3/150 central hanger

The DZM 3/10 central hanger serves for suspending 150 mm mesh trays from M8 threaded rods. It can also serve as a bearing element for the installation of various types of light fittings. Maximum recommended loading capacity is 50 kg. This type of holder cannot be combined with mesh tray covers. If installation with a cover is required, it is necessary to use the PZM straight bracket or DZM 6 holders.

Components shown in the figure are included in the package.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214035
  • ZZ ARK -224035
  • A2 ARK -234035
  • A4 ARK -244035 *

(*) On Request





ZZ (ARK-224035)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

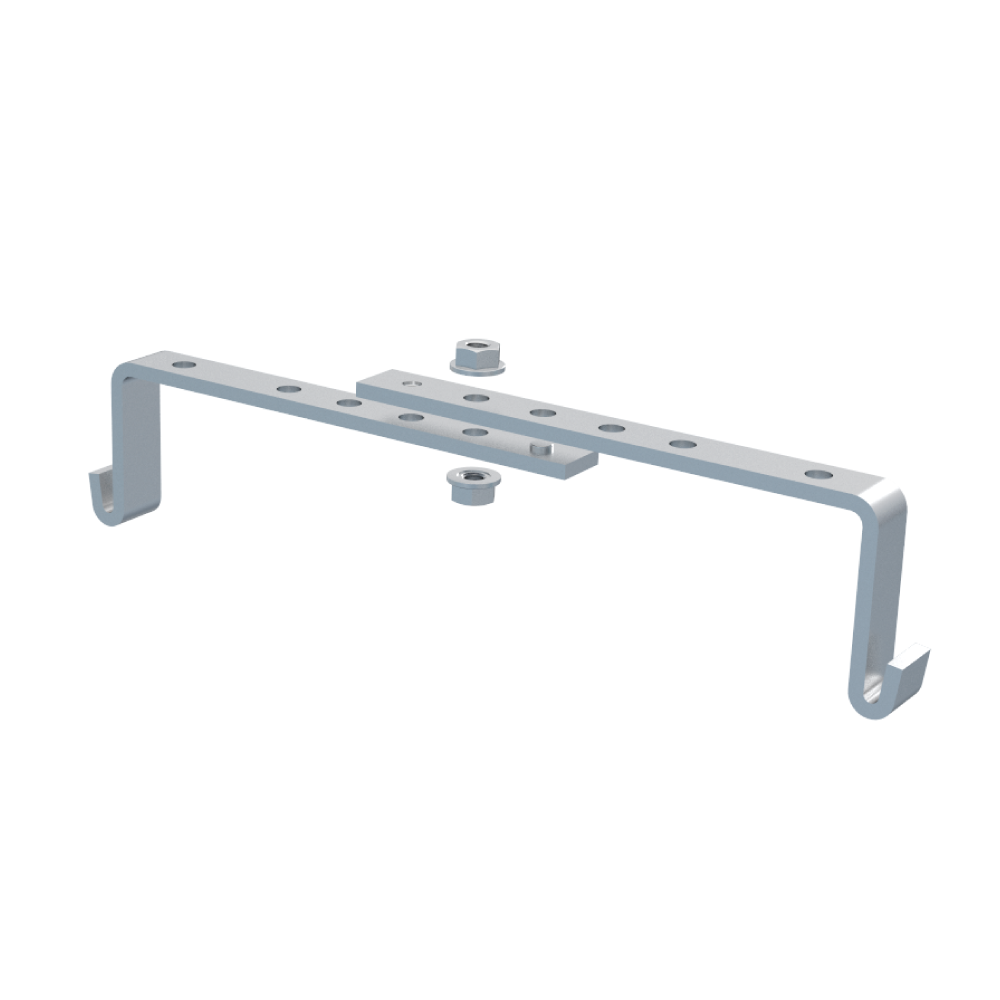

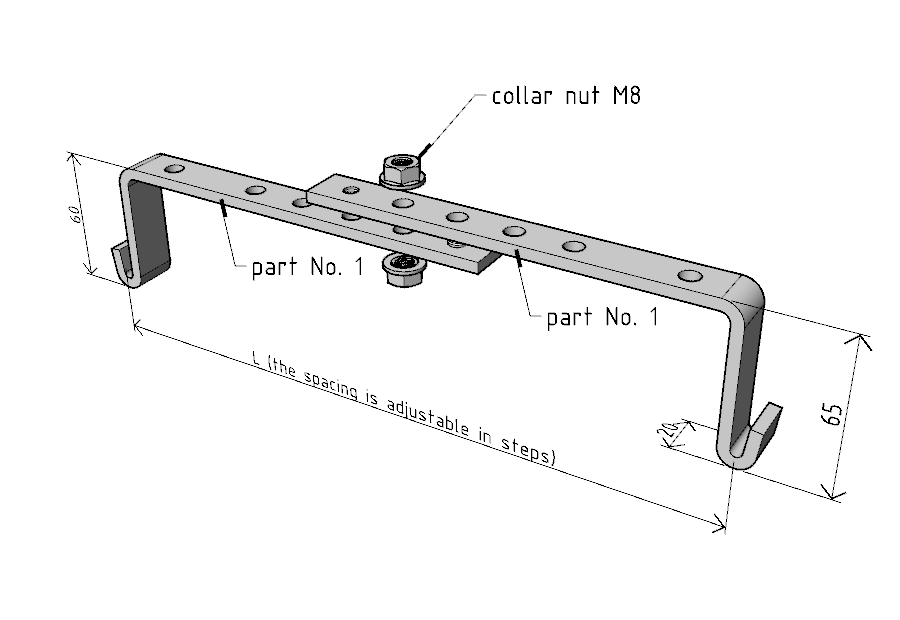

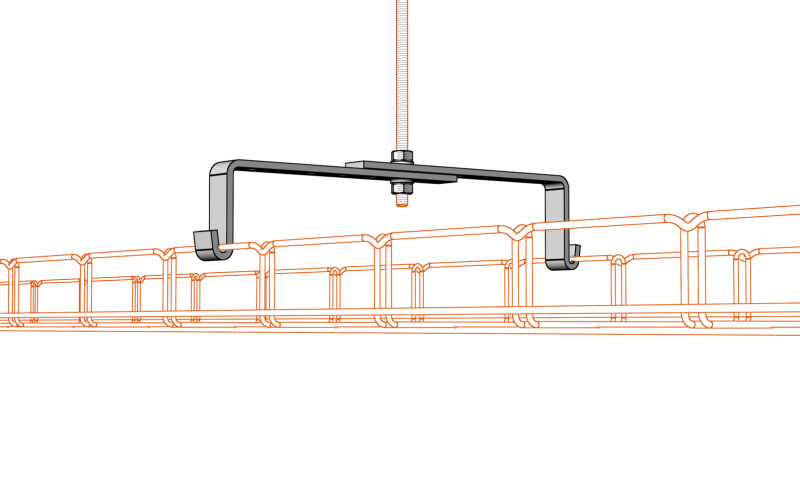

DZM 4 adjustable mesh tray holder

DZM 4 adjustable mesh tray holder

The DZM 4 central hanger serves for suspending 200 – 300 mm wide mesh trays from M8 threaded rods. It is not designed for trays of 100 mm width. Maximum recommended loading capacity is 80 kg. This type of holder cannot be combined with mesh tray covers. If installation with a cover is required, it is necessary to use the PZM straight bracket.

Components shown in the figure are included in the package.

T (plate thickness) 5,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214040
  • ZZ ARK -224040
  • A2 ARK -234040





ZZ (ARK-224040)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

L (holder spacing) 200 mm
  250 mm
  300 mm

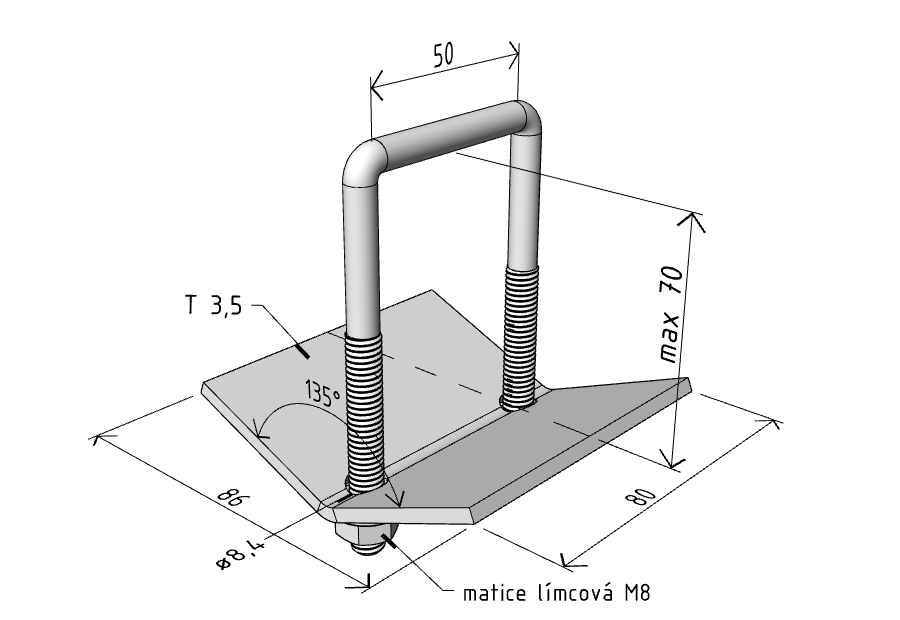

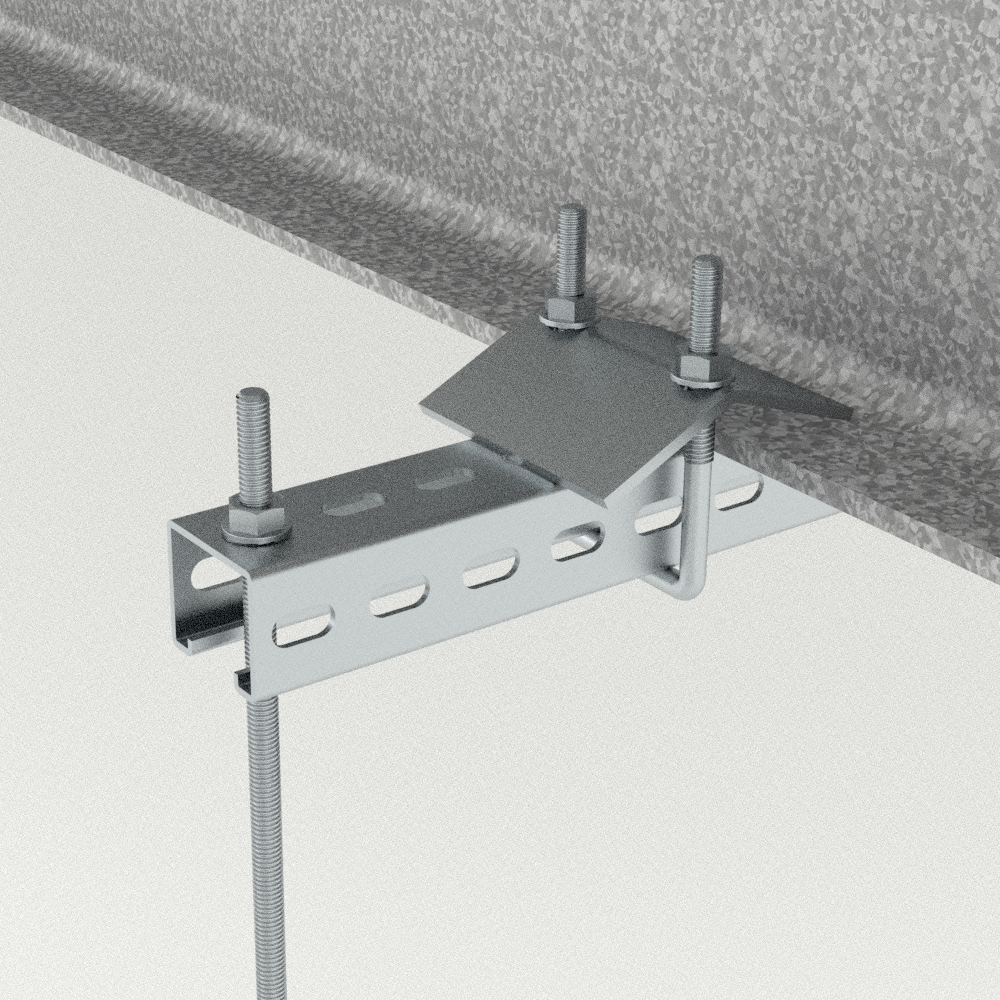

DZM 5 trapezoidal sheet hanger

  • Functional integrity

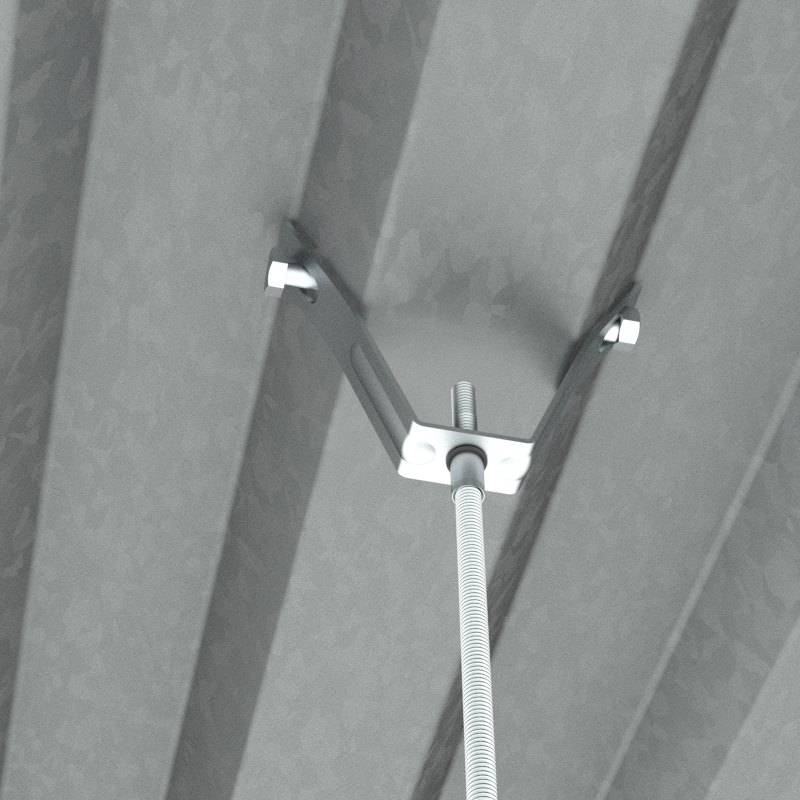

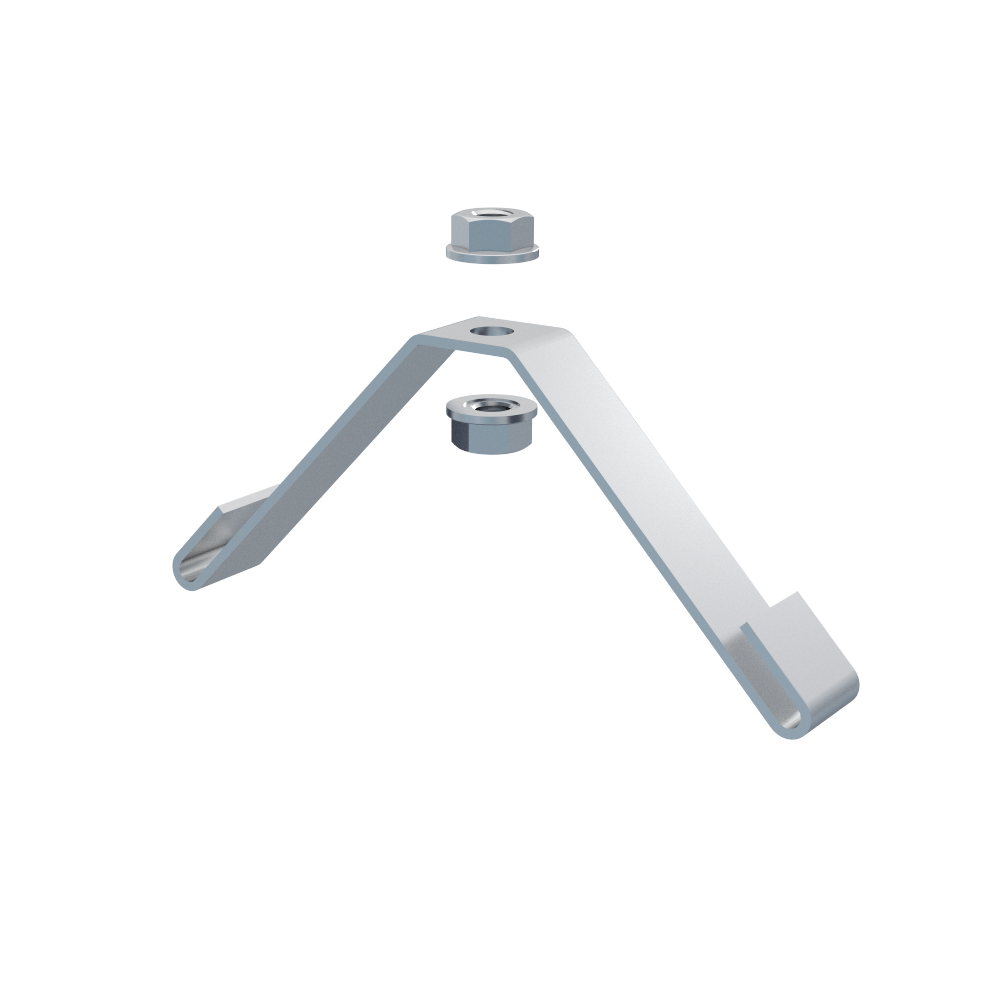

DZM 5 trapezoidal sheet hanger

The DZM 5 hanger serves to anchor M8 threaded rods in roofs and soffits with trapezoidal sheet metal cladding. Maximum recommended loading capacity – 60 kg. Trapezoid scissors are recommended for cutting the sheets (see chapter Accessories).

Components shown in the figure are included in the package.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214050
  • ZZ ARK -224050
  • A2 ARK -234050
  • A4 ARK -244050

(*) On Request





ZZ (ARK-224050)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

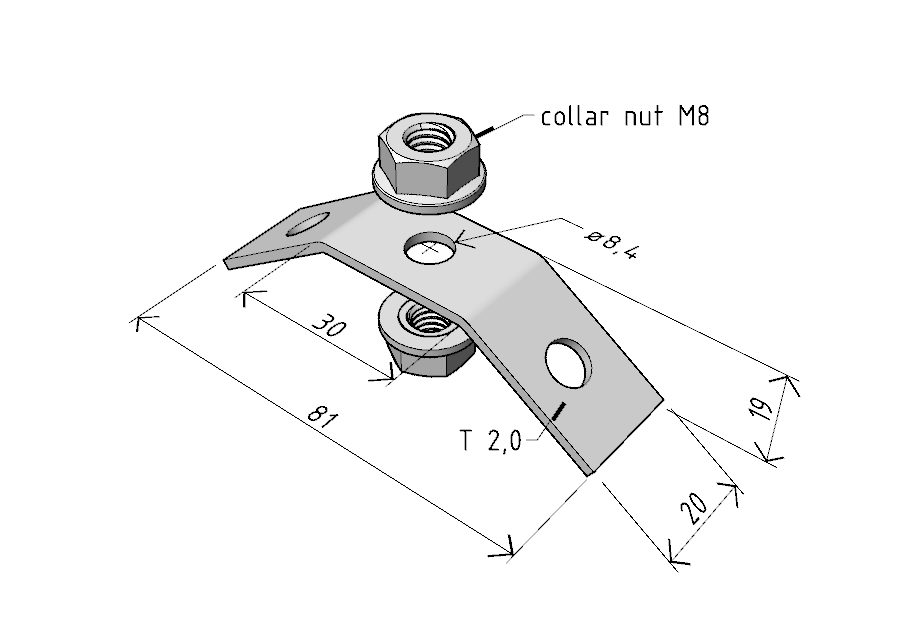

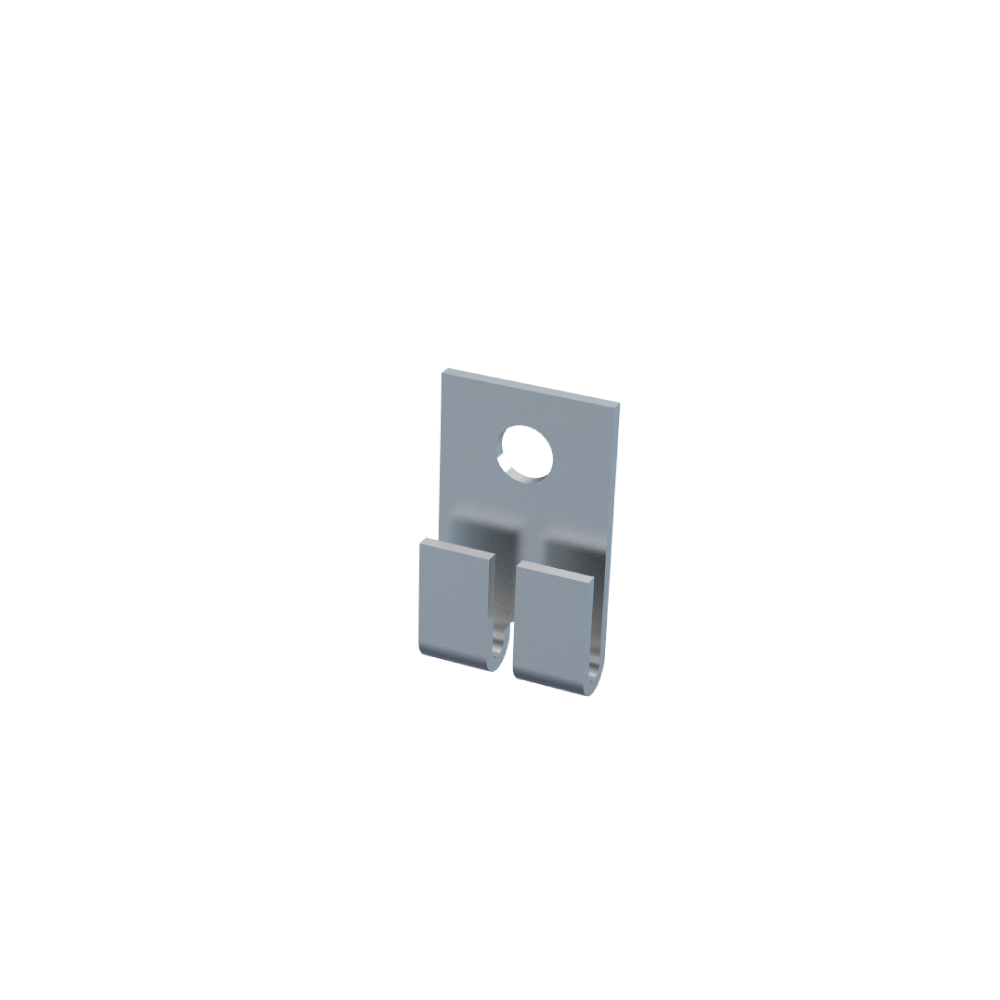

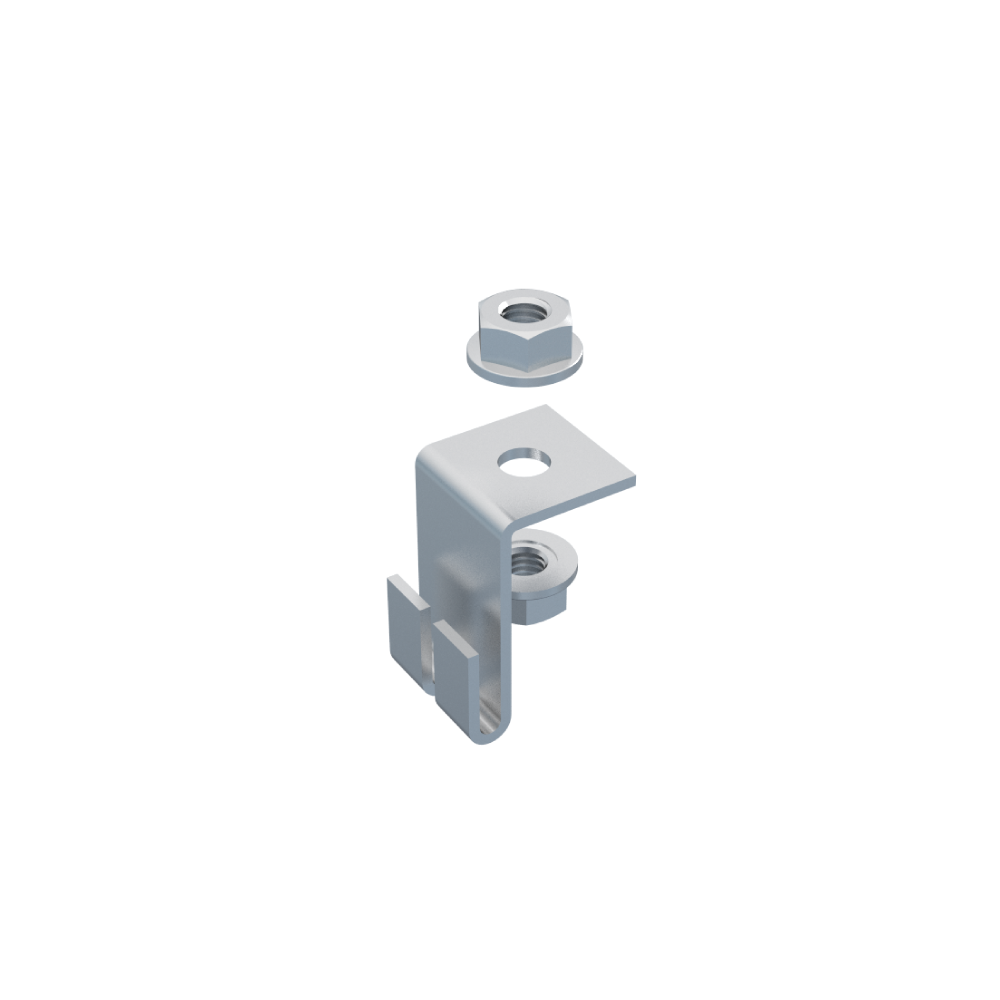

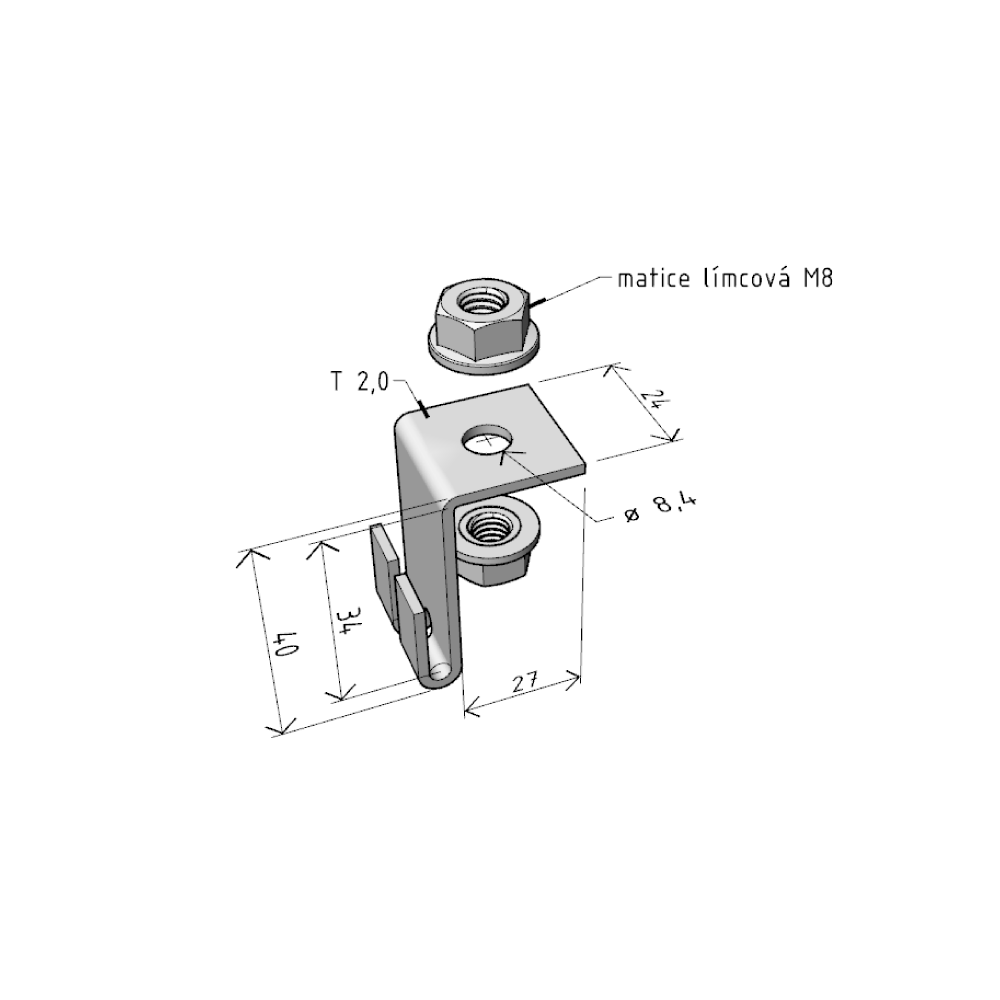

DZM 6 side hanger

DZM 6 side hanger

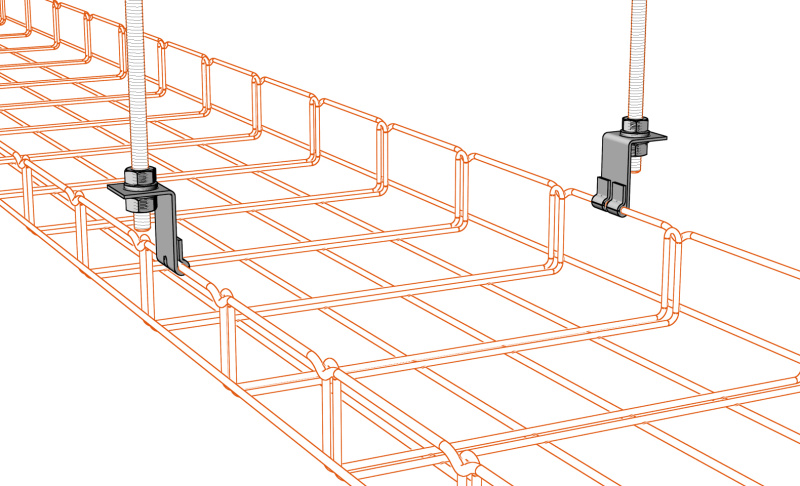

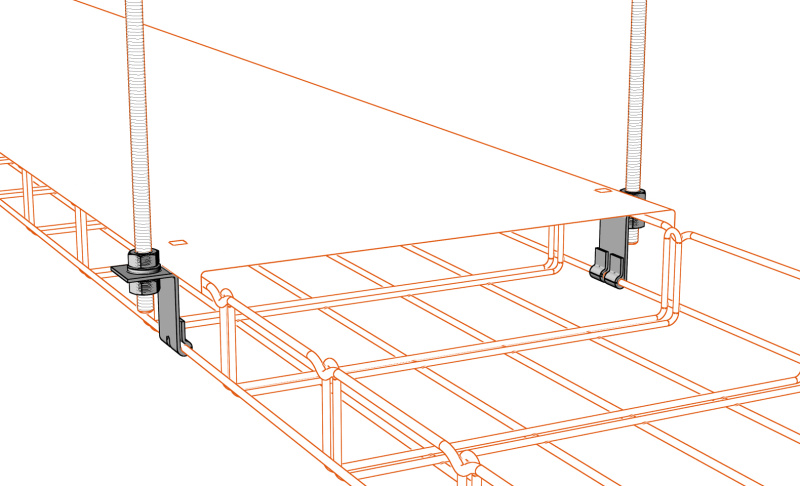

The DZM 6 hanger is used in pairs to suspend wire mesh cable trays from M8 threaded rods. Maximum recommended load capacity of a single hanger is 20 kg, while maximum recommended load capacity of a pair of holders is 50 kg. If the mesh tray is covered, the DZM 6 hanger shall be attached to the bottom wire of the side wall.

Components shown in the figure are included in the package.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214060
  • ZZ ARK -224060
  • A2 ARK -234060
  • A4 ARK -244060

(*) On Request





ZZ (ARK-224060)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

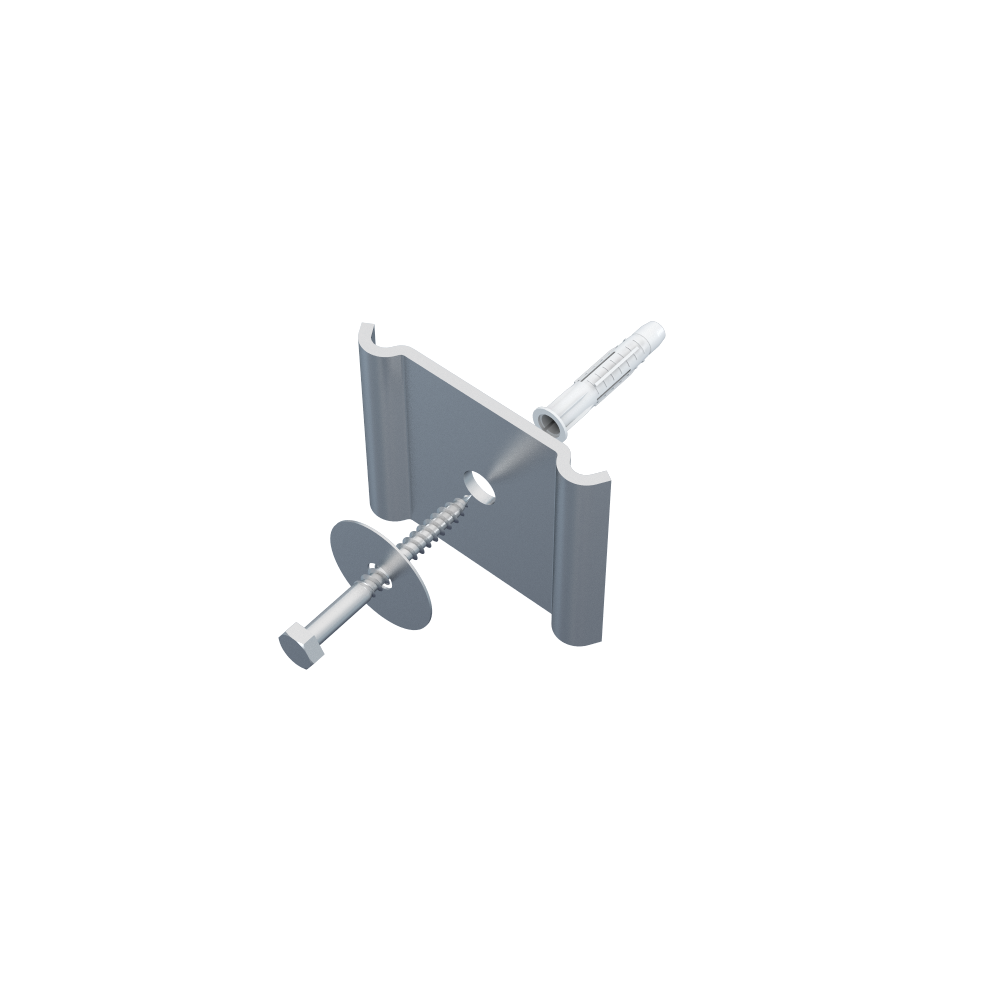

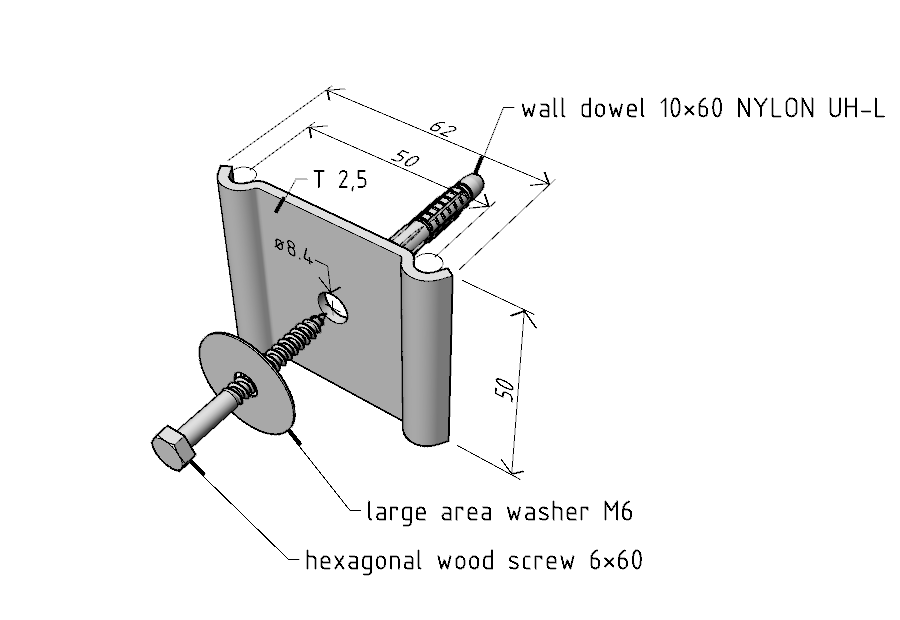

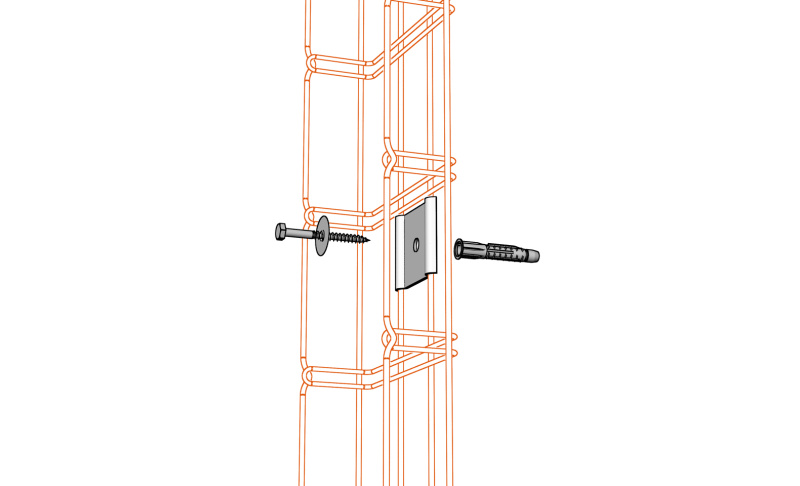

DZM 7 wall bracket

  • Functional integrity
DZM 7 wall bracket

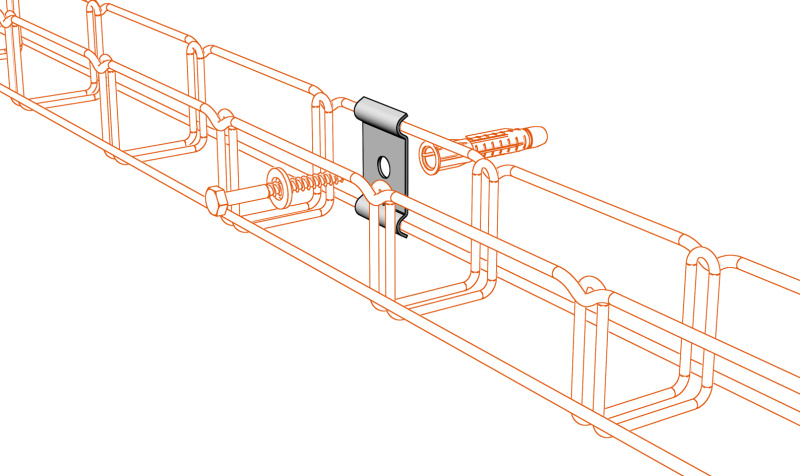

The DZM 7 wall bracket serves to anchor wire mesh cable trays in horizontal and vertical routes upon walls. It is not designed for trays of 100 mm width.

Components shown in the figure are included in the package.

T (plate thickness) 2,5 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214070
  • ZZ ARK -224070
  • A2 ARK -234070
  • A4 ARK -244070 *

(*) On Request





ZZ (ARK-224070)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

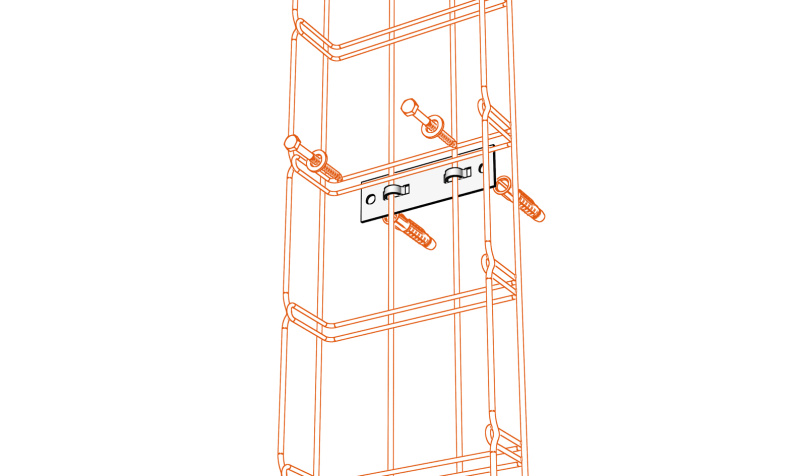

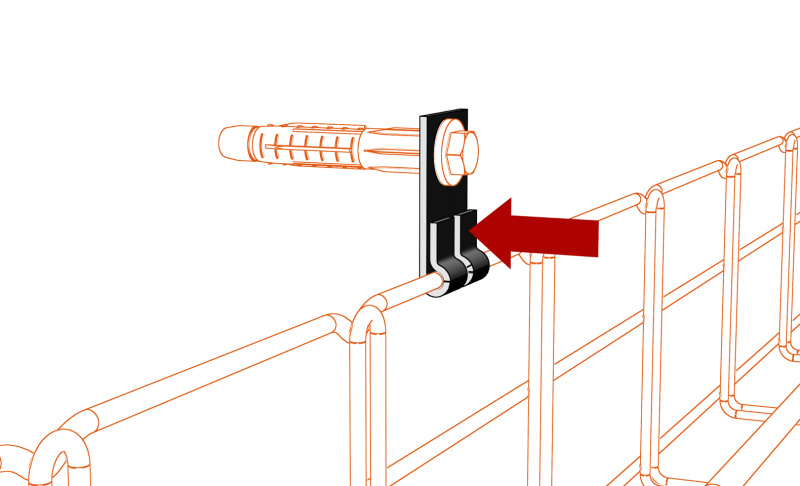

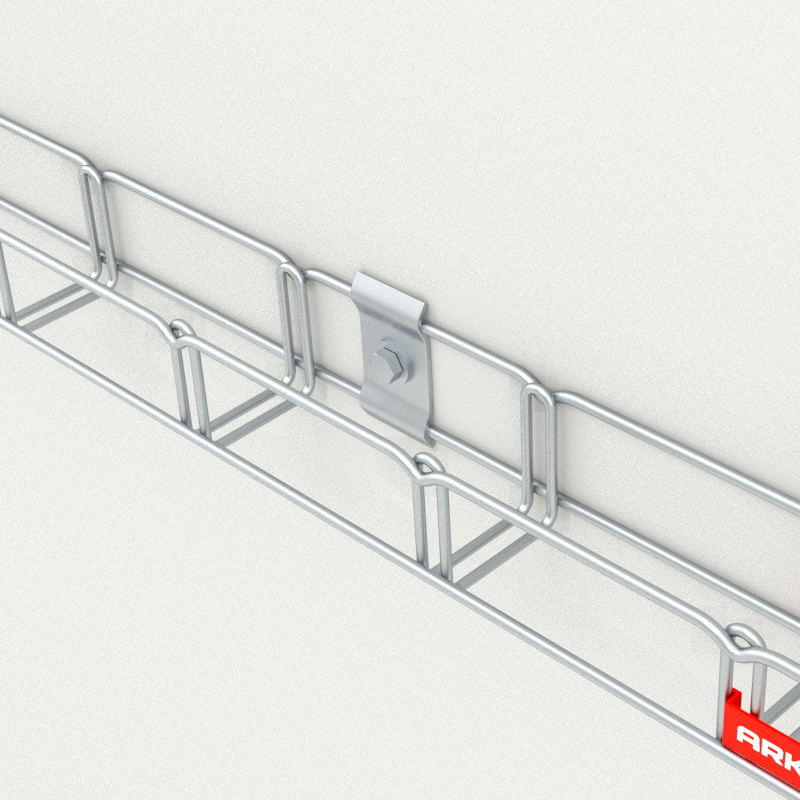

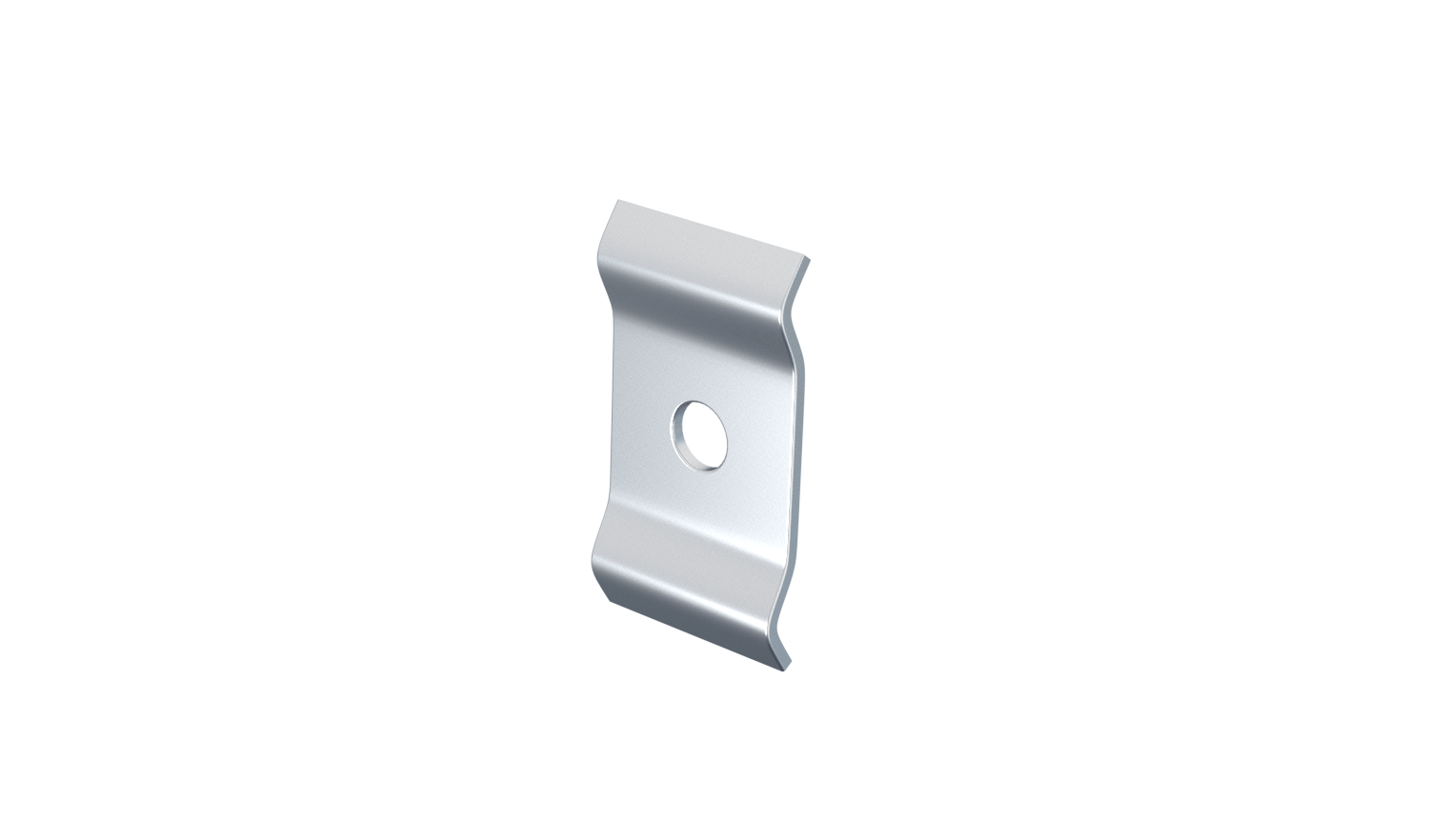

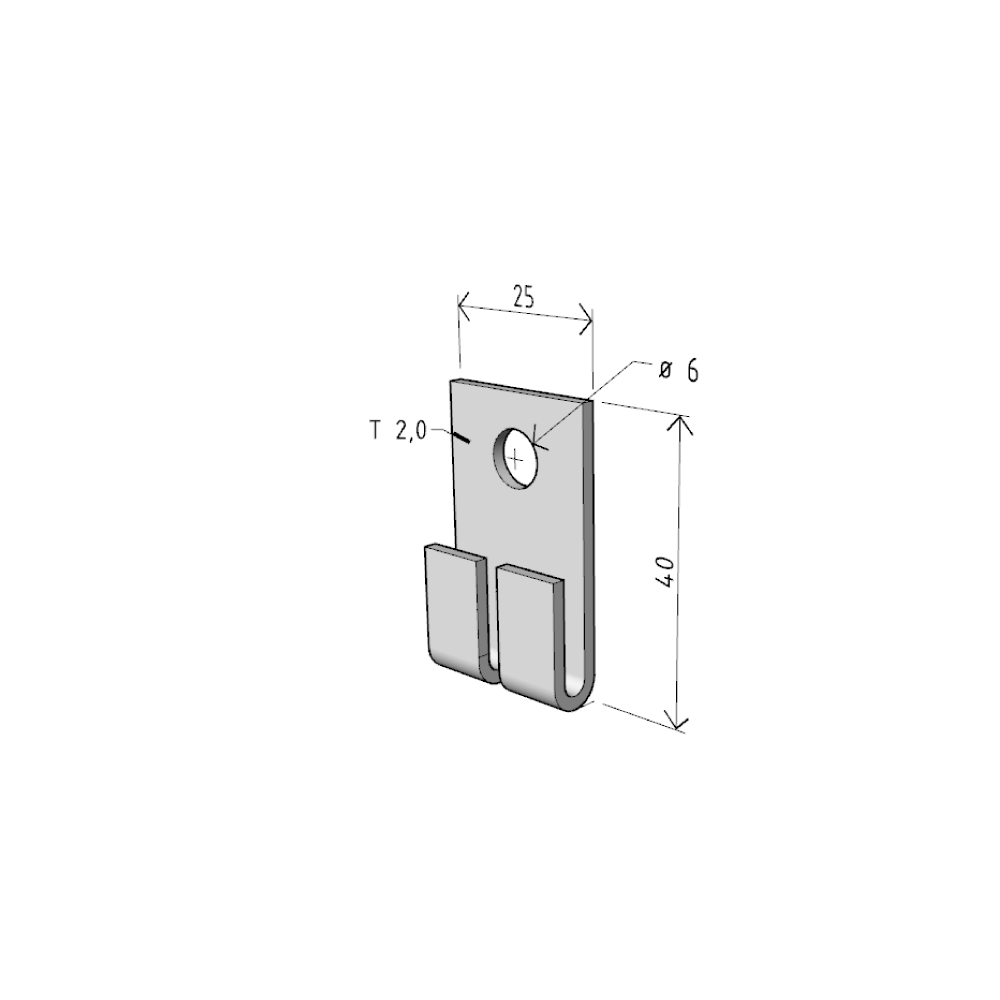

DZM 8 wall bracket

DZM 8 wall bracket

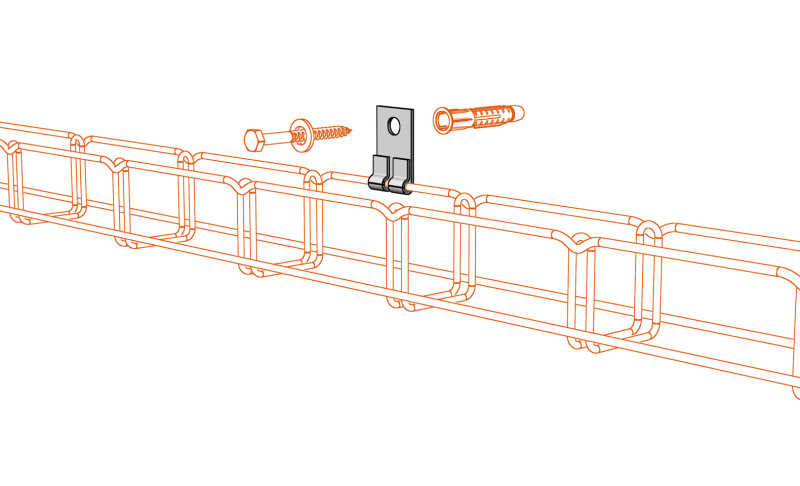

The DZM 8 wall bracket serves for anchoring wire mesh cable trays directly into the vertical parts of a building. Maximum recommended loading capacity – 40 kg. The maximum recommended width of the wire mesh cable tray is 50 and 100 mm, depending upon the mass loading of the mesh tray.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214080
  • ZZ ARK -224080
  • A2 ARK -234080
  • A4 ARK -244080

(*) On Request

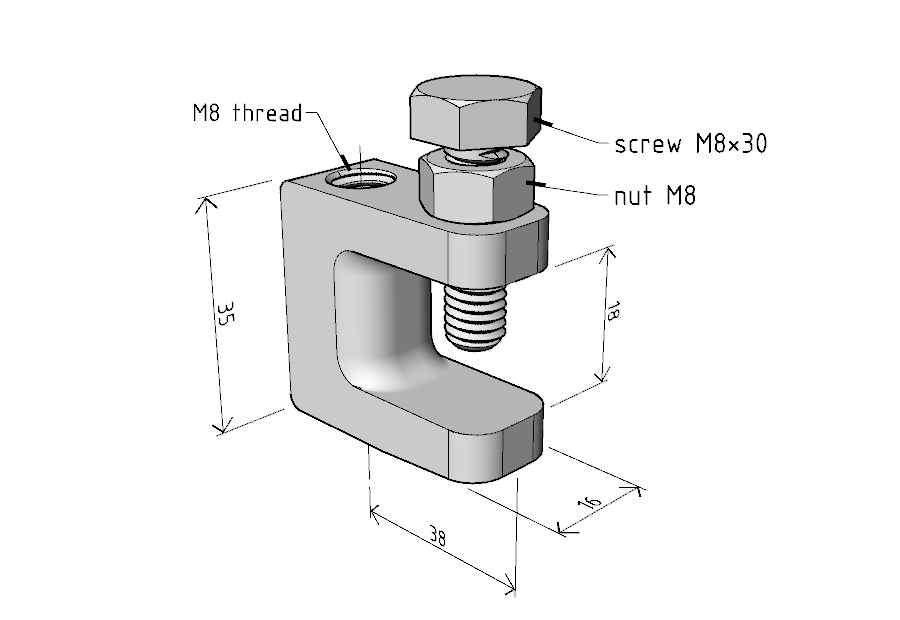

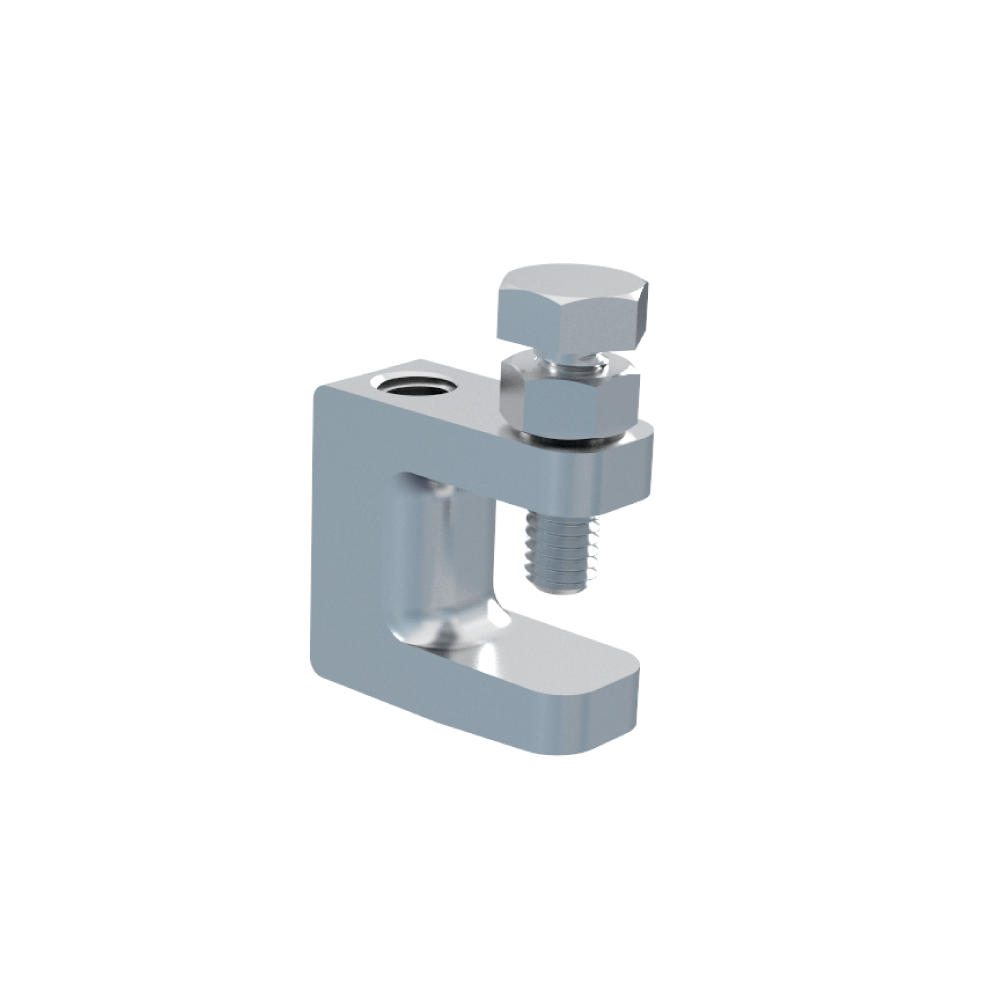

DZM 9 beam clamp

  • Functional integrity
DZM 9 beam clamp

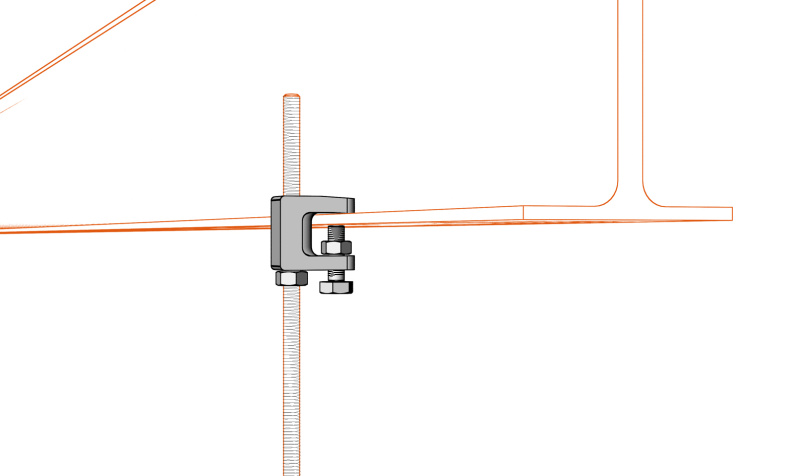

The DZM 9 beam clamp serves to anchor M8 threaded rods in a spatial assembly by suspension on an “I” profile. The maximum recommended load of the clamp is 120 kg. Material: tempered cast iron, zinc-plated.

Components shown in the figure are included in the package



Product code
  • GZ ARK -214090

DZM 10 wall bracket

  • Functional integrity
DZM 10 wall bracket

Due to its universality, the DZM 10 wall bracket can be used in multiple installation types for both vertical and horizontal mounting. It is preferable especially in metal structures to which it can be welded or attached by bolts. It is not designed technically for trays of 100 mm width. Maximum recommended loading capacity of hooks:

  • in pulling 30 kg – in case of wall installation
  • in torsion 10 kg – in case of ceiling installation
T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214100
  • ZZ ARK -224100
  • A2 ARK -234100
  • A4 ARK -244100 *

(*) On Request

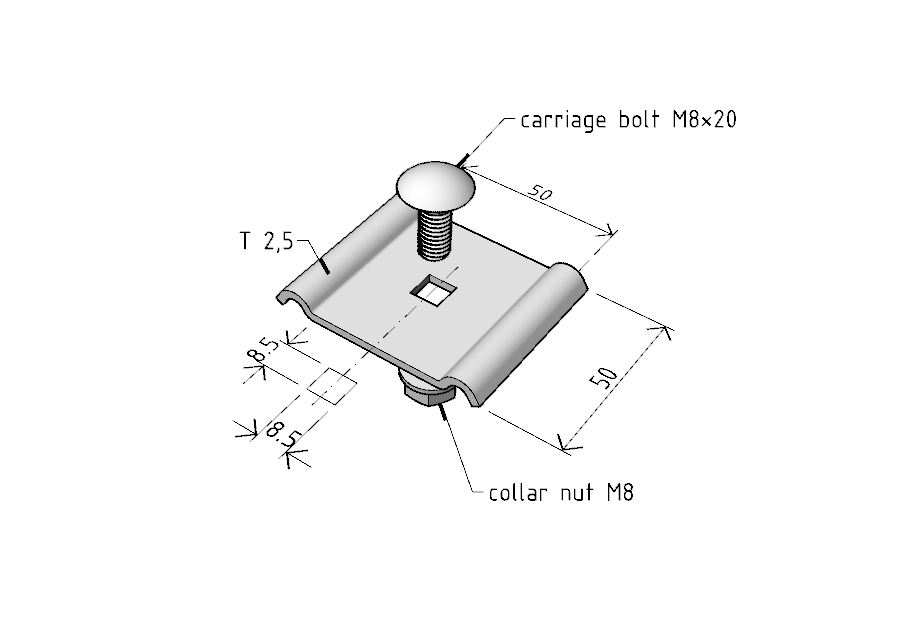

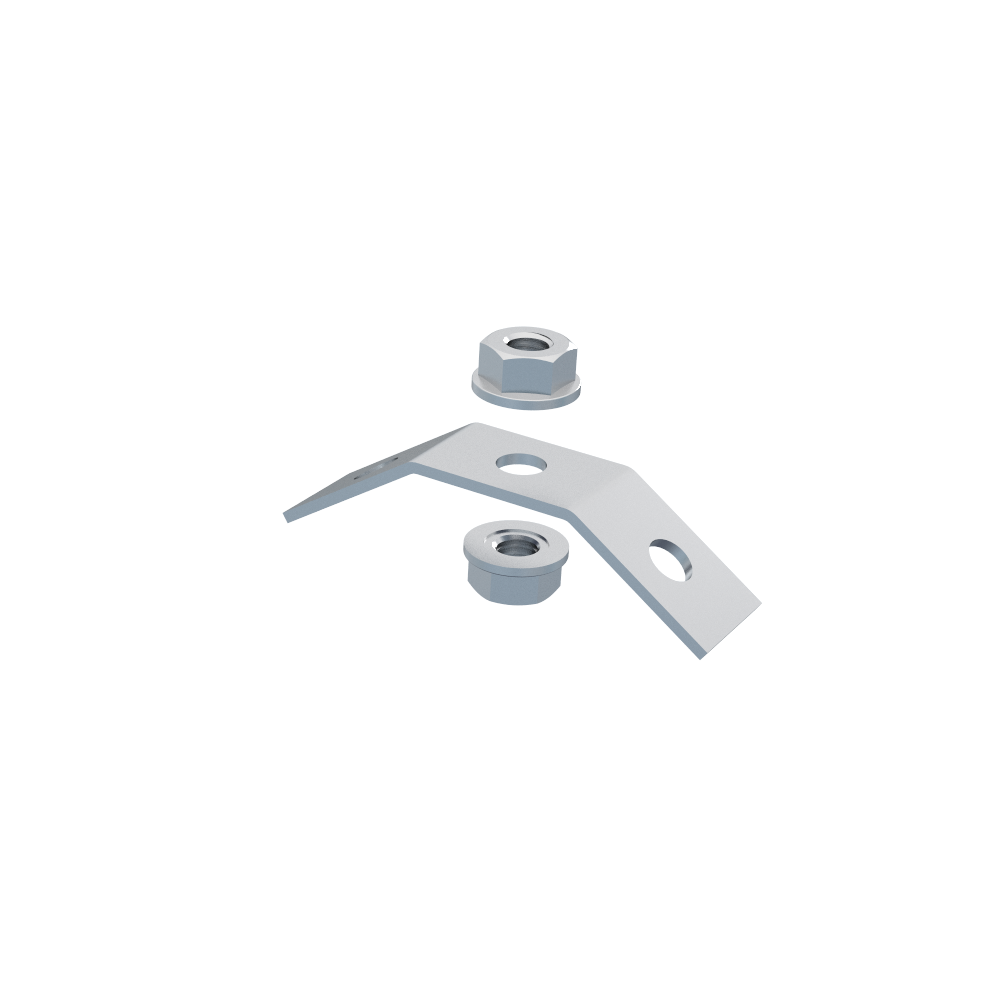

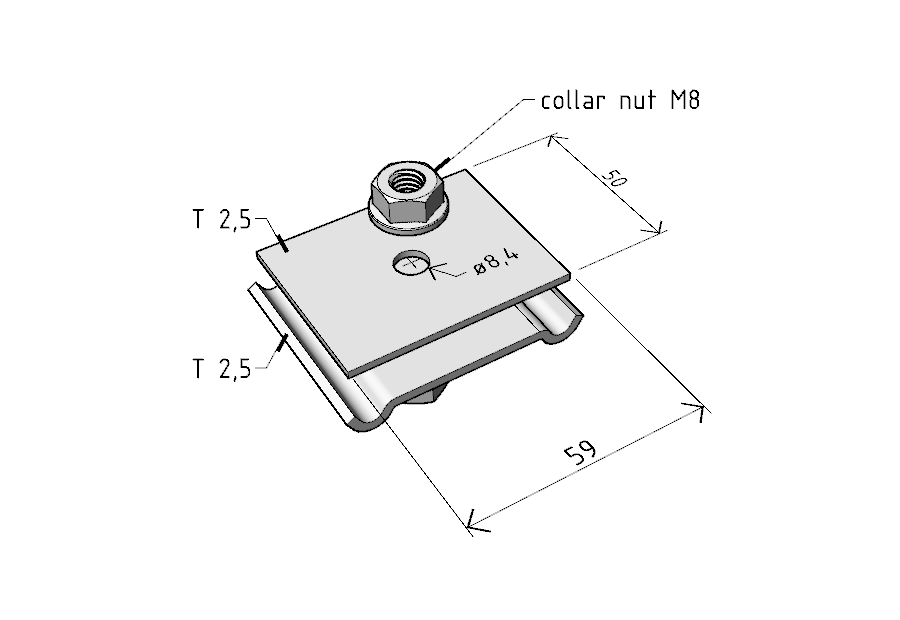

DZM 11 fixing bracket

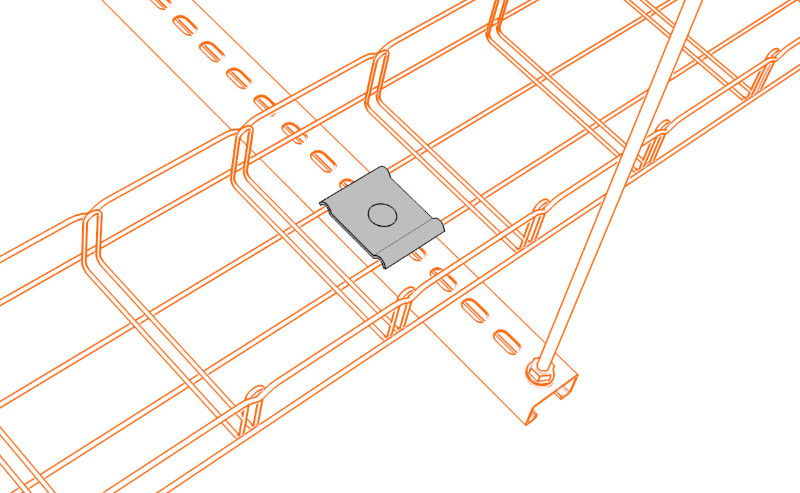

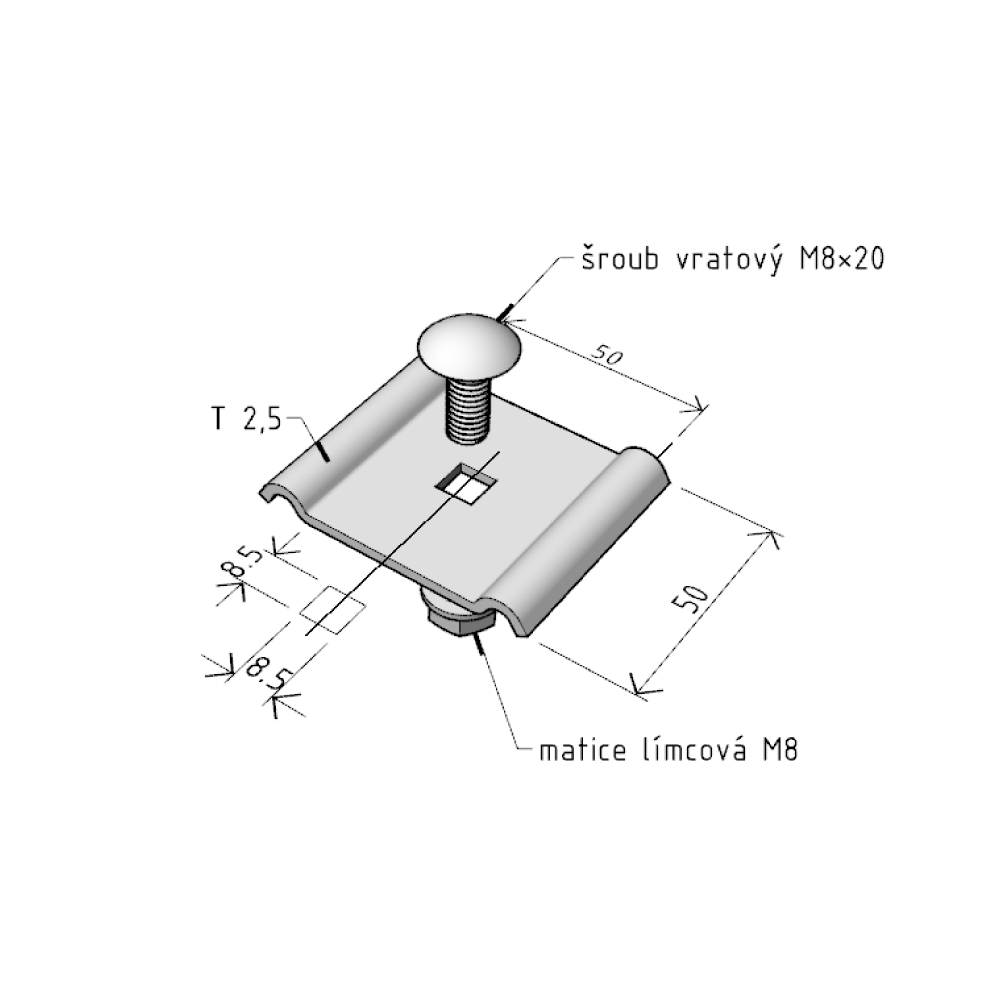

DZM 11 fixing bracket

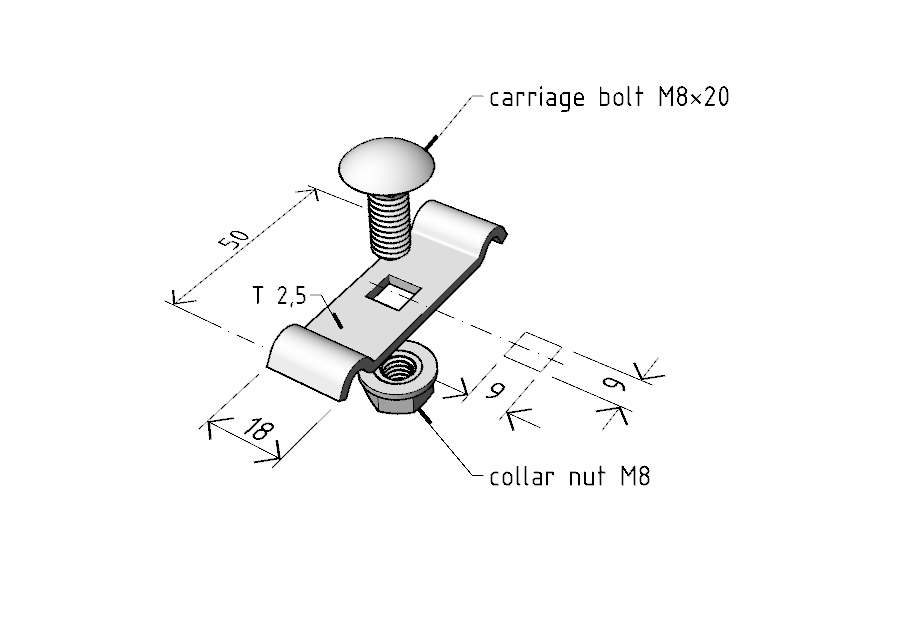

The DZM 11 fixing bracket serves to anchor mesh trays to STNM rail struts or other steel constructions, especially with horizontal cable routes. Note - With a mesh tray of 100 mm width, the bracket is fixed to only one of the runners.

Components shown in the figure are included in the package.

T (plate thickness) 2,5 mm
Product code
  • GZ ARK -214110
  • ZZ ARK -224112
  • A2 ARK -234110
  • A4 ARK -244110





ZZ  - ARK - 214110 - connecting element options:

2 - geomet 500 [G5]
3 - stainless steel AISI 304 [A2]



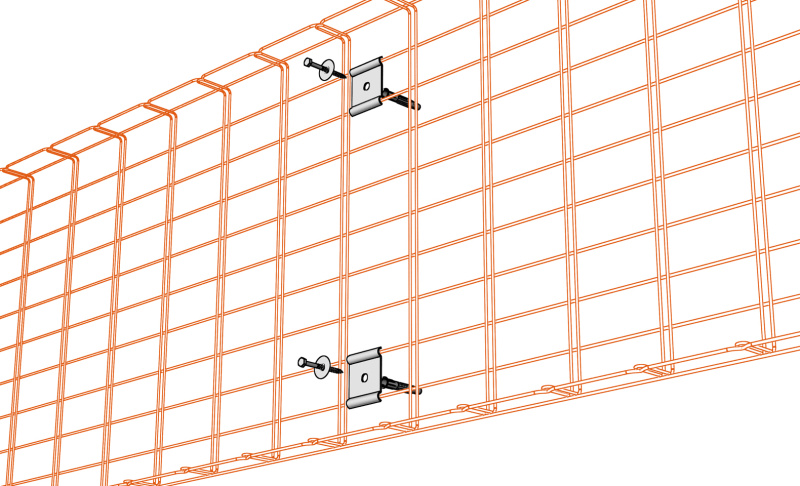

DZM 12 lateral holder of mesh tray

  • Functional integrity
DZM 12 lateral holder of mesh tray

The DZM 12 wall bracket serves for anchoring wire mesh cable trays of smaller dimensions directly to vertical parts of the construction. The maximum recommended width of the wire mesh cable tray is 150 mm, depending on the mass load of the tray. The DZM 12 wall bracket is also suitable as an anchoring element for M2 cable trays of the “G“ type.

Product code
  • GZ ARK -214120
  • ZZ ARK -224120
  • A2 ARK -234120
  • A4 ARK -244120

(*) On Request

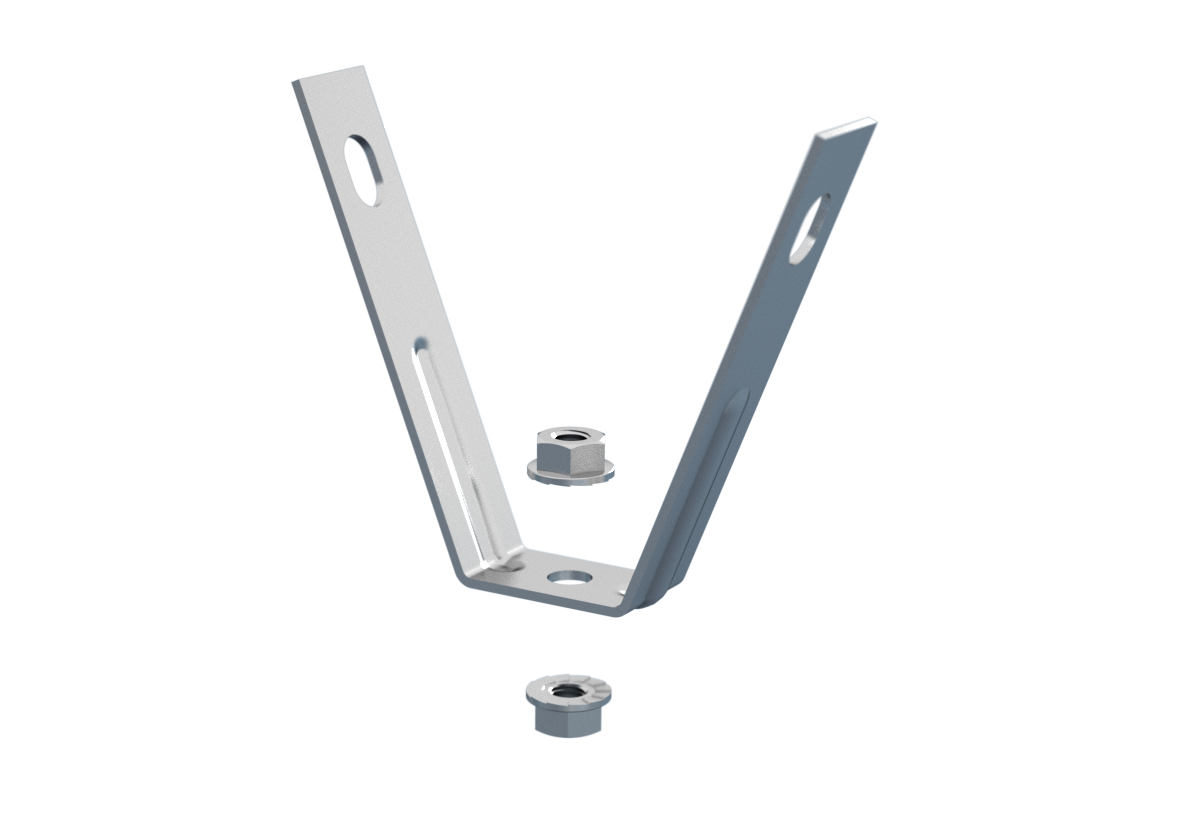

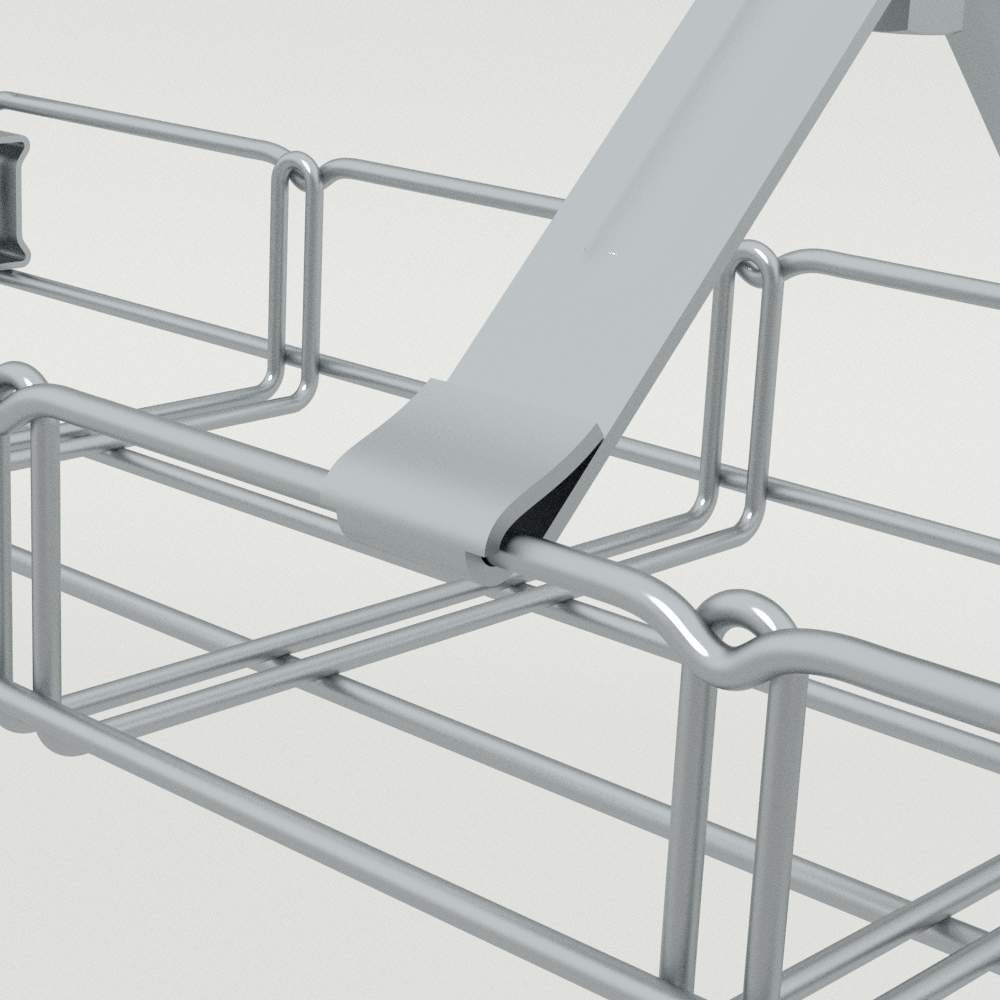

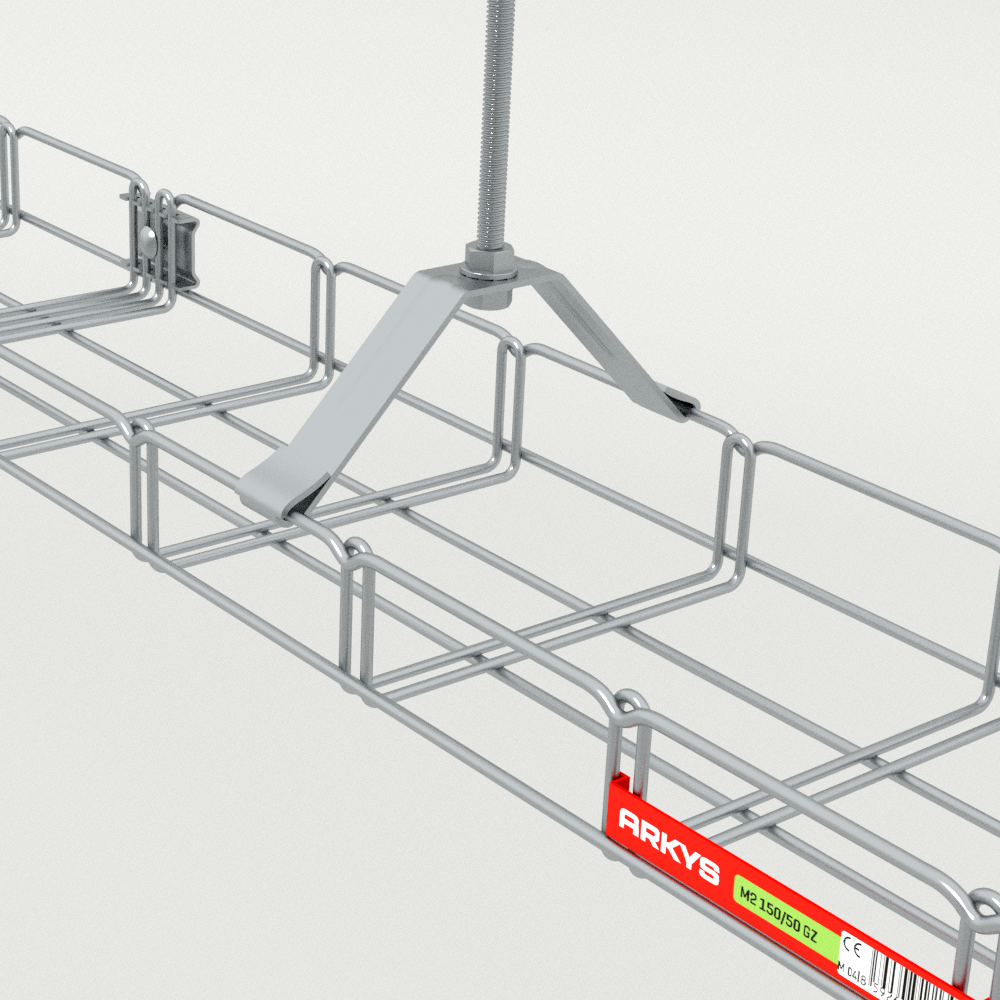

DZM 13 suspension hanger

  • Functional integrity

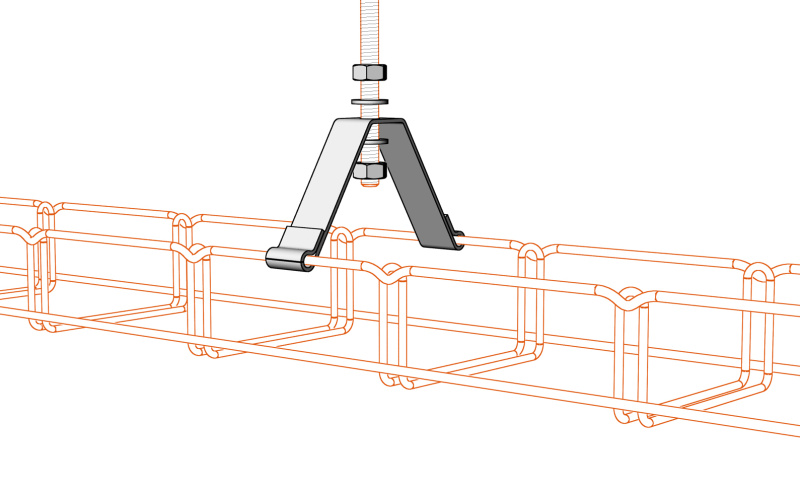

DZM 13 suspension hanger

The DZM 13 suspension hanger is used for wire mesh cable trays on M8 threaded rods. This installation is suitable for wire mesh cable trays M2 50/50, M2 150/50 and M2 150/100 only. Maximum recommended loading capacity is 50 kg.

Components shown in the figure are included in the package.

T (plate thickness) 2,5 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214130
  • ZZ ARK -224130
  • A2 ARK -234130
  • A4 ARK -244130







ZZ (ARK-224130)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

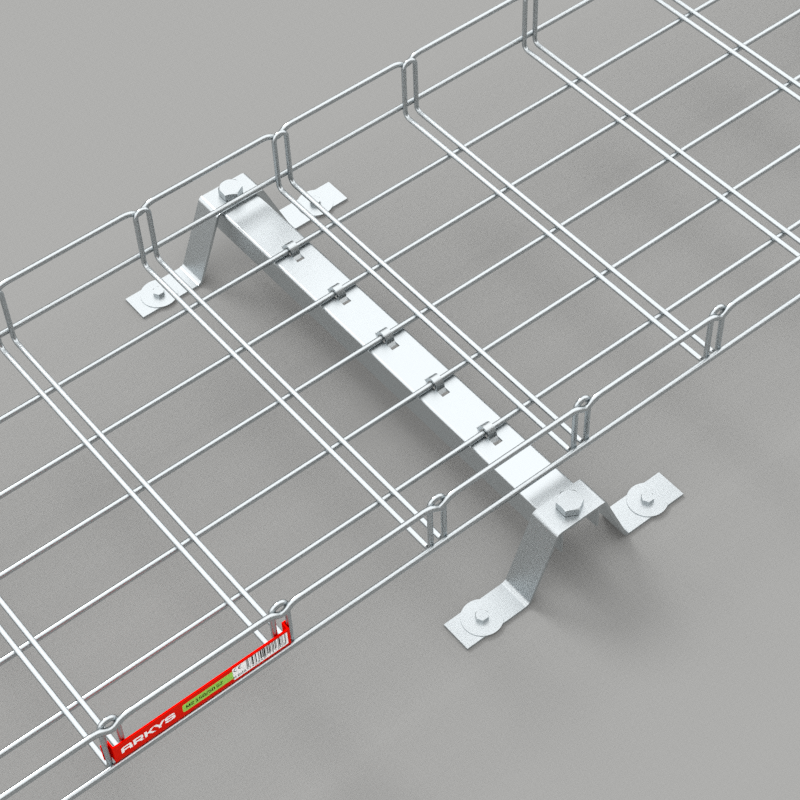

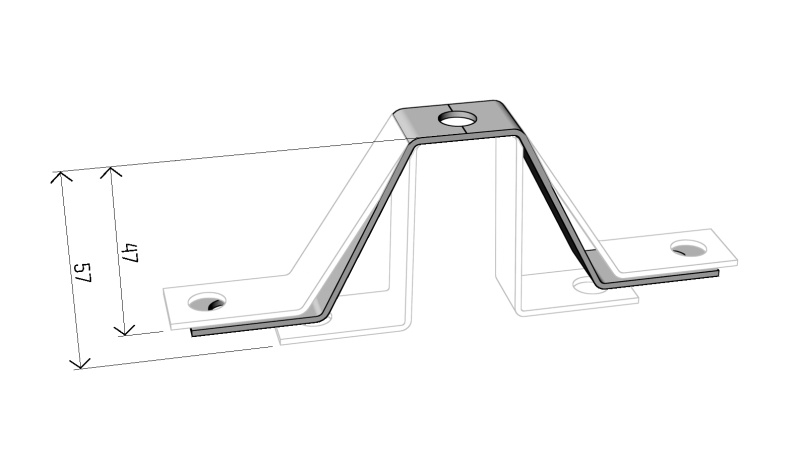

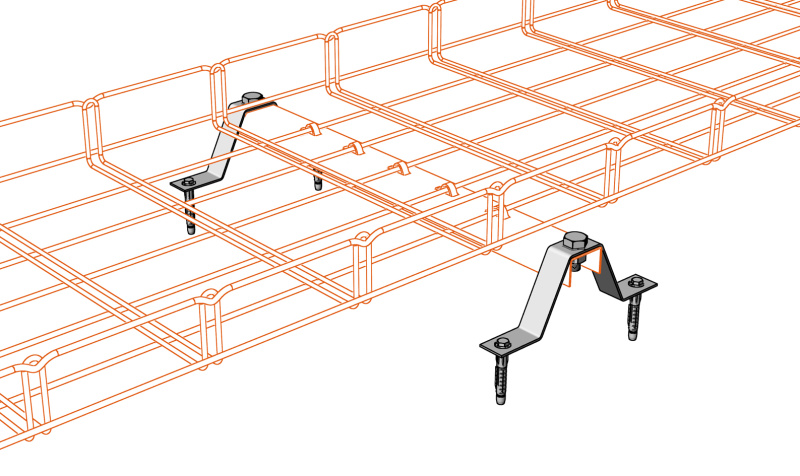

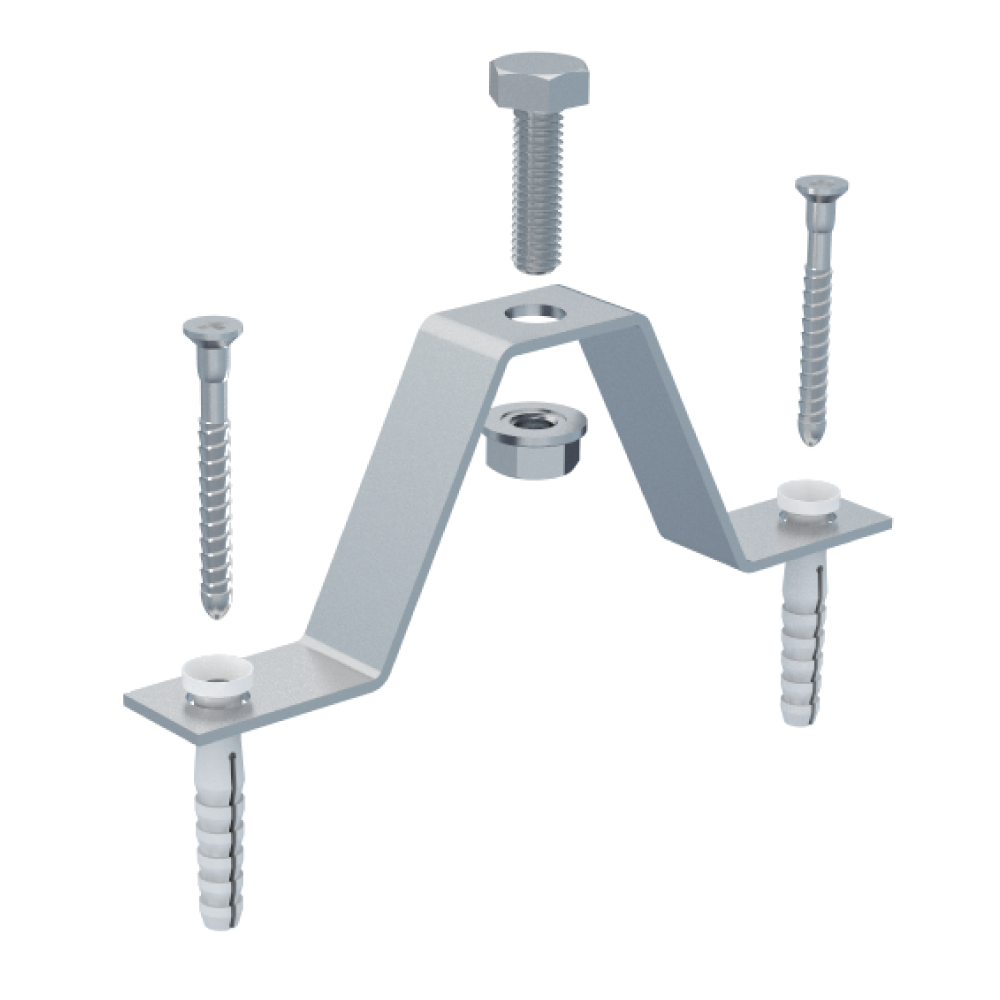

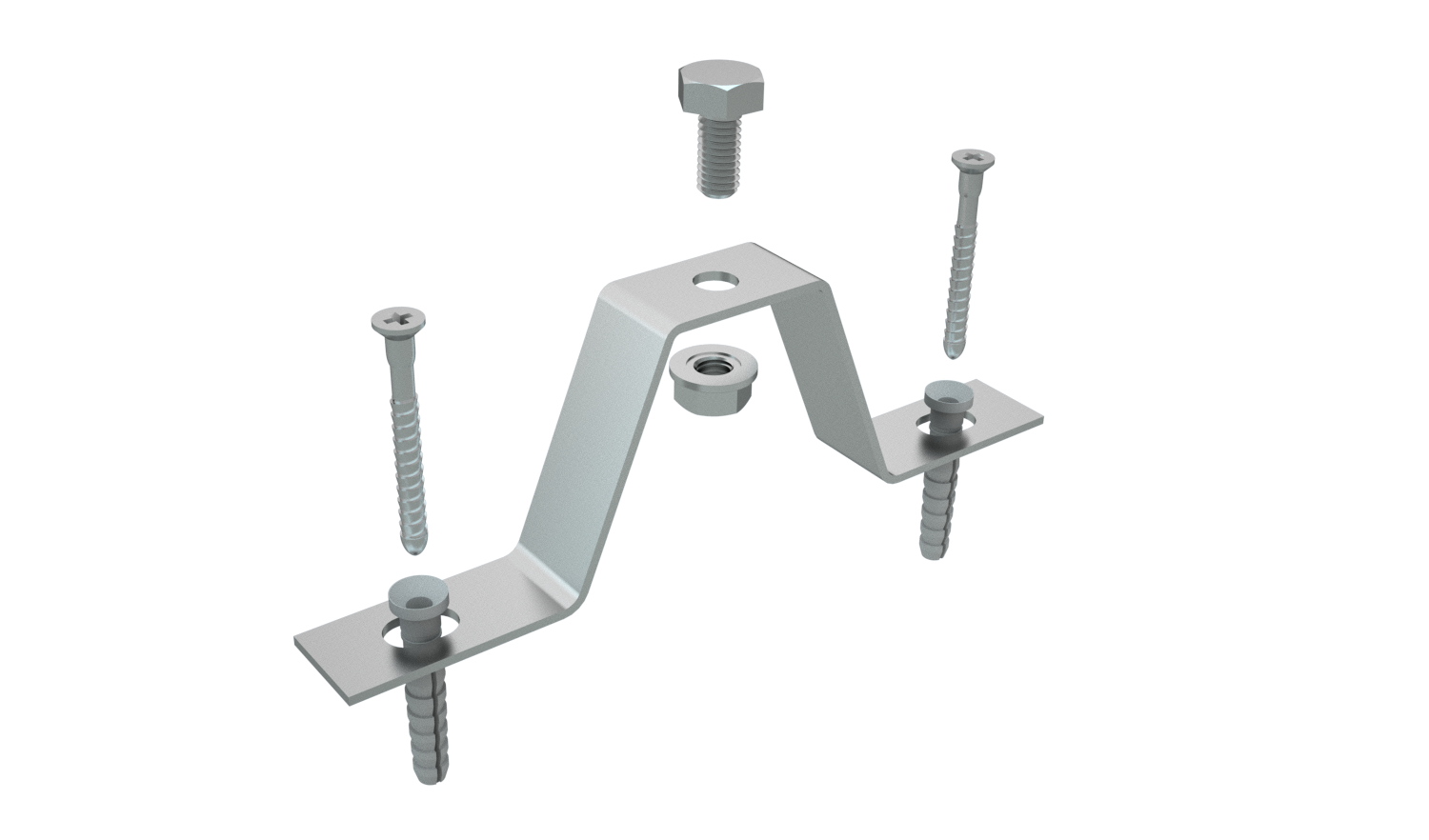

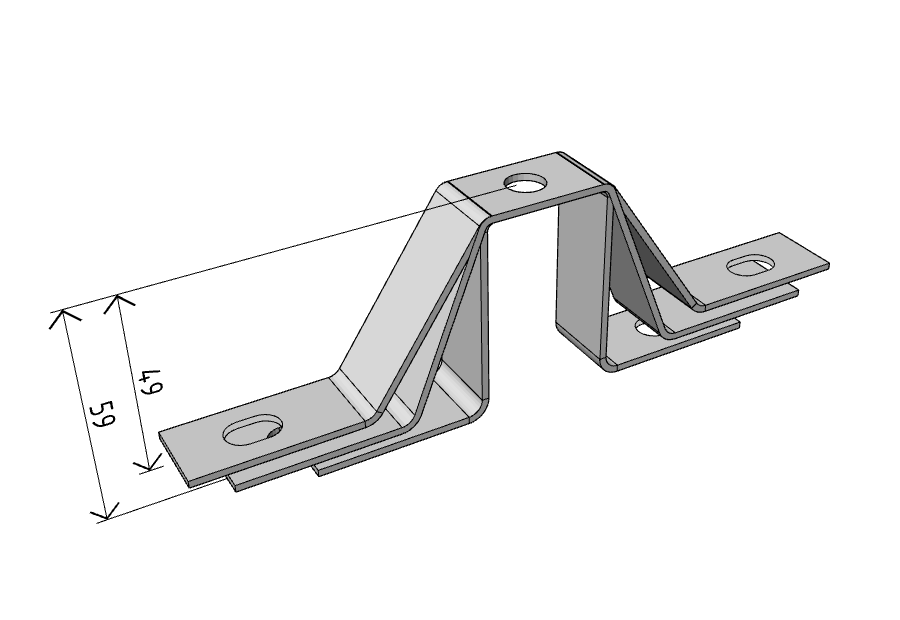

DZM 14 floor bracket

DZM 14 floor bracket

The DZM 14 floor bracket serves in combination with PZM straight brackets for cable route installations in false floors. Their height can be adjusted to 47 – 57 mm by bending the holder. Maximum recommended loading capacity is 60 kg.

Components shown in the figure are included in the package.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214140
  • ZZ ARK -224140
  • A2 ARK -234140
  • A4 ARK -244140

(*) On Request







ZZ (ARK-224140)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

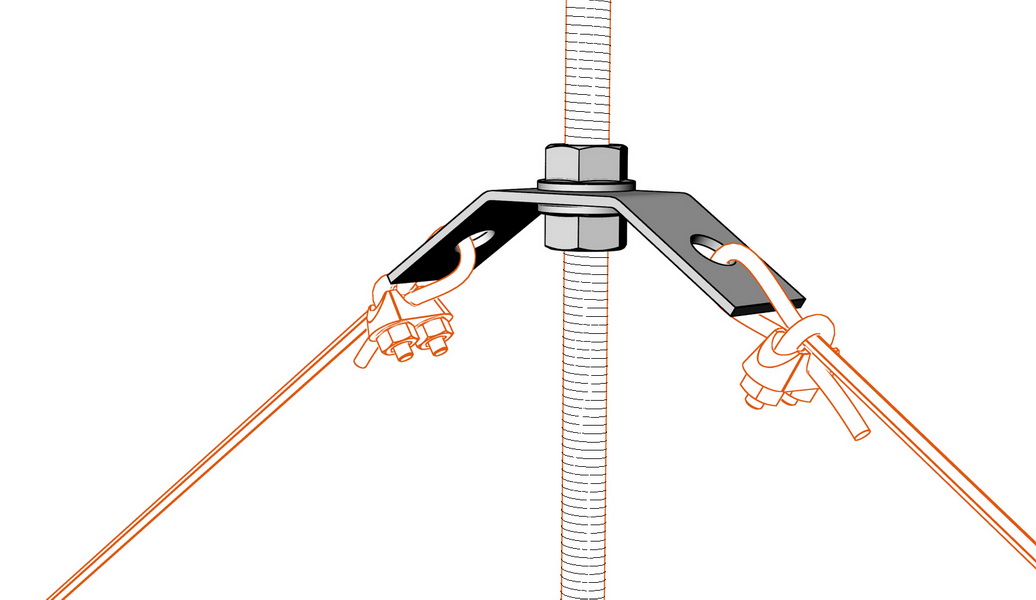

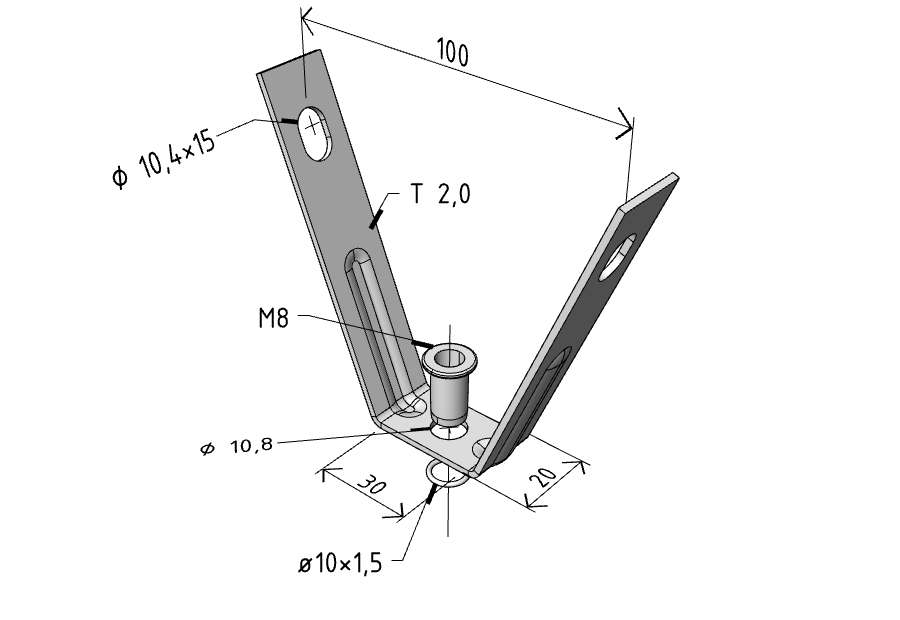

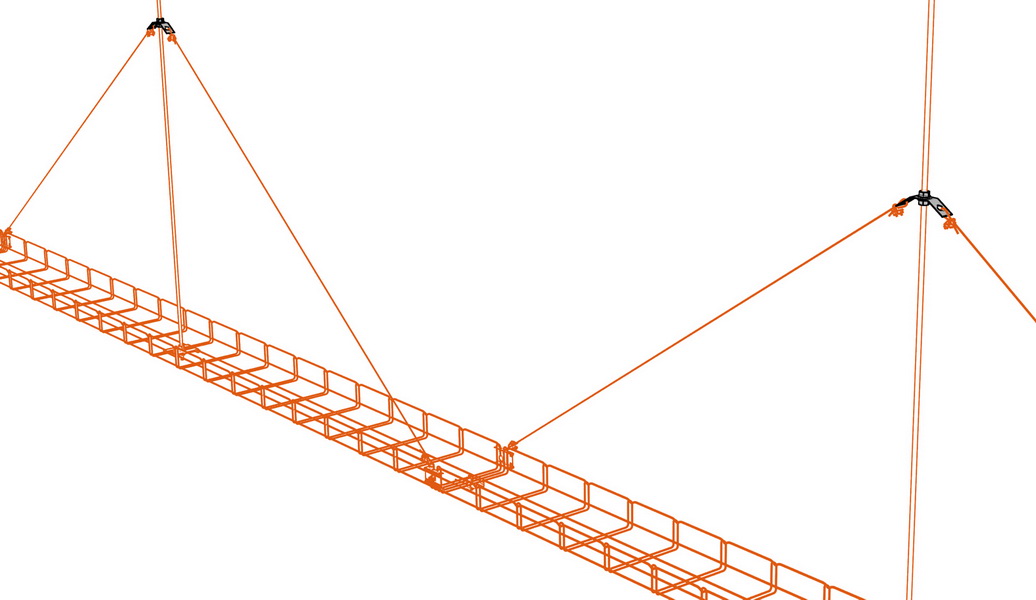

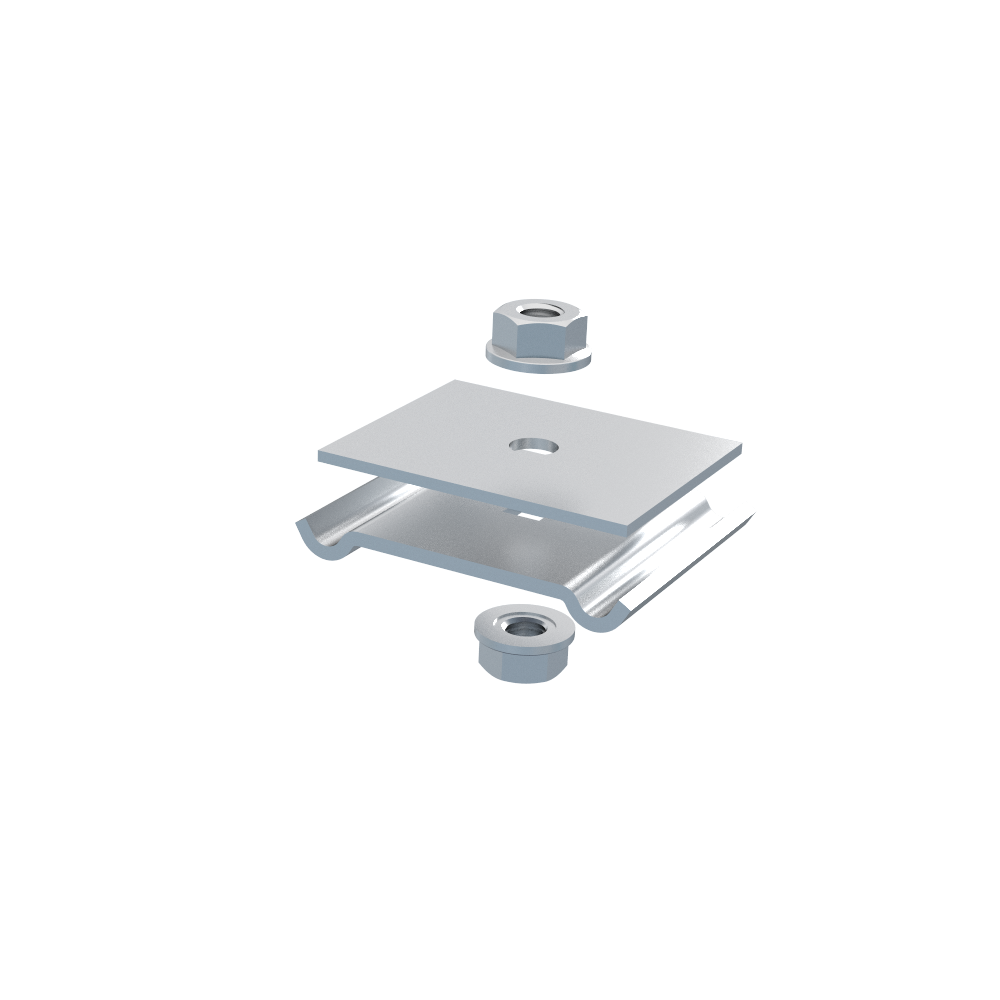

DZM 15 suspension hanger

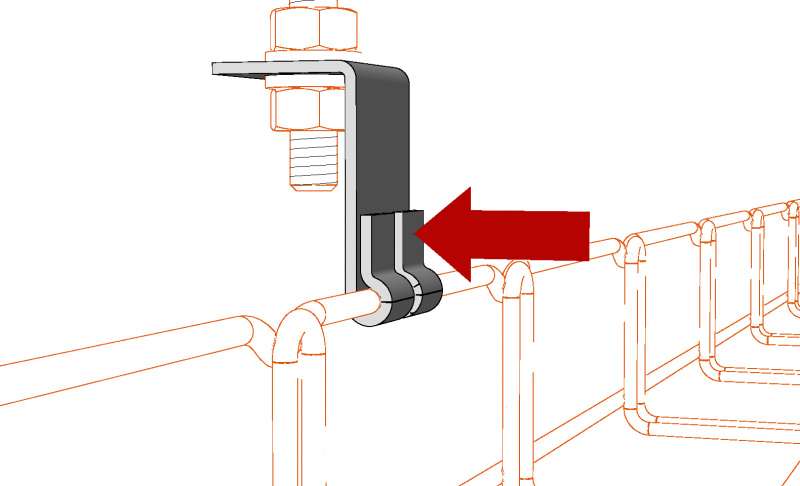

DZM 15 suspension hanger

The DZM 15 suspension hanger is used for anchoring suspension cable to threaded rod. It is designed for cable suspension in places where it is necessary to cross the space without the chance of direct anchoring to the soffit.

Components shown in the figure are included in the package.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -214150
  • ZZ ARK -224150
  • A2 ARK -234150
  • A4 ARK -244150

(*) On Request







ZZ (ARK-224150)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

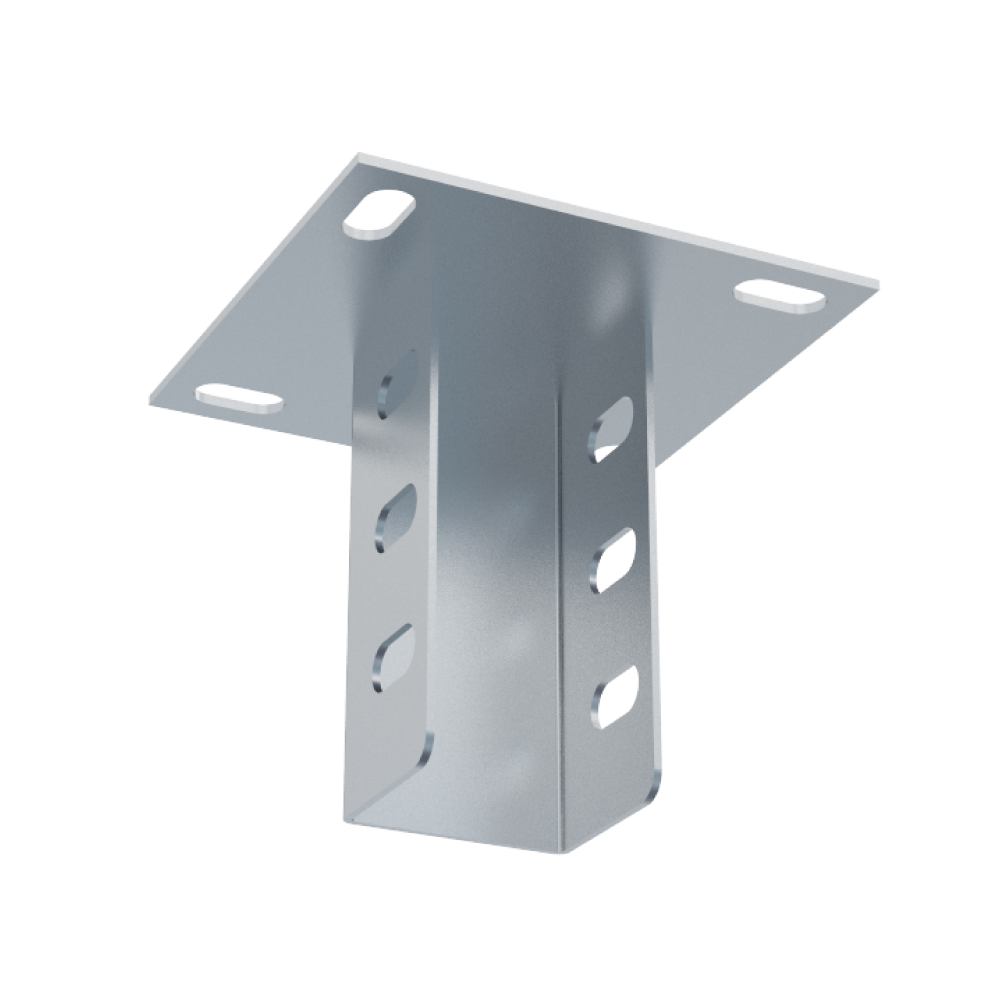

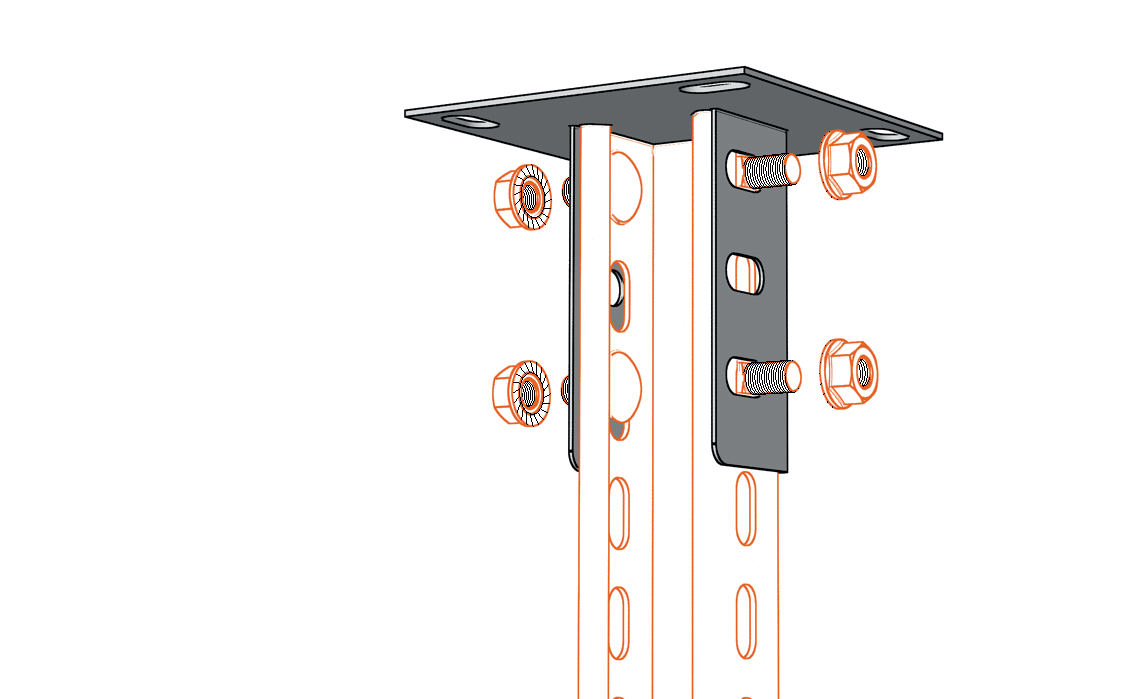

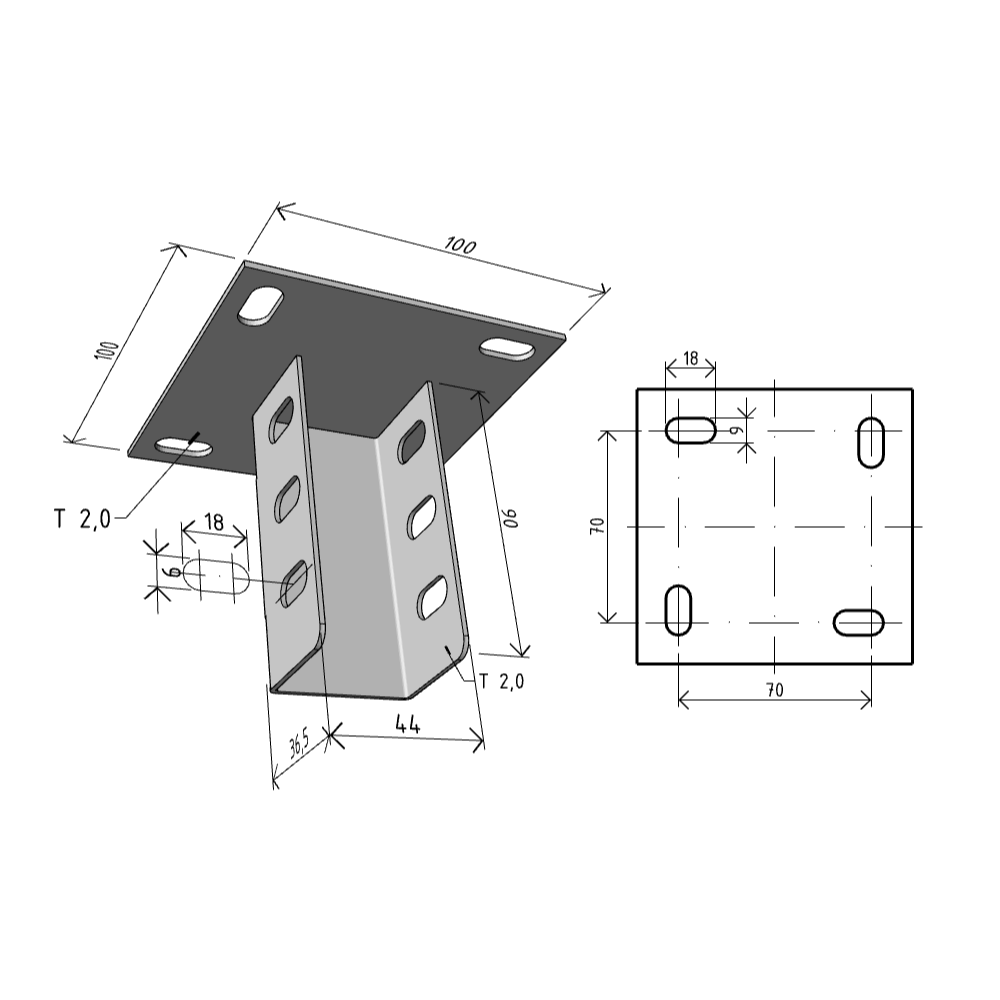

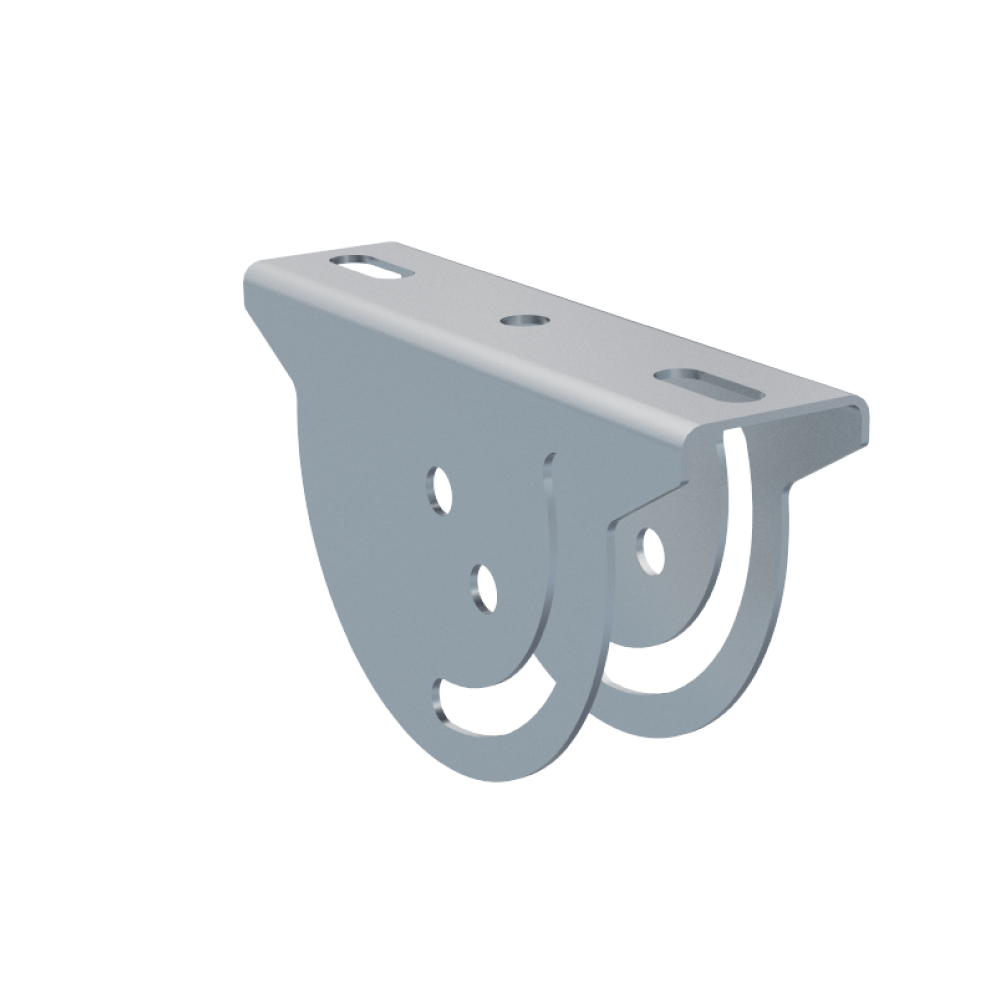

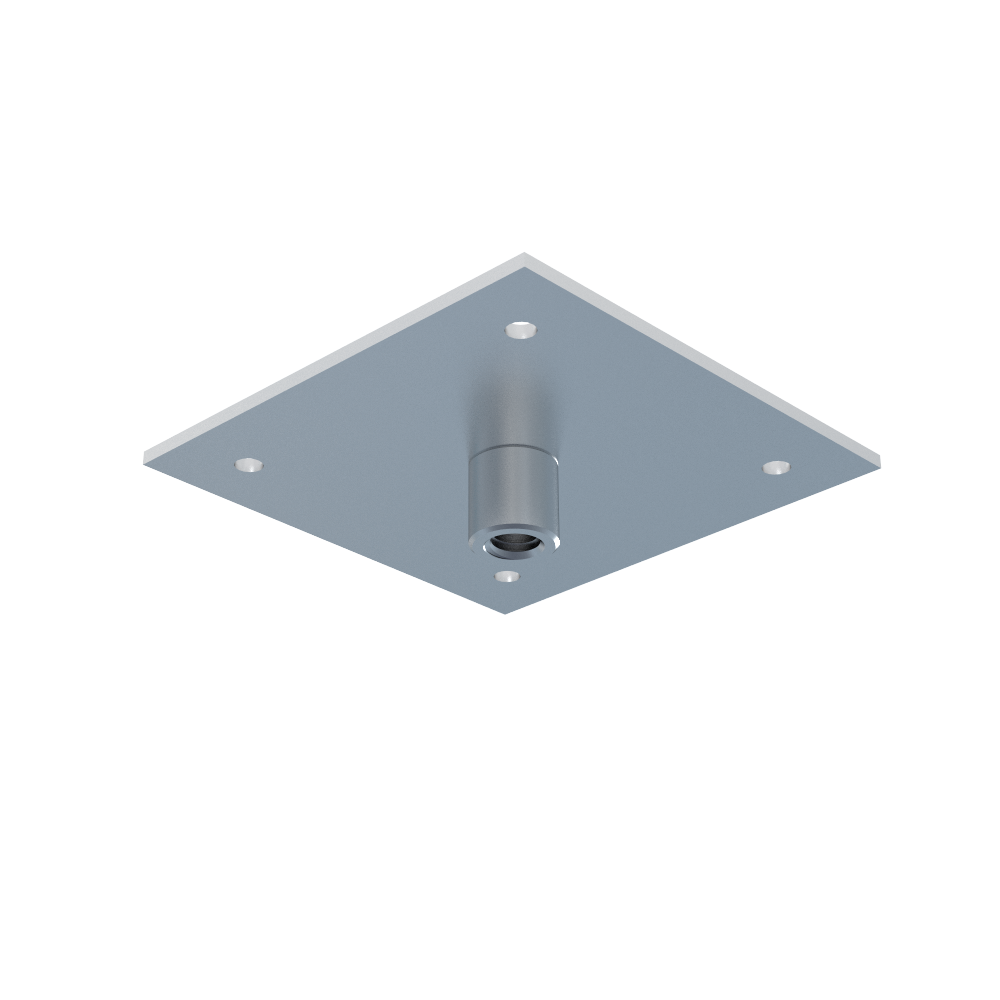

DZM STP mounting profile head

DZM STP mounting profile head

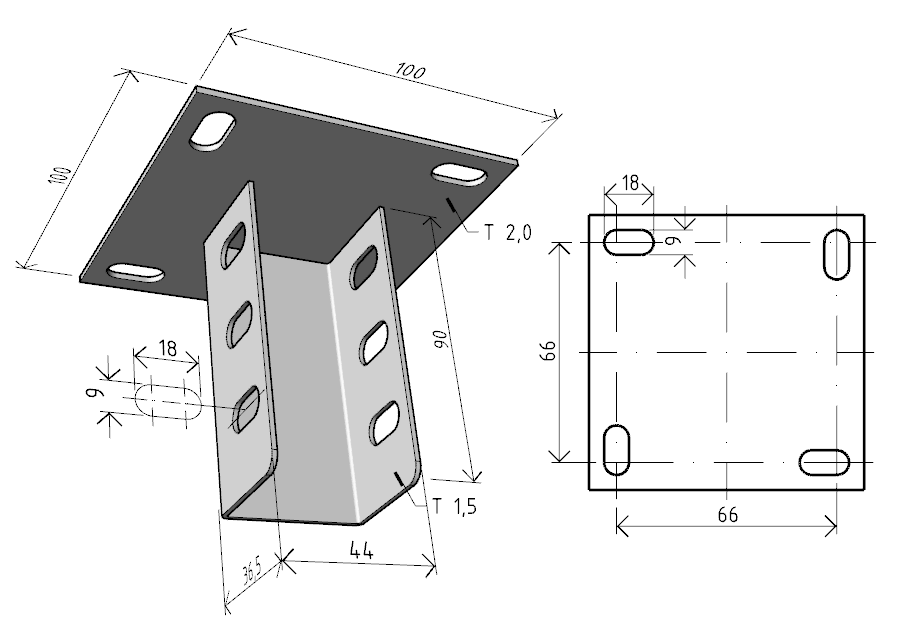

The DZM STP mounting profile head serves for anchoring STPM rail struts with side perforations (see p.54) of spatial mounting under horizontal building structures. The holder can be turned by 180° and used as afloor bracket. The maximum pull load capacity of the DZM STP is 250 kg.

Product code
  • GZ ARK -214150
  • ZZ ARK -224150
  • A2 ARK -234150
  • A4 ARK -244150







ZZ (ARK-224150)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

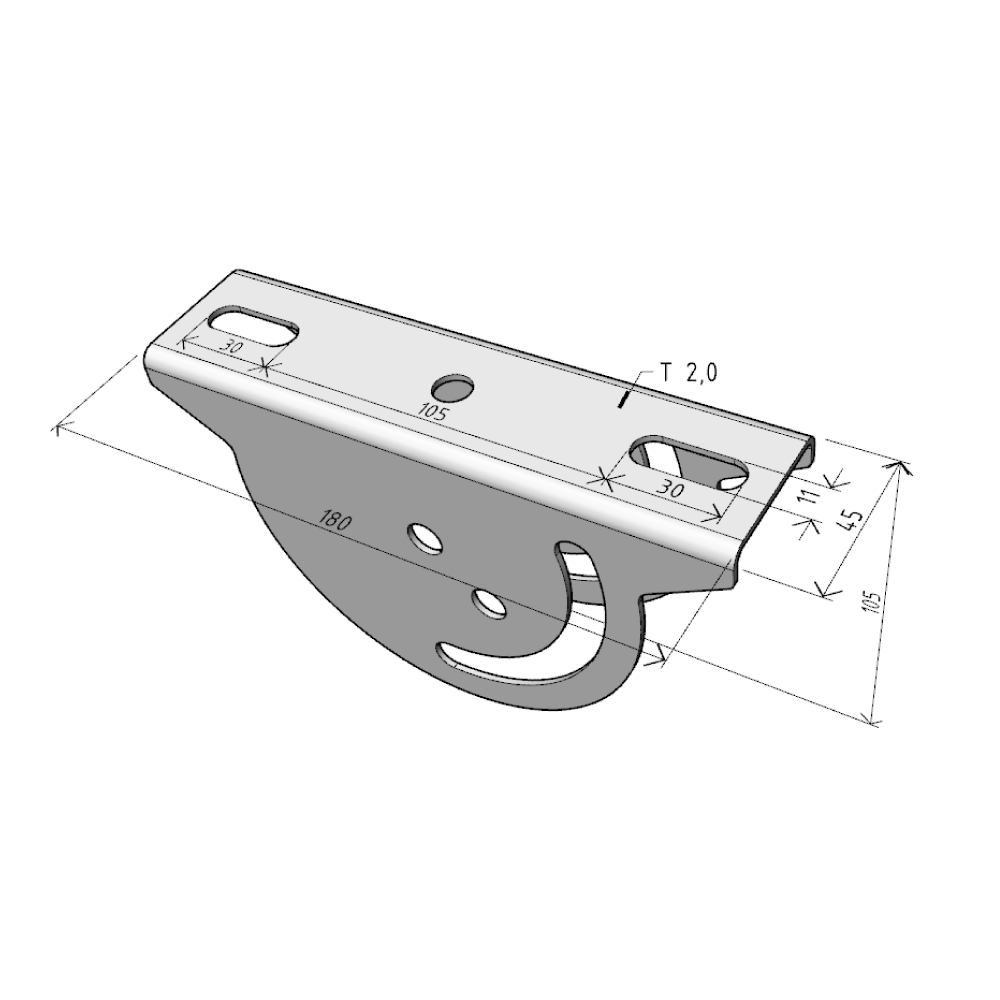

DZM STPU angular mounting profile head

DZM STPU angular mounting profile head

The DZM STPU angular mounting profile head is used for anchoring STPM rail struts with side perforations (see p. 54) of spatial mounting under horizontal constructions in situations where it is necessary to compensate an angular difference between the angle of the soffit with the horizontal plane. The maximum pull load capacity of the DZM STPU is 150 kg.

T (plate thickness) 2,0 mm
   icon-zzicon-zA2icon-A4
Product code
  • ZZ ARK -224310
  • A2 ARK -234310
  • A4 ARK -244310 *

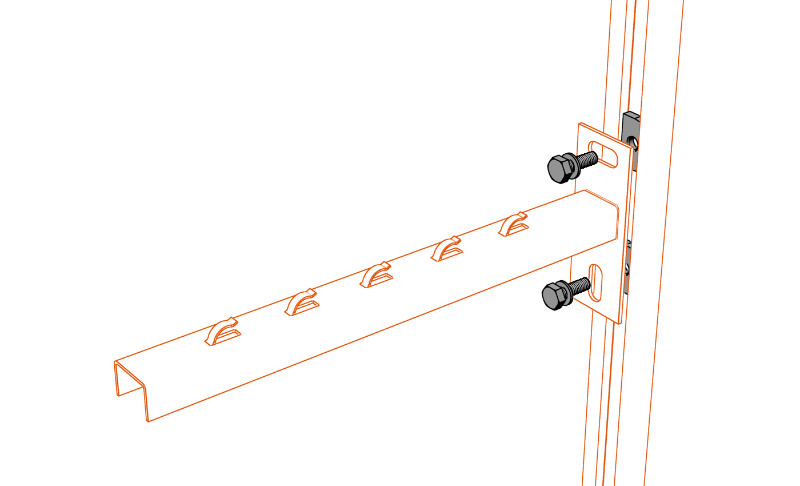

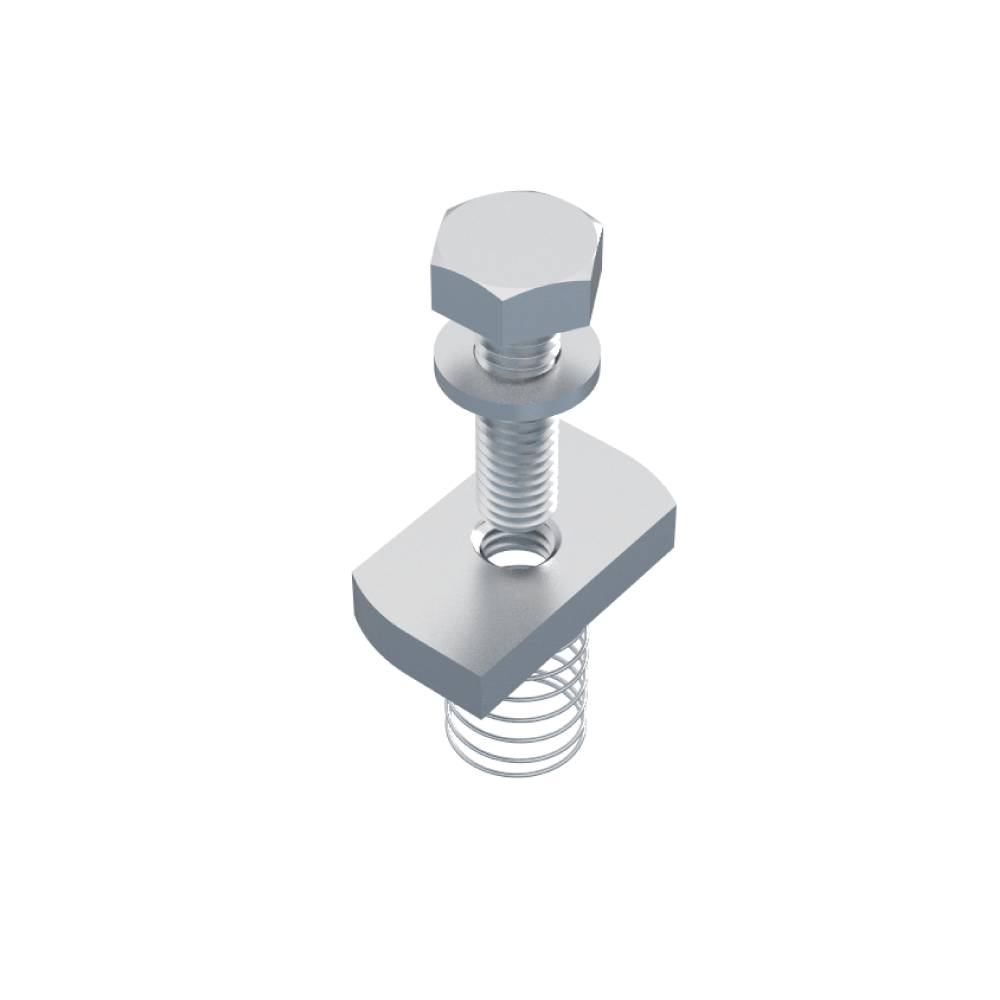

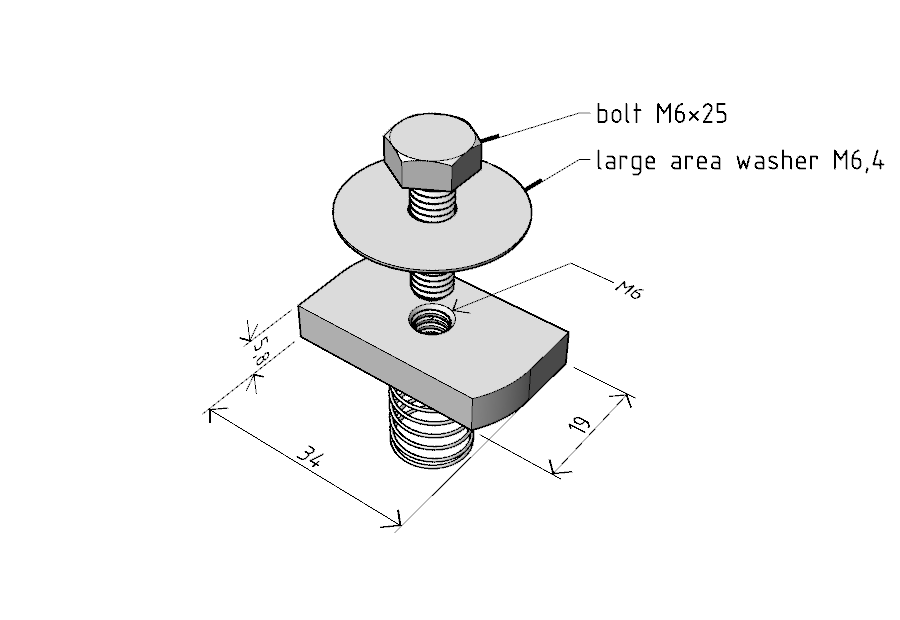

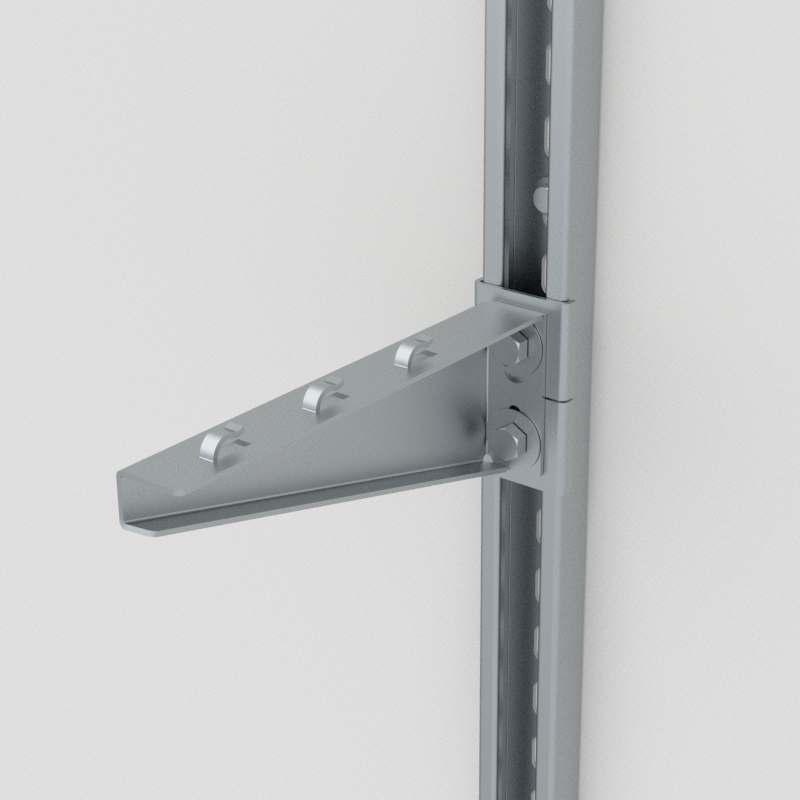

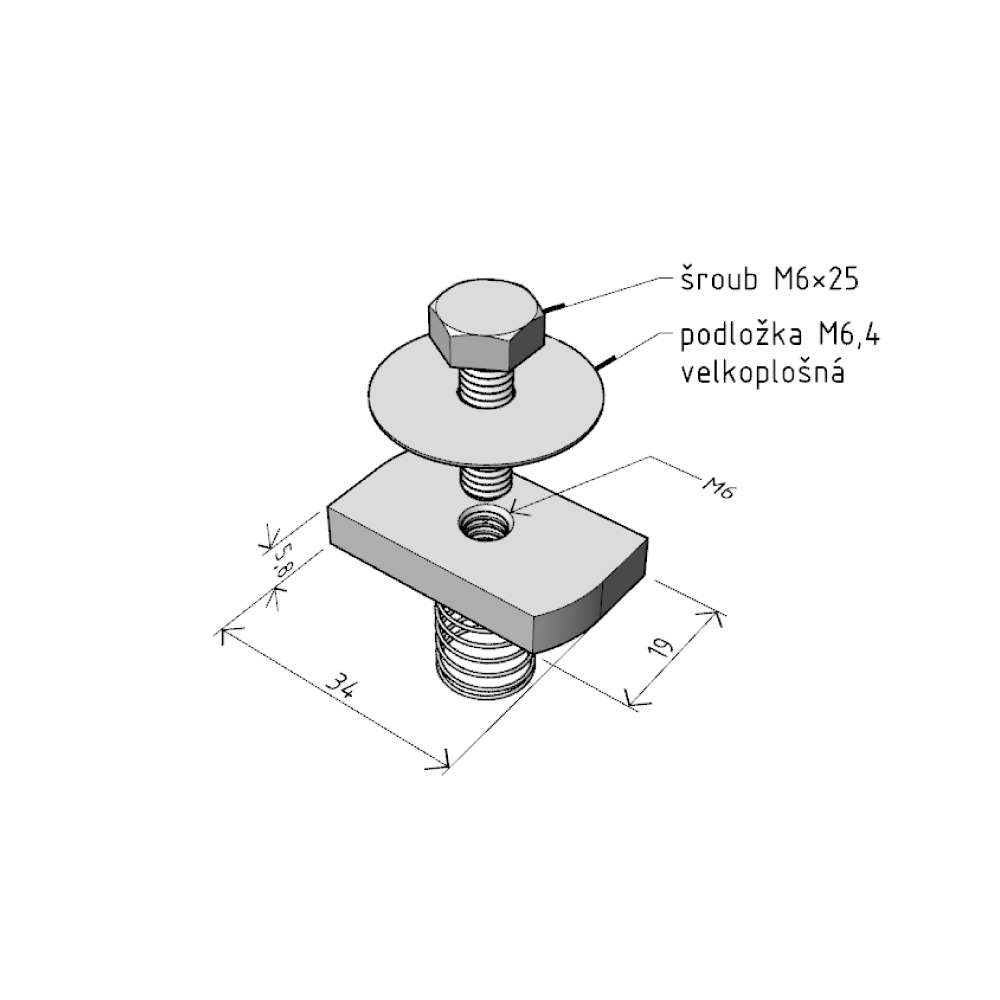

MSM/M6 rectangular nut

  • Functional integrity
MSM/M6 rectangular nut

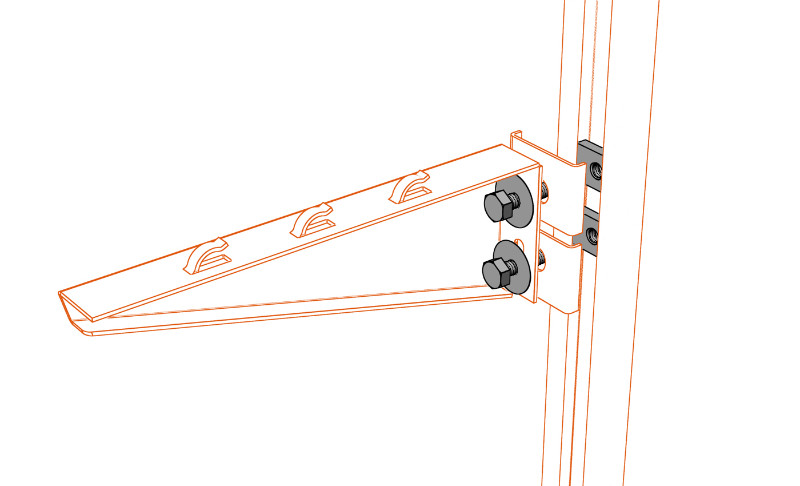

The rectangular MSM nut serves for anchoring cantilevers to the struts in combination with the fixing plate PVM. The use of PVM fixing plate is not necessary with NPZM cantilevers thanks to their sturdy base.

Intended for cantilevers of 50, 100, 150, and 200 sizes.

Components shown in the figure are included in the package.

Product code
  • GZ ARK -218951
  • A2 ARK -238951

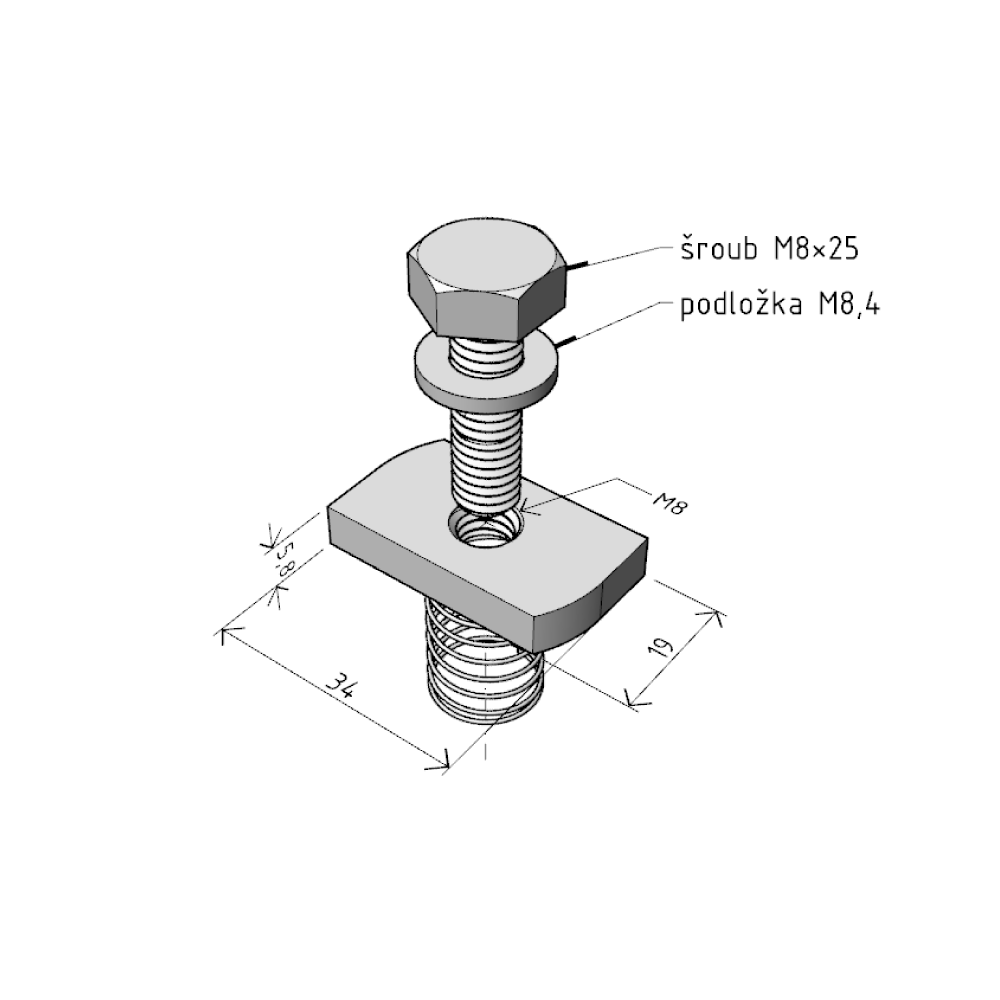

MSM/M8 rectangular nut

  • Functional integrity

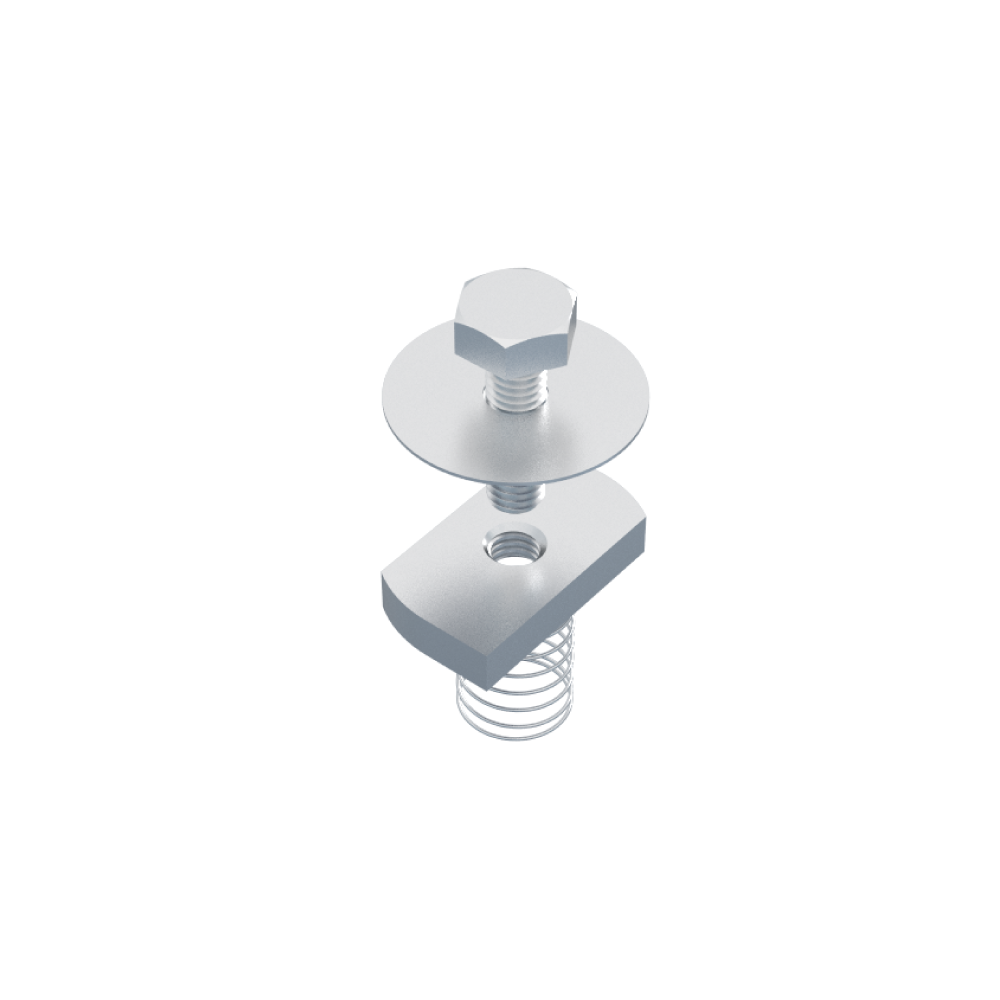

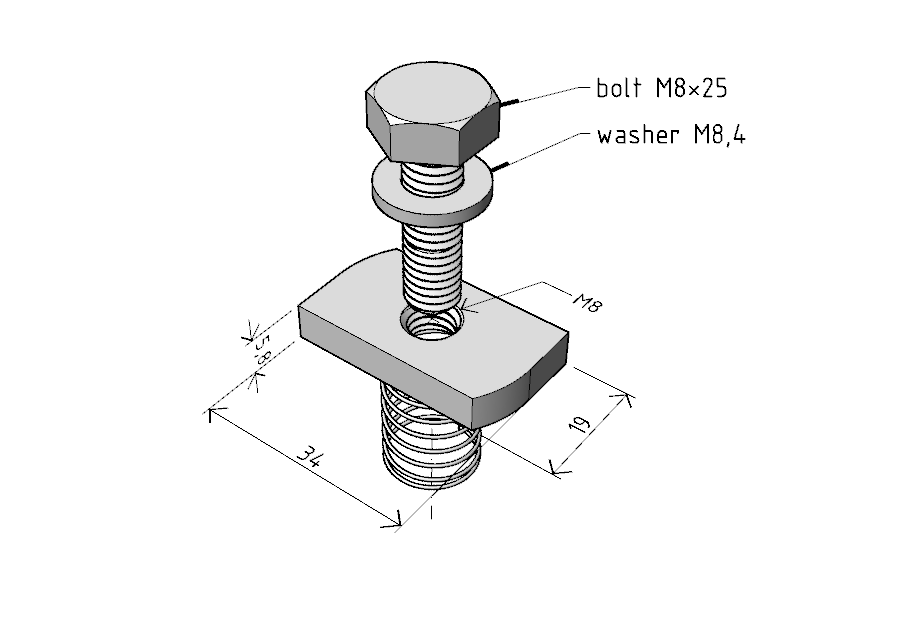

MSM/M8 rectangular nut

The rectangular MSM nut serves for anchoring cantilevers to the struts in combination with the fixing plate PVM. The use of PVM fixing plate is not necessary with NPZM cantilevers thanks to their sturdy base.

Intended for cantilevers of 250, 300, 400 and 500 sizes.

Components shown in the figure are included in the package.

Product code
  • GZ ARK -218952
  • A2 ARK -238952

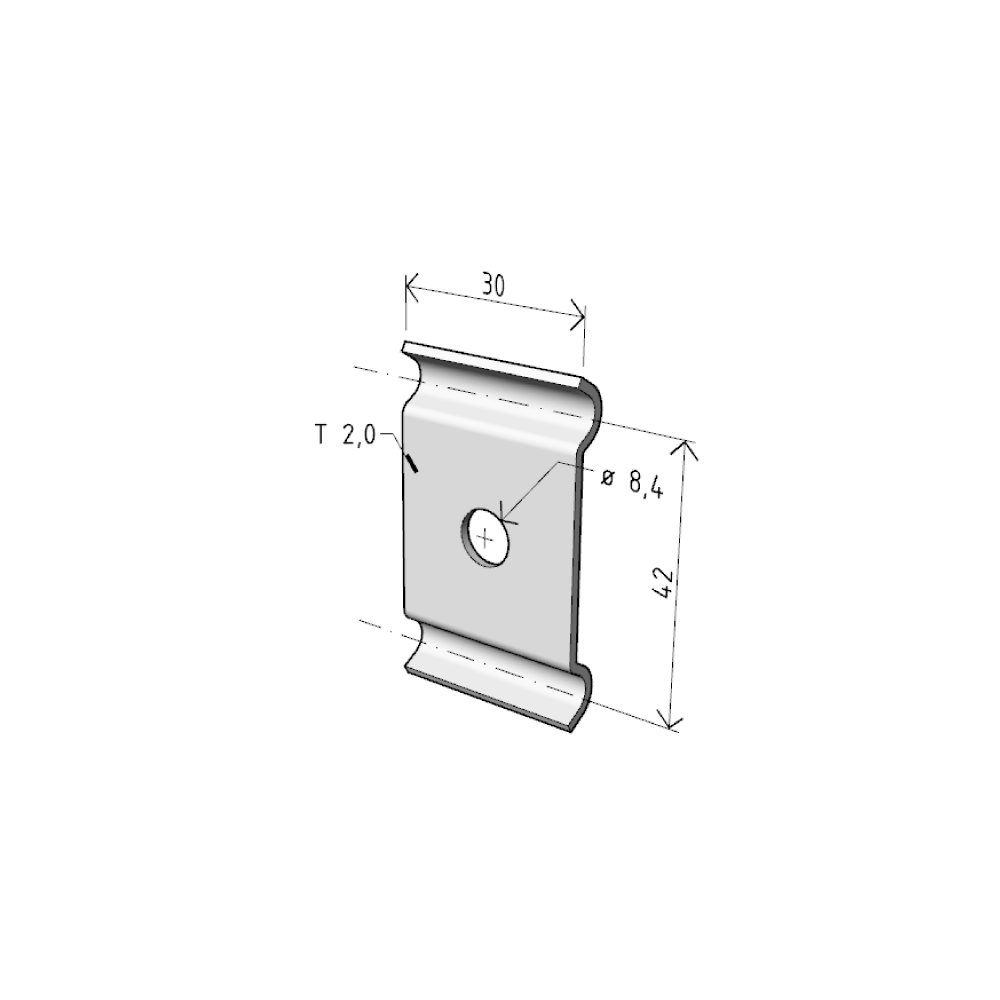

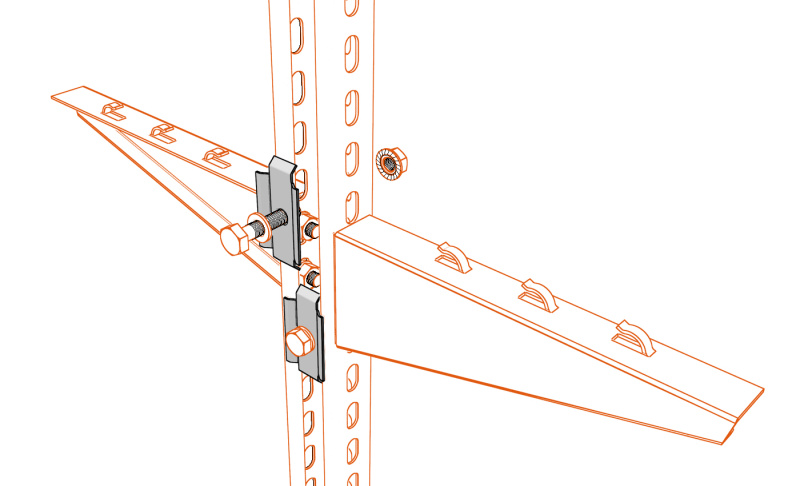

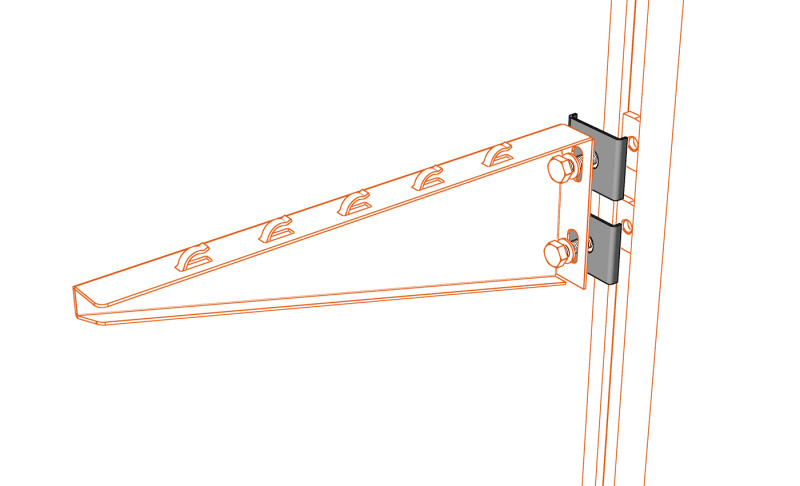

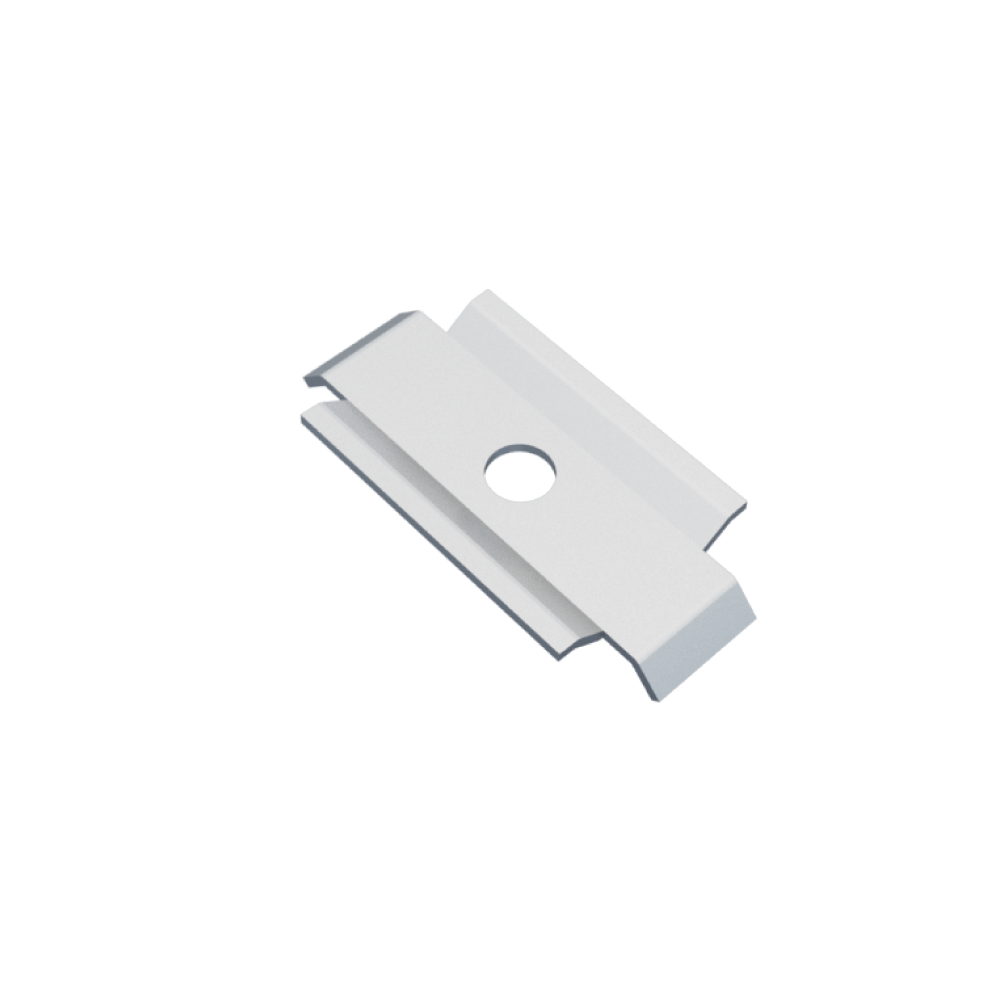

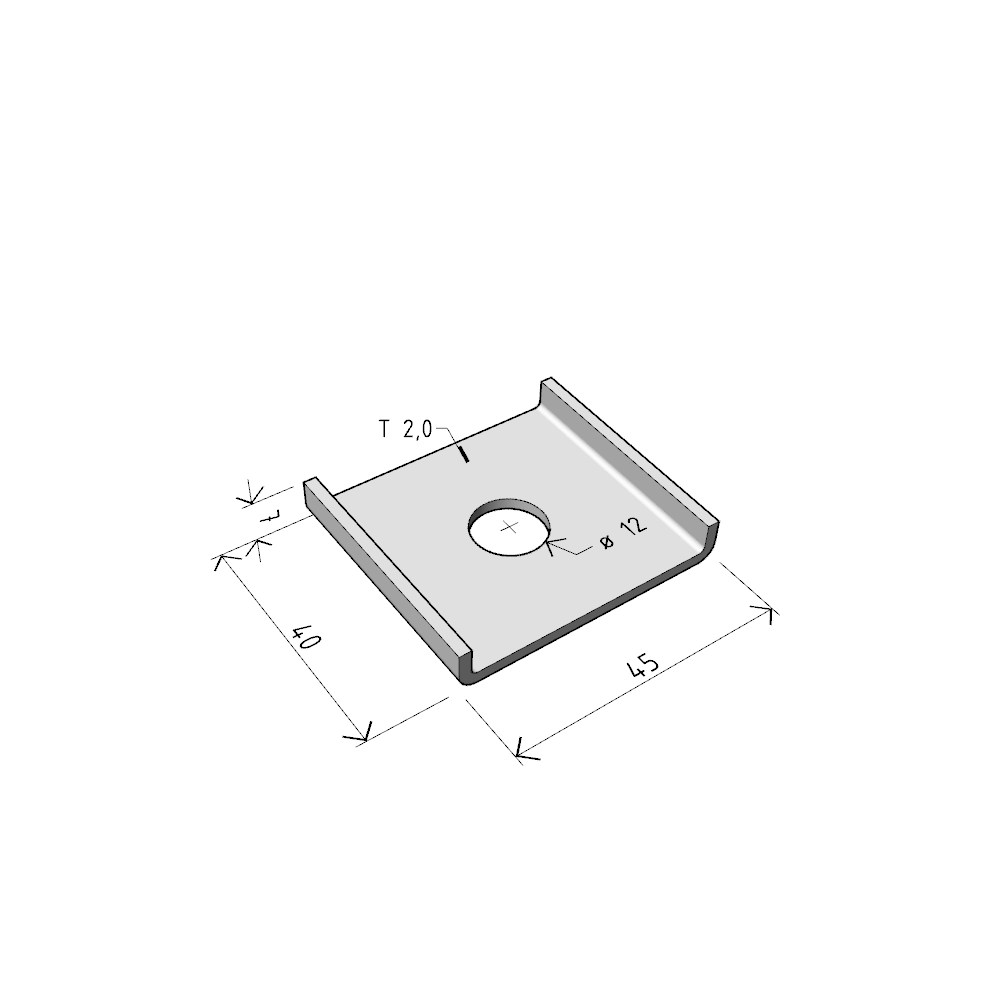

PVM rail strut fixing clamp

PVM rail strut fixing clamp

The PVM fixing clamp serves for centring NZM and NZMU brackets when anchoring them to a rail strut. It is redundant with NPZM brackets due to its sturdy base.

T (plate thickness) 2,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -218953
  • ZZ ARK -228953
  • A2 ARK -238953
  • A4 ARK -248953 *

(*) On Request

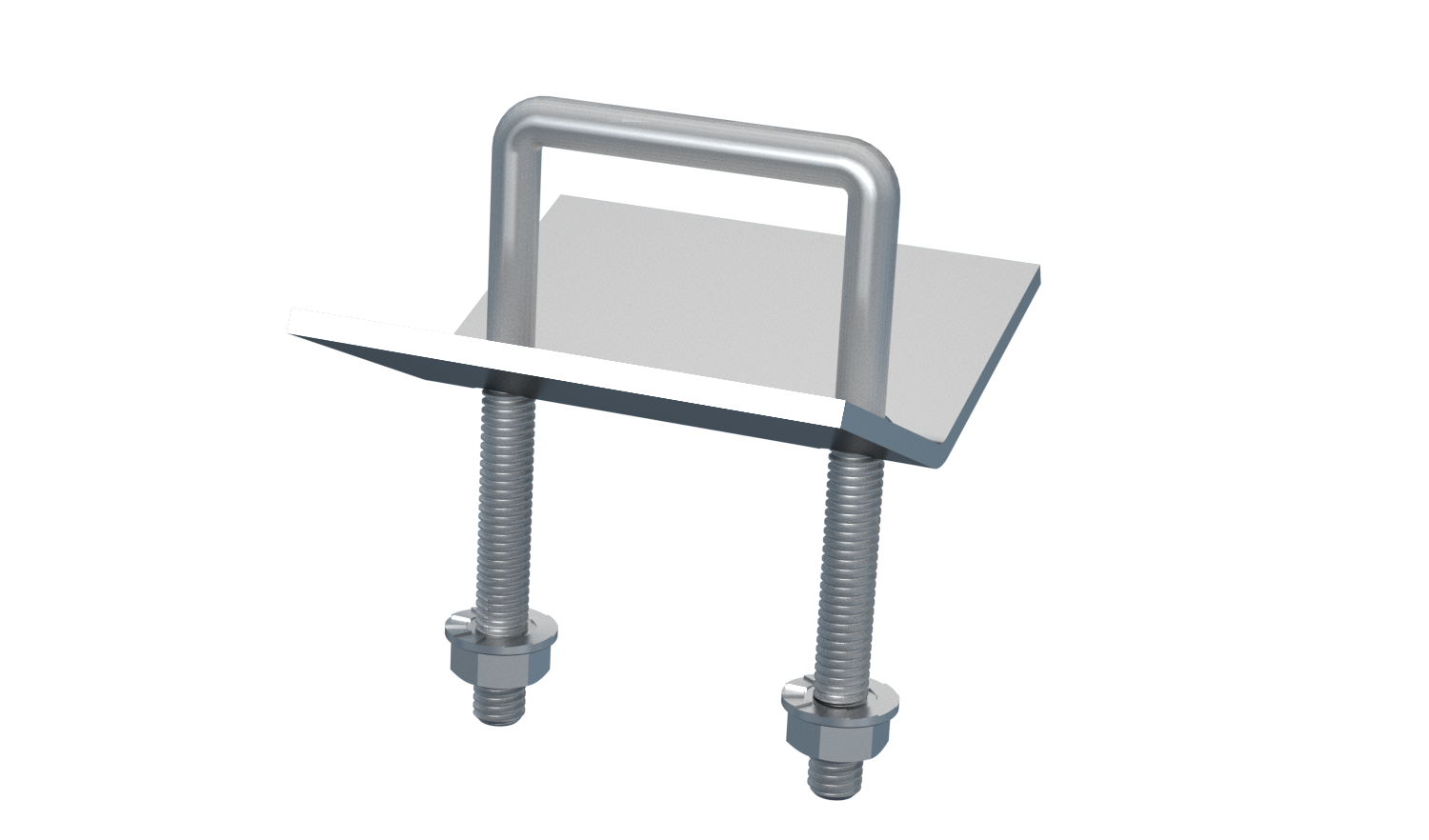

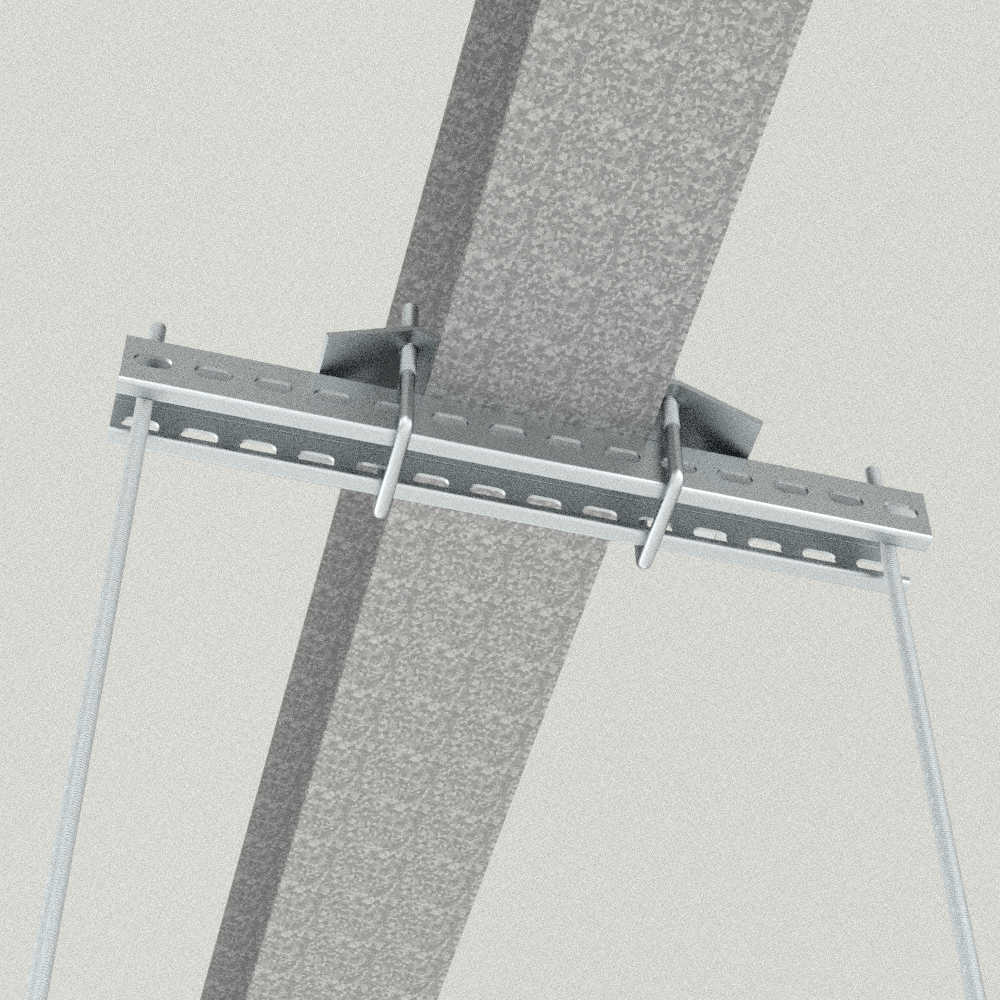

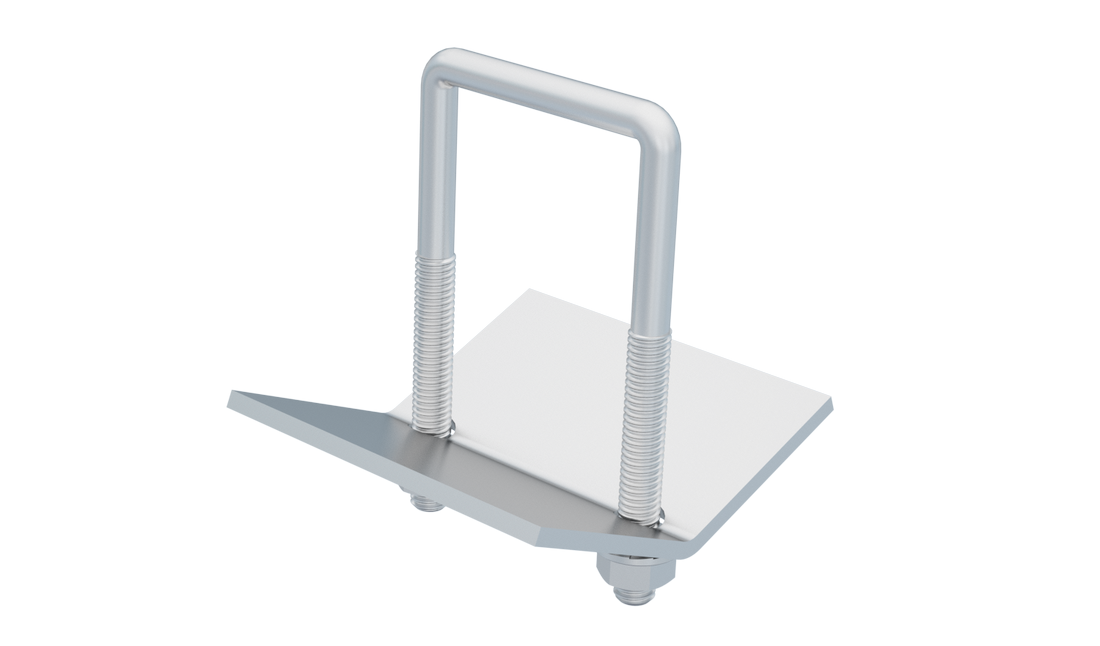

PIM fixing plate to I profile

PIM fixing plate to I profile

The PIM I profile fixing clamp, combined with rectangular nut MSM/ M8, serves for attaching I-profile brackets to struts, the maximum section of the I-beam being 15 mm.

Components shown in the figure are included in the package.

T (plate thickness) 5,0 mm
  icon-gz icon-zz icon-zA2 icon-A4
Product code
  • GZ ARK -218960
  • ZZ ARK -228960
  • A2 ARK -238960
  • A4 ARK -248960

(*) On Request







ZZ (ARK-228960)- connecting element options:
0 - electro-galvanized (GZ)
2 - geomet 500 (G5)
3 - stainless steel AISI 304 (A2)

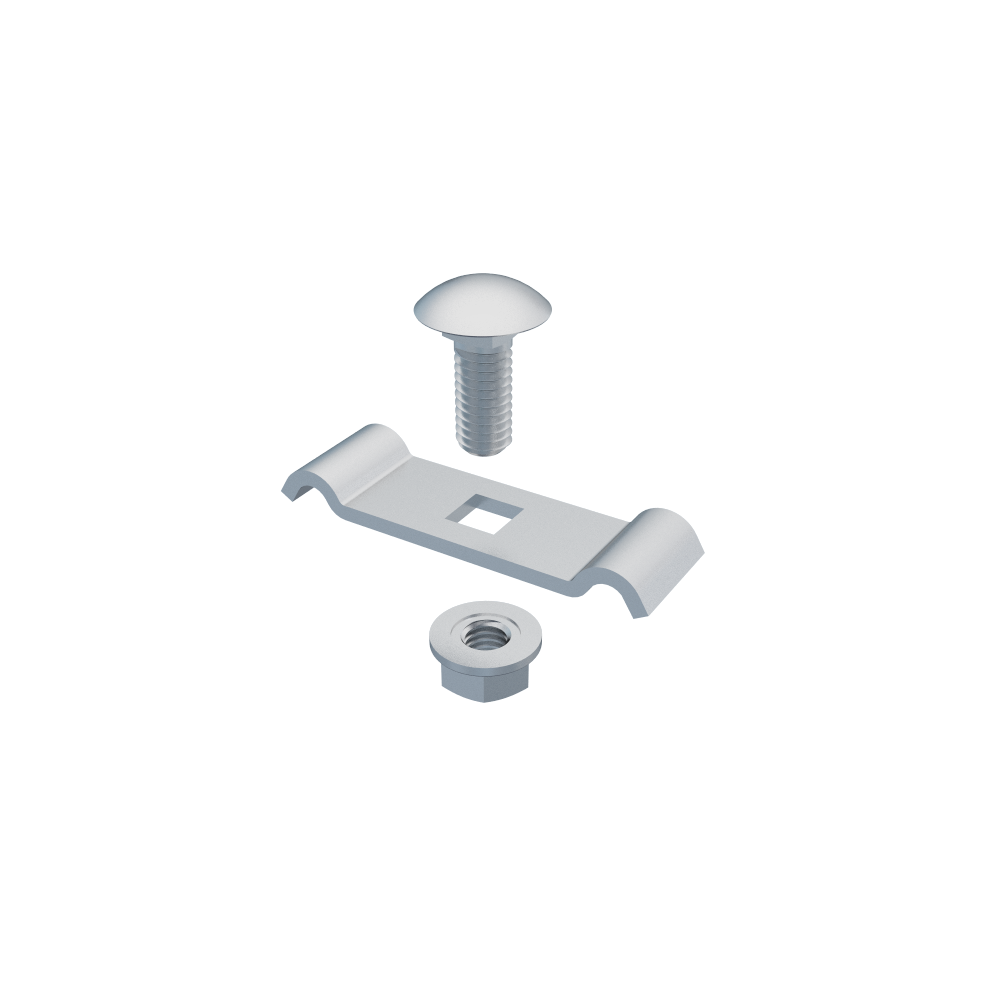

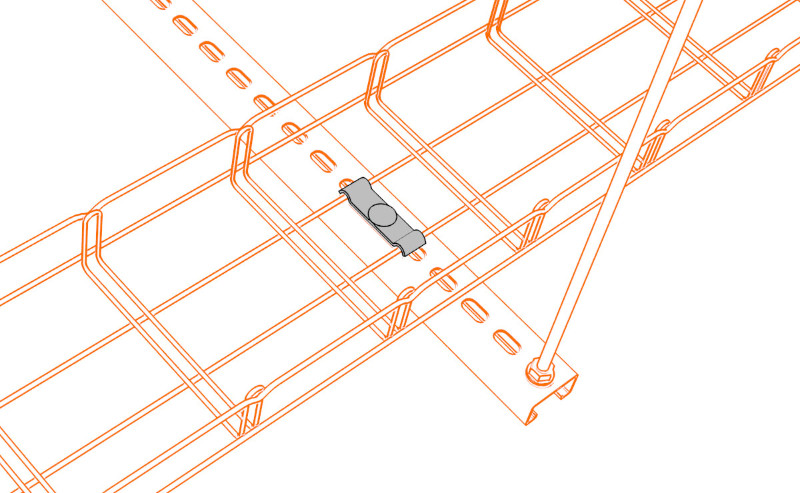

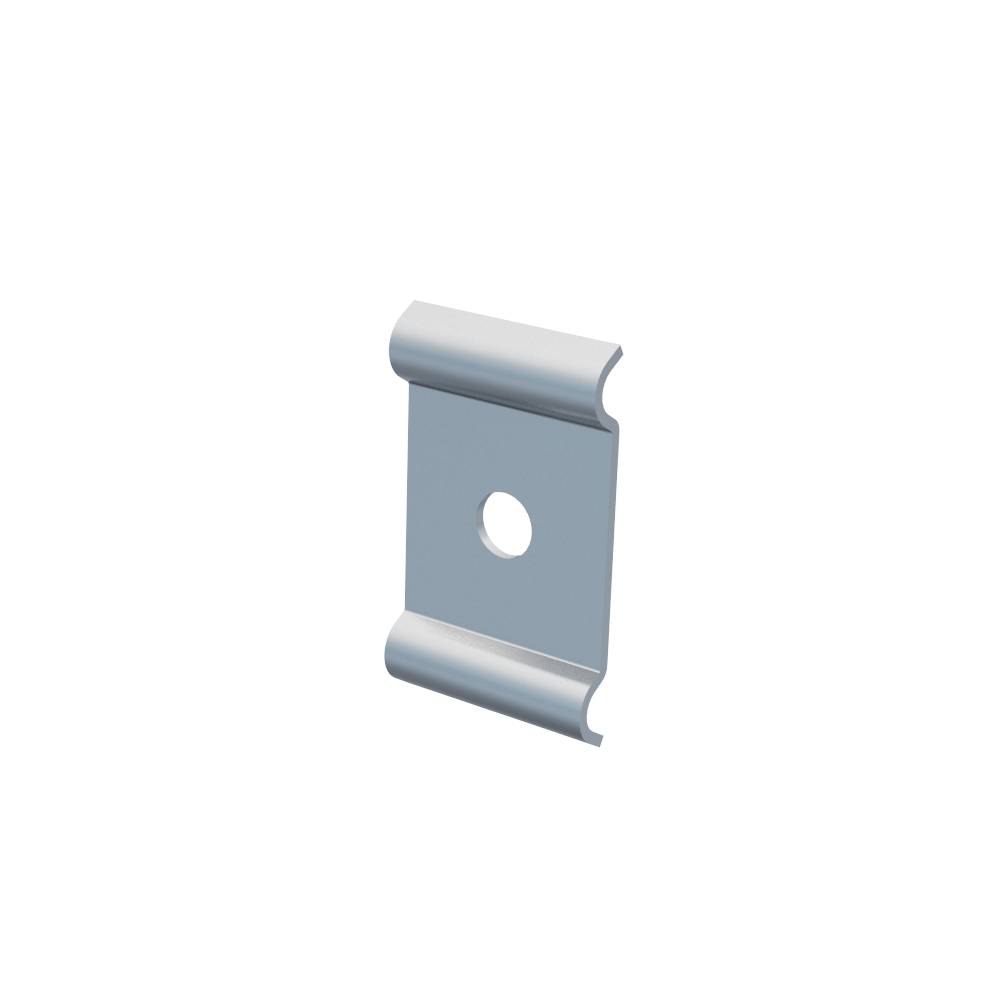

PZSM 2 fixing clamp

  • Functional integrity
PZSM 2 fixing clamp

The PZSM 2 fixing clamp serves for connecting MERKUR 2 mesh trays to STNM profile struts or to STPM profile struts with side per-forations, especially in horizontal fire-resistant cable routes. The PZSM2 fixing clamp is only used for tray bottoms (technically, it is not intended for trays of 100 mm width).

Components shown in the figure are included in the package.

T (plate thickness) 2,0 mm
Product code
  • GZ ARK -218956
  • ZZ ARK -228956
  • A2 ARK -238956





ZZ - ARK-228956 - connecting element options:

6 - geomet 500 (G5)
8 - stainless steel AISI 304 (A2)

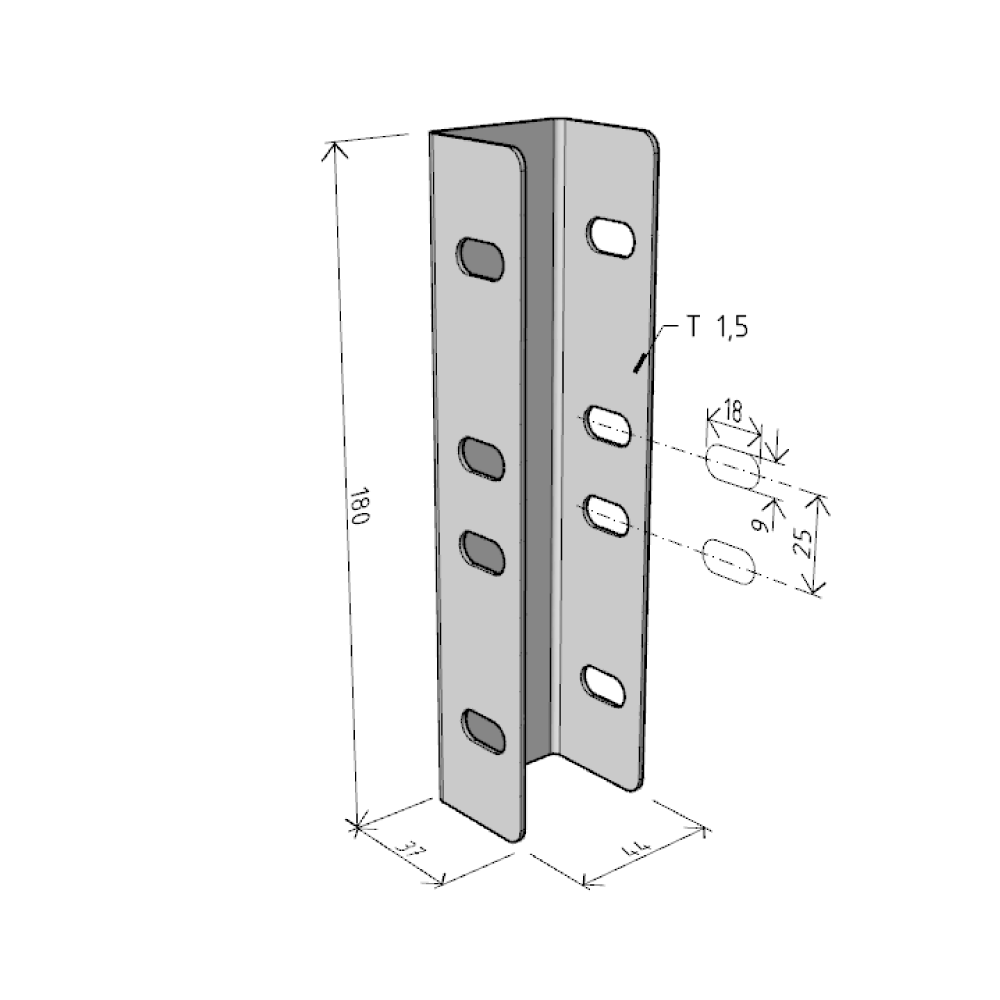

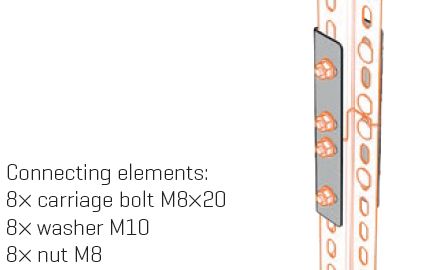

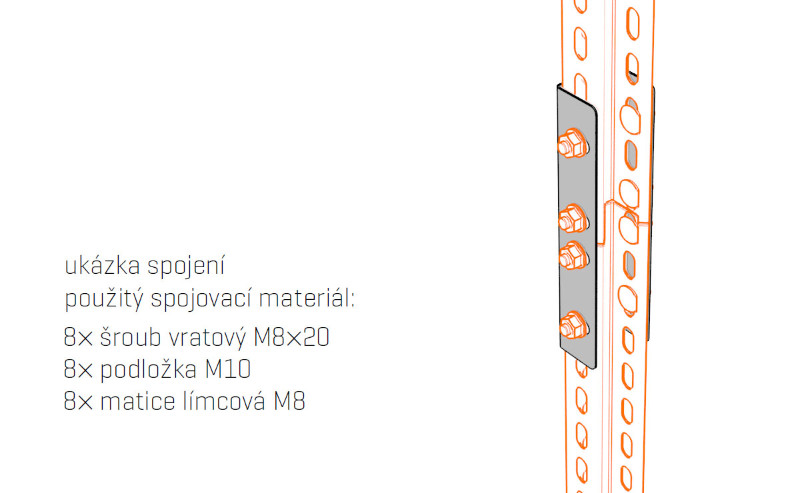

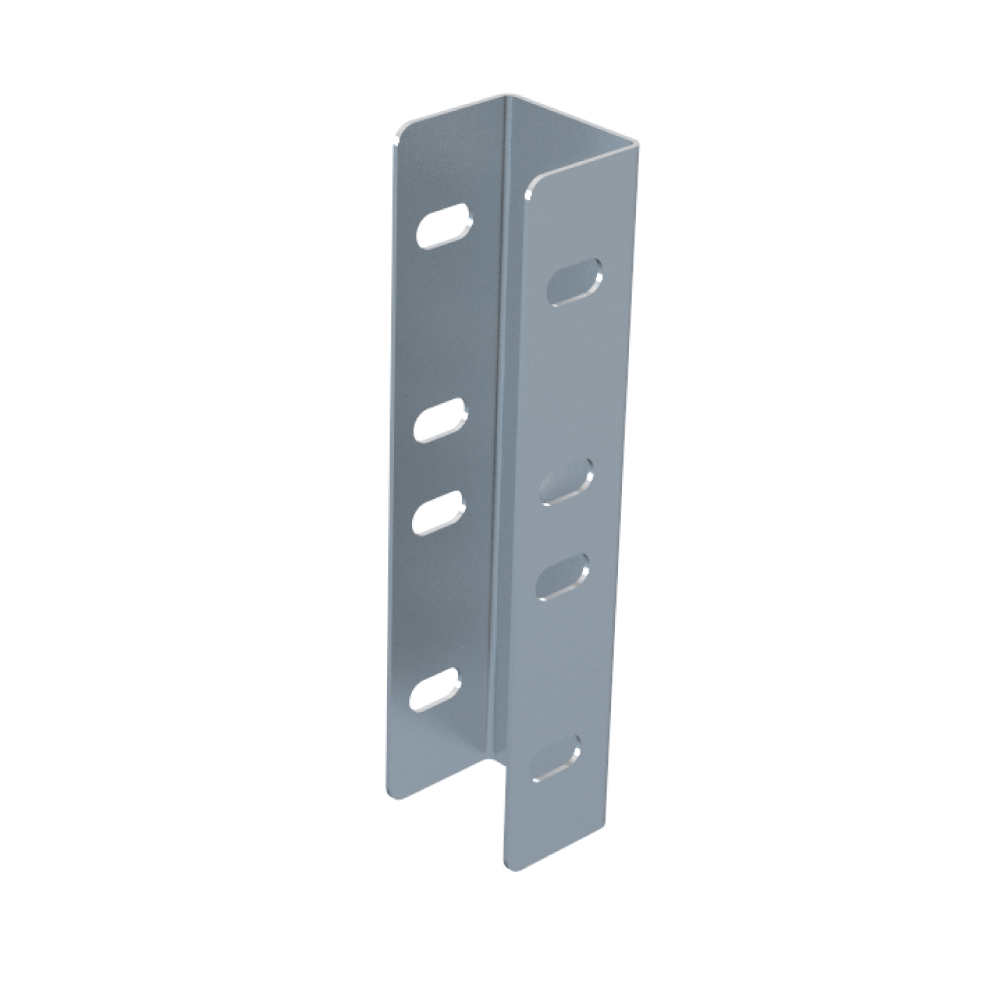

SSPM spatial strut splice

  • Functional integrity
SSPM spatial strut splice

The SSPM splice plate serves for joining two STPM profile struts with side perforations (see p. 54).A good quality connection requires using no less than the connect-ing elements specified in the figure.

T (plate thickness) 1,5 mm
  icon-zz
Product code
  • ZZ ARK -223095

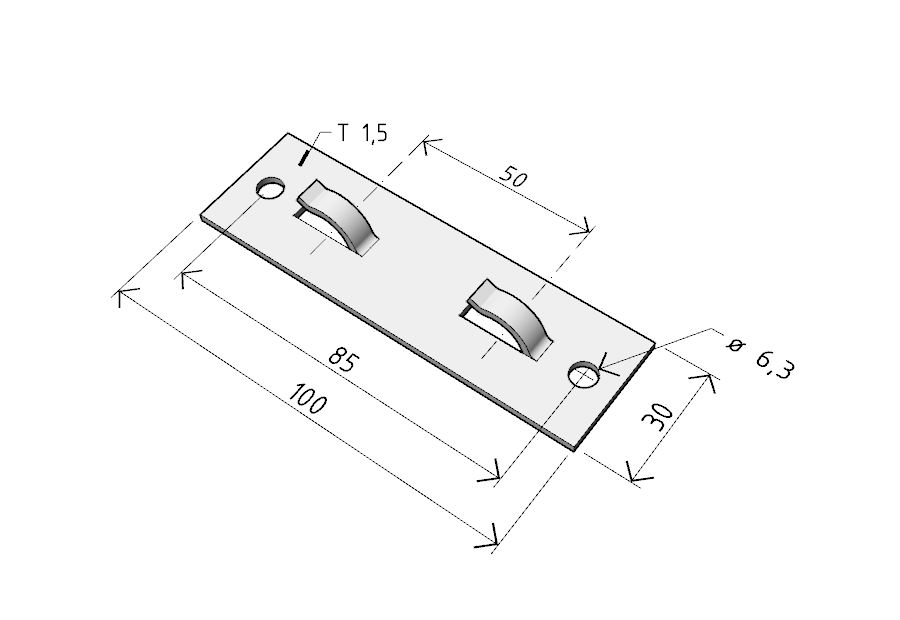

SVSM stabilizing plate of strut

  • Functional integrity

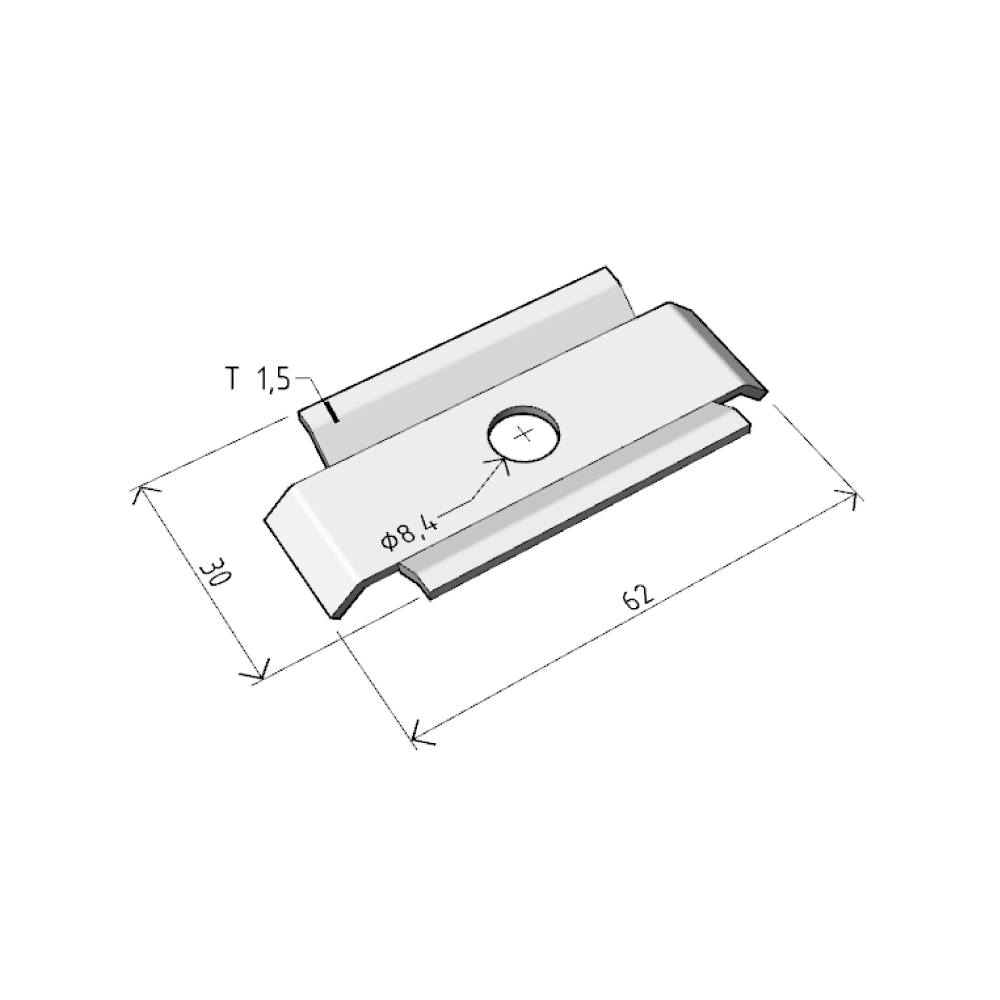

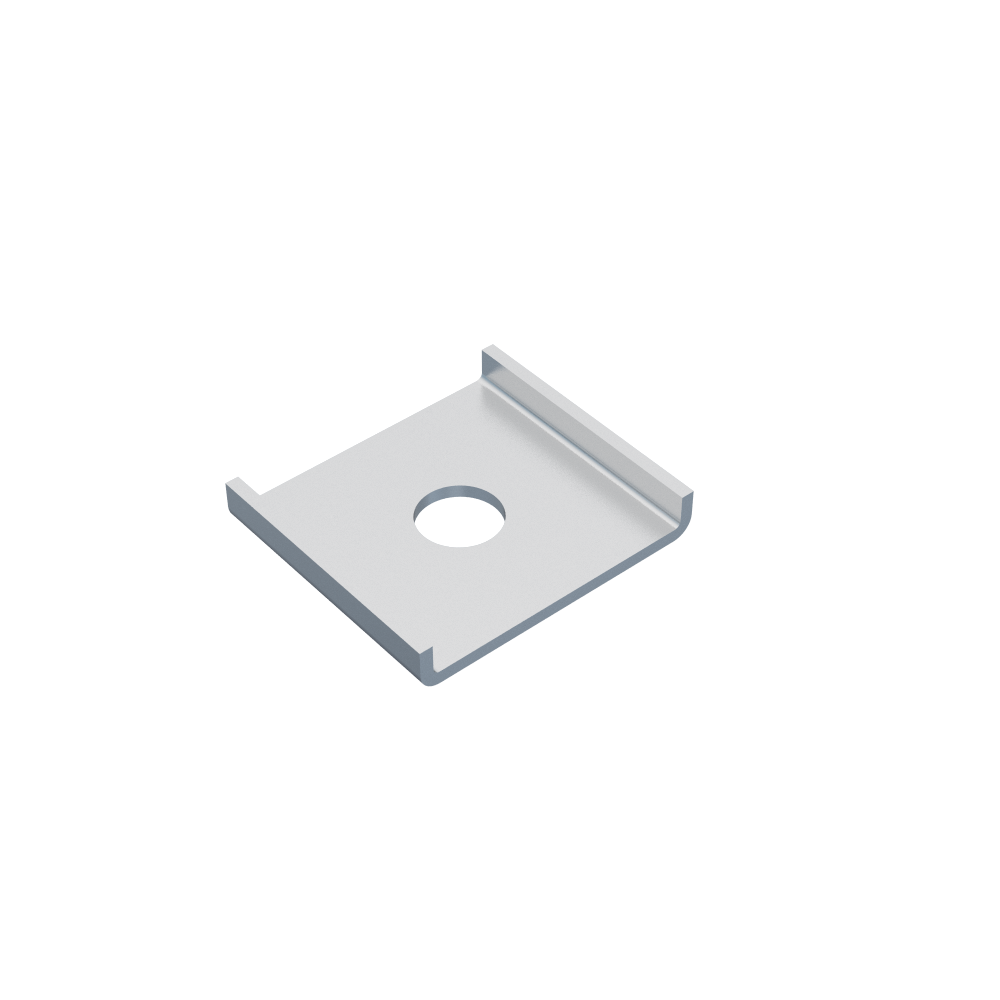

SVSM stabilizing plate of strut

The SVSM fixing plate is used for reinforcing the open profile of the STPM profile strut with side perforations in place of anchoring the brackets in installations with functional integrity. For brackets with a small base (NZM 50-200) one piece is used. For brackets with a larger base (NZM 250-500) a pair should always be used. Correctly installed stabilizing setting will prevent the sideboard of the strut from bending inwards under the pressure of the loaded bracket.

T (plate thickness) 1,5 mm
  icon-gz
Product code
  • GZ ARK -218958

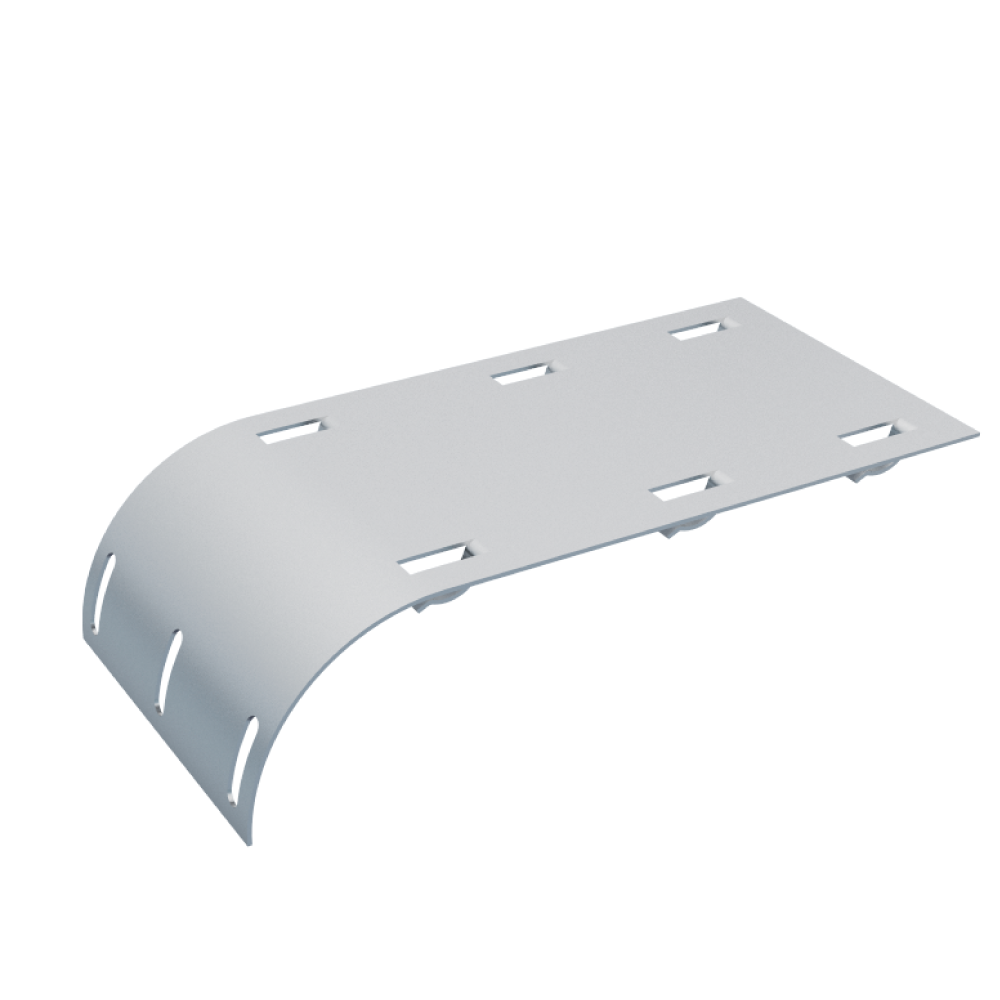

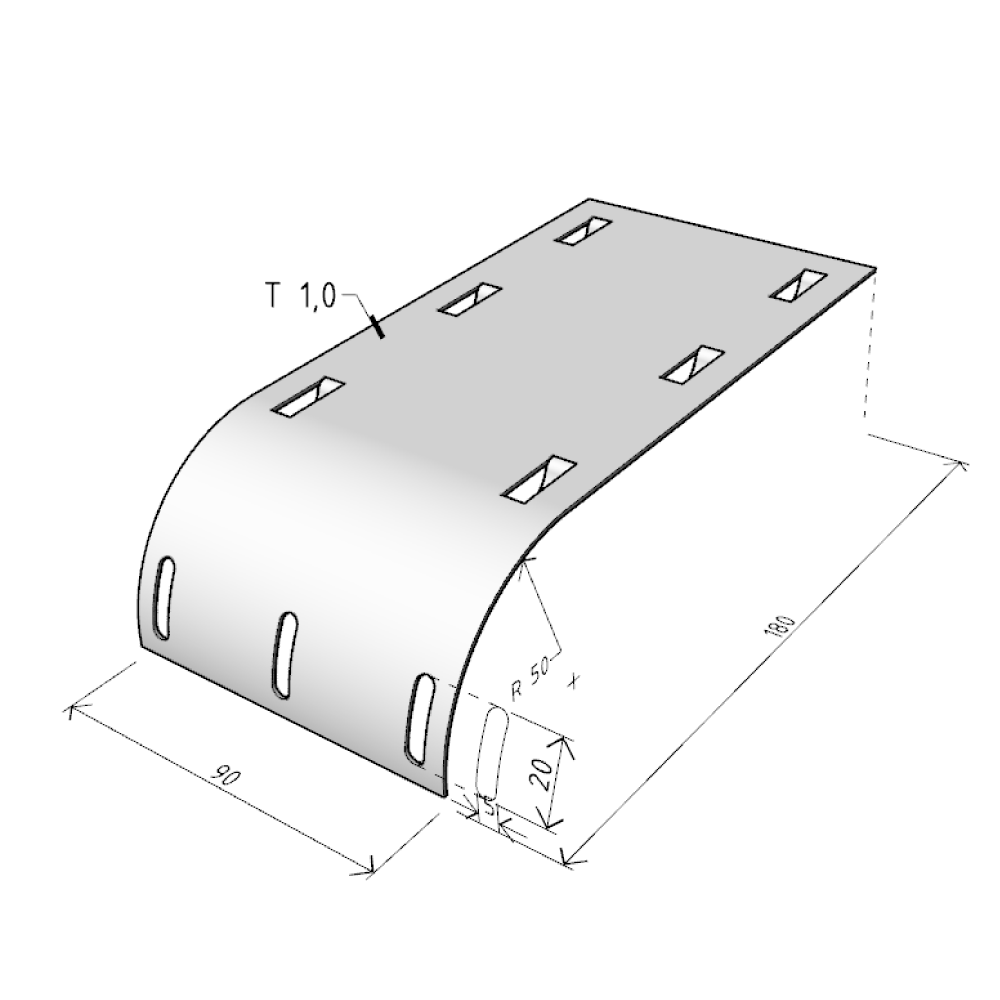

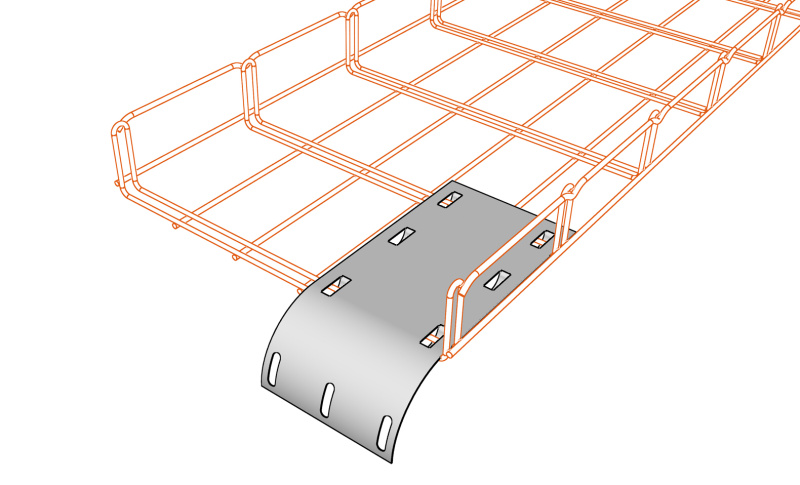

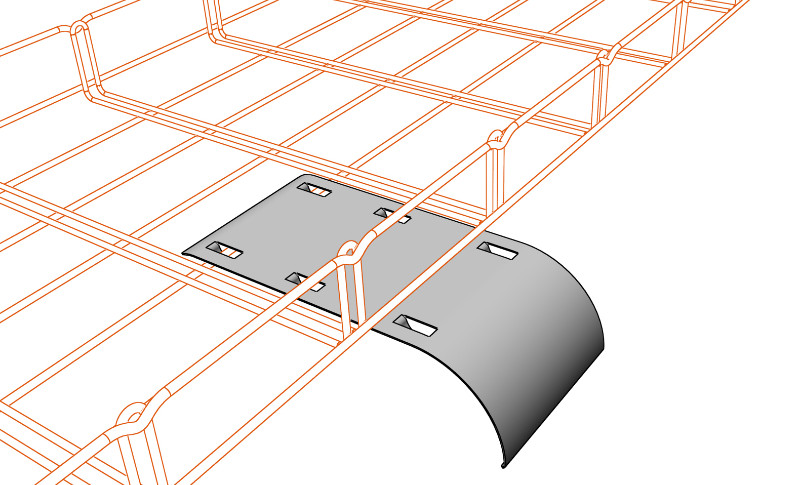

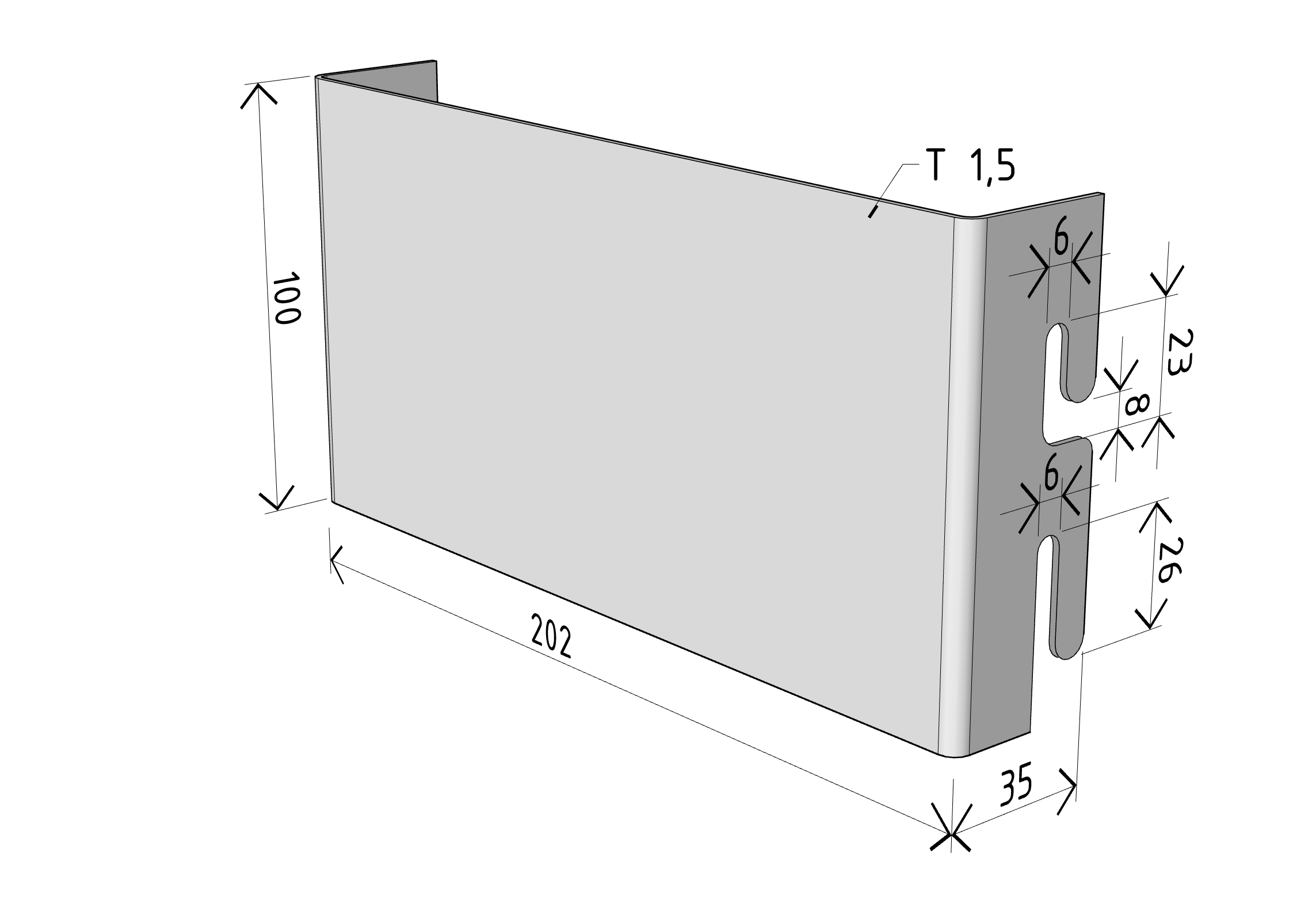

KSM cable chute

KSM cable chute

The KSM drop-out plate is used to guide the cable bunch safely out of the tray.It protects the cabling against mechanical damage, while ensuring the minimum bending radius of the cables (may not be used for 50/50 trays in parallel direction).

T (plate thickness) 1,0 mm
  icon-gz icon-zz icon-zA2
Product code
  • GZ ARK -212410
  • ZZ ARK -222410
  • A2 ARK -232410

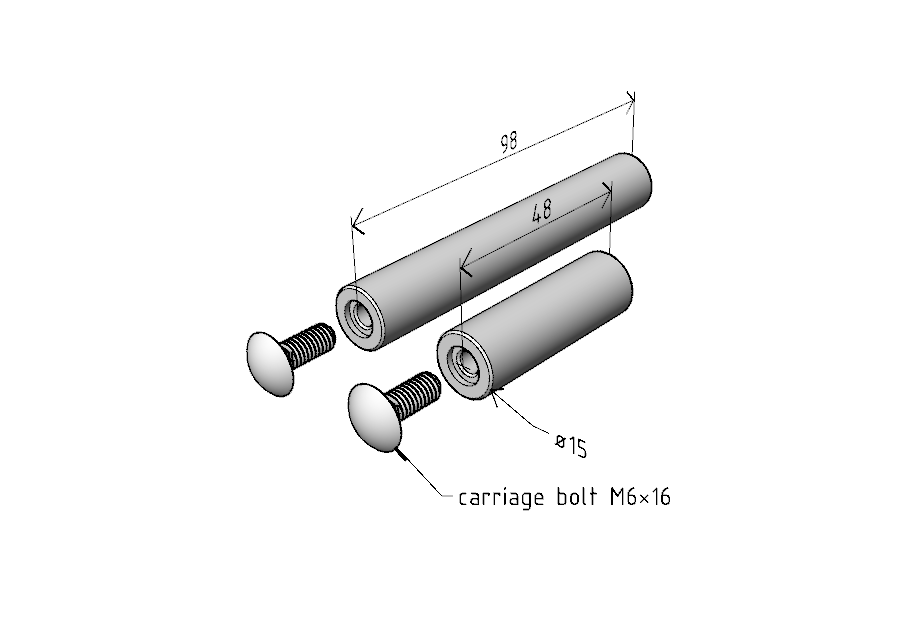

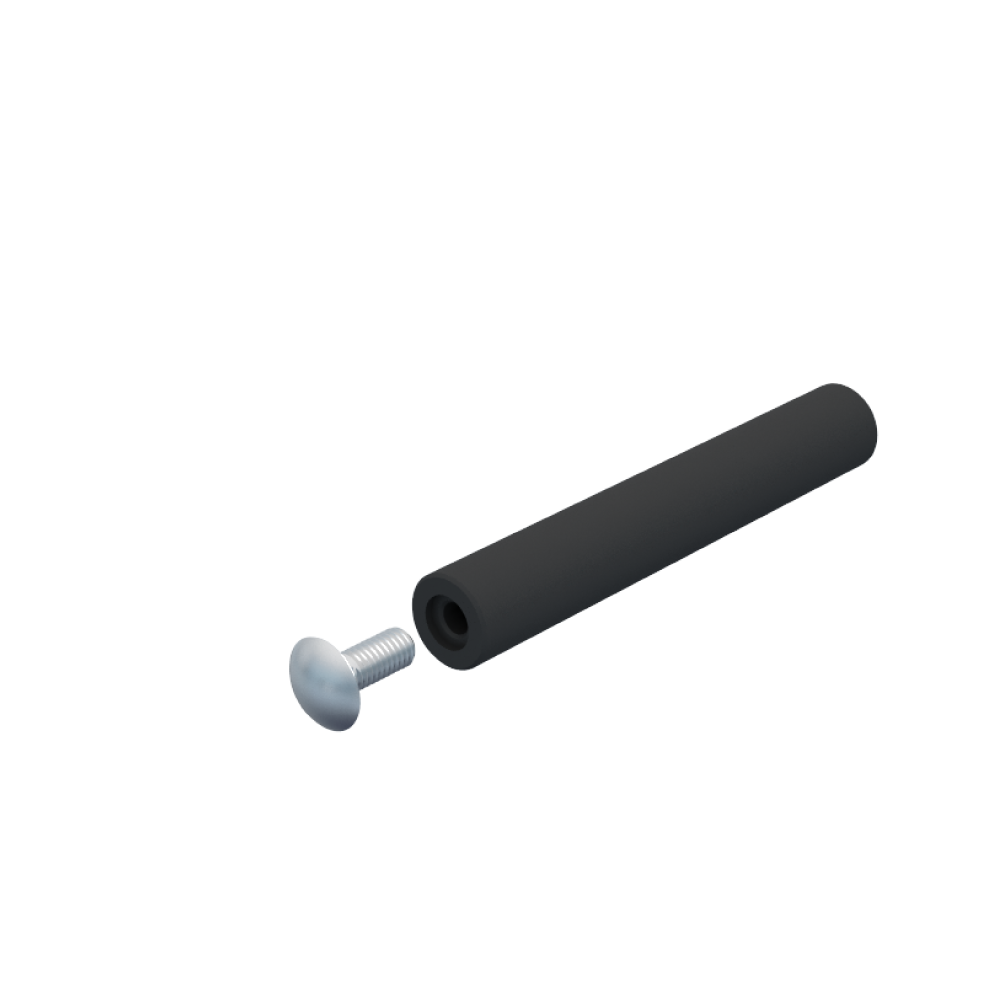

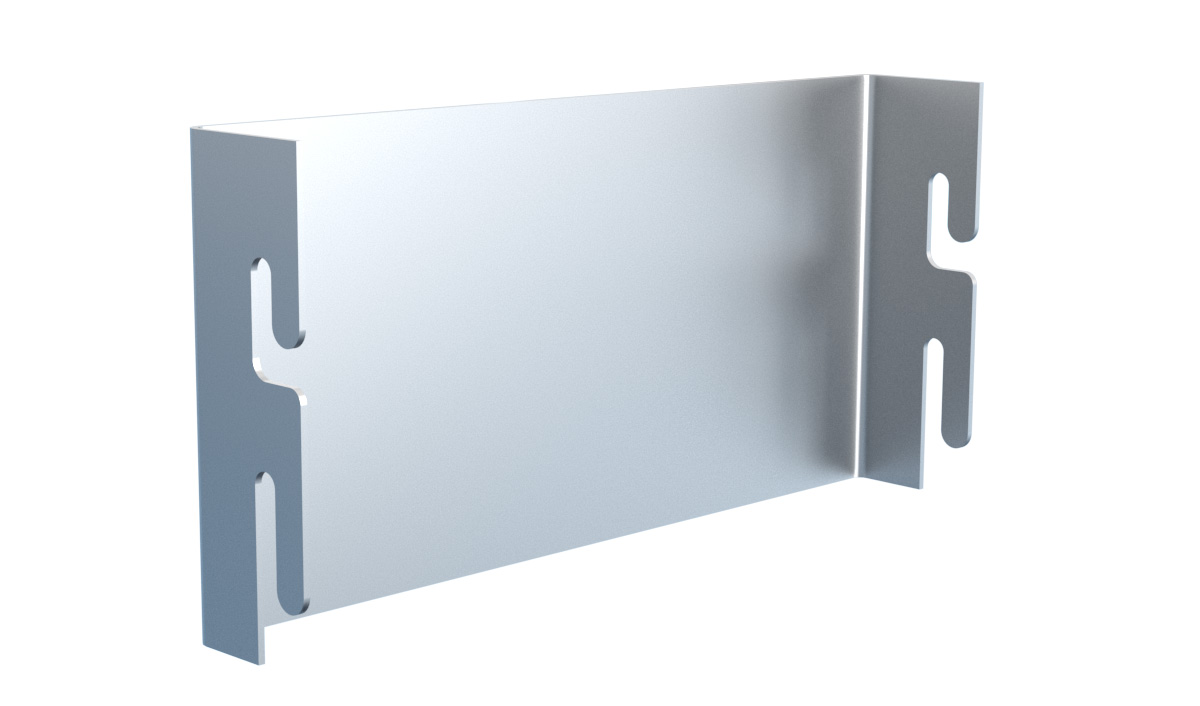

KOM 50 cable separator

KOM 50 cable separator

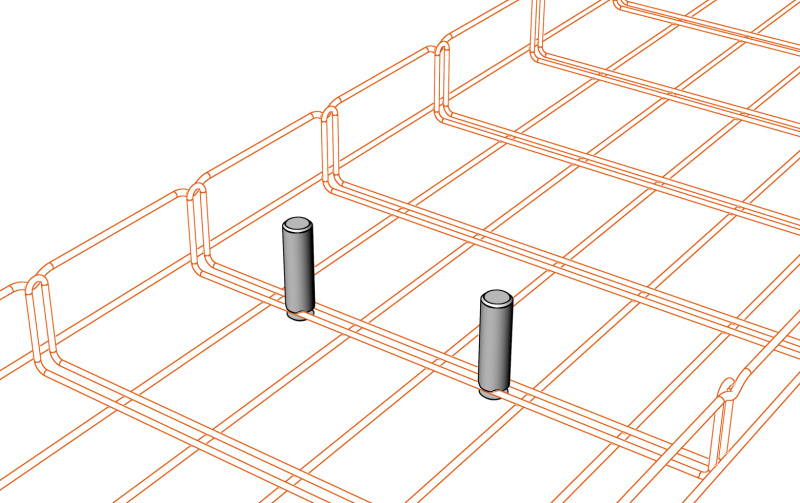

The KOM cable separator is used prior to the insertion of cables to divide the space temporarily (e.g. power circuits/low-voltage) in agreater number of chambers, which makes subsequent bundling of cables easier. The advantage of these KOM separators lies in their design - they may be fixed in any part of the double beam of the tray over its whole width, thus facilitating the installation and transparency for a greater number of cable chambers.When the bundling is ready, the KOM separators can be removed and then used anew.

Components shown in the figure are included in the package.

Intended for cable trays of 50 mm height.

h (hight of separator) 48 mm
Product code
  • ARK -219975

KOM 100 cable separator

KOM 100 cable separator

The KOM cable separator is used prior to the insertion of cables to divide the space temporarily (e.g. power circuits/low-voltage) in agreater number of chambers, which makes subsequent bundling of cables easier. The advantage of these KOM separators lies in their design - they may be fixed in any part of the double beam of the tray over its whole width, thus facilitating the installation and transparency for a greater number of cable chambers.When the bundling is ready, the KOM separators can be removed and then used anew.

Components shown in the figure are included in the package.

Intended for cable trays of 100 mm height.

h (hight of separator) 98 mm
Product code
  • ARK -219976
