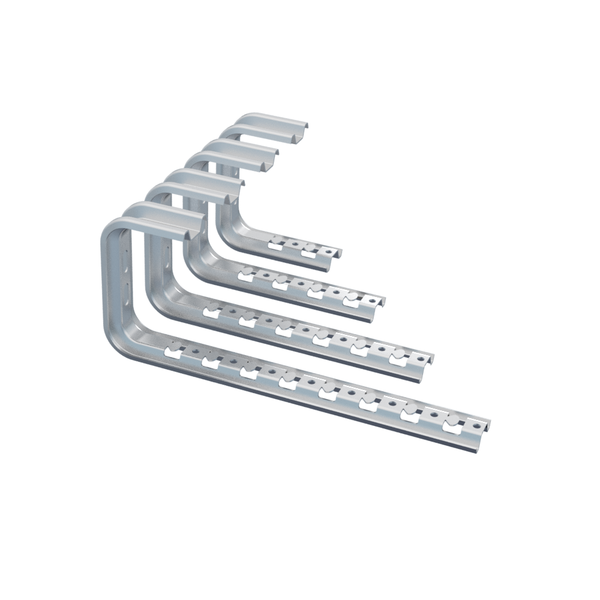

NZMC universal cantilever arm

NZMC

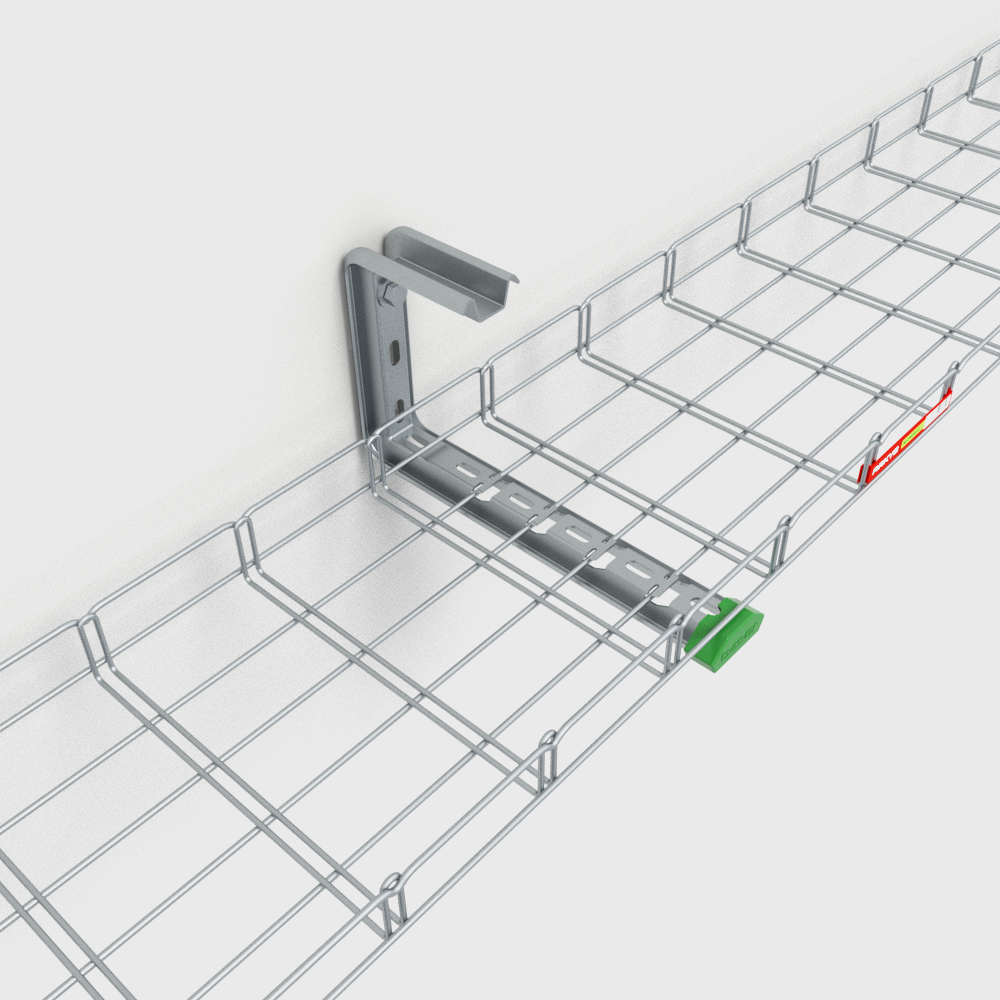

NZMC series universal cantilever arms are mainly used as bearing elements for installations under the ceiling. Their major advantage is easy access to mesh trays when laying cables, which is otherwise impossible, with the exception of certain more complex design solutions. For easy wire mesh cable tray installation, the cantilever arms are provided with boltless grips.

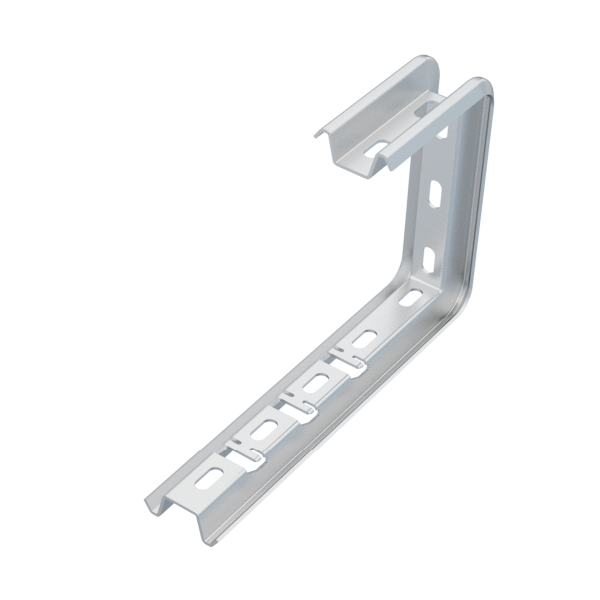

NZMC 100 bracket

NZMC 100 bracket

CAUTION !!! designed for mesh tray 50/50 only

Load capacity table (wall) 140 kg
Load capacity table (ceiling) 85 kg
Max. tray width 50 mm
l (length of cantilever) 165 mm
T (plate thickness) 2,0 mm
Product code
  • SZ ARK -225210

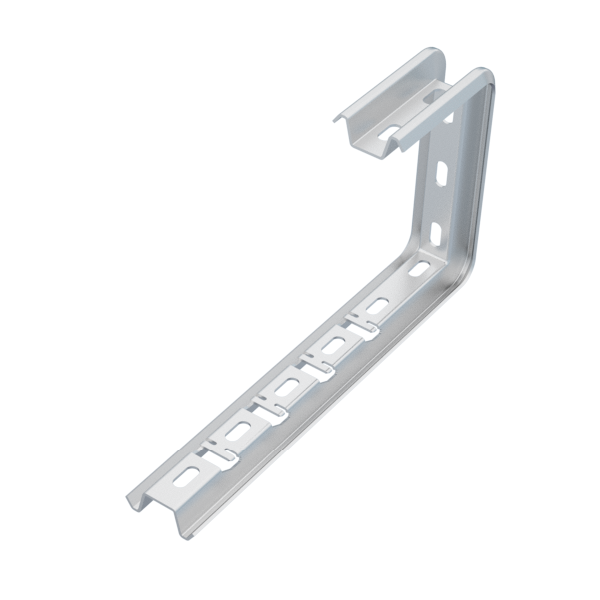

NZMC 200 bracket

NZMC 200 bracket

this bracket is also intended for 100 mm mesh trays

Load capacity table (wall) 90 kg
Load capacity table (ceiling) 50 kg
Max. tray width 200 mm
l (length of cantilever) 270 mm
T (plate thickness) 2,0 mm
Product code
  • SZ ARK -225220

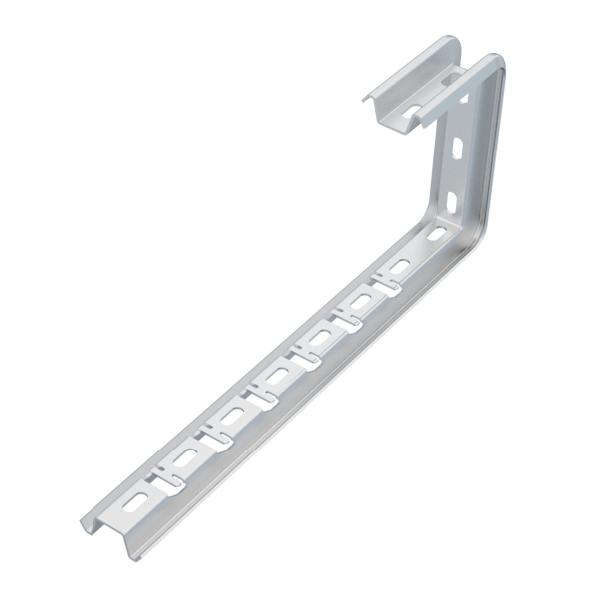

NZMC 300 bracket

NZMC 300 bracket
Load capacity table (wall) 50 kg
Load capacity table (ceiling) 30 kg
Max. tray width 300 mm
l (length of cantilever) 370 mm
T (plate thickness) 2,0 mm
Product code
  • SZ ARK -225230

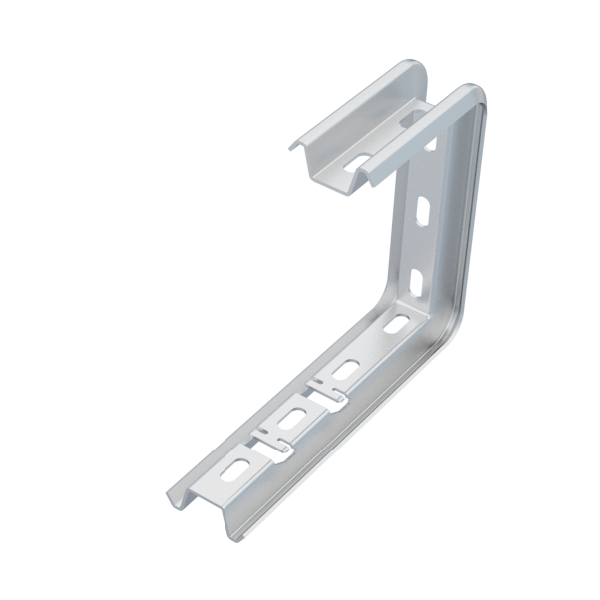

NZMC 400 bracket

NZMC 400 bracket
Load capacity table (wall) 37 kg
Load capacity table (ceiling) 23 kg
Max. tray width 400 mm
l (length of cantilever) 470 mm
T (plate thickness) 2,0 mm
Product code
  • SZ ARK -225240
