MERKUR 2

  1. Arkys
  2. MERKUR 2
  3. Components
  4. Fastening material

Fastening accessories

PKZ–FI Fixation strap with lock

PKZ–FI Fixation strap with lock

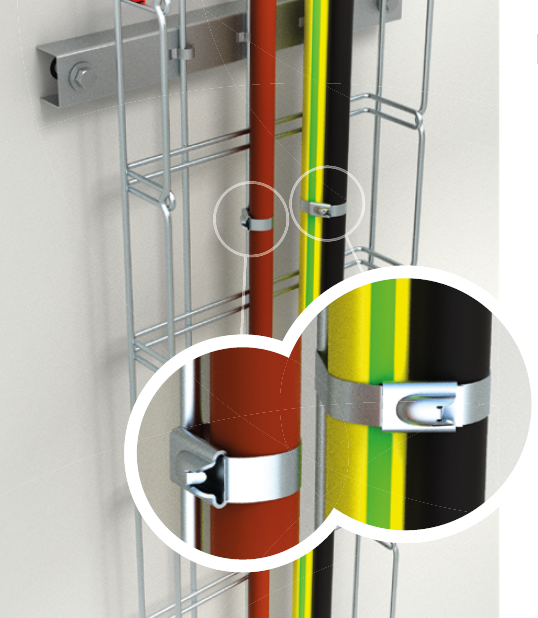

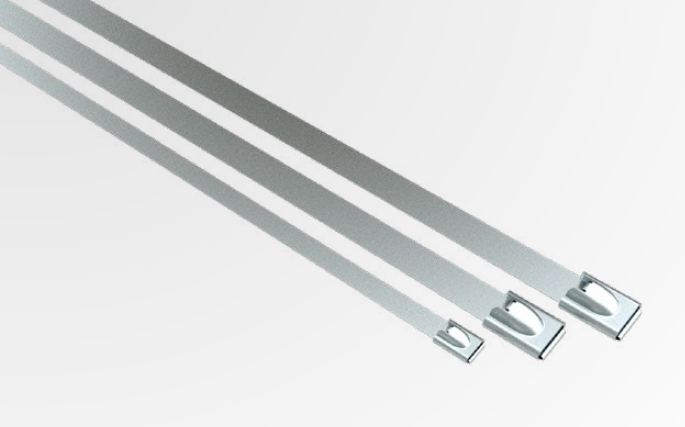

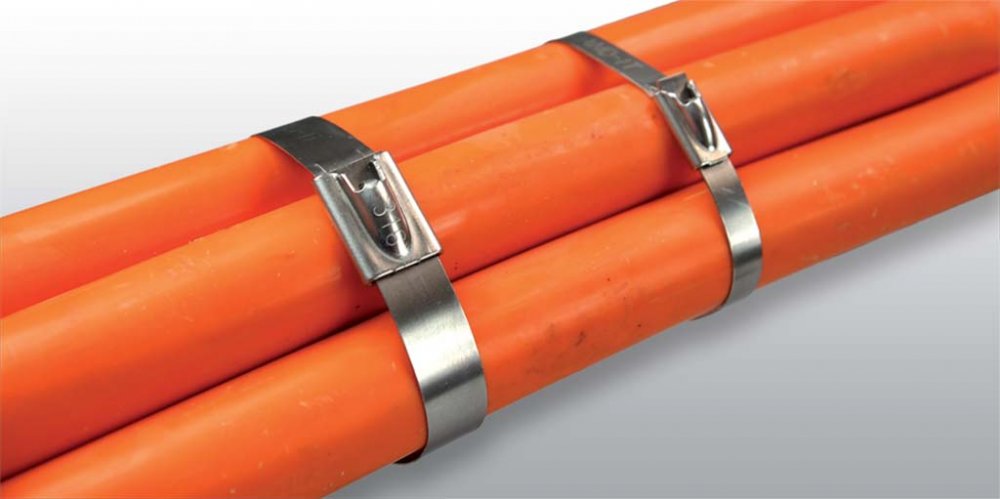

The fixation strap serves for the attachment of cables to the cable tray structure – typically riser and flat wall-mounted routes and installation of routes with the requirement for functional integrity in the event of fire. The straps can also be used for general cable bundling within the cable route.

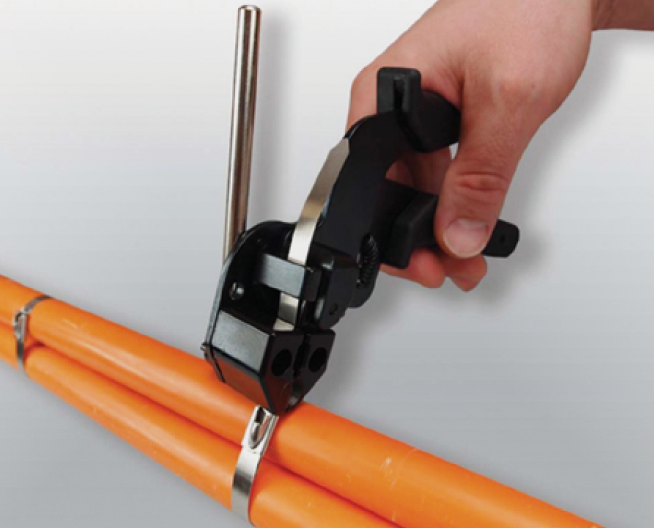

The application of the straps is performed using special pliers equipped with the strap tightening function, whereupon the excess length of the strap is cut off.

identification L
[mm]		 B
[mm]		 order code
A2

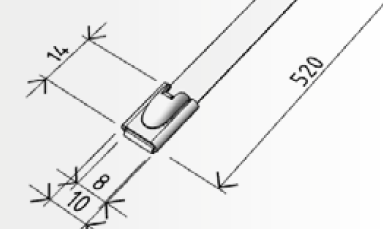

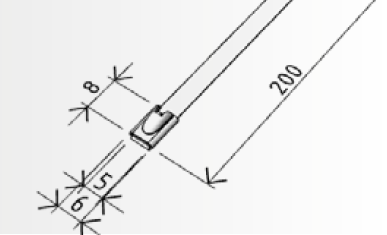

PKZ-FI 200 200 4,9 ARK-239581

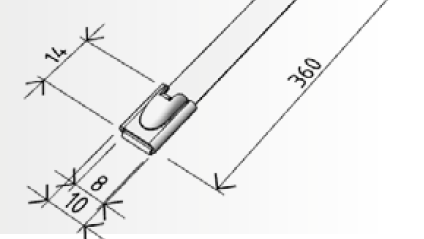

PKZ-FI 360 360 7,9 ARK-239592
PKZ-FI 500 500 7,9 ARK-239593
PKZ–FI Fixation strap with lock
PKZ–FI Fixation strap with lock
PKZ–FI Fixation strap with lock
PKZ–FI Fixation strap with lock
PKZ–FI Fixation strap with lock

TPS–M Yoke clamp

TPS–M Yoke clamp

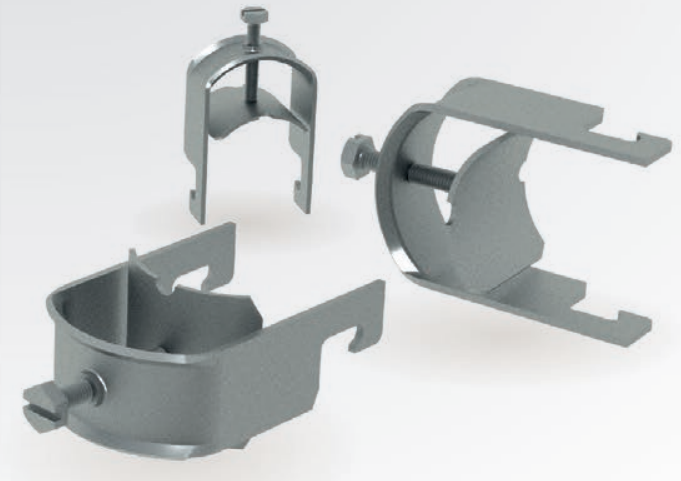

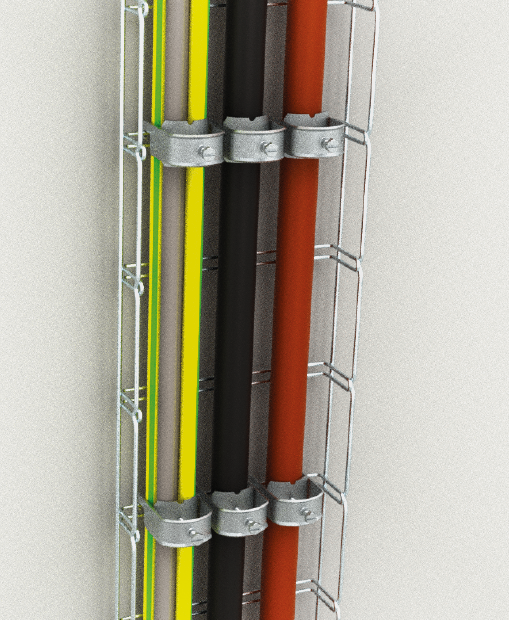

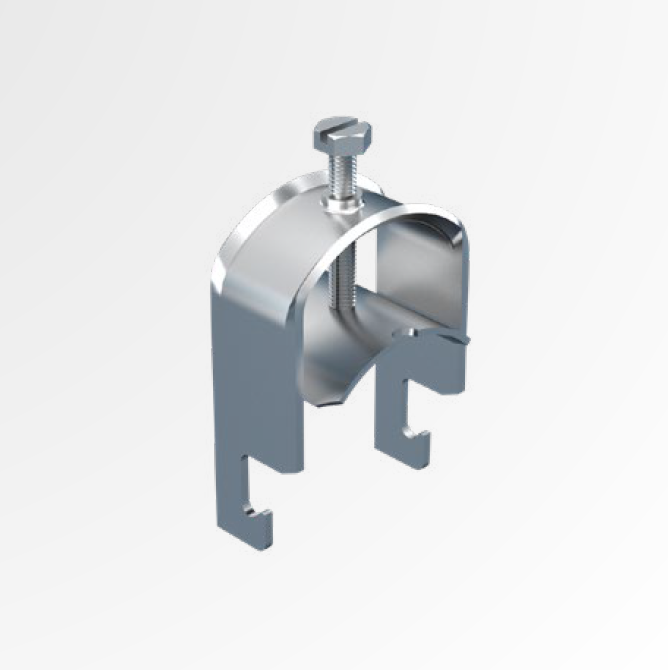

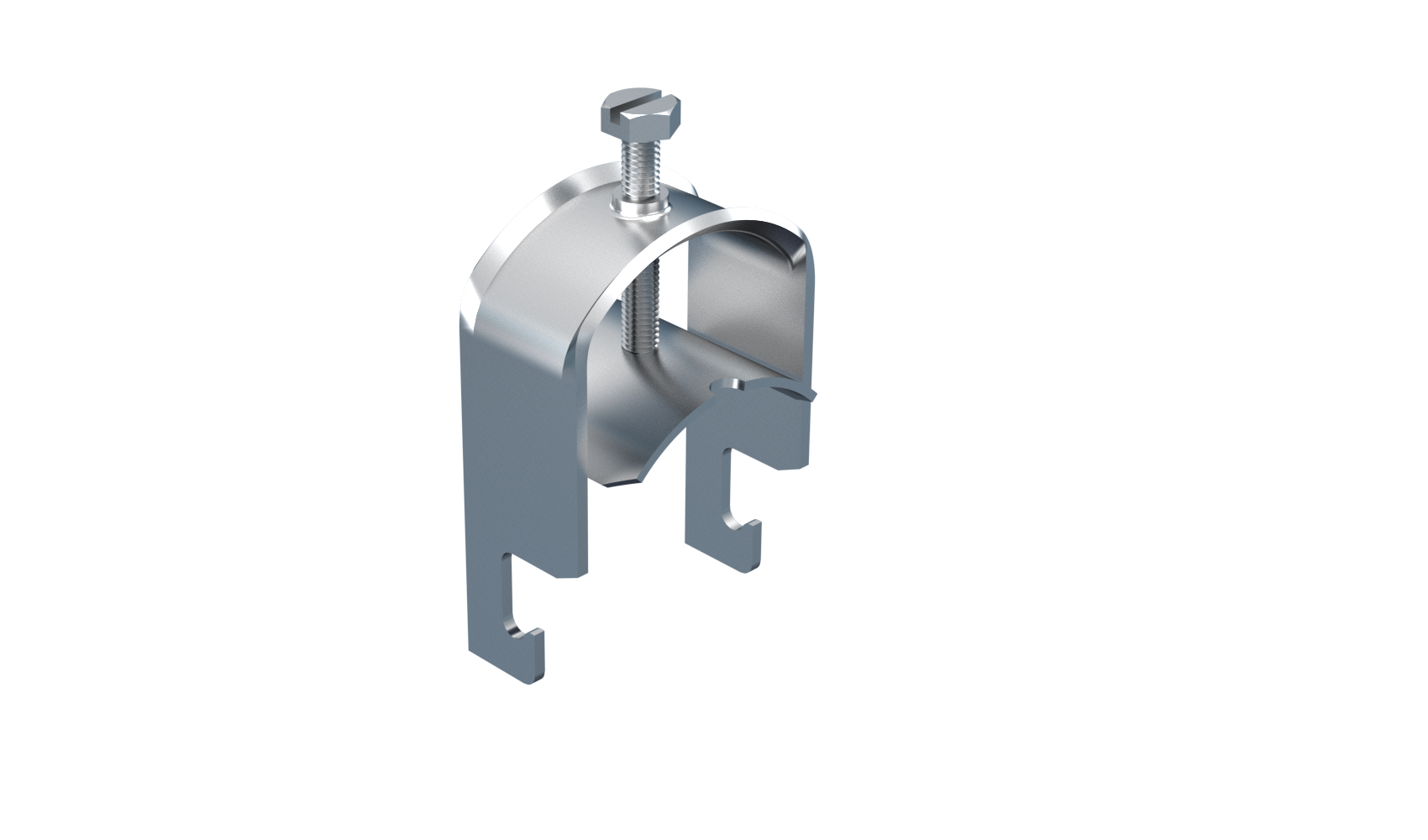

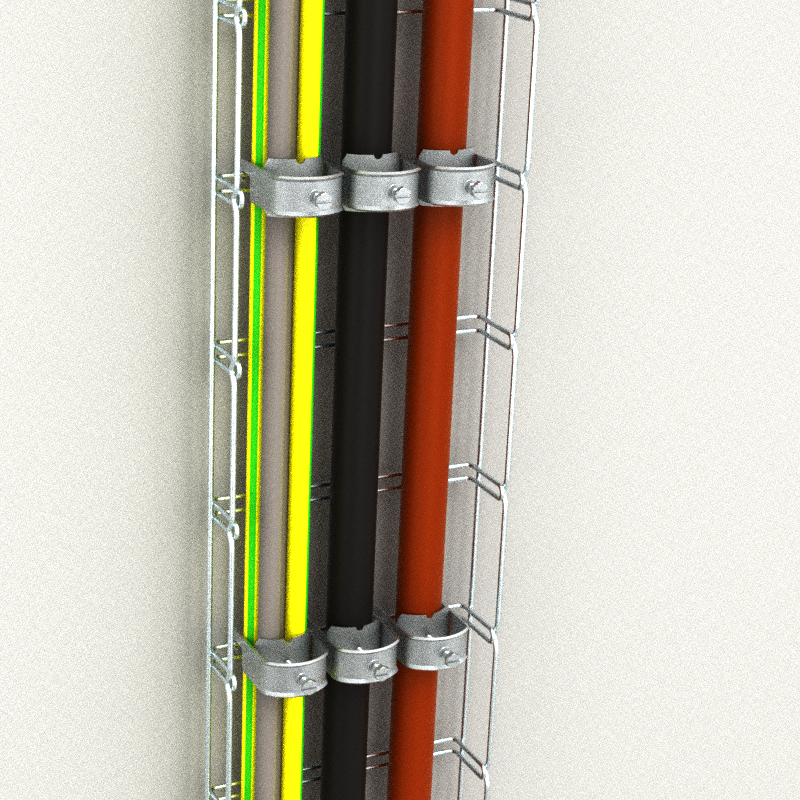

Cable clamp TPS-M serves for the mounting of cables to the MERKUR type M2 and M2-G cable mesh trays. The yoke clamps are designed for the fixation of the cables against unwanted movement or capturing vertical forces in riser routes.

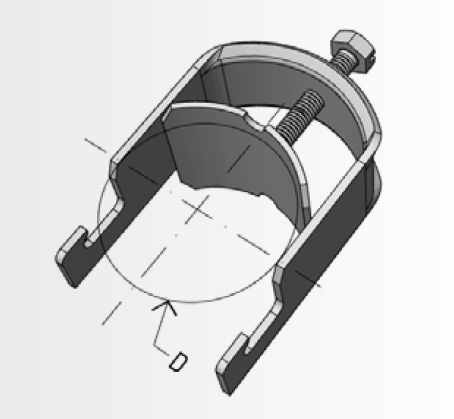

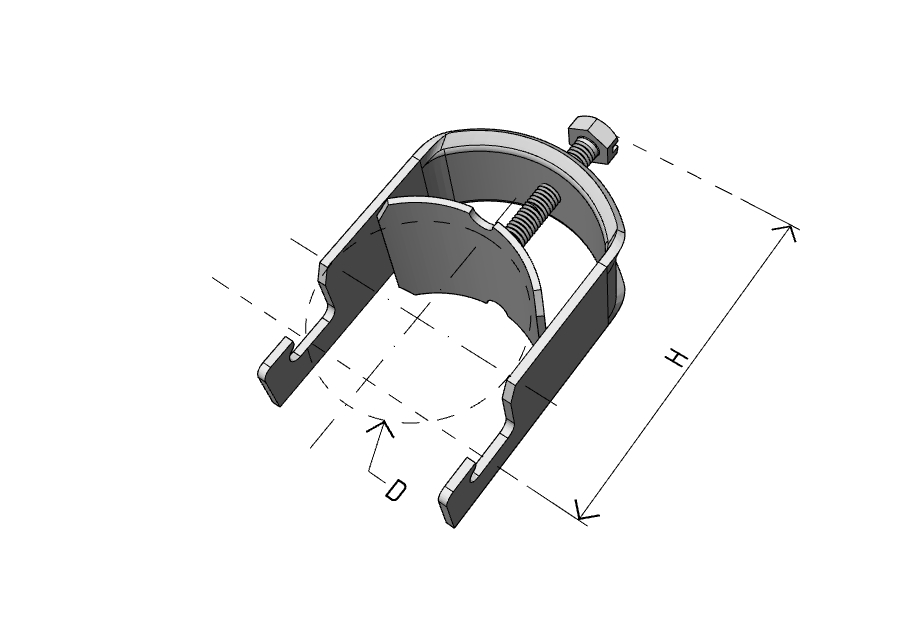

identification fixing range (cable diameter) order code
ZZ
TPS–M 6–12 6–12 mm ARK-229811
TPS–M 12–16 12–16 mm ARK-229812
TPS–M 14–18 14–18 mm ARK-229813
TPS–M 18–22 18–22 mm ARK-229814
TPS–M 26–30 26–30 mm ARK-229816
TPS–M 30–34 30–34 mm ARK-229817
TPS–M 34–38 34–38 mm ARK-229818
TPS–M 38–42 38–42 mm ARK-229819
TPS–M 50–54 50–54 mm ARK-229822
TPS–M 58–64 58–64 mm ARK-229824
TPS–M Yoke clamp
TPS–M Yoke clamp
TPS–M Yoke clamp

OTZ-FI Kit for relieving the tension of the cable route

OTZ-FI Kit for relieving the tension of the cable route

The kit is used as an alternative for the tension relief that is required for vertical (riser) routes.

identification L
[mm]		 order code

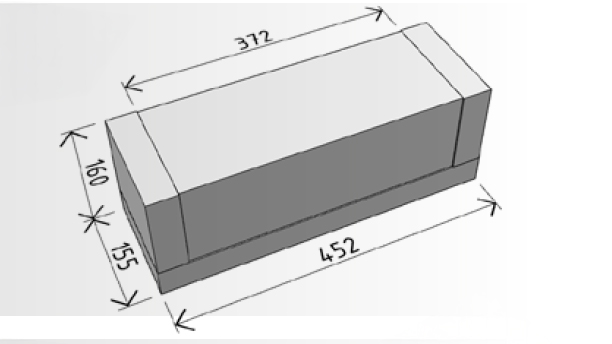

OTZ–FI 300 (for routes max. 300 mm wide) 452 ARK-219803

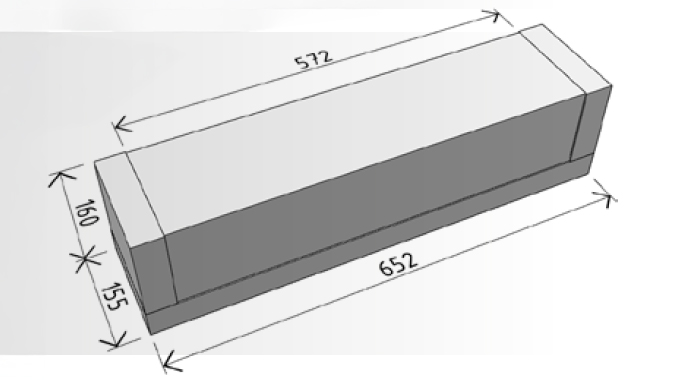

OTZ–FI 500 (for routes max. 500 mm wide) 652 ARK-219805

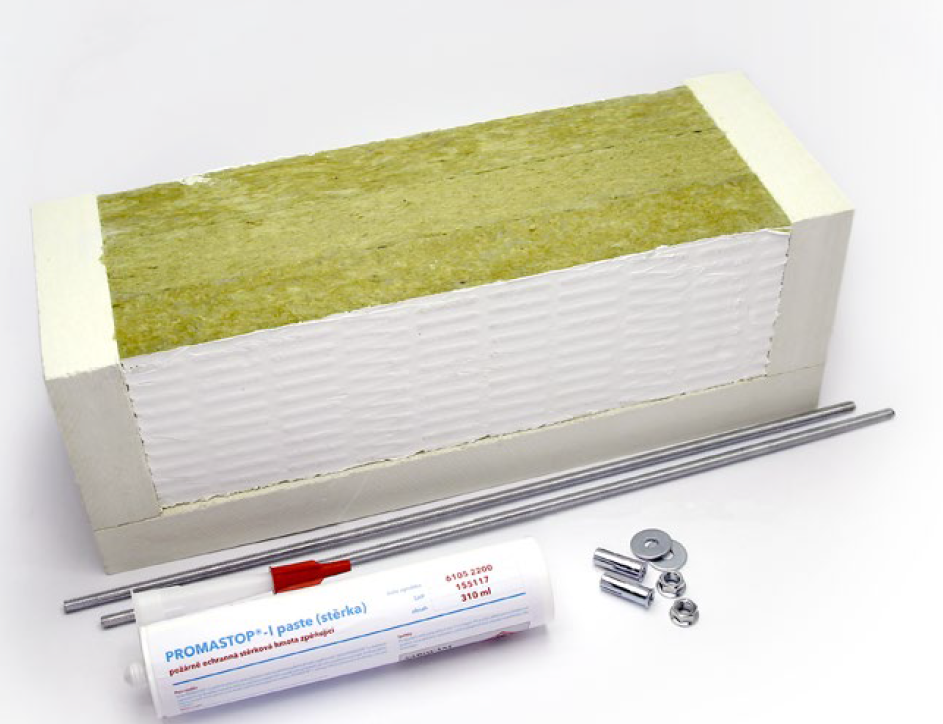

The kit contains:

1× calcium silicate U-piece

3× mineral wool 3 × 50 mm

1× fire-stopping putty PROMASTOP-I, or PROMASTOP-CA

2× threaded rod M8×500

2× collar nut M8

2× large-area washer M8

2× metal dowel with collar M8×30

OTZ-FI Kit for relieving the tension of the cable route
OTZ-FI Kit for relieving the tension of the cable route
