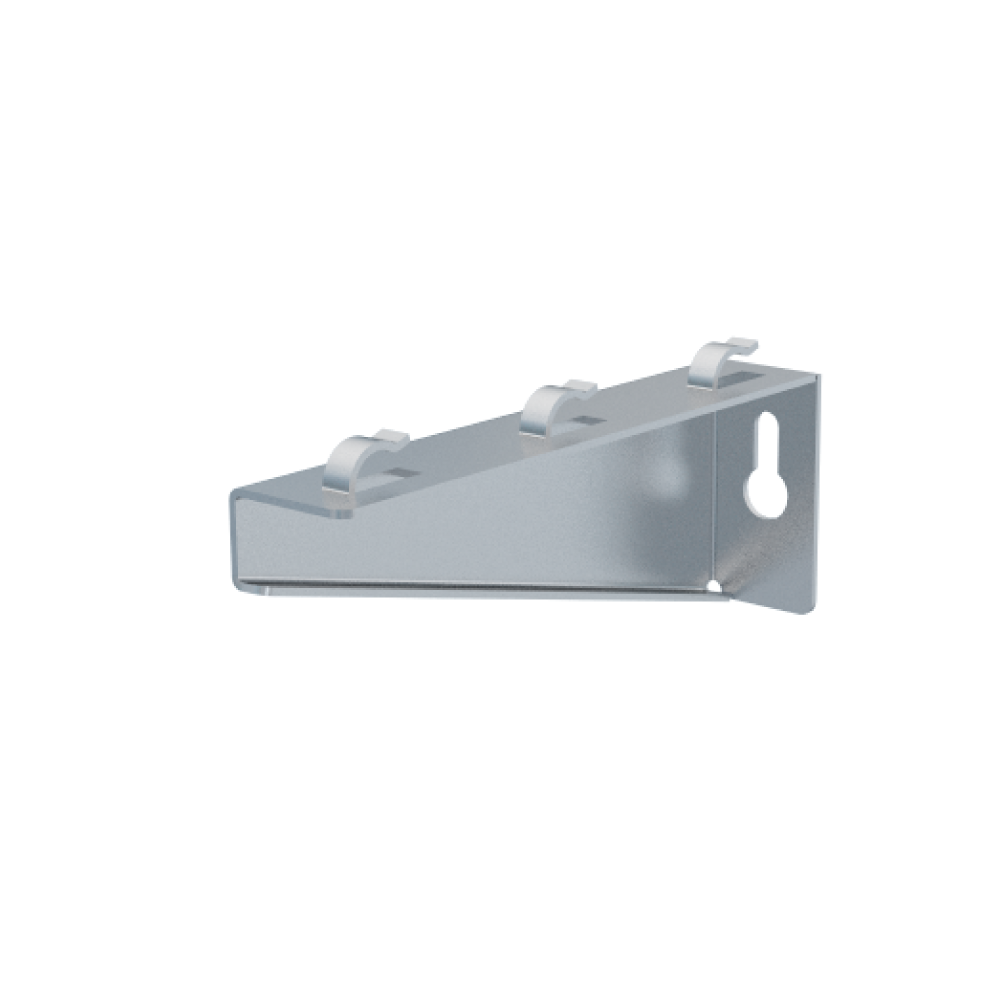

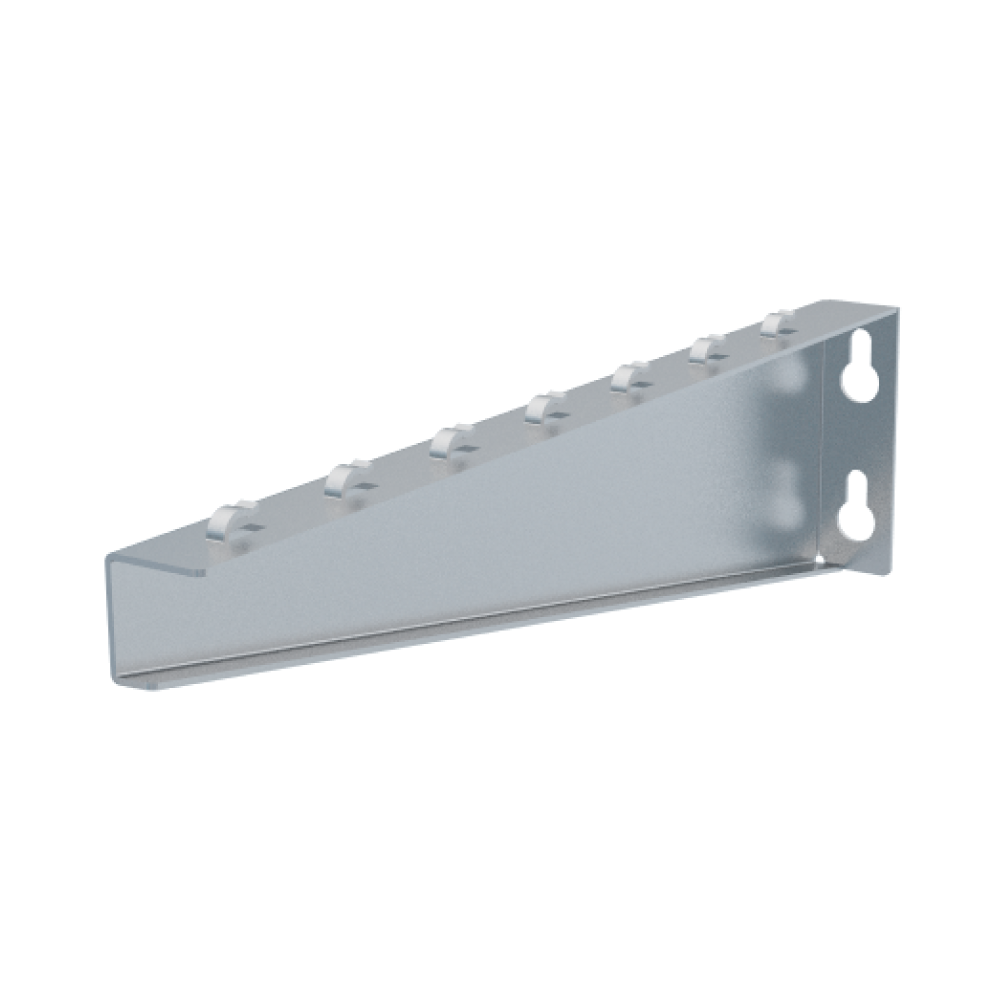

NZM bracket

NZM

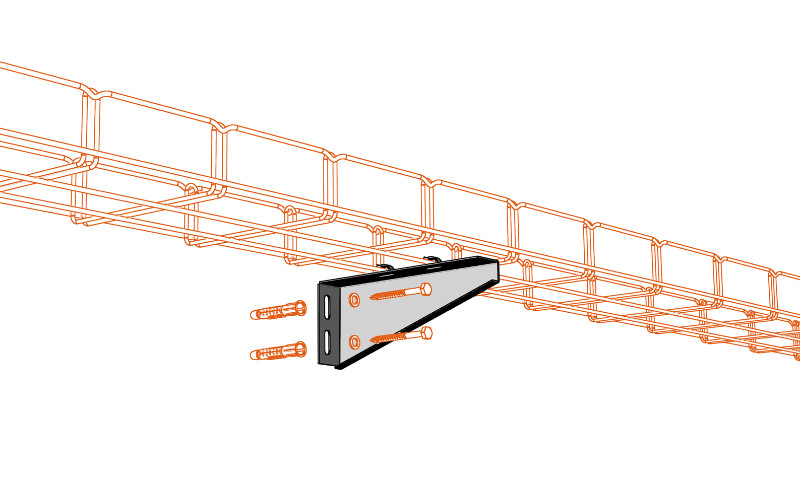

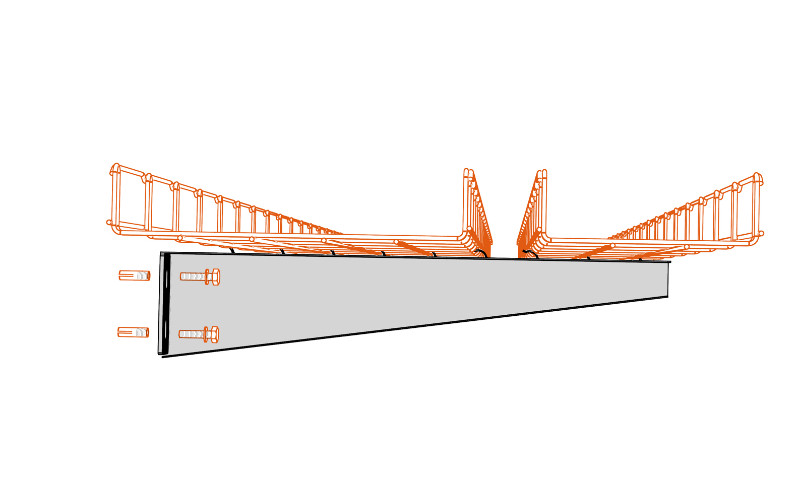

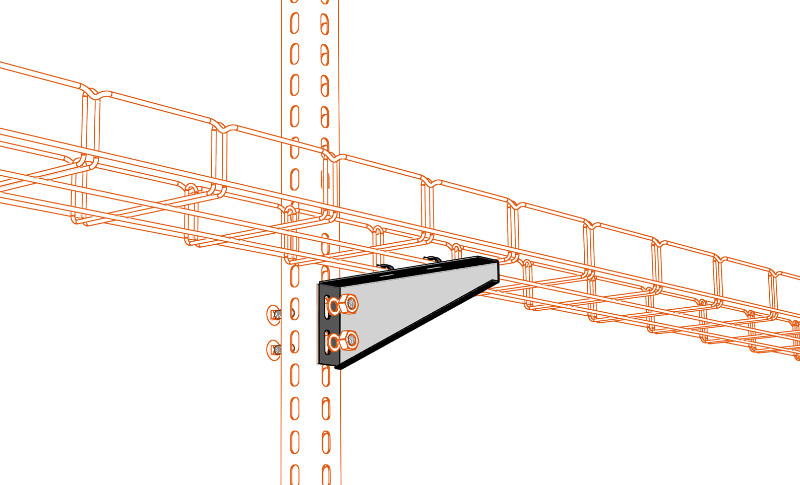

NZM-series brackets are used as wall bearing elements for wall mounting of cable routes. For spatial installations, the brackets are anchored to STPM rail struts with side perforations. In case of a greater number of wall mounted parallel tracks, the combination with STNM rail strut can be used. For easy installation of trays, the brackets are equipped with boltless clamps.

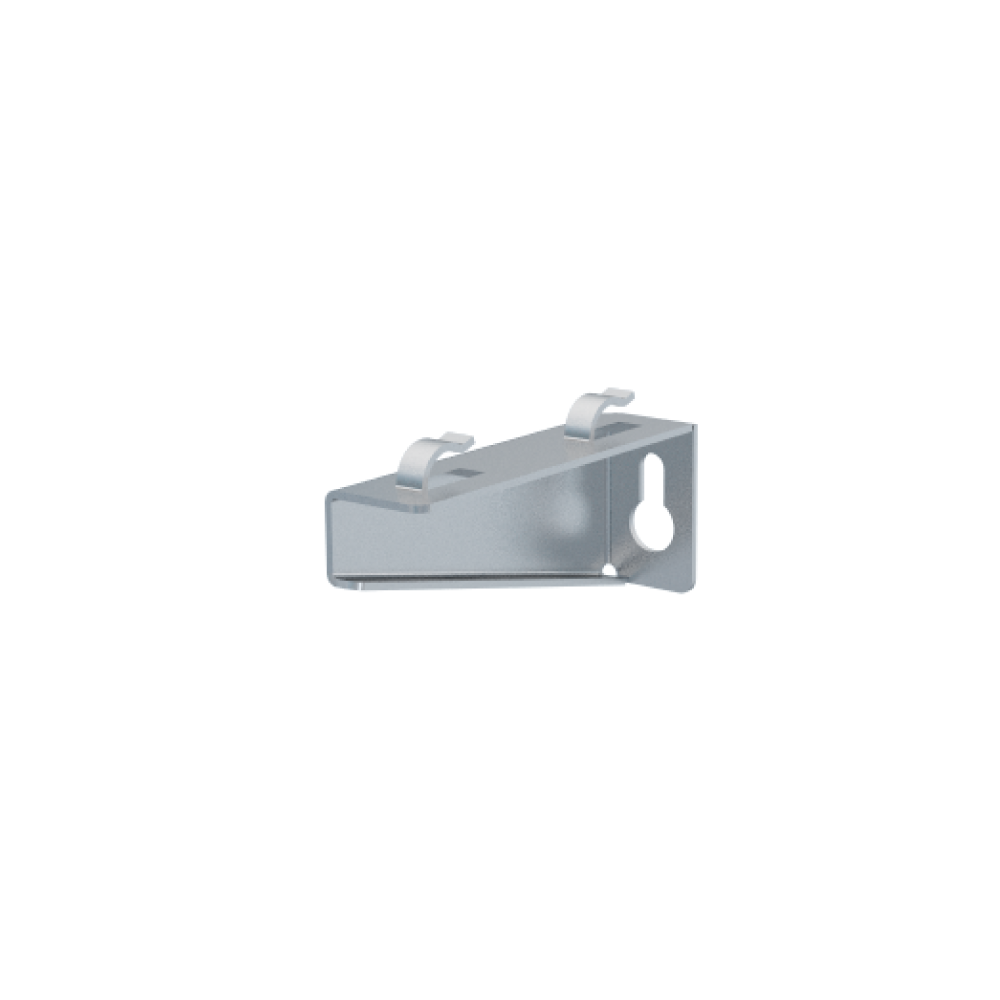

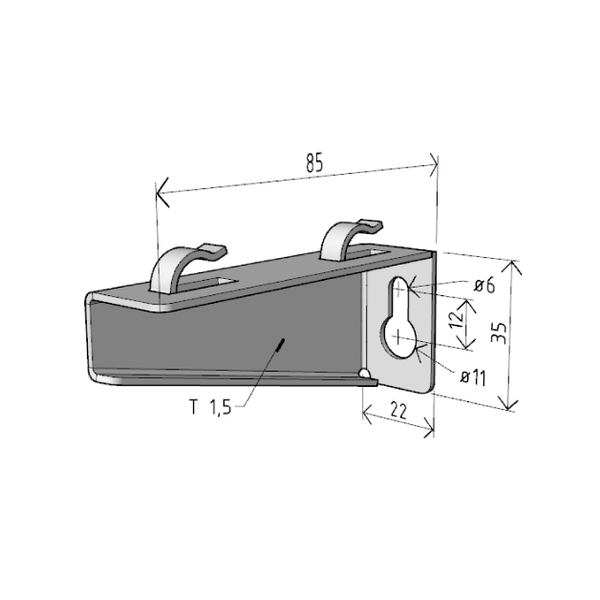

NZM 50 cantilever

  • Functional integrity
NZM 50 cantilever
loading capacitynosnost ico 30,0 kg
l (length of cantilever) 83 mm
h (height of cantilever) 32 mm
T (sheet thickness) 1,5 mm
Product code
  • GZ ARK -215005
  • ZZ ARK -225005
  • A2 ARK -235005
  • A4 ARK -245005

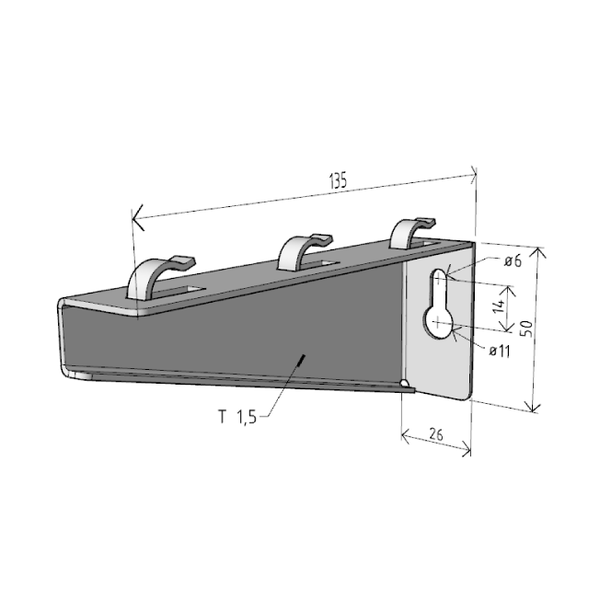

NZM 100 cantilever

  • Functional integrity
NZM 100 cantilever

can be used for 50 and 100 mm mesh trays

loading capacitynosnost ico 40,0 kg
l (length of cantilever) 133 mm
h (height of cantilever) 52 mm
T (sheet thickness) 1,5 mm
Product code
  • GZ ARK -215010
  • ZZ ARK -225010
  • A2 ARK -235010
  • A4 ARK -245010

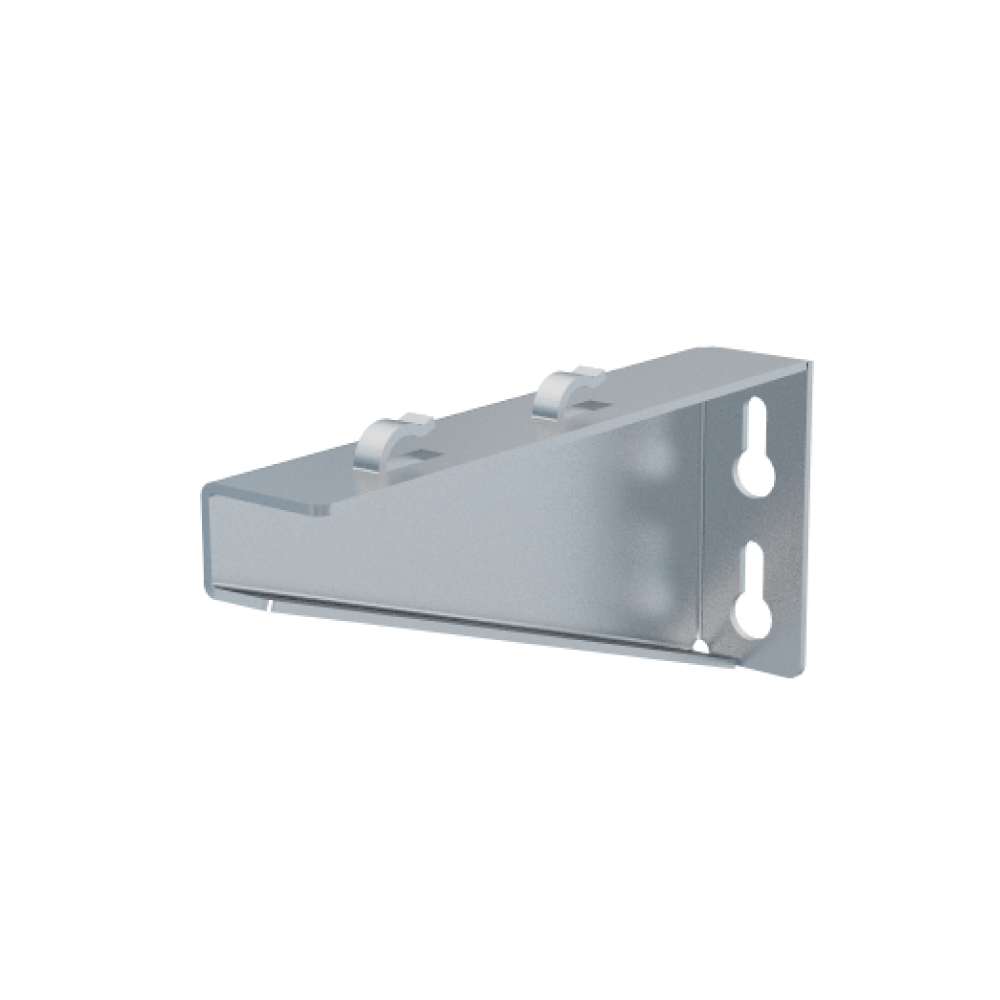

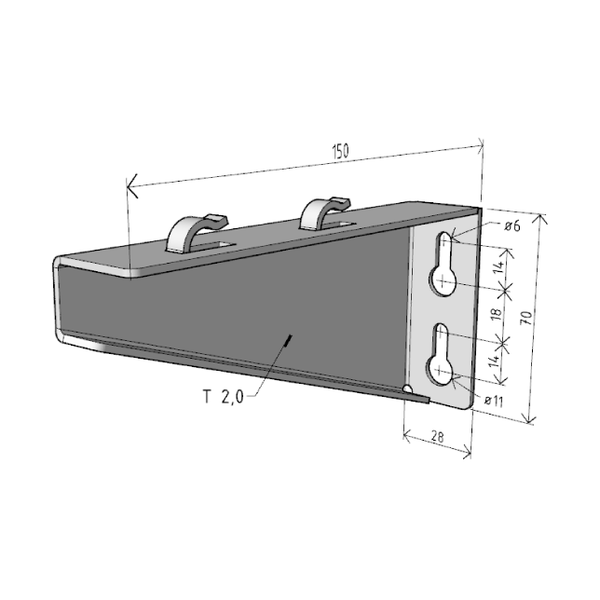

NZM 150 cantilever

  • Functional integrity
NZM 150 cantilever
loading capacitynosnost ico 45,0 kg
l (length of cantilever) 172 mm
h (height of cantilever) 73 mm
T (sheet thickness) 2,0 mm
Product code
  • GZ ARK -215015
  • ZZ ARK -225015
  • A2 ARK -235015
  • A4 ARK -245015

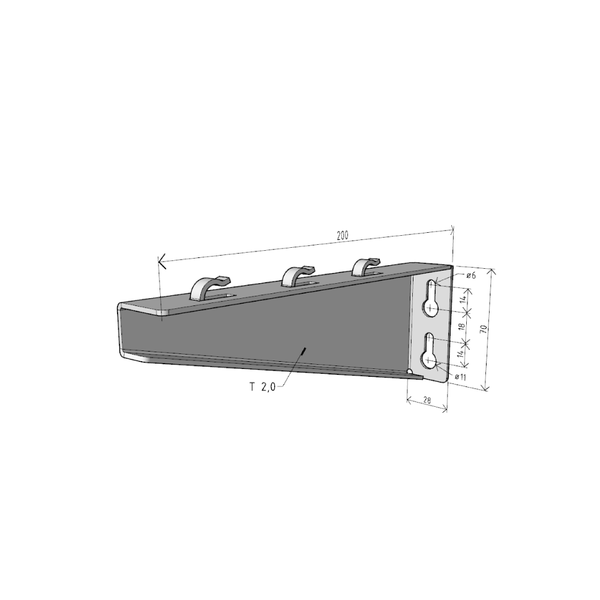

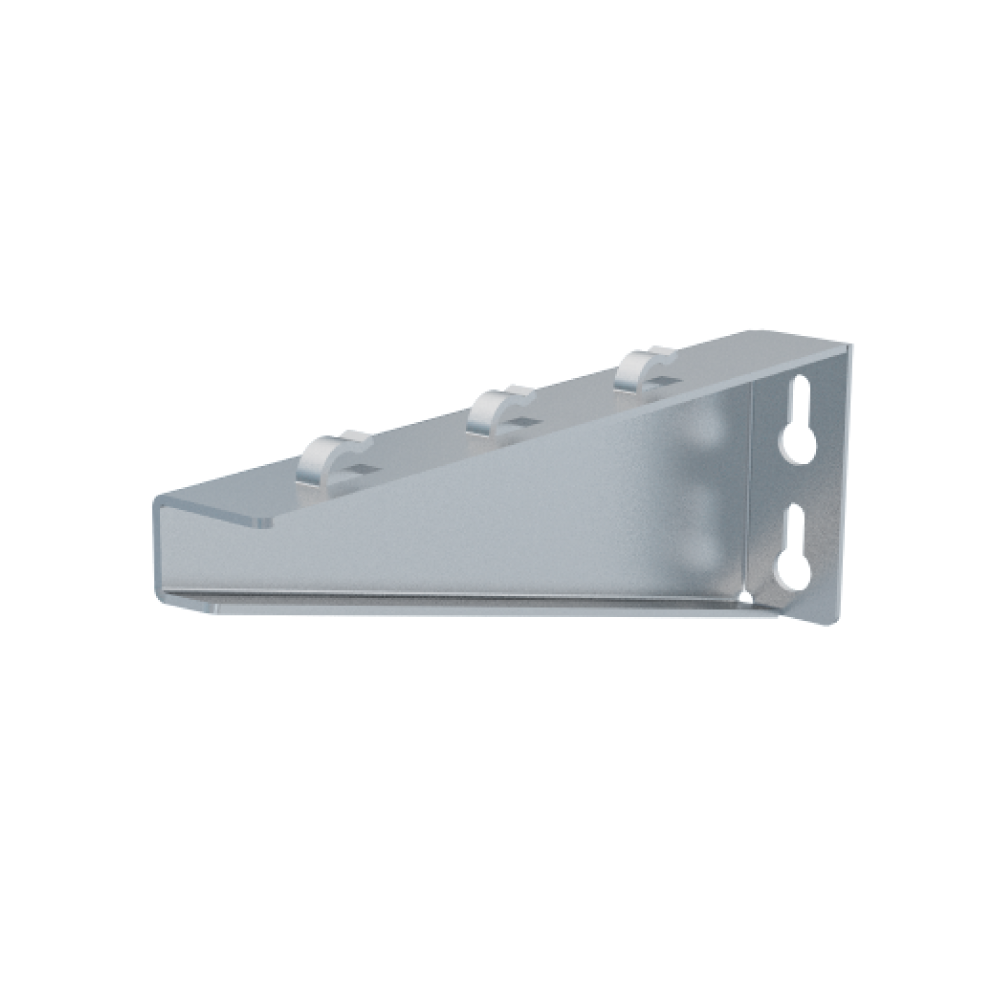

NZM 200 cantilever

  • Functional integrity
NZM 200 cantilever
loading capacitynosnost ico 50,0 kg
l (length of cantilever) 225 mm
h (height of cantilever) 72 mm
T (sheet thickness) 2,0 mm
Product code
  • GZ ARK -215020
  • ZZ ARK -225020
  • A2 ARK -235020
  • A4 ARK -245020

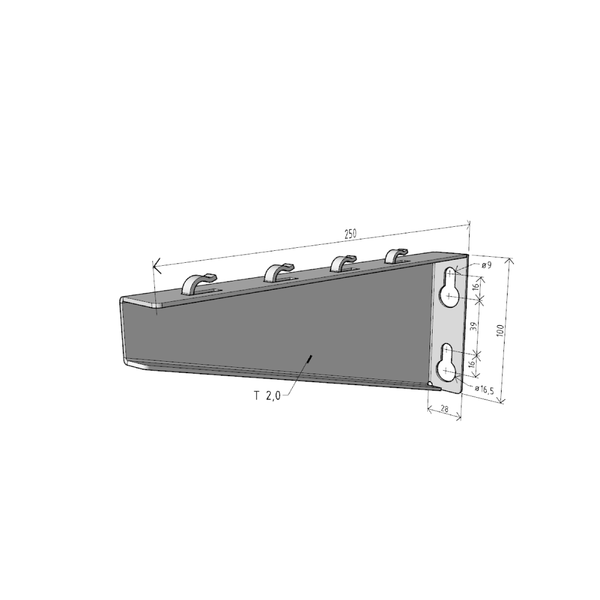

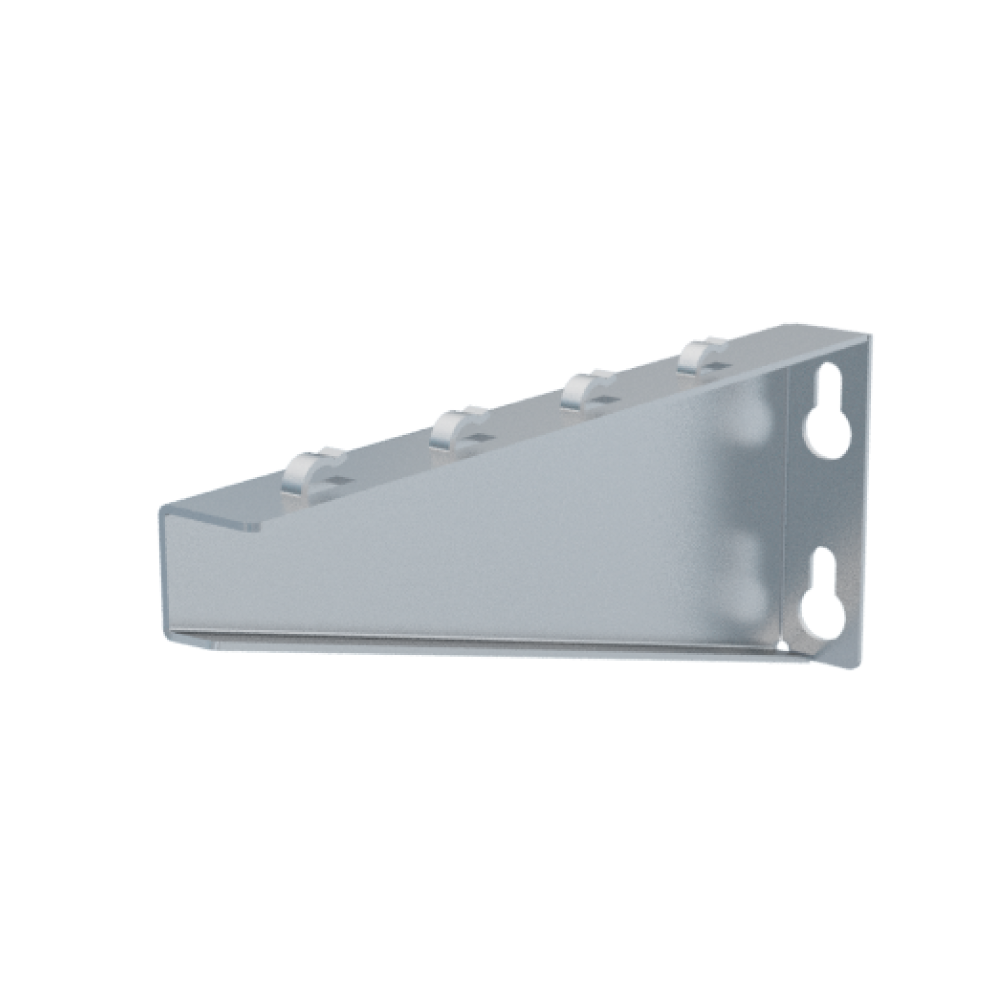

NZM 250 cantilever

  • Functional integrity
NZM 250 cantilever
loading capacitynosnost ico 75,0 kg
l (length of cantilever) 273 mm
h (height of cantilever) 102 mm
T (sheet thickness) 2,0 mm
Product code
  • GZ ARK -215025
  • ZZ ARK -225025
  • A2 ARK -235025
  • A4 ARK -245025 *

(*) On Request

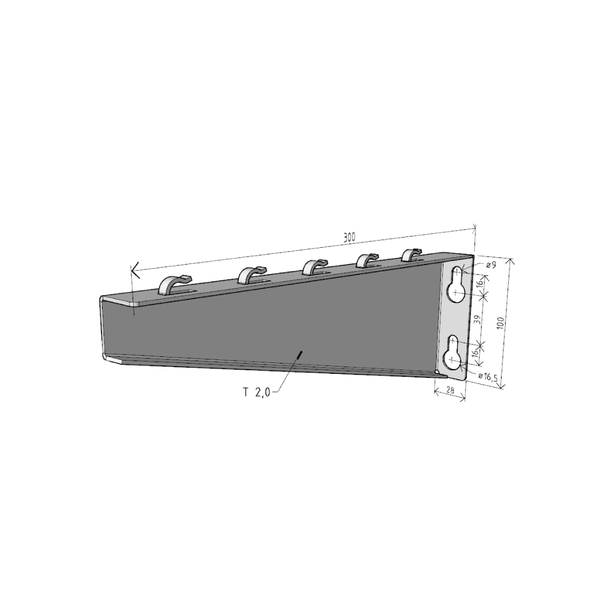

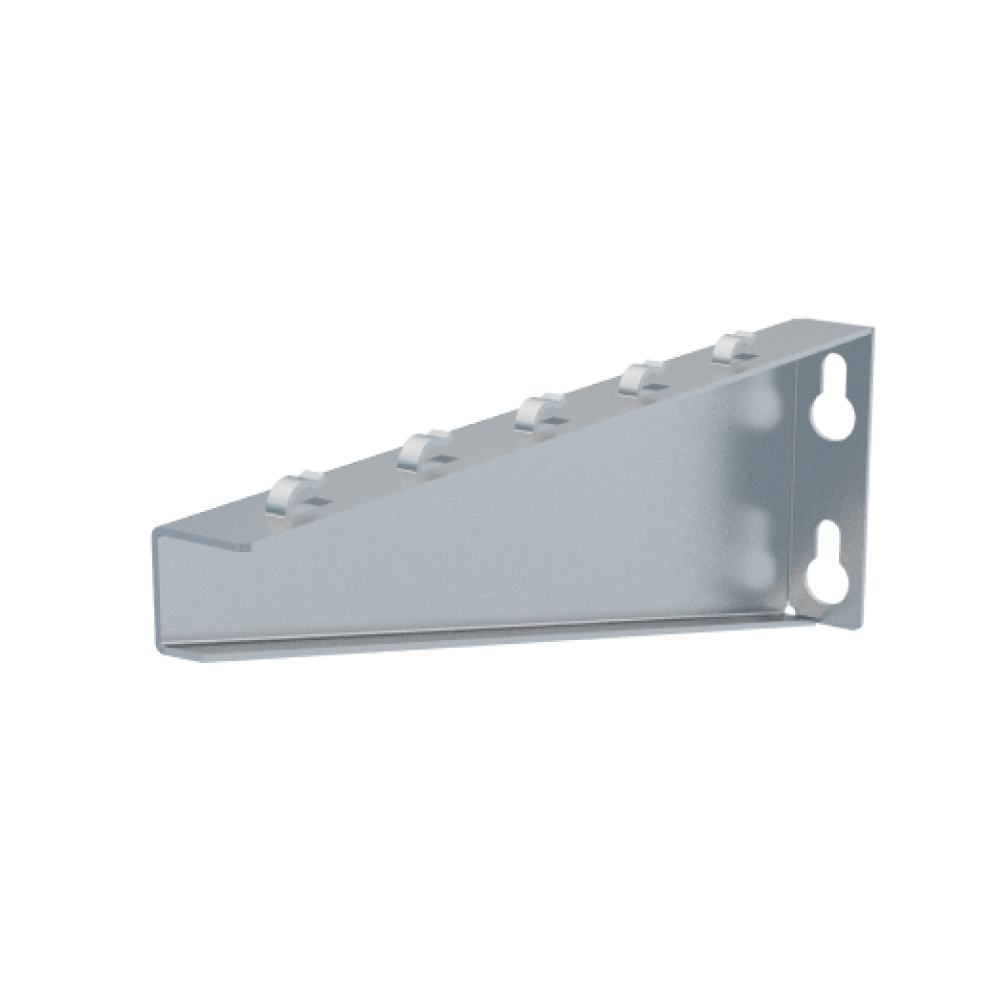

NZM 300 cantilever

  • Functional integrity
NZM 300 cantilever
loading capacitynosnost ico 100,0 kg
l (length of cantilever) 328 mm
h (height of cantilever) 102 mm
T (sheet thickness) 2,0 mm
Product code
  • GZ ARK -215030
  • ZZ ARK -225030
  • A2 ARK -235030
  • A4 ARK -245030 *

(*) On Request

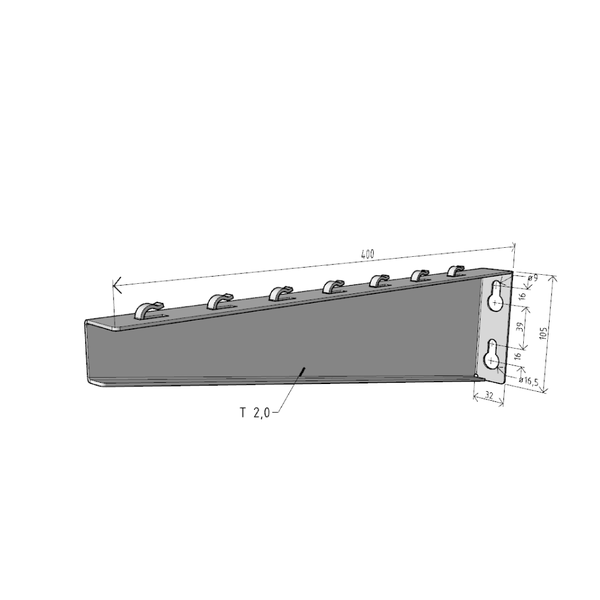

NZM 400 cantilever

  • Functional integrity
NZM 400 cantilever
loading capacitynosnost ico 120,0 kg
l (length of cantilever) 400 mm
h (height of cantilever) 105 mm
T (sheet thickness) 2,0 mm
Product code
  • GZ ARK -215040
  • ZZ ARK -225040
  • A2 ARK -235044
  • A4 ARK -245044 *

(*) On Request

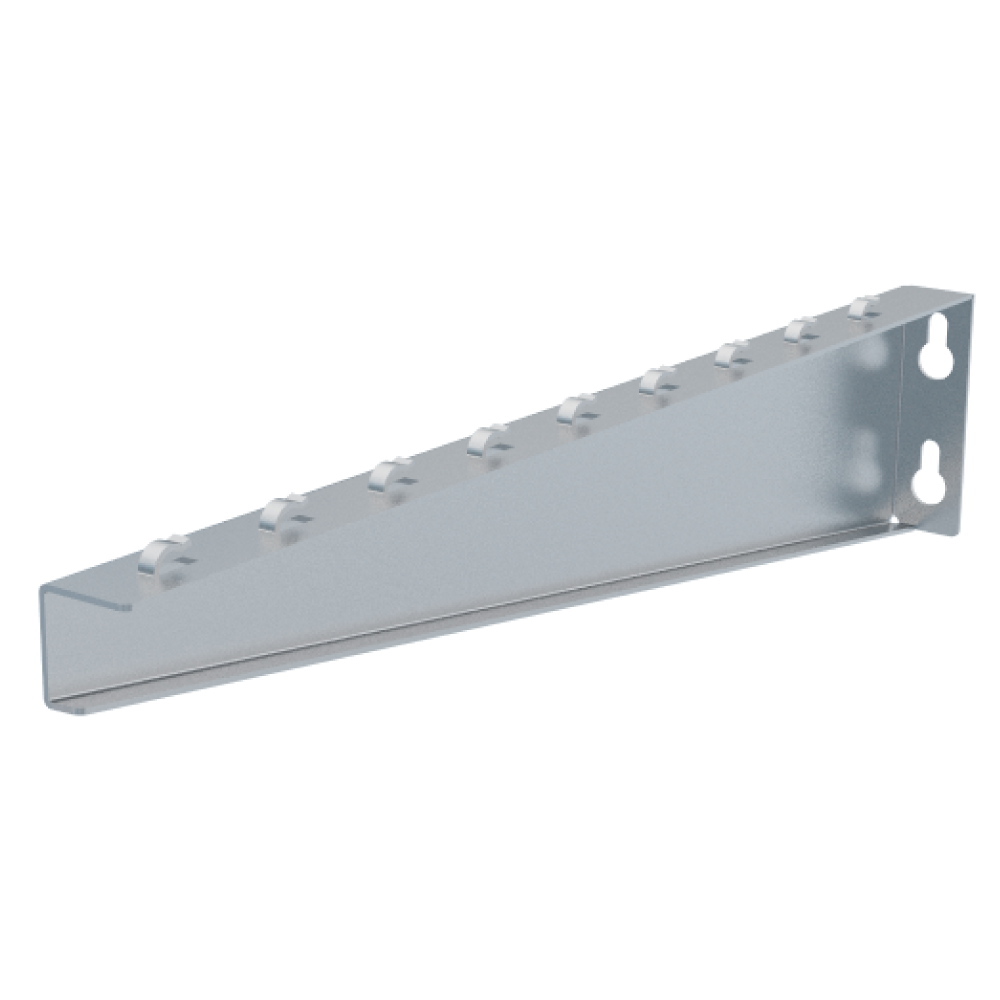

NZM 500 cantilever

  • Functional integrity
NZM 500 cantilever
loading capacitynosnost ico 150,0 kg
l (length of cantilever) 500 mm
h (height of cantilever) 105 mm
T (sheet thickness) 2,0 mm
Product code
  • GZ ARK -215050
  • ZZ ARK -225050
  • A2 ARK -235054
  • A4 ARK -245054 *

(*) On Request
