VZM mesh tray cover

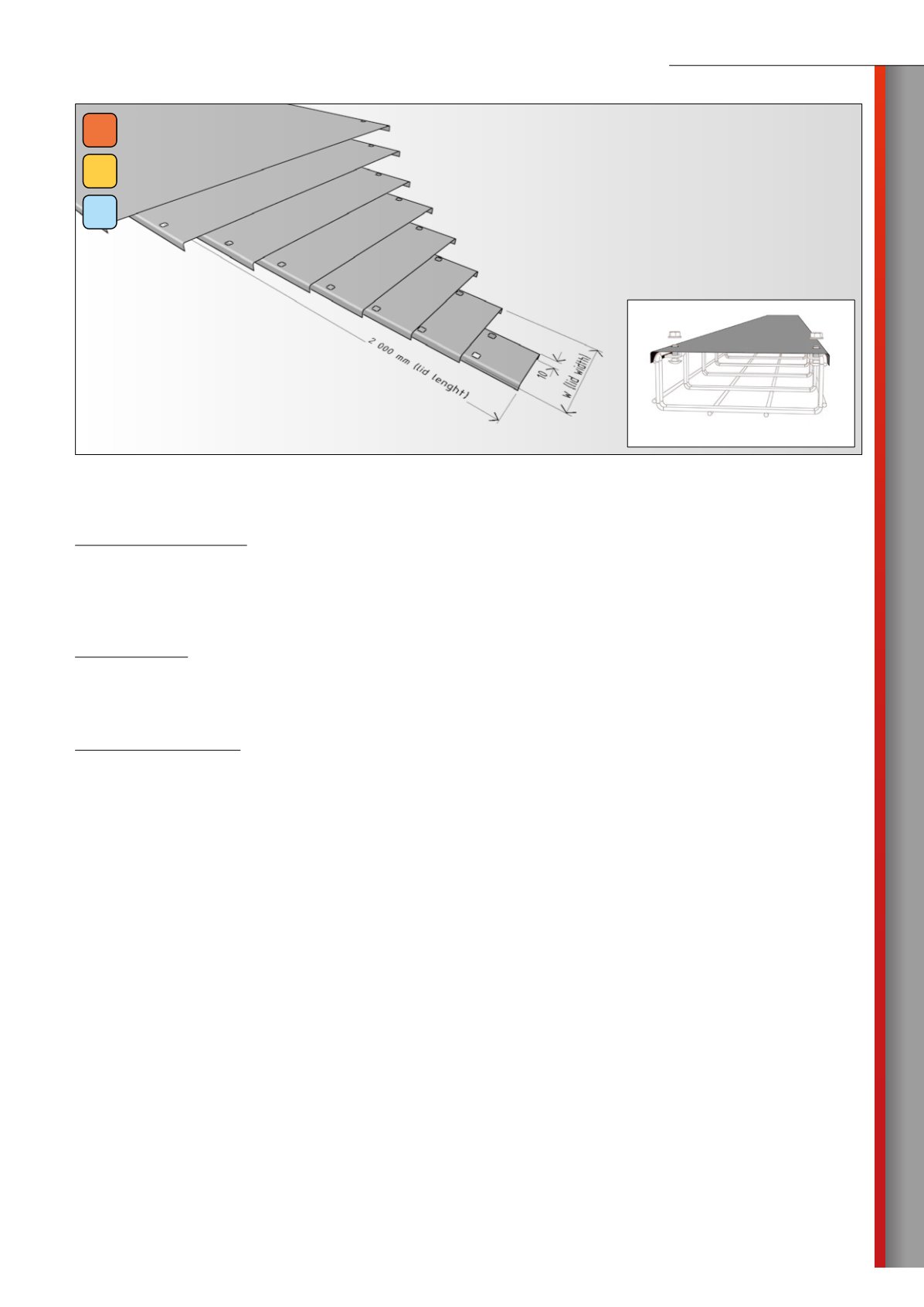

example of assembly
ZD
hot
zinc-dipped
SZ
sendzimirový
zinek
A2
stainless
AISI304L
Product: VZM mesh tray cover
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Specifications:
Material - steel or stainless steel wire AISI 304 “A2”
Surface finish (finish) – cold galvanized
- hot zinc dipped by dipping
- stainless AISI 304 “A2”
Use:
The VZM-series covers are used to cover the cable track to protect it against potential mechanical damage of the cables, as as well as for
outdoor protection against UV radiation.
Covers are fastened to mesh trays by means of SVM 1 couplings.
Specification:
Length - 2 000 mm
Width of cover – 61 - 511 mm (for cable mesh trays w. 50-500 mm)
Sheet thickness- 0,55 – 1,5 mm ( according to size of cable tray and surface finish)
Size of the fixing holes – 7 x 7 mm
product sheet
