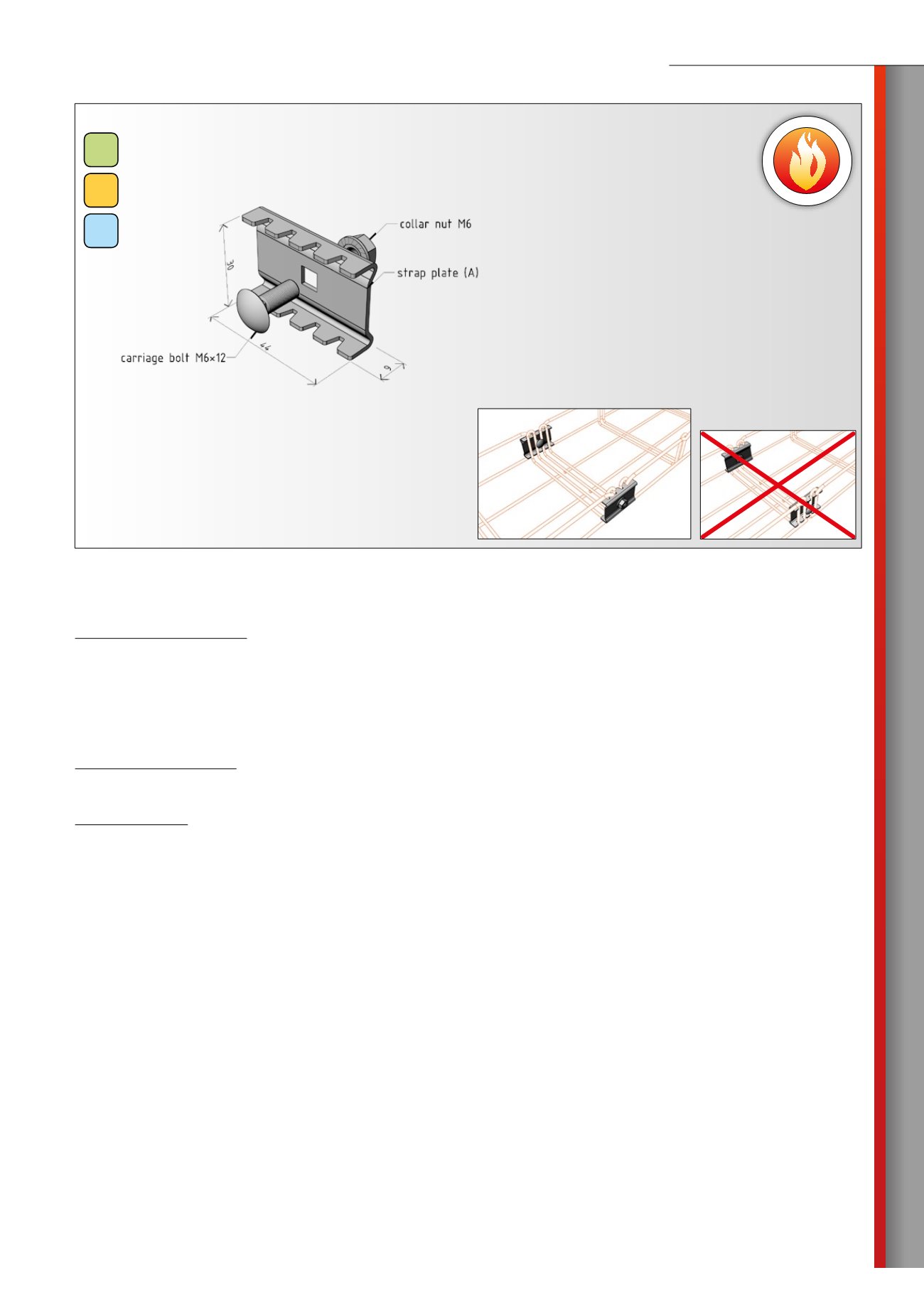

tray coupling
komponenty na obrázku jsou součástí balení
example of assembly
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
Product:
SZM 1 tray coupling for MERKUR 2 wire mesh cable trays
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Specifications:
Material of strap plates (A) – steel or stainless steel sheet AISI 304 “A2”
Povrchová úprava (provedení) příložky (A) - galvanicky pozinkováno
- žárově pozinkováno ponorem
- nerez AISI 304 „A2
Surface finish of the carriage bolt and collar nut – cold galvanized, geomet 500 or stainless steel AISI 304m „A2“
Popis spojky:
The coupling set consists of the body - a strap plate (A), carriage bolt M6x12 and collar nut M6.
Use:
The SZM 1 mesh tray coupling is the general splice of the MERKUR 2 system.
The SZM 1 coupling is convenient from the view of the Continuity according to ČSN EN 61537 ed.2 čl. 11.1.
