KPZm

tray partition

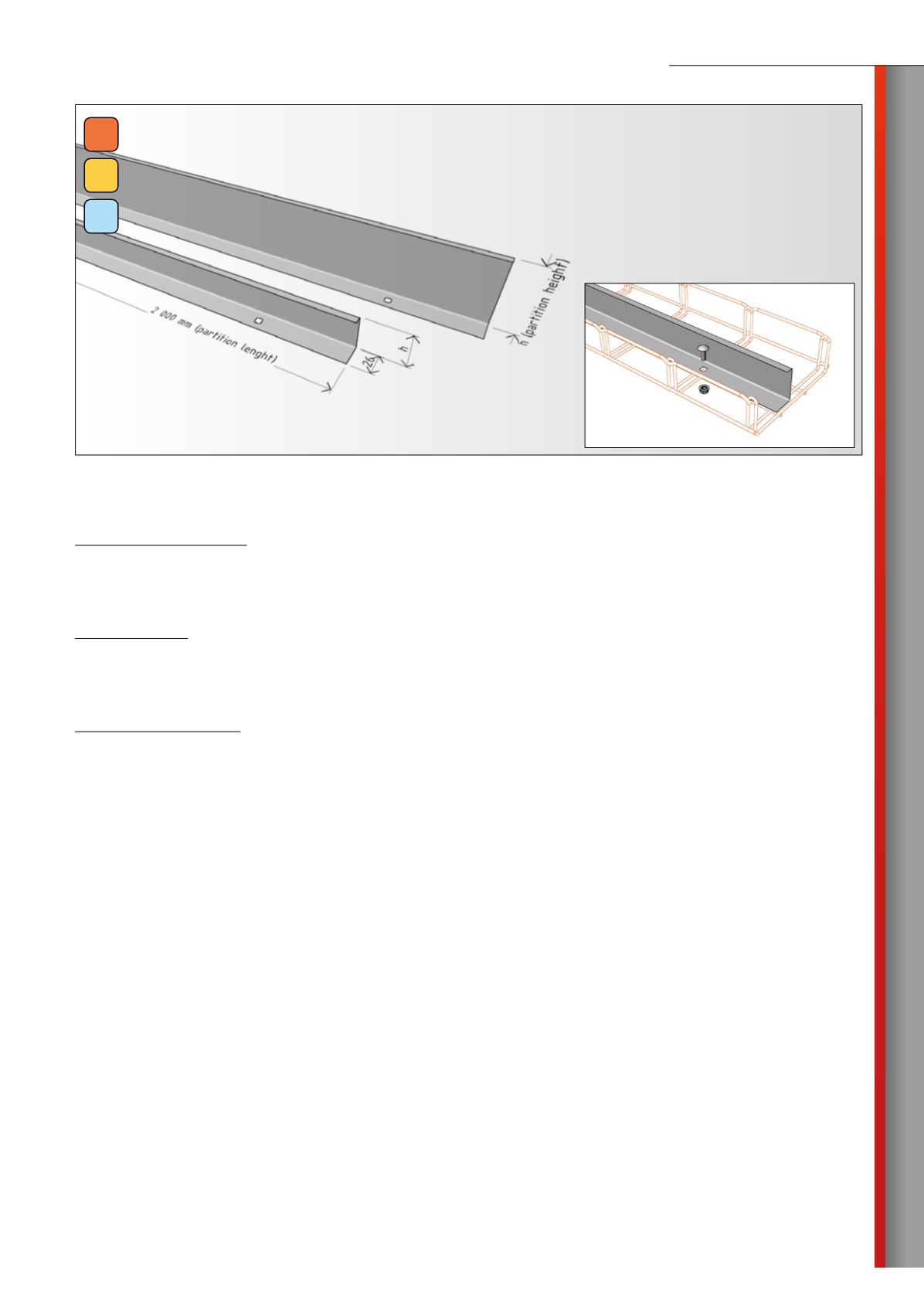

example of assembly

hot

zinc-dipped

sendzimirový

zinek

stainless

AISI304L

Product:

KPZM tray partition for Cable mesh trays

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Specifications:

Material - steel or stainless steel wire AISI 304 “A2”

Povrchová úprava (provedení) - sendzimirově zinkováno

- žárově pozinkováno ponorem

- nerez AISI 304 “A2”

Use:

The KPZM series partitions are used to divide the mesh tray into sections, e.g. to separate high current from low current circuits, or just

for a cleararrangement of the track.

Partitions are fastened to mesh trays by means of the connecting set SPM 1.

Specification:

Length - 2 000 mm

Width of partition – 43 - 93 mm (for cable mesh trays with sidewall height 50 and 100 mm)

Sheet thickness- 0,8 – 1,0 mm ( according to surface finish)

Size of the fixing holes – 7 x 7 mm

product sheet
