SZM 1-R

tray coupling | boltless coupling for fast assembly

components shown in the figure are included in the package

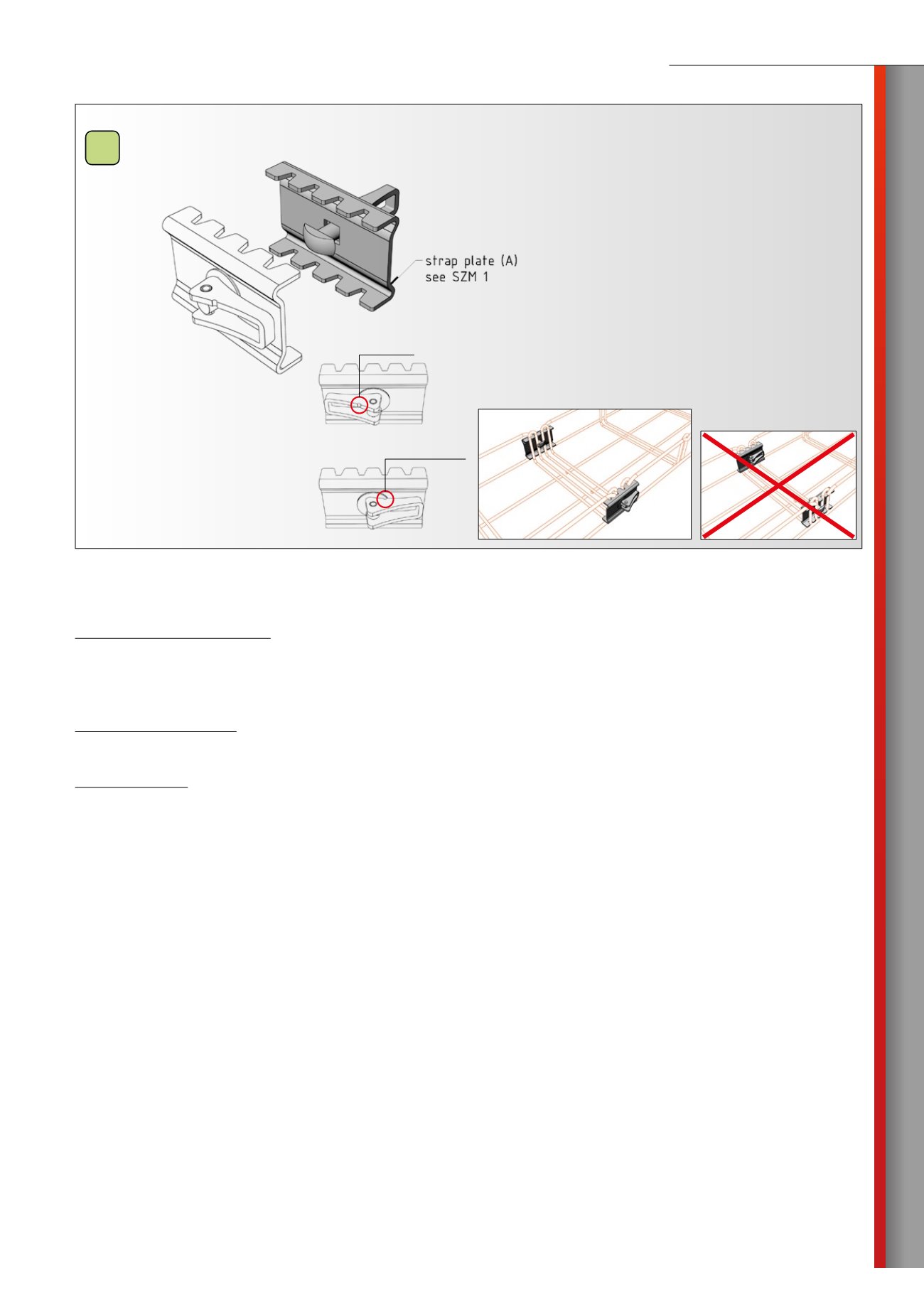

example of assembly

galvanic

zinc

M2 50-200/50

M2 100/100

M2 250-500/50

M2 150-500/100

Product:

SZM 1-R tray coupling / boltless coupling for fast assembly

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Technical features:

Material of strap plates (A) –steel sheet

Surface finish (finish) of strap plates (A) – cold galvanized

Surface finish (finish) of the clamping mechanism – cold galvanized

Popis spojky:

The coupling set consists of the body - a strap plate (A) and clamping mechanism.

Use:

SZM 1-R is a boltless quick coupling element, enabling to install the M2 system in an even shorter time and more comfortably.

product sheet
