profile set

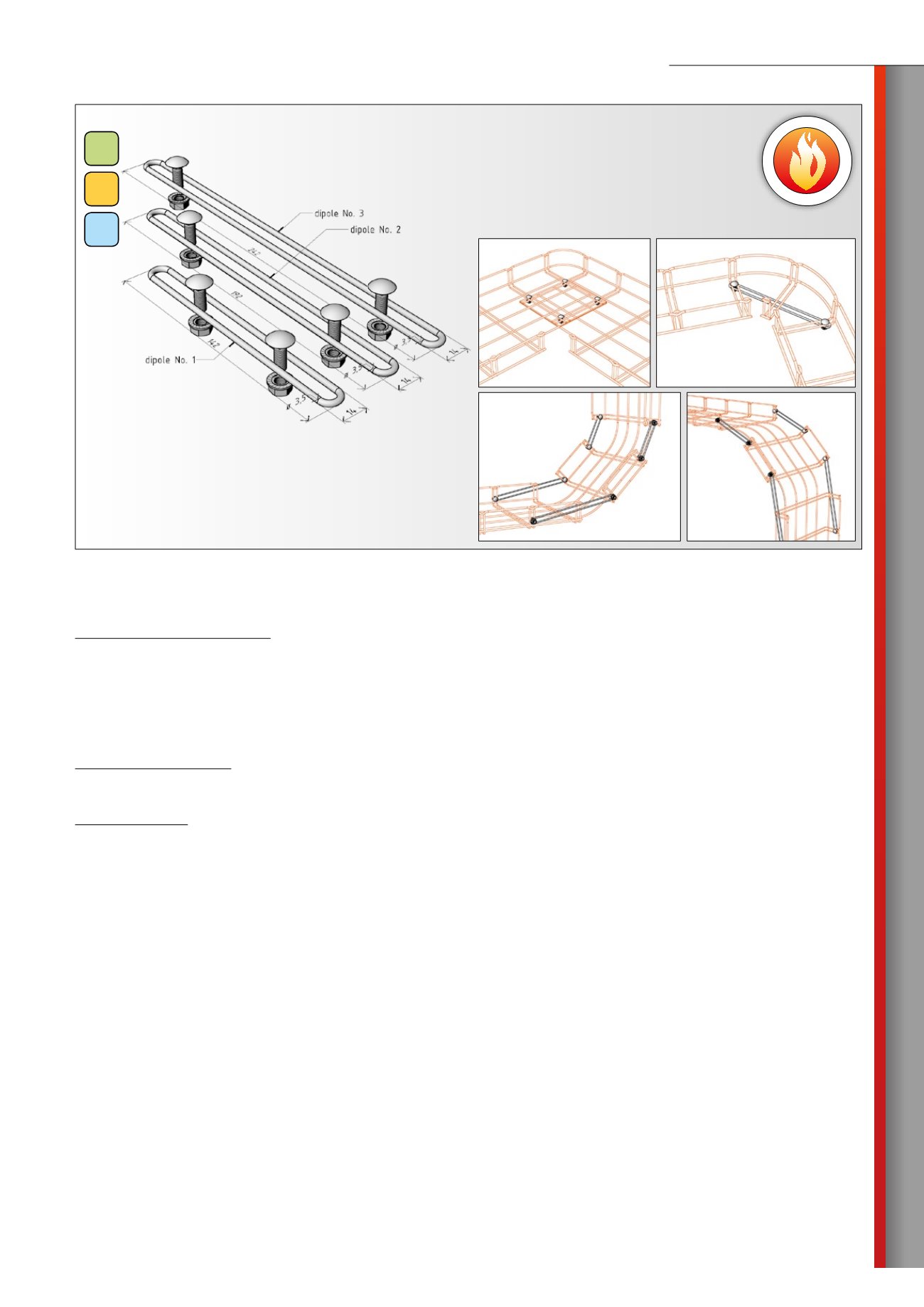

example of assembly
fig. 3
fig. 1
fig. 4
fig. 2
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
Product:
TSM 50-100 profile set for MERKUR 2 wire mesh cable trays
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel wire Ø3,5mm, AISI 304 “A2”
Surface finish (finish) – cold galvanized
- hot zinc dipped by dipping
- stainless AISI 304 “A2”
Surface finish of the carriage bolt and collar nut – cold galvanized, geomet 500 or stainless steel AISI 304m „A2“.
Description:
The TSM 50-100 profile set consists of Dipoles No. 1, 2, 3, carriage bolt M6x12 and collar nut M6.
Use:
It is used predominantly for shaping MERKUR 2 mesh trays. It serves for shaping inner and outer elbows.
components shown in the figure are included in the package
product sheet
