profile coupling

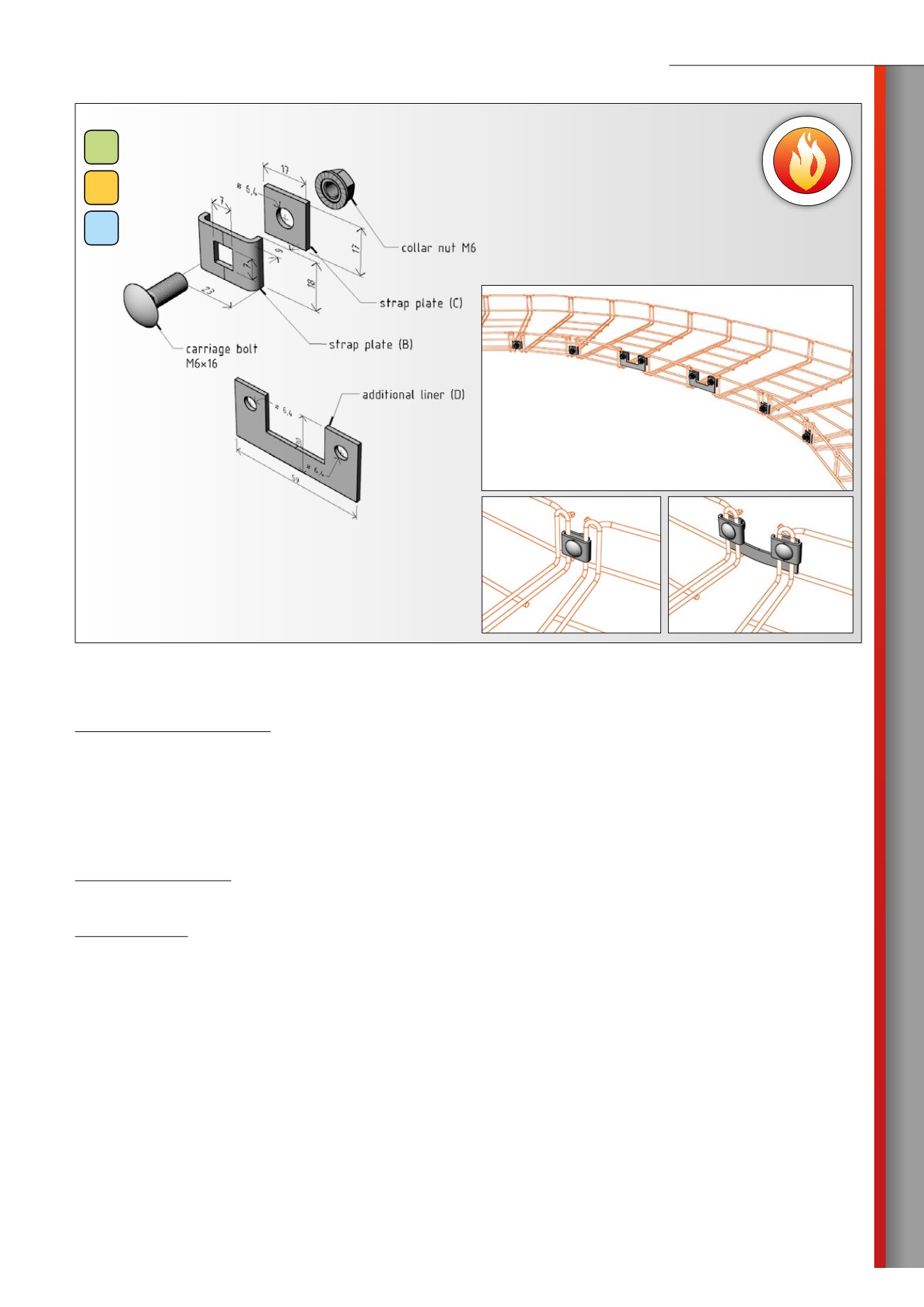

components shown in the figure are included in the package
example of assembly
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
Product:
SZM 4 profile coupling for MERKUR 2 wire mesh cable trays
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material of strap plates (B), (C) and (D) – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) of strap plates (B), (C) and (D) – cold galvanized
- hot zinc dipped by dipping
- stainless AISI 304 “A2”
Surface finish of the carriage bolt and collar nut – cold galvanized, geomet 500 or stainless steel AISI 304m „A2“.
Description:
The coupling set consists of of strap plate B, the main liner, the liners C and D, the carriage bolt M6x16 and collar nut M6.
Use:
The SZM 4 coupling is used to form elbows, T-pieces, mesh tray crossings and other branches, as needed on the cable track.
The SZM 4 coupling is convenient from the view of the Continuity according to ČSN EN 61537 ed.2 čl. 11.1.
