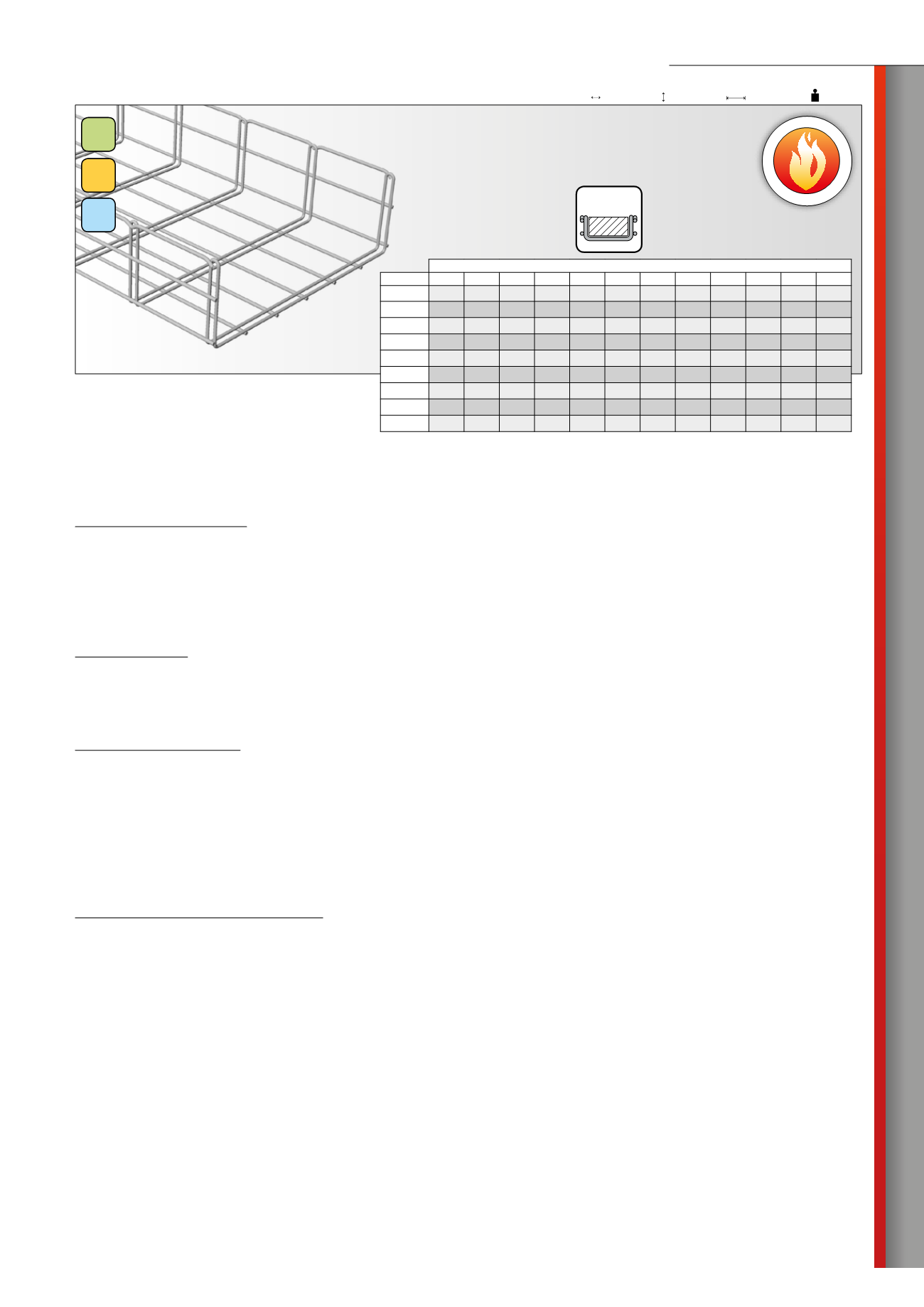

arkys@arkys.czkabelový žlab
M2 300/100
| 300 mm | 100 mm |
2000mm | 4,1 kg |
průměr kabelů [mm]
počet vrstev do 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I
28 ks 24 ks 18 ks 14 ks 11 ks 9 ks 8 ks 7 ks 6 ks 5 ks 5 ks 4 ks
II
56 ks 48 ks 36 ks 28 ks 22 ks 18 ks 16 ks 14 ks 12 ks
III
84 ks 72 ks 54 ks 42 ks 33 ks 27 ks
IV
112 ks 96 ks 72 ks 56 ks
V
140 ks 120 ks 90 ks
VI
168 ks 144 ks
VII
196 ks 168 ks
VIII
224 ks
IX
252 ks
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
S
ef
=
19 420
mm
2
effective mesh
tray section
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
Product:
Cable tray MERKUR 2
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Specifications:
Material - steel or stainless steel wire AISI 304 “A2”
Surface finish (finish) – cold galvanized
- hot zinc dipped by dipping
- stainless AISI 304 “A2”
Load capacity - according to CSN EN 61 537ed.2
Use:
MERKUR 2 Cable mesh trays are designed for the assembly of high current cable tracks for light circuits and motive current distribution,
low current circuits, measuring and control systems as well as for other media.
Specification:
Length - 2000 mm
Width – 300 mm
Sidewall height - 100 mm
OK Dimensions – 50x100 mm
Double crossbeam – wire Ø 4,0 mm
Runner – wire Ø 4,0 mm
Upper edge – wire Ø 4,0 mm
Certification
(www.arkys.cz):
ES Declaration of Conformity
Certificate Declaration of performance of construction product MERKUR 2
Certificate od product
Compliance certificate GOST R authorizing imports and installations of the M2 system on the territory of the Russian Federation
Load test protocol
Test Protocol of Electric Continuity according to ČSN EN 61537 ed.2 čl. 11.1
Test of freezeproof
Protocol of the EMC test
Test the effects of salt mist according to ČSN 34 5791-2-11:1992+Z1:2000
Fire classification certificates - P 90-R a PH 120-R according to ZP 27/2008 PAVUS a.s.
E 90 according to DIN 4102-12:1998-11
PS 90 according to STN 92 0205:2012
product sheet
