arkys@arkys.czPZMP 300
support, fire resistant
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d

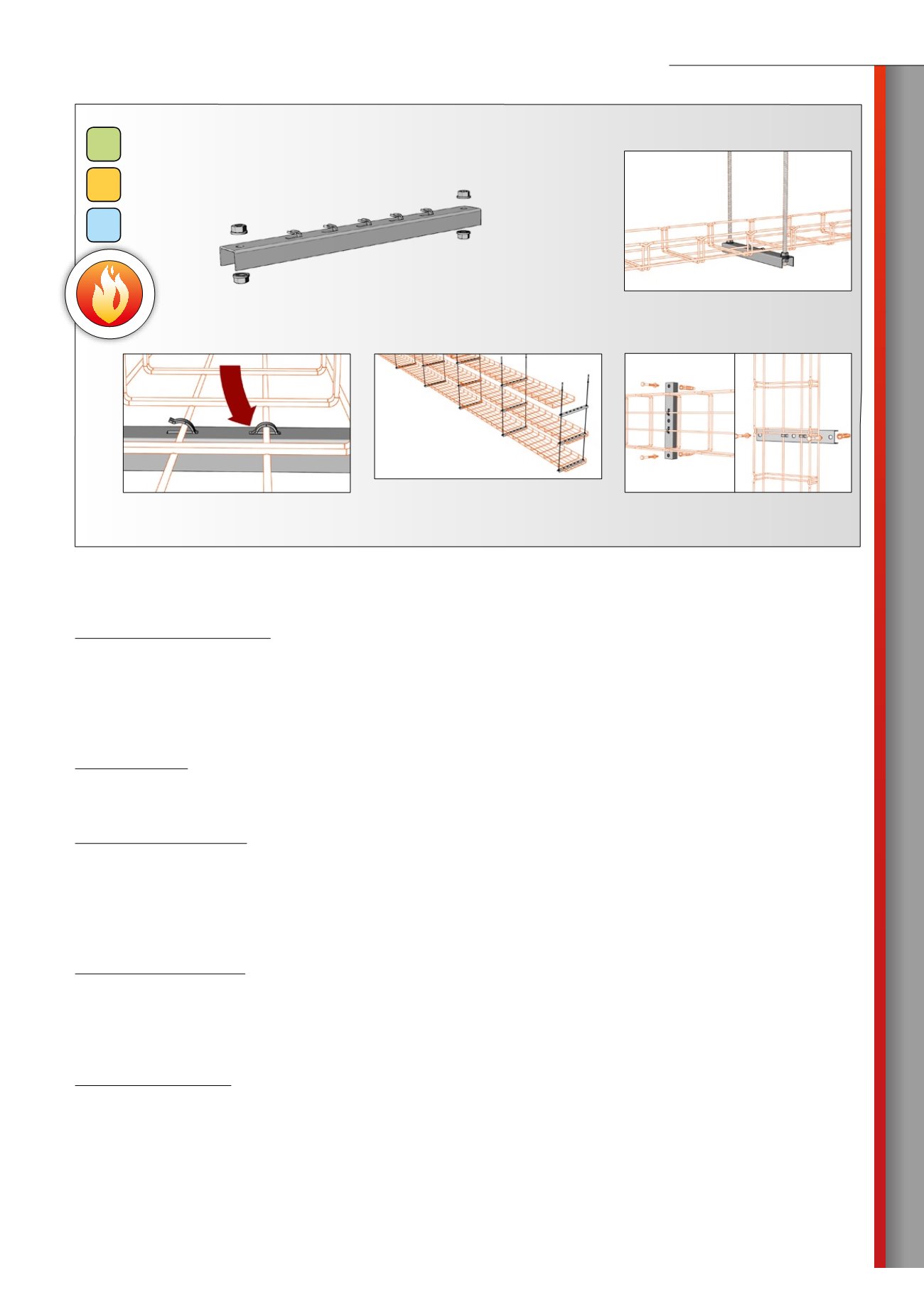

Product:
PZMP 300 support
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of the Collar nuts – cold galvanized, geomet 500 or stainless AISI 304
Use:
The PZMP series supports are tested for fire resistance according temperature curves P and PH. In combination with M8 threaded rods
they are used as bearing elements in fire resistant spatial installation of cable tracks.
Specifications:
Length – 365 mm
Height – 22 mm
Width - 32 mm
Hole spacing (for threaded rods M8) – 335 mm
Sheet thickness – 2,0 mm
Load capacity:
150 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The PZMP 300 support is designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional connecti-
ng parts. In the support are two holes Ø 8,4 mm for easy fixing to the threaded rods M8.
The Collar nuts M8 are included in the package of the supports (4 pcs).
components shown in the figure are included in the package
Mounting on threaded rod pairs
Serves for suspended cable tracks anchored
directly into the ceiling.
Attaching the mesh trays to the supports
Mesh trays placed on supports are attached
by bending the grip as shown in the figure.
Suspended mounting
The threaded rods can carry multiple cable
tracks above one another. The trays may have
various widths, up to the full support capacity.
horizontal
vertical
Wall mounting
Serves for wall mounted cable routes.
product sheet
