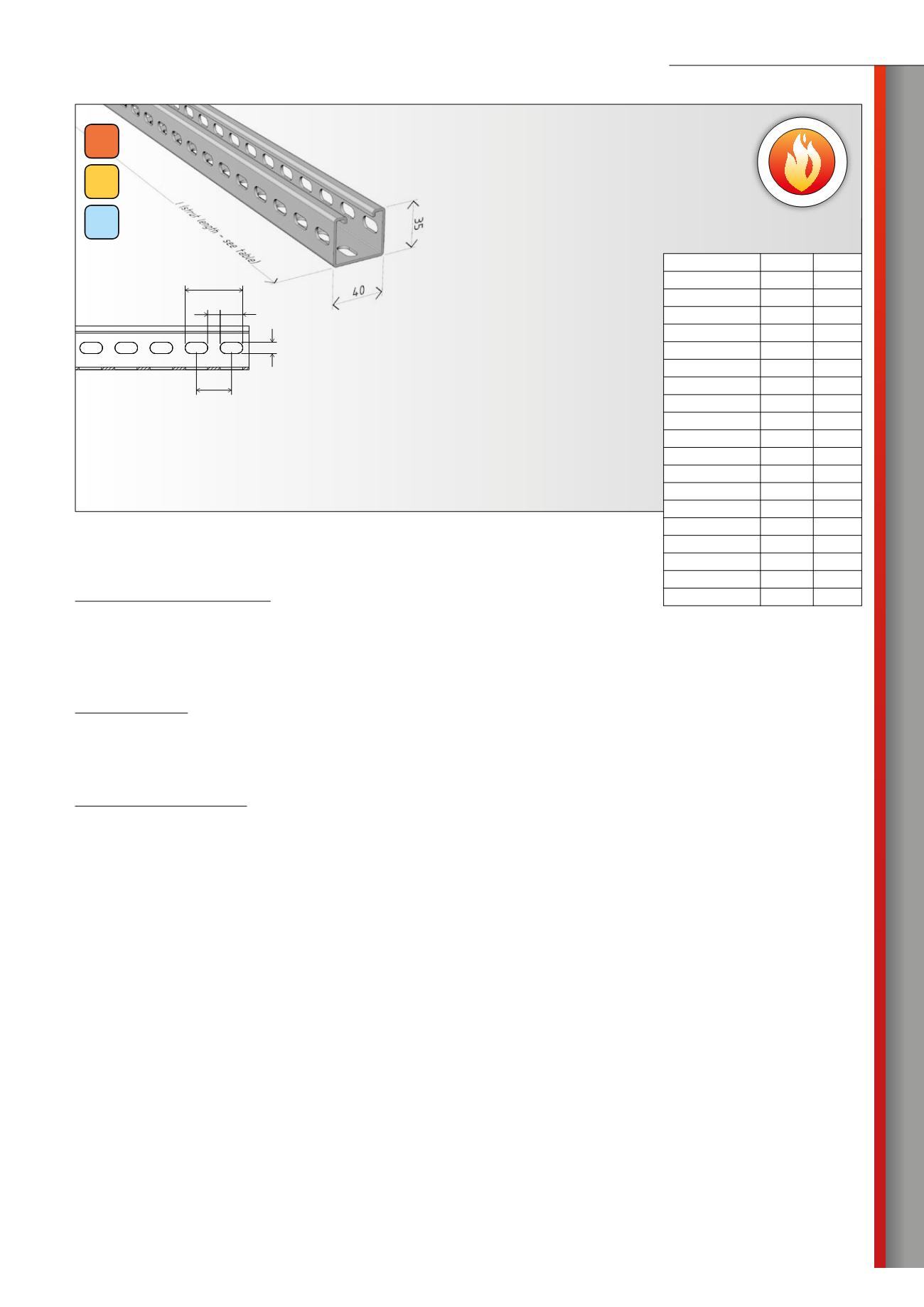

Spatial strut STPM (2,0 mm)
strut lenght
[mm]
weight
[kg/pc]
STPM 1200 (2,0mm) 1 200 mm 1,96 kg
STPM 1300 (2,0mm) 1 300 mm 2,05 kg
STPM 1400 (2,0mm) 1 400 mm 2,14 kg
STPM 1500 (2,0mm) 1 500 mm 2,31 kg
STPM 1600 (2,0mm) 1 600 mm 2,43 kg
STPM 1700 (2,0mm) 1 700 mm 2,65 kg
STPM 1800 (2,0mm) 1 800 mm 2,78 kg
STPM 1900 (2,0mm) 1 900 mm 2,90 kg
STPM 2000 (2,0mm) 2 000 mm 3,10 kg
STPM 2100 (2,0mm) 2 100 mm 3,21 kg
STPM 2200 (2,0mm) 2 200 mm 3,38 kg
STPM 2300 (2,0mm) 2 300 mm 3,52 kg
STPM 2400 (2,0mm) 2 400 mm 3,66 kg
STPM 2500 (2,0mm) 2 500 mm 3,81 kg
STPM 2600 (2,0mm) 2 600 mm 3,98 kg
STPM 2700 (2,0mm) 2 700 mm 4,09 kg
STPM 2800 (2,0mm) 2 800 mm 4,22 kg
STPM 2900 (2,0mm) 2 900 mm 4,39 kg
STPM 3000 (2,0mm) 3 000 mm 4,50 kg
STPM 6000 (2,0mm) 6 000 mm 9,00 kg
9
14 11
25
39
SZ
sendzimirovýzinek
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Product: Spatial strut STPM (2,0 mm)
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material - steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The spatial struts of the STPM series are used for creating carrying structures for cable tracks.
The anchoring to the horizontal parts of the structure is made in combination with DZM STP or DZM STPU holders.
In the next step the NZM series cantilevers are installed as needed. The end of the strut can be closed by cap 0K 2 for safety.
Specifications:
Length – 1 200 – 6 000 mm (according to type of strut)
Width – 40 mm
Height - 35 mm
Sidewall thickness – 2,0 mm
Fireresistance tested
