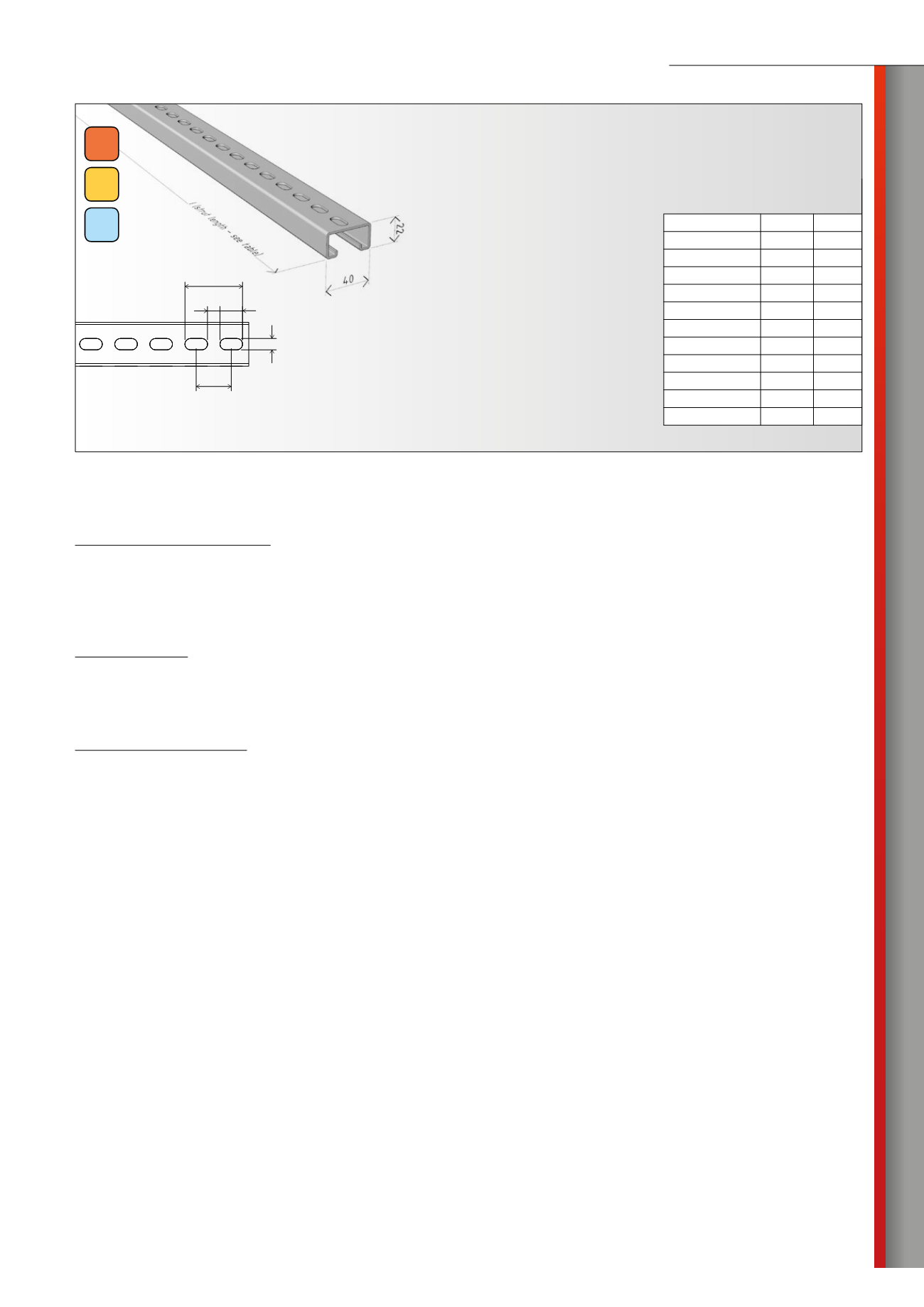

Wall strut STNM (1,5 mm)
strut lenght
[mm]
weight
[kg/pc]
STNM 200 (1,5mm) 200 mm 0,24 kg
STNM 250 (1,5mm) 250 mm 0,30 kg
STNM 300 (1,5mm) 300 mm 0,36 kg
STNM 400 (1,5mm) 400 mm 0,54 kg
STNM 500 (1,5mm) 500 mm 0,61 kg
STNM 600 (1,5mm) 600 mm 0,73 kg
STNM 700 (1,5mm) 700 mm 0,83 kg
STNM 800 (1,5mm) 800 mm 0,97 kg
STNM 900 (1,5mm) 900 mm 1,09 kg
STNM 1000 (1,5mm) 1 000 mm 1,21 kg
STNM 1100 (1,5mm) 1 100 mm 1,35 kg
STNM 3000 (1,5mm) 3 000 mm 3,50 kg
9
14 11
25
39
SZ
sendzimirový
zinek
ZDhot
zinc-dipped
A2
stainless
AISI304L
Product: Wall strut STPM (1,5 mm)
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material - steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The struts of the STNM series are used for wall mounting of cable tracks in places where the anchoring forces should be distributed in
poor quality masonry.
Additional cable tracks can be installed any time by using rectangular nuts MSM/M6-M8 and fixing plate PVM (sliding installation).
Specifications:
Length – 200-3 000 mm (according to type of strut)
Width – 40 mm
Height - 22 mm
Sidewall thickness – 1,5 mm
product sheet
