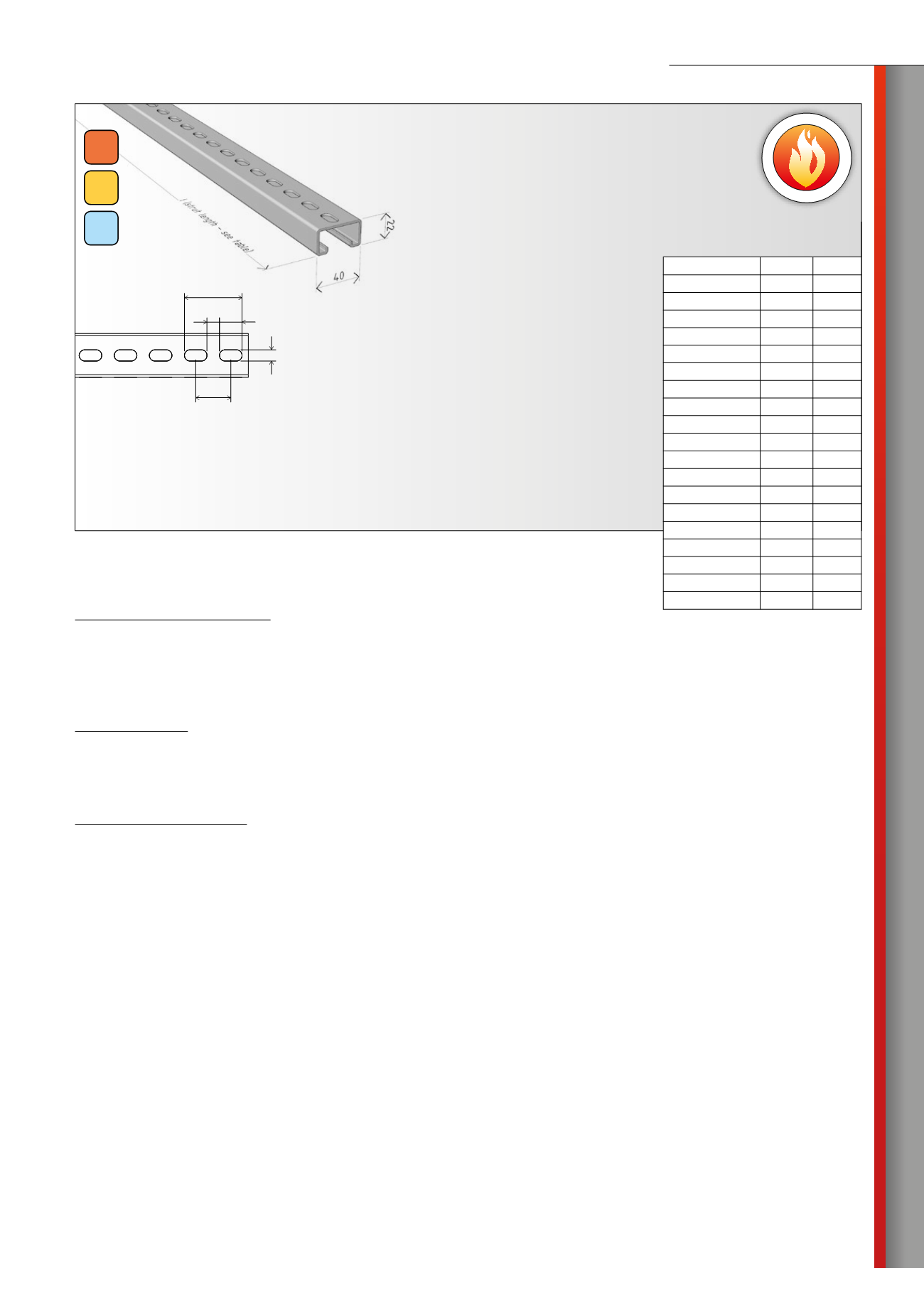

Wall strut STNM (2,0 mm)
strut lenght
[mm]
weight
[kg/pc]
STNM 1200 (2,0mm) 1 200 mm 2,04 kg
STNM 1300 (2,0mm) 1 300 mm 2,14 kg
STNM 1400 (2,0mm) 1 400 mm 2,24 kg
STNM 1500 (2,0mm) 1 500 mm 2,41 kg
STNM 1600 (2,0mm) 1 600 mm 2,54 kg
STNM 1700 (2,0mm) 1 700 mm 2,77 kg
STNM 1800 (2,0mm) 1 800 mm 2,90 kg
STNM 1900 (2,0mm) 1 900 mm 3,03 kg
STNM 2000 (2,0mm) 2 000 mm 3,24 kg
STNM 2100 (2,0mm) 2 100 mm 3,36 kg
STNM 2200 (2,0mm) 2 200 mm 3,53 kg
STNM 2300 (2,0mm) 2 300 mm 3,67 kg
STNM 2400 (2,0mm) 2 400 mm 3,82 kg
STNM 2500 (2,0mm) 2 500 mm 3,98 kg
STNM 2600 (2,0mm) 2 600 mm 4,16 kg
STNM 2700 (2,0mm) 2 700 mm 4,27 kg
STNM 2800 (2,0mm) 2 800 mm 4,39 kg
STNM 2900 (2,0mm) 2 900 mm 4,51 kg
STNM 3000 (2,0mm) 3 000 mm 4,70 kg
STNM 6000 (2,0mm) 6 000 mm 9,40 kg
9
14 11
25
39
SZ
sendzimirový
zinek
ZD
hot
zinc-dipped
A2stainless
AISI304L
Product: Wall strut STPM (2,0 mm)
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material - steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The struts of the STNM series are used for wall mounting of cable tracks in places where the anchoring forces should be distributed in
poor quality masonry.
Additional cable tracks can be installed any time by using rectangular nuts MSM/M6-M8 and fixing plate PVM (sliding installation).
Specifications:
Length – 1 200-6 000 mm (according to type of strut)
Width – 40 mm
Height - 22 mm
Sidewall thickness – 2,0 mm
Fireresistance tested
