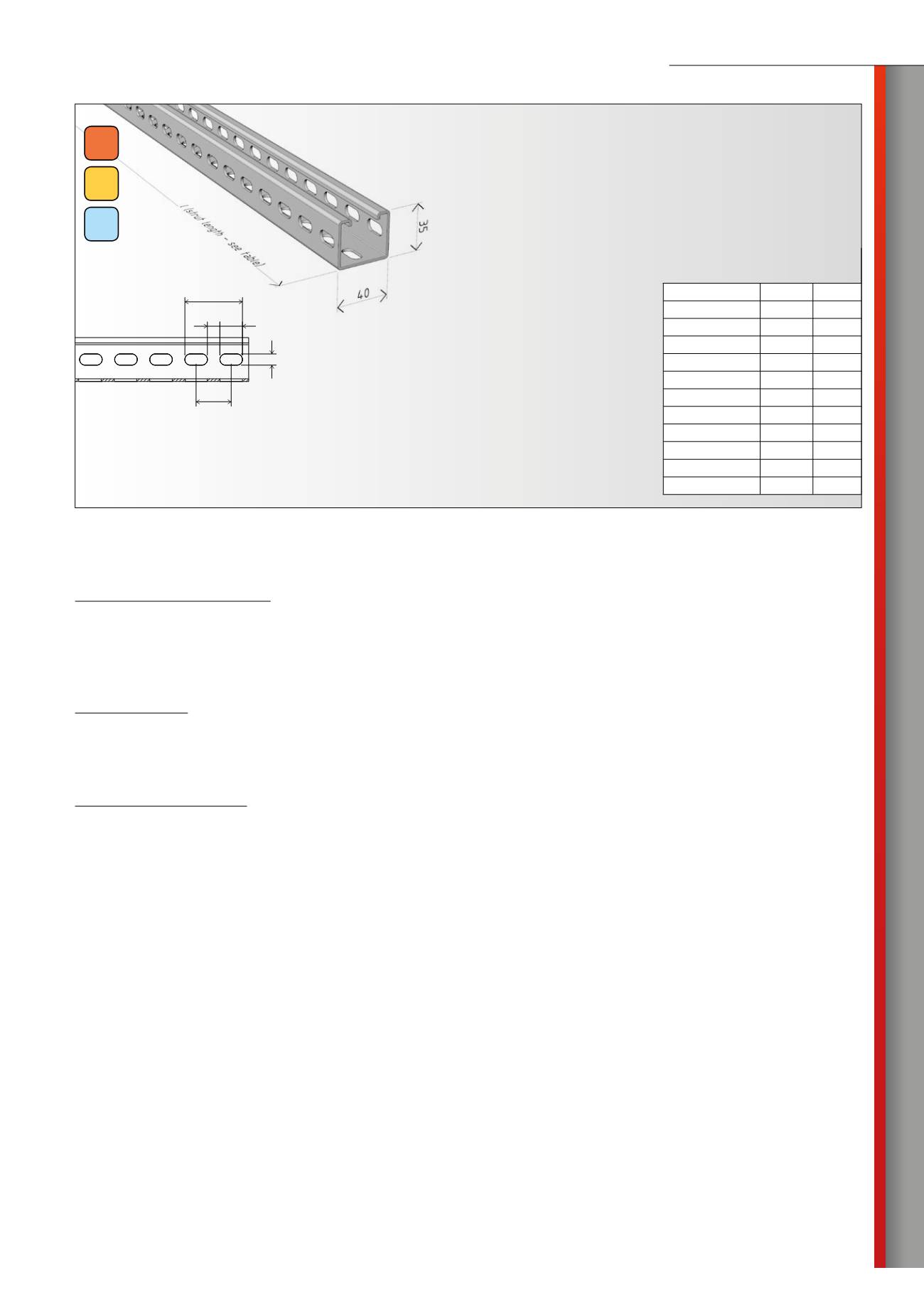

Spatial strut STPM (1,5 mm)
strut lenght
[mm]
weight
[kg/pc]
STPM 200 (1,5mm) 200 mm 0,24 kg
STPM 250 (1,5mm) 250 mm 0,30 kg
STPM 300 (1,5mm) 300 mm 0,36 kg
STPM 400 (1,5mm) 400 mm 0,54 kg
STPM 500 (1,5mm) 500 mm 0,61 kg
STPM 600 (1,5mm) 600 mm 0,73 kg
STPM 700 (1,5mm) 700 mm 0,83 kg
STPM 800 (1,5mm) 800 mm 0,97 kg
STPM 900 (1,5mm) 900 mm 1,09 kg
STPM 1000 (1,5mm) 1 000 mm 1,21 kg
STPM 1100 (1,5mm) 1 100 mm 1,35 kg
STPM 3000 (1,5mm) 3 000 mm 3,50 kg
9
14 11
25
39
SZ
sendzimirový
zinek
ZDhot
zinc-dipped
A2stainless
AISI304L
Product: Spatial strut STPM (1,5 mm)
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material - steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The spatial struts of the STPM series are used for creating carrying structures for cable tracks.
The anchoring to the horizontal parts of the structure is made in combination with DZM STP or DZM STPU holders.
In the next step the NZM series cantilevers are installed as needed. The end of the strut can be closed by cap 0K 2 for safety.
Specifications:
Length – 200 – 3 000 mm (according to type of strut)
Width – 40 mm
Height - 35 mm
Sidewall thickness – 1,5 mm
