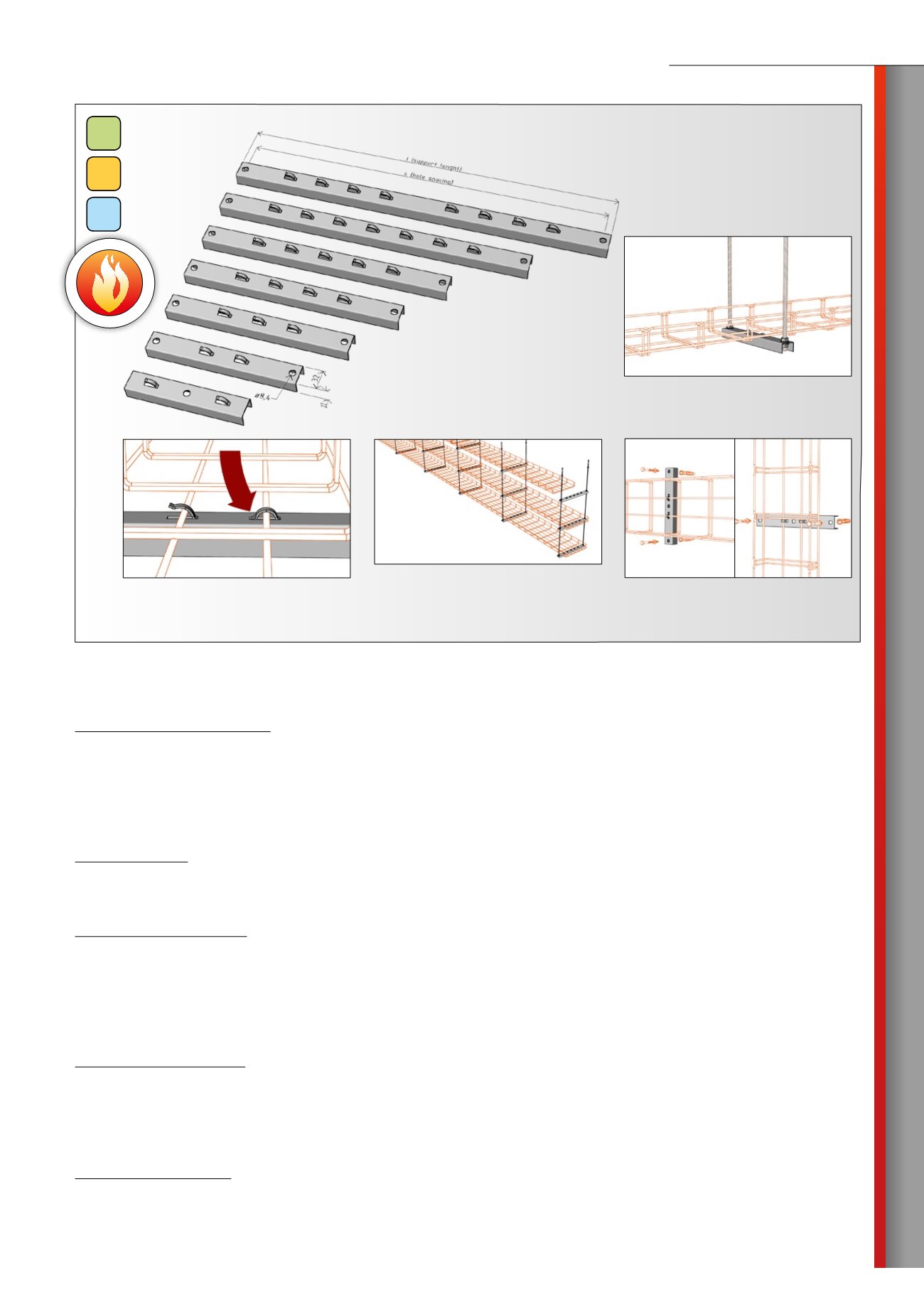

support, fire resistant
Mounting on threaded rod pairs
Serves for suspended cable tracks anchored
directly into the ceiling.
Attaching the mesh trays to the supports
Mesh trays placed on supports are attached
by bending the grip as shown in the figure.
Suspended mounting
The threaded rods can carry multiple cable
tracks above one another. The mesh trays
may have various widths, up to the full support
capacity.
horizontal
vertical
Wall mounting
Serves for wall mounted cable routes.
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
Product:
PZMP-series supports
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of the Collar nuts – cold galvanized, geomet 500 or stainless AISI 304
Use:
The PZMP series supports are tested for fire resistance at 842°C/120 min. In combination with M8 threaded rods they are used as bearing
elements in fire resistant spatial installation of cable tracks.
Specifications:
Length – 130-565 mm (according to type of support)
Height – 22 mm
Width - 32 mm
Hole spacing (for threaded rods M8) – 185-535 mm (according to type of support)
Sheet thickness – 2,0 mm
Load capacity:
150 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The PZMP-series supports are designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional
connecting parts. In the support are two holes Ø 8,4 mm (type PZMP 100-1 hole) for easy fixing to the threaded rods M8.
The Collar nuts M8 are included in the package of the supports (2 or 4 pcs according to type of support).
