Product:
PZM 300 support
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of the Collar nuts – cold galvanized, geomet 500 or stainless AISI 304
Use:
The PZM series supports are used in combination with pairs of M8 threaded rods as bearing elements in vertical cable track installations.
However, they can also be used for wall mounting or, in combination with the DZM 14 holder, for floor mounting.
Specifications:
Length – 365 mm
Height – 20 mm
Width - 30 mm
Hole spacing (for threaded rods M8) – 335 mm
Sheet thickness – 1,0 mm
Load capacity:
150 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The PZM 300 support is designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional connecting
parts. In the support are two holes Ø 8,4 mm for easy fixing to the threaded rods M8.
The Collar nuts M8 are included in the package of the supports (4 pcs).

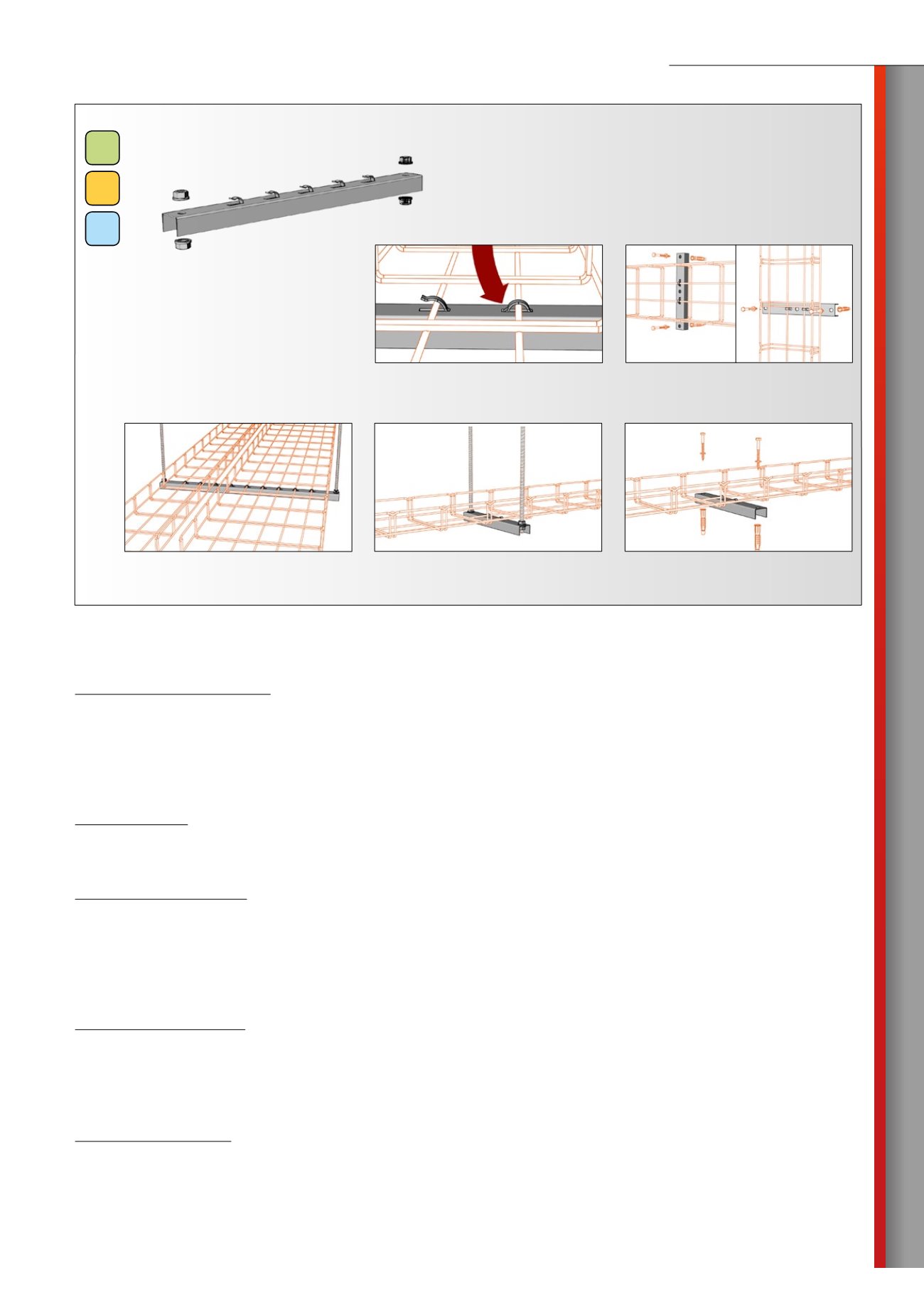

components shown in the figure are included in the package
Floor mounting
Serves for horizontal cable tracks anchored
directly into the floor.
Mounting on threaded rod pairs
Serves for suspended cable tracks anchored
directly into the ceiling.
Attaching the mesh trays to the supports
Mesh trays placed on supports are attached
by bending the grip as shown in the figure.
Multiple route assembly
Multiple mesh trays can be attached to the
supports, up to the full capacity of each support.
horizontal
vertical
Wall mounting
Serves for wall mounted cable routes.
