kabelový žlab

M2 250/50

| 250 mm | 50 mm |

2000mm | 3,0 kg |

průměr kabelů [mm]

počet vrstev do 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60

I

23 ks 19 ks 14 ks 11 ks 9 ks 7 ks 6 ks 5 ks 5 ks 4 ks x

x

II

46 ks 38 ks 28 ks 22 ks 18 ks

III

69 ks 57 ks

IV

92 ks

GZ

galvanic

zinc

ZD

hot

zinc-dipped

A2

stainless

AISI304L

S

ef

=

7 620

mm

2

effective mesh

tray section

F

i

r

e

r

e

s

i

s

t

a

n

c

e

t

e

s

t

e

d

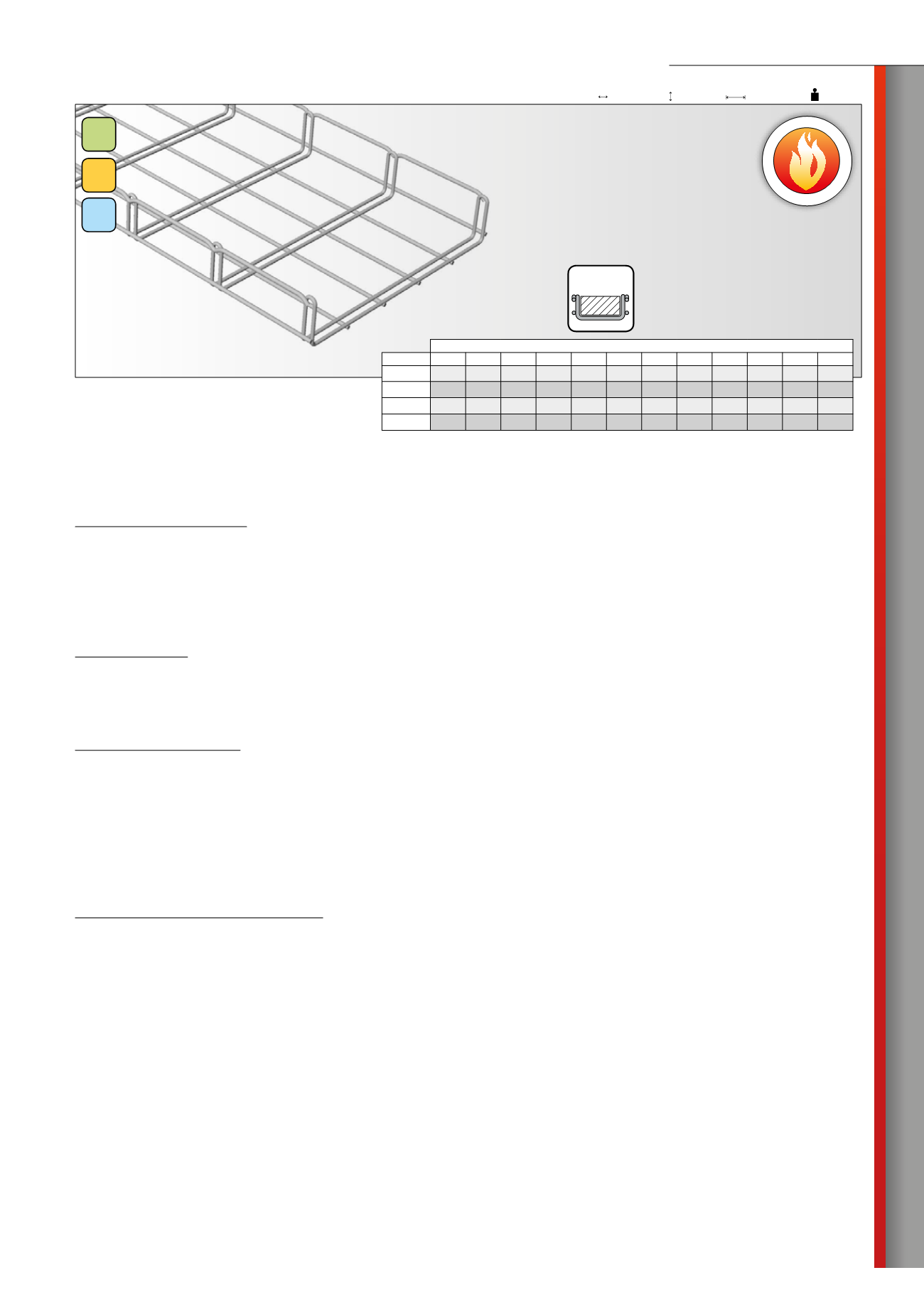

Product:

Cable tray MERKUR 2

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Specifications:

Material - steel or stainless steel wire AISI 304 “A2”

Surface finish (finish) – cold galvanized

- hot zinc dipped by dipping

- stainless AISI 304 “A2”

Load capacity - according to CSN EN 61 537ed.2

Use:

MERKUR 2 Cable mesh trays are designed for the assembly of high current cable tracks for light circuits and motive current distribution,

low current circuits, measuring and control systems as well as for other media.

Specification:

Length - 2000 mm

Width – 250 mm

Sidewall height - 50 mm

OK Dimensions – 50x100 mm

Double crossbeam – wire Ø 4,0 mm

Runner – wire Ø 4,0 mm

Upper edge – wire Ø 4,0 mm

Certification

(www.arkys.cz)

:

ES Declaration of Conformity

Certificate Declaration of performance of construction product MERKUR 2

Certificate od product

Compliance certificate GOST R authorizing imports and installations of the M2 system on the territory of the Russian Federation

Load test protocol

Test Protocol of Electric Continuity according to ČSN EN 61537 ed.2 čl. 11.1

Test of freezeproof

Protocol of the EMC test

Test the effects of salt mist according to ČSN 34 5791-2-11:1992+Z1:2000

Fire classification certificates - P 90-R a PH 120-R according to ZP 27/2008 PAVUS a.s.

E 90 according to DIN 4102-12:1998-11

PS 90 according to STN 92 0205:2012

product sheet
